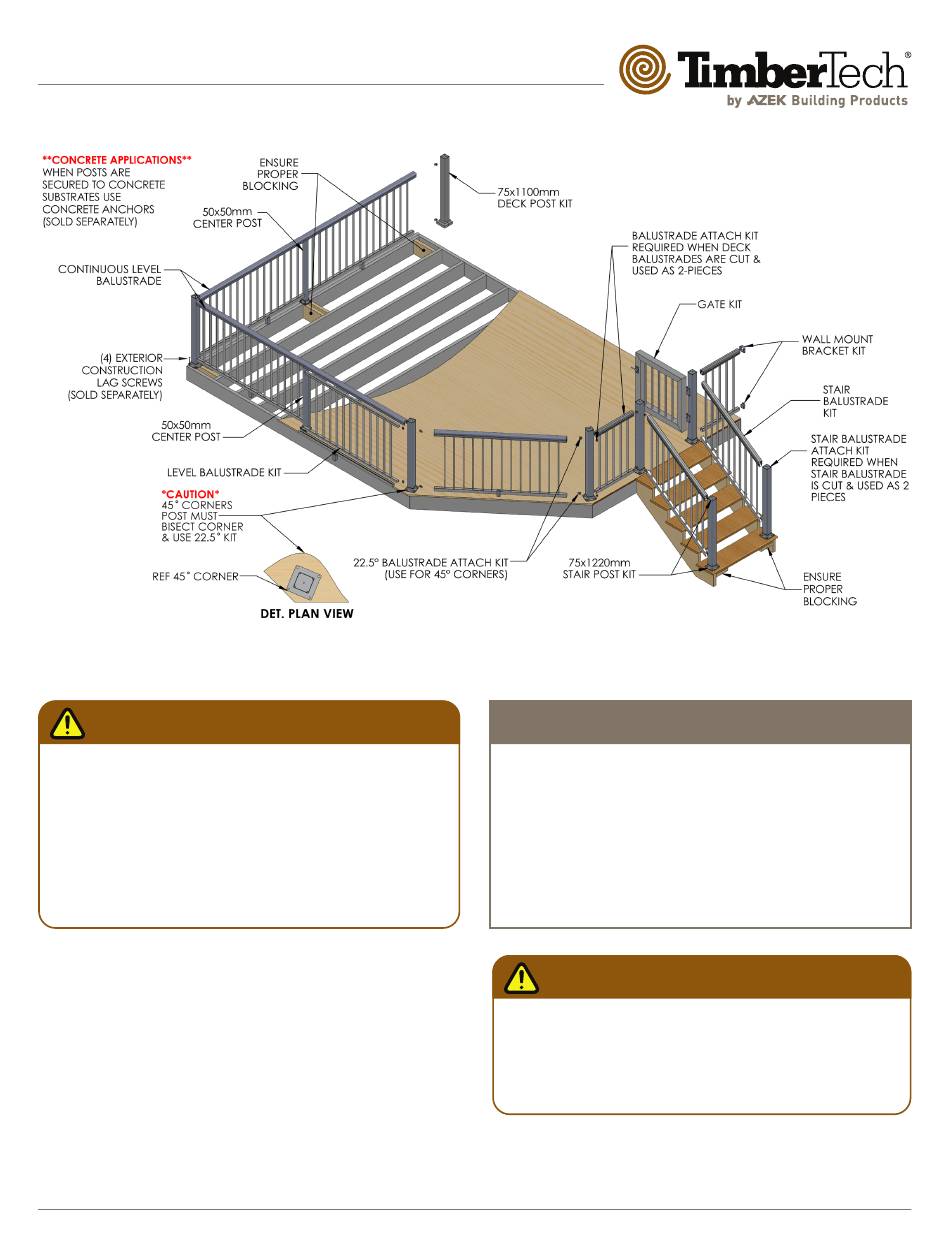

Installing Impression Rail
Aluminium Balustrade System
Important Note:
Prior to construction, check with your local regulatory
agency for special code requirements in your area.
Common balustrade height is 1100mm. Post spans will vary
depending on job site conditions. Never span more than 2440mm
on-center between balustrade posts. Spans longer than 3660mm
in length will require reduced post spans. For all other applications,
consult a design professional or an AZEK balustrade representative
for more information. Read instructions completely to get an
understanding of how the product goes together and how each piece
affects the other.
Visit www.timbertech.com.au/installation to view
installation videos.
Consult your local building codes for guard and handrail
requirements.
Express
™
Suggested Tools:
• Appropriate fasteners
• Miter saw with carbide-
• Cordless drill
• Tape measure
Page 3
for mounting posts to
deck
tipped non-ferrous
blade
Important Note:
Actual Level Balustrade Lengths Are As Follows:
• 1830mm Balustrades = 1765mm
• 2440mm Balustrades = 2320mm
• 75mm x 75mm posts are required to reach
1830mm & 2440mm lengths
• Level
• Power cords, drop
sheets and safety
glasses
• 5mm Drill bit
• 150mm #2 Square drive
bit
• Installation jig (optional)
