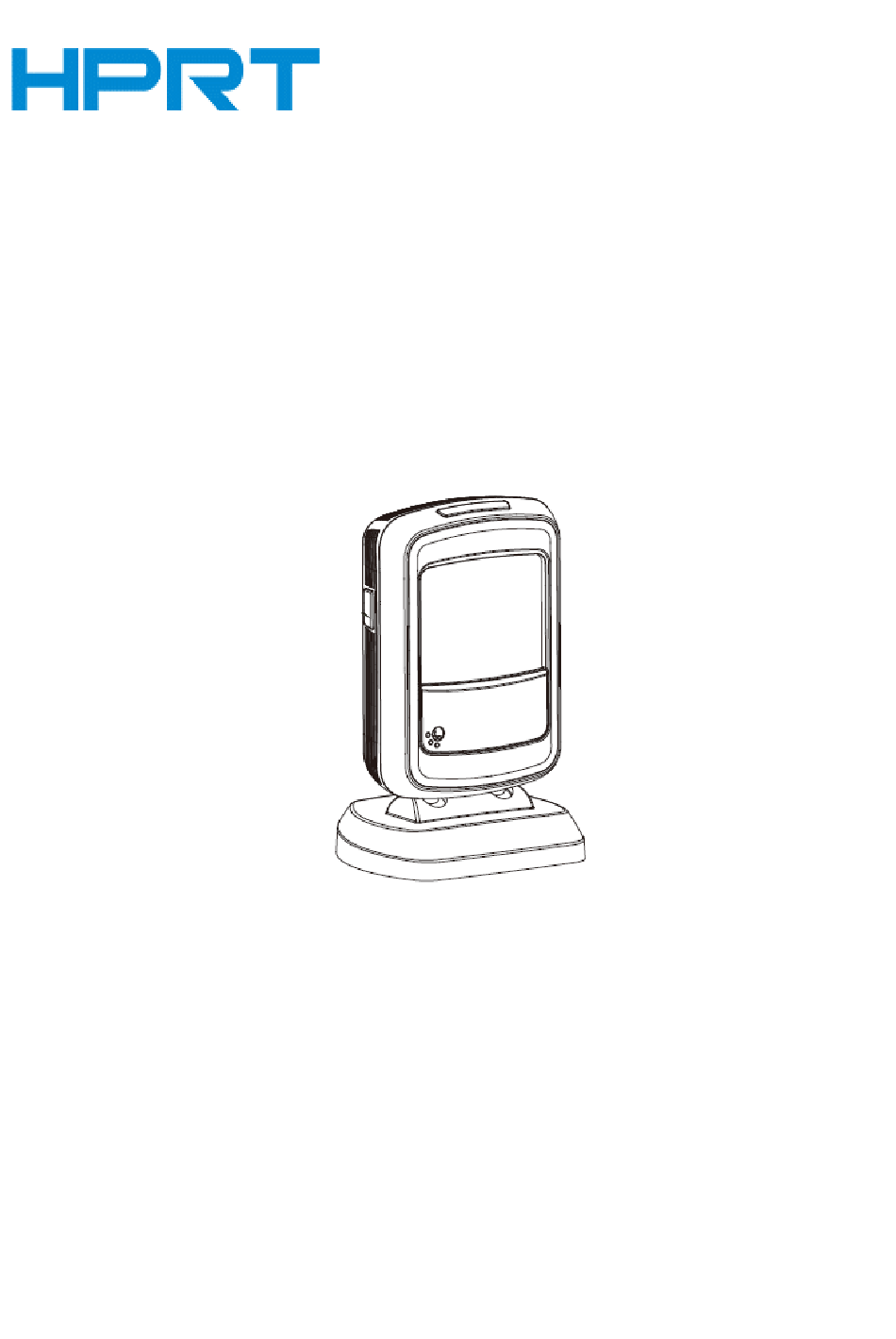

- Page 1 Stationary Barcode Scanner P200 User Manual Xiamen Hanin Electronic Technology Co.,Ltd. ADD: 5F, 10# Building, Aide Airport Industrial Park, Huli District, Xiamen, China WEB: www.hprt.com Rev.1.2...
- Page 2 Disclaimer Please read all the contents of the manual carefully before using the products described in this manual to ensure the safe and effective use of the products. After reading, please keep this manual properly for the next time you use it. Do not disassemble or tear the sealed bidding of the scanner on your own, otherwise our company shall not assume the responsibility of warranty or replacement of the scanner.
- Page 3 Change Record Rev. Date Description 2019.07.23 2020.02.10 Change the model of N200 to P200 2020.06.10 Add HPRT logo...
-
Page 4: Table Of Contents
CONTENT Chapter 1 Introduction ............................1 1.1 Appearance and Dimension ........................2 1.2 Scanner Data Cable Interface Definition ....................3 1.3 Power on, Power off and Restart ......................4 1.4 Maintenance ............................4 1.5 Communication Interface ........................5 1.6 Barcode Recognition ..........................6 1.7 Use the Setting Barcode ......................... - Page 5 Chapter 7 Troubleshooting ..........................44 Chapter 8 Scanner Settings ..........................45 8.1 Global settings (default HID once scan mode) ..................46 8.2 Virtual serial port mode command settings ..................51 8.3 Barcode Enabling settings ........................52...
-
Page 6: Chapter 1 Introduction
2D l image products. P200 can recognition all kinds of 1D barcodes and standard 2D barcodes (various versions of PDF417, QR code, and Data matrix) can easily scan paper, plastic cards, LCD and other barcode printed media. -
Page 7: Appearance And Dimension
P200 Stationary Barcode Scanner User Manual 1.1 Appearance and Dimension... -
Page 8: Scanner Data Cable Interface Definition
P200 Stationary Barcode Scanner User Manual 1.2 Scanner Data Cable Interface Definition USB Interface Define Define Color Function V Bus Data- WHITE -Data Data+ GREEN +Data BLACK Serial Interface Define Define Input/Output Function USB_DP USB Signal USB_DM USB Signal POWER... -
Page 9: Power On, Power Off And Restart
Power on: plug and play interface, power on automatically when the scanner is connected to the host. Power off: unplug the data cable. Restart: if the P200 scanner freezes or does not respond, please restart the data cable. 1.4 Maintenance ... -
Page 10: Communication Interface
P200 Stationary Barcode Scanner User Manual 1.5 Communication Interface P200 must be connected to a host. The host can be a PC, POS machine, or with a USB, RS-232 interface in any of the intelligent terminal. Connect the scanner to the host via a USB cable. -
Page 11: Barcode Recognition
P200 Stationary Barcode Scanner User Manual 1.6 Barcode Recognition In manual recognition mode, the procedure for scanning barcodes is as follows: (1) Make sure that the scanner, data cable, data receiving host, and power supply are properly connected and turned on. -
Page 12: Chapter 2 Communication Interface
2.1 Serial Interface Serial interface is a common way to connect the scanner to the host (e.g. PC, POS devices). P200 stationary scanner provides RS-232 level interface, which can directly connect to PC’s serial interface. - Page 13 P200 Stationary Barcode Scanner User Manual Baud Rate The unit of Baud Rate is bps: bits per second, the optional configuration parameter is as below shown: 115200 38400 19200 9600 4800 2400 1200...
-
Page 14: Usb Interface
P200 Stationary Barcode Scanner User Manual 2.2 USB Interface 2.2.1 HID Virtual Keyboard When using USB interface, the scanner can be simulated as a HID-KBW device. In this mode, the scanner would be a virtual keyboard that output the data to the host. - Page 15 P200 Stationary Barcode Scanner User Manual German Italian Swiss (German) British Danish Norwegian Spanish Dutch...
- Page 16 P200 Stationary Barcode Scanner User Manual Hebrew Portuguese Latin(America) Czech_DEC Brazilian Greek_DEC Canadian (French) Hungarian...
- Page 17 P200 Stationary Barcode Scanner User Manual Polish Slovakian_DEC Swedish Turkish_Q Romanian Russian Turkis_F...
- Page 18 P200 Stationary Barcode Scanner User Manual Japanese(ASCII) Swiss(French) USA(International) Slovenian Croatian Bosnian Macedonian Albanian...
- Page 19 P200 Stationary Barcode Scanner User Manual Serbian(Latin) Serbian(Cyrillic) Czech_QWERTZ Czech_QWERTY Czech(Programmers) Estonian Latvian Latvian_QWERT...
- Page 20 P200 Stationary Barcode Scanner User Manual Lithuania Lithuanian (IBM) Slovakian_QWERTZ Slovakian_QWERTY Hungarian_101_Key Spanish(Variation) Bulgarian(Cyrillic) Bulgarian(Latin)
- Page 21 P200 Stationary Barcode Scanner User Manual Canadian(French_Legacy) Canadian(Multilingual) Italian_142 Polish_214 Polish_Programmers Brazilian_MS Greek_Polytonic Greek_220...
- Page 22 P200 Stationary Barcode Scanner User Manual Greek_319 Greek_Latin Greek_220_Latin Greek_319_Latin Greek_MS Russia_MS Russian(Typewriter) Thai(Pattachote)
- Page 23 P200 Stationary Barcode Scanner User Manual Thai(Kedmanee) Irish Maltese Icelandic Ukrainian Uzbek(Cyrillic) Kazakh Kyrgyz(Cyrillic)
- Page 24 P200 Stationary Barcode Scanner User Manual Azeri(Latin) Azeri(Cyrillic) Belarusian Faeroese Gaelic Tatar Mongolian(Cyrillic)
-
Page 25: Usb Virtual Serial Port
P200 Stationary Barcode Scanner User Manual 2.2.3 USB Virtual Serial Port When the scanner uses a USB communication interface, but the host application uses serial communication to receive data, you can setup the scanner to a USB virtual serial port. This feature requires that the appropriate driver be installed on the host. -
Page 26: Chapter 3 Recognition Mode
P200 Stationary Barcode Scanner User Manual Chapter 3 Recognition Mode 3.1 Manual Mode In manual mode, when the trigger control interface of the scanner changes into trigger electrical level, the scanner will start to shoot and recognize. In the limited time of “once recognizing time”, the scanner will continuously shoot and recognize until it is successful. -
Page 27: Continuous Mode
P200 Stationary Barcode Scanner User Manual Once Recognizing Time In sensing recognizing mode, the parameter indicates the maximum time of allowing recognizing engine to continuously collect and identify barcode before recognizing successfully. After recognizing successfully or once recognition timeout, the recognizing engine will enter the interval of not collecting the recognition. -
Page 28: Chapter 4 Led Light
P200 Stationary Barcode Scanner User Manual Chapter 4 LED Light There is a fill lighting device on the scanner that is used to light up the recognizing area when recognizing. It can be set to turn off and fill light level. (Please refer to Chapter 8 for the lighting level... -
Page 29: Chapter 5 Other Functions
P200 Stationary Barcode Scanner User Manual Chapter 5 Other Functions 5.1 Recognition Successful Sound After recognizing successfully, the scanner can output the PWM signal to drive the external buzzer circuit to make sounds. The following setup barcode can be set accordingly. - Page 30 P200 Stationary Barcode Scanner User Manual ● QR Barcode Auto Recognize (Default) Only reverse barcode recognition Prohibited reverse barcode recognition ● Aztec Barcode Auto Recognize (Default Only reverse barcode recognition Prohibited reverse barcode recognition...
-
Page 31: Common End Mark Suffix Settings
P200 Stationary Barcode Scanner User Manual ● Han Xin Barcode Auto Recognize (Default) Only reverse barcode recognition Disable reverse barcode recognition 5.3 Common End Mark Suffix Settings Add end mark suffix LF Add end mark suffix CR Add end mark suffix LF+CR... -
Page 32: Chapter 6 Barcode Symbol Parameter
P200 Stationary Barcode Scanner User Manual Chapter 6 Barcode Symbol Parameter Each type of barcode has its own unique properties, and the recognition of scanner can be adjusted to adapt to these property changes through the set barcode in this chapter. You can also prevent the recognizing function from recognizing the type of barcode that will not to be used so that it can improve the performance of the recognizing function. - Page 33 P200 Stationary Barcode Scanner User Manual ENA-13 Enable/disable recognize EAN-13 Enable(Default) Disable Setting whether to read 2/5-bit extra-code 2/5-bit extra-code refers to the 2/5-digit digital barcode appended after a normal barcode. Enable(Default) Disable ISSN Enable/disable recognize ISSN Enable Disable(Default) ISBN...
- Page 34 P200 Stationary Barcode Scanner User Manual UPC-E Enable/disable recognize UPC-E Enable (Default) Disable Set to determine whether to transfer the check bit. The UPC-E barcode data is fixed to 8 characters and the 8th character is the check bit which is used to verify the correctness of all 8 characters.
- Page 35 P200 Stationary Barcode Scanner User Manual System character transfer settings Transport system characters (Default) Transport system characters and Not transmit system characters country codes ("0" for USA) UPC-A Enable/disable recognize UPC-A Enable (Default) Disable Setting whether to transmit check-bit UPC-A barcode data is fixed to 13 characters, and the 13th character is the check bit, which is used to verify the correctness of all 13 characters.
- Page 36 P200 Stationary Barcode Scanner User Manual Set whether to read 2/5-bit extra-codes 2/5-bit extra-code refers to the 2/5-digit digital barcode that is appended after a normal barcode. Enable (Default) Disable System character transfer settings Enable (Default) Transfer system characters and Disable country codes ("0"...
- Page 37 P200 Stationary Barcode Scanner User Manual Setting whether to check and transmit check-bit Code 39 barcode data can contain no check-bit; if there is a check that is the last 1 character of the data. The check-bit is a value calculated from all the data to verify that the data is correct.
- Page 38 P200 Stationary Barcode Scanner User Manual Code32 prefix character setting Enable add the prefix character "A" Disable add the prefix character "A" (default) Code 93 Enable/disable recognize Code 93 Enable (Default) Disable Code 11 Enable/disable recognize Code 11 Enable Disable (Default)
- Page 39 P200 Stationary Barcode Scanner User Manual Check Setting The check characters can not to be contained in Code 11 barcode data. If there is a check bit, it can be the last 1 or 2 characters of the data. The check bit is a value calculated based on all data to check that if the data is correct.
- Page 40 P200 Stationary Barcode Scanner User Manual Interleaved 2 of 5 Enable/disable recognize Interleaved 2 of 5 Enable (Default) Disable Setting check and transfer check bit Interleaved 2 of 5 barcode can not to be contained in Code 11 barcode data. If there is a check bit that is the last 1 or 2 characters of the data.
- Page 41 P200 Stationary Barcode Scanner User Manual I 2 of 5 converse EAN-13 setting Enable conversion Disable conversion (default) Matrix 2 of 5 Enable/disable recognize Matrix 2 of 5 Enable Disable (Default) Setting check and transfer check bit Interleaved 2 of 5 barcode can not to be contained in Code 11 barcode data. If there is a check bit that is the last 1 or 2 characters of the data.
- Page 42 P200 Stationary Barcode Scanner User Manual Set whether to transmit the check-bit Transmit No Transmit (Default) Discrete 2 of 5 Enable/disable recognize Discrete 2 of 5 Enable Disable (Default) Enable/disable recognize MSI Enable Disable (Default)
- Page 43 P200 Stationary Barcode Scanner User Manual Check setting barcode can not to be contained in Code 11 barcode data. If there is a check bit that is the last 1 or 2 characters of the data. The check bit is a value calculated based on all data to check that if the data is correct.
- Page 44 P200 Stationary Barcode Scanner User Manual Code 128 Enable/disable recognize code 128 Enable Disable (Default) Note: If the setting is disable recognize this barcode, the scanner will not be able to scan the code to switch the corresponding function settings.
- Page 45 P200 Stationary Barcode Scanner User Manual Codabar Enable/disable recognize Codabar Enable (Default) Disable Codabar Codabar Start and end characters setting Enable Disable (Default) CLSI CLSI Enable this parameter to remove the start and end characters and insert space after the first, fifth, and tenth characters of the 14-character Codabar barcode.
- Page 46 P200 Stationary Barcode Scanner User Manual GS1 DataBar Enable/disable recognize GS1 DataBar Enable (Default) Disable GS1 DataBar GS1 DataBar GS1 DataBar converse UPC/ENA setting Enable Disable (Default) GS1 DataBar Limited Enable/disable recognize GS1 DataBar Limited Enable Disable (Default)
- Page 47 P200 Stationary Barcode Scanner User Manual GS1 DataBar Expanded Enable/disable recognize GS1 DataBar Expanded Enable Disable (Default) PDF417 Enable/disable recognize PDF417 Enable (Default) Disable Data Matrix Enable/disable recognize Data Matrix Enable (Default) Disable Setting whether to identify mirror Data Matrix...
- Page 48 P200 Stationary Barcode Scanner User Manual Enable Disable Enable/disable recognize QR Enable (Default) Disable Setting enable/disable recognize Micro QR (This setting is only valid when QR is enabled to be recognized). Enable (Default) Disable...
-
Page 49: Chapter 7 Troubleshooting
P200 Stationary Barcode Scanner User Manual Chapter 7 Troubleshooting Q: There are some barcodes cannot be scanned. A: Check the barcode type, open the barcode function; if it is verified, try to turn off. Q: The barcode data is incorrect. -
Page 50: Chapter 8 Scanner Settings
P200 Stationary Barcode Scanner User Manual Chapter 8 Scanner Settings ◼ Serial Port Command Format Permanent Length Operand Host/Slave Data Checksum Command Length Operand Status Data 1 BYTE 1 BYTE 1 BYTE 1 BYTE 1 BYTE~250BYTE 1 BYTE Length operands + H/D + permanent command + data... -
Page 51: Global Settings (Default Hid Once Scan Mode)
P200 Stationary Barcode Scanner User Manual 8.1 Global settings (default HID once scan mode) Host mode (CDC, HID, BT, COM） Operand: 0x41 USB Virtual Serial Port USB Virtual Keyboard Bluetooth General Serial Port Data 0x02 0x01 0x03 0x04 Set scanner interface mode... - Page 52 P200 Stationary Barcode Scanner User Manual Data prefix setting Operand：0x52 Disable Custom Define Data0 0x00(Default) 0x01~0xfd Data1 0x00 0x01~0xfd Note: 1. If the character set to be 0x20, you need to set the data = 0xFE. 2. If only one character is set, you need to set another to 0x00 Disable.
- Page 53 P200 Stationary Barcode Scanner User Manual LED light (ON/OFF) Operand: 0x47 Level 1 Level 2 ..Level 9 Level 10 Data 0x00 0x01 0x02 ..0x09 0x0A Data: When the fill light is 0, it is closed. Baud rate of virtual serial port...
- Page 54 P200 Stationary Barcode Scanner User Manual Buzzer enable setting Operand：0x4D Enable Disable Data 0x01 (Default) 0x00 The transmit rate in HID mode setting Operand：0x4E Fast Normal Slow Data 0x01 0x02 (Default) 0x0a Same barcode timeout setting in non-scanning mode Operand：0x4F...
- Page 55 P200 Stationary Barcode Scanner User Manual ◼ Commands that support only barcodes Set F1~F12 (only analog key output is supported) Set the barcode content as follows: Name F1 Value 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x1 0x10 0x15 Users can directly write the appropriate data to generate the appropriate barcode, then scan the barcode can achieve the function of virtual key output.
-
Page 56: Virtual Serial Port Mode Command Settings
P200 Stationary Barcode Scanner User Manual 8.2 Virtual serial port mode command settings Start scanning Operand: 0xE4 Data: 0x00 This feature only supports serial mode. Stop scanning Operand: 0xE5 Data: 0x00 This feature only supports serial mode. Setting barcode transfer mode... -
Page 57: Barcode Enabling Settings
P200 Stationary Barcode Scanner User Manual 8.3 Barcode Enabling settings Operand: 0x40 Data: 2BYTE data Set the barcode enabling parameter, DATA 0 is the barcode parameter, DATA 1 is the barcode parameter variable. The following is the parameter default value. 0 is off, 1 is open... - Page 58 P200 Stationary Barcode Scanner User Manual Japan Postal 0x19 Enable Australia Post 0x1A Enable Netherlands KIX Code 0x1B Enable USPS 4CB 0x1C Disable UPU FICS Postal 0x1D Disable GS1 DataBar-14 0x1E Enable GS1 DataBar Limited 0x1F Disable GS1 DataBar Expanded...
Need help?
Do you have a question about the P200 and is the answer not in the manual?
Questions and answers

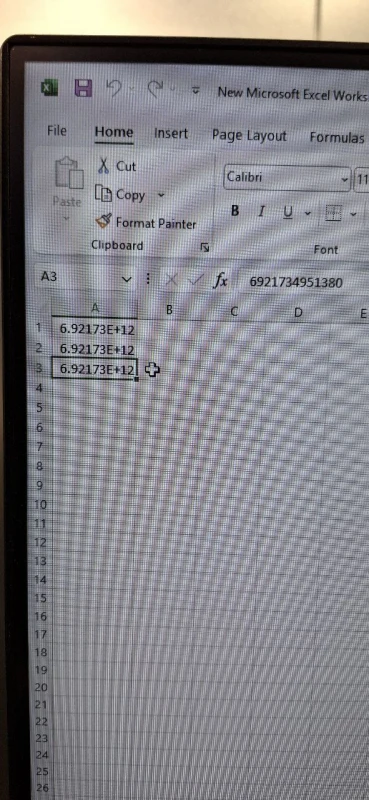

hi how can i use p200 to scaning the barcode one by one I mean when scaning the first one second barcode going below the first one like a tap inter.THANKS
To scan barcodes one by one with each subsequent barcode appearing below the previous one using the HPRT P200, you need to set an appropriate end mark suffix. Use the "Add end mark suffix CR" setting. This appends a carriage return (Enter key) after each scanned barcode, causing each scanned result to appear on a new line.
This answer is automatically generated
@Mr. Anderson can you please send me the barcode

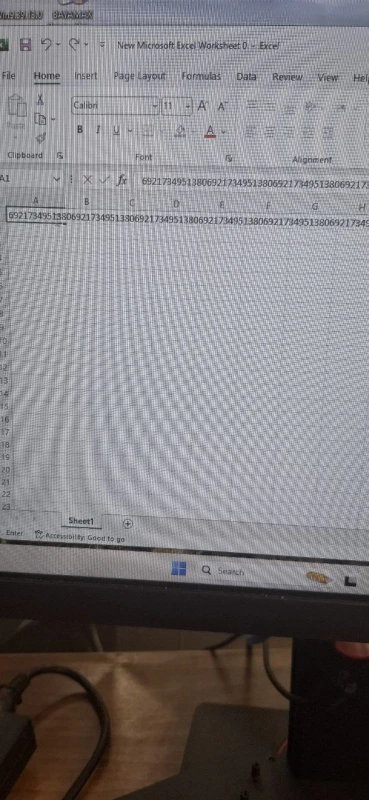

@Mr. Anderson MYproblem is the new scan doesnt show in a new line /new scan show infront of past scan
hi please tell me how P200 show me the new scan in a new line and not front of past scan?\
To make the HPRT P200 scanner display a new scan on a new line instead of in front of the previous scan, you need to configure the scanner to add a carriage return or line feed after each scan. This can typically be done by scanning a setup barcode from the user manual that enables the carriage return/line feed suffix.
This answer is automatically generated
do you have barcode program to disable check bit of EAN13 and EAN8? thanks.
No, the HPRT P200 does not have a barcode program to disable the check bit for EAN-13 and EAN-8.
This answer is automatically generated
