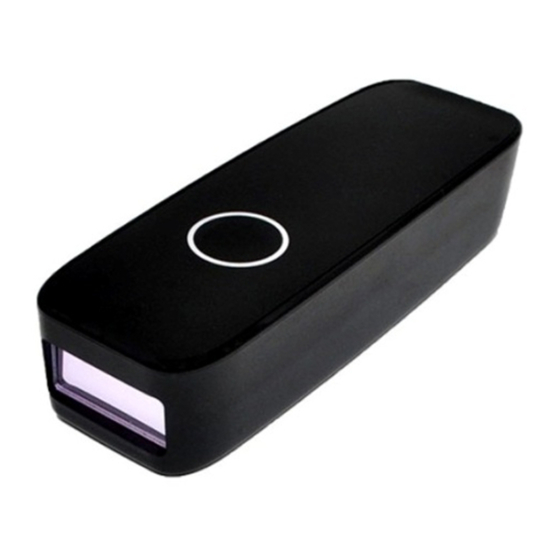

HPRT M300 - Bluetooth Scanner Manual

Pair with mobile

1. Long press the button in the scanner to make the LED
   (Green indicator will light) light up, then you can hear "beep" with vibration.
2. Turn on the Bluetooth of mobile and the APP respecvely.
   Device Name: HPRT SCANNER
   Click the device name to make a paired connection.
   After be connected successfully, the scanner will make a "beep" and LED light up (Blue indicator), then it will enter into the setting interface.
3. It means the scanner has been connected successfully by completing the above the steps.
   Test if the scanner can be used: enter the setting interface of the APP, then scan the barcode with the scanner to check the receiving funcon. If it can receive data that means the pair is successfully; if not, re-pair according to steps 1 and 2.

• Wireless transmission at a visible distance of 10 meters outdoors
• Support Win 8.1 or above, Win 10, Android device and iOS device.

Buzzer

LED Indicator

Power ON / OFF

• Power on: In the power off status, long press the button for 2 seconds, it will make a long beep and vibration that means the scanner is power on.
• Power off: In the power on status, long press the button for 2 seconds, it will make a long beep and vibration that means the scanner is power off.

Note: the scanner will be shut down automatically if it is not used for more than 10 minutes.

Support with APP

1. Sound setting: set the sound ON and OFF by the APP.
2. LED setting: set the light on, flash and light off for Bluetooth indicator by the light button.
3. CRLF setting: this setting can be used to add a carriage return line feed or cancel carriage return line feed at the end of the scan data. This setting supports power-off save.
4. Caps Lock setting: with this setting, the English alphabet can be set to remain as it is or converted to caps lock. This setting supports power-off save.
5. Conntinous Scanning Mode: with this setting, the scanner can be set to ON and OFF by continous scanning mode. When the continous mode is turned on, press the button to scan code. After the scan is successful, the scanning light will be turned on automatically and continue to scan the next barcode. You don't need to manually press the button, unless it is automatically turned off without scanning the code for more than 10 seconds, then press the button again to start scanning.

Support with APP

Scanning setting

Note: The following scan settings are required when Bluetooth is not connected. It can be set successfully After the scanner open the setting mode firstly. Otherwise, the setting mode is off by default and cannot be scanned.

Mode ON/OFF setting (Default OFF)

1. ON


2. OFF


Bluetooth Mode Conversion

1. GATT MODE

2. HID MODE


End Enter

1. OFF

2. ON


Continuous automatic scanning

1. ON

2. OFF


Automatic conversion of Capital/Small letter

1. Original

2. ON, automatic conversion to Capital letter

3. ON, automatic conversion to Small letter


Buzzer setting

1. ON

2. OFF


Motor

1. ON

2. OFF


Temporary switch

1. ON

2. OFF


Restore factory settings

1. Execute restore factory settings


Power off

Execute power off

Problems

• The Bluetooth scanner can not be connected to Andriod device

Please make sure that the Android system support for BT, and its recommended to use 5.0 or above.

• After being paired, the barcode can not be upload to device

Please confirm the working mode of the scanner. If it is in GATT mode, it needs to receive data in APP. If it is in HID mode, barcode data can be output as long as the input method can be input.

• The device can not search the scanner

1. Make sure is power on.
2. Make sure the mobile version meets the requirement.
3. Confirm if the Bluetooth of the scanner is connected (the blue light is on), if connected, you need to disconnect the Bluetooth connection from the connected device and rescan.

• How to connect to the mobile again if the Bluetooth scanner has been connected to mobile

Open the Bluetooth searching interface of the APP to connect to the corresponding Bluetooth device.

• If the data received in HID mode is different from the original data

Confirm the current input method is an English keyboard, and turn off the English word mode, the English associaon and the inial capitalizaon mode (depending on the different input methods). If not, download the Sogou input method and turn off the above mode before using the scanner.

FCC Warning

This device complies with part 15 of the FCC Rules.

Operaon is subject to the following two condions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operaon.

NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons.

However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

Changes or modificaons to this unit not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.

FCC Radiaon Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condion without restricon.

State

Our company does not assume any responsibility for losses caused by natural disasters (such as earthquakes, floods, etc.) that exceed our scope of responsibility.

In any case, our company does not assume any responsibility for losses caused by using this product, such as loss of profits, loss of reputaon, business interrupon, loss or change of stored data, and any special, unexpected, associated or intermient losses caused by the above.

Our company does not assume the responsibility for the losses caused by due to improper use of hardware or soware not specified by the our company.

Our company does not provide any form of warranty or technical support for the informaon, data, files, other products, services obtained though the use of this product, and does not assume any responsibility for the use of above descripon by users.

Our company are not take any form of guarantee for third-party soware used by this product.

Due to the connuous improvement of the products, the operaon and common problems of the models described in the manual are mainly based on actual machines. And it may be changed without noce.
