HPRT N130BT User Manual

Handheld barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

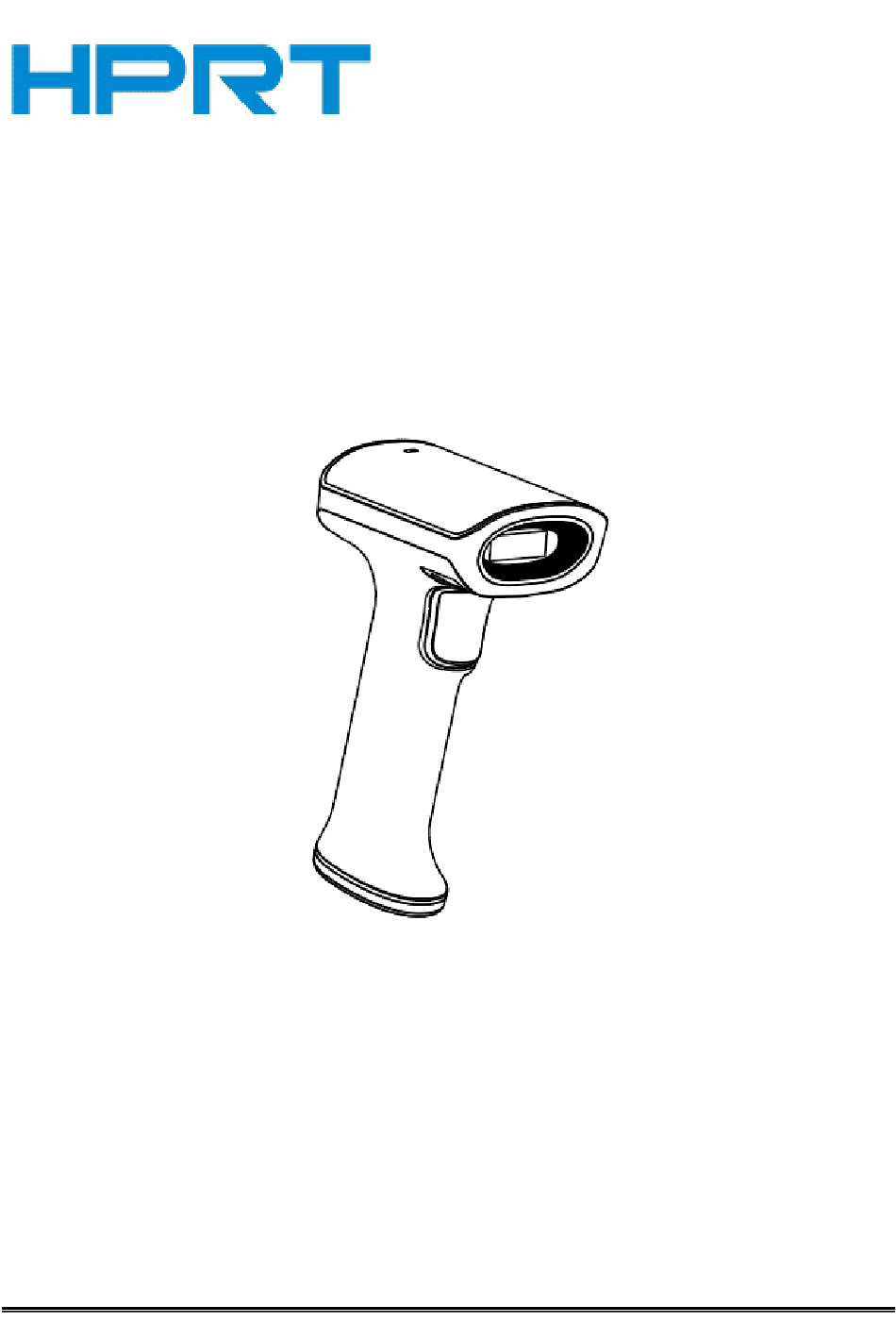

Handheld Barcode Scanner
N130BT
User Manual
Xiamen Hanin Electronic Technology Co., Ltd.
ADD: 5F, 8# Building, Aide Airport Industrial Park, Huli District, Xiamen, China
WEB: www.hprt.com
Rev.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N130BT and is the answer not in the manual?

Questions and answers

Related Manuals for HPRT N130BT

Summary of Contents for HPRT N130BT

  • Page 1 Handheld Barcode Scanner N130BT User Manual Xiamen Hanin Electronic Technology Co., Ltd. ADD: 5F, 8# Building, Aide Airport Industrial Park, Huli District, Xiamen, China WEB: www.hprt.com Rev.1.0...
  • Page 2 Disclaimer Please read all the contents of the manual carefully before using the products described in this manual to ensure the safe and effective use of the products. After reading, please keep this manual properly for the next time you use it. Do not disassemble or tear the sealed bidding of the scanner on your own, otherwise our company shall not assume the responsibility of warranty or replacement of the scanner.
  • Page 3 Change Record Rev. Date Description 2020.07.15...

  • Page 4: Table Of Contents

    CONTENT Chapter 1 Introduction ......................... 1 Appearance ............................ 2 Dimension ............................3 Interface ............................4 Power on, Power off and Restart ....................5 Maintenance ..........................5 Barcode Read ..........................5 Use the Setting Barcode ......................... 6 Restore Factory Defaults ........................ 6 Chapter 2 Communication Interface .....................
  • Page 5 Transmit check character ..................... 20 Enable/Disable 2/5-bit Add-On code ................21 Convert UPC-E to UPC-A ....................21 System character transmit ................... 21 UPC-E1 ..........................22 Enable/Disable 2/5 Add-On code ................22 UPC-A ........................... 22 Enable/Disable UPC-A ....................22 Transmit check character ..................... 23 Enable/Disable 2/5-bit Add-On code ................
  • Page 6 ISBN ............................31 Data bit setting ........................31 ISBT 128 ..........................31 Enable/Disable ISBT 128 ....................31 GS1 128 ..........................31 Enable/Disable GS1 128 ....................31 Gs1-128 emulation mode for UCC/EAN composite code ..........31 GS1 DataBar ......................... 32 Enable/Disable GS1 DataBar ..................32 Convert GS1 DataBar to UPC/ENA ................
  • Page 7 Data prefix ..........................41 Data suffix ..........................41 Aiming device (ON/OFF) ...................... 41 Illumination light (ON/OFF) ....................41 Multi code quantity ......................42 Multi code sensitivity ......................42 Buzzer enables ........................42 The convert rate in HID mode ....................42 Timeout setting of the same barcode in non-single scan mode ..........

  • Page 8: Chapter 1 Introduction

    2D image scanner. N130BT can read all kinds of 1D barcodes and standard 2D barcodes (various versions of PDF417, QR code, and Data matrix) can easily scan paper, plastic cards, LCD and other barcode printed media. Its fully integrated design makes it easy to embed in a wide range of product applications.

  • Page 9: Appearance

    N130BT User Manual Appearance...

  • Page 10: Dimension

    N130BT User Manual Dimension Unit: mm...

  • Page 11: Interface

    N130BT User Manual Interface The scanner must be connected to a Host in actual application, such as PC, POS or any intelligent terminal with USB port. BT connection The scanner is powered on by pressing the scanning button, and be connected it to the host devices through Bluetooth.

  • Page 12: Power On, Power Off And Restart

    N130BT User Manual Power on, Power off and Restart ■ Start up: 1) Automatically start up after connecting USB; 2) When USB is not connected, press the scanning button to start the scanner. ■ Shut down: 1) Press and hold for 15s to shut down;...

  • Page 13: Use The Setting Barcode

    N130BT User Manual ▲Note: For the same batch of barcodes, the scanner keeps a very high success ratio in certain distance which is regarded as the optimal scanning distance. Use the Setting Barcode Set the parameter to a special barcode whose barcode type is barcode128. When it scans to a barcode software that matches the setting type of setting, it will automatically enter the setting and does not send the results on the host.

  • Page 14: Chapter 2 Communication Interface

    N130BT User Manual Chapter 2 Communication Interface N130BT Handheld Barcode Scanner provides USB interface (optional) to connect to the host. Through communication interfaces, it can receive and read the data, control the scanner by sending the commands, and modify the parameter of scanner, etc.
  • Page 15 N130BT User Manual Danish Norwegian Spanish Dutch Hebrew Portuguese Latin(America) Czech_DEC Brazilian Greek_DEC Canadian (French) Hungarian Polish Slovakian_DEC Swedish...
  • Page 16 N130BT User Manual Turkish_Q Romanian Russian Turkis_F Japanese(ASCII) Swiss(French) USA(International) Slovenian Croatian Bosnian Macedonian Albanian Serbian(Latin) Serbian(Cyrillic) Czech_QWERTZ Czech_QWERTY...
  • Page 17 N130BT User Manual Czech(Programmers) Estonian Latvian Latvian_QWERT Lithuania Lithuanian (IBM) Slovakian_QWERTZ Slovakian_QWERTY Hungarian_101_Key Spanish(Variation) Bulgarian(Cyrillic) Bulgarian(Latin) Canadian(French_Legacy) Canadian(Multilingual) Italian_142 Polish_214...
  • Page 18 N130BT User Manual Polish_Programmers Brazilian_MS Greek_Polytonic Greek_220 Greek_319 Greek_Latin Greek_220_Latin Greek_319_Latin Greek_MS Russia_MS Russian(Typewriter) Thai(Pattachote) Thai(Kedmanee) Irish Maltese Icelandic...
  • Page 19 N130BT User Manual Ukrainian Uzbek(Cyrillic) Kazakh Kyrgyz(Cyrillic) Azeri(Latin) Azeri(Cyrillic) Belarusian Faeroese Gaelic Tatar Mongolian(Cyrillic)

  • Page 20: Usb Virtual Serial Port

    N130BT User Manual USB Virtual Serial Port When the scanner uses a USB communication interface, but the host application uses serial communication to receive data, you can set the scanner to the USB virtual serial port. This function requires that be installed the appropriate driver on the host.

  • Page 21: Bluetooth Pop-Up Iphone Keyboard Settings (Bluetooth Mode Only)

    N130BT User Manual Bluetooth pop-up iPhone keyboard settings (Bluetooth mode only) Pop-up after Bluetooth connection: VID & PID Table USB uses 2 numbers to identify the device and find the correct device. The first number is VID (Supplier ID), designated by USB Implementers Forum. The second number is PID (Device ID), and each interface type assigns a PID number.

  • Page 22: Chapter 3 Scanning Mode

    N130BT User Manual Chapter 3 Scanning Mode Manual Mode In manual mode, when the trigger control interface of the scanner changes into trigger electrical level, the scanner will start to shoot and read. In the limited time of “single reading time”, the scanner will continuously shoot and read until it is successful.

  • Page 23: Sensitivity

    N130BT User Manual Sensitivity Normal (Default) Fast Ultra-fast  Single Reading Time In sensing reading mode, the parameter indicates the maximum time of allowing reading engine to continuously collect and identify barcode before reading successfully. After reading successfully or single read timeout, the reading engine will enter the interval of not collecting the read. The range of single read time is 0.1~9.9s, step length is 0.1s.

  • Page 24: Command Programming

    N130BT User Manual Command Programming In this mode, scanner needs the host to trigger and decode the barcode. The scanner can set the length of the reading time. The reading code time can be set to 0.1~9.9s. When it be set to 0 that...

  • Page 25: Chapter 4 Illumination And Aiming

    N130BT User Manual Chapter 4 Illumination and Aiming Aiming There is a projecting device on the scanner that is used to project a special image when reading, which characterizes the center of the scene image taken by the scanner. When the scanner is used for shooting, the image is projected on the reading target, and the scanner aims at the reading target, which makes it easier to read the target.

  • Page 26: Chapter 5 Symbologies

    N130BT User Manual Chapter 5 Symbologies Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner.

  • Page 27: Ena-13

    N130BT User Manual ENA-13 Enable/Disable EAN-13 Enable (Default) Disable Enable/Disable 2/5-bit Add-On code The 2/5-digit Add-On code refers to the 2/5-digit digital barcode added after the ordinary barcode. Enable (Default) Disable Auto UPC-E Enable/Disable UPC-E Enable (Default) Disable Transmit check character UPC-E barcode data is fixed to 8 characters, and the eighth character is the check bit, which is used to check the correctness of all 8 characters.

  • Page 28: Enable/Disable 2/5-Bit Add-On Code

    N130BT User Manual Enable/Disable 2/5-bit Add-On code The 2/5-digit Add-On code refers to the 2/5-digit digital barcode added after the ordinary barcode. Enable (Default) Disable Auto Convert UPC-E to UPC-A The chip can convert the decoding results of UPC-E type barcodes to UPC-A type barcodes according to standard algorithms.

  • Page 29: Upc-E1

    N130BT User Manual UPC-E1 Transmit system character (Default) Transmit system character and country code (“0” only for USA) Not transmit preamble Enable/Disable 2/5 Add-On code The 2/5-digit Add-On code refers to the 2/5-digit digital barcode added after the ordinary barcode.

  • Page 30: Transmit Check Character

    N130BT User Manual Transmit check character UPC-A bar code data is fixed to 13 characters, and the 13th character is check bit, which is used to check the correctness of all 13 characters. Transmit check character (Default) Disable Enable/Disable 2/5-bit Add-On code The 2/5-digit Add-On code refers to the 2/5-digit digital barcode added after the ordinary barcode.

  • Page 31: Code 39

    N130BT User Manual Code 39 Enable/Disable Code 39 Enable (Default) Disable Check character verification and transmit Code 39 barcode data does not contain a check character. If there is a check character, it is the last character of the data. A check character is a value calculated from all data to verify that the data is correct.

  • Page 32: Convert Code 39 To Code32

    N130BT User Manual Convert Code 39 to Code32 Enable Disable (Default) Code 32 prefix Enable add prefix character "a" Disable (Default) Code 93 Enable/Disable code 93 Enable (Default) Disable Code 11 Enable/Disable code 11 Enable Disable (Default) Check Setting Code 11 barcode data does not contain the check digit. If there is a check digit, it can be the last one or two characters of the data.

  • Page 33: Transmit Check Character

    N130BT User Manual Not check (Default) 1-bit check 2-bit check Transmit check character Transmit check character Disable (Default) Code 128 Enable/Disable code 128 Enable (Default) Disable Note: if this barcode is set to disable, the scanner will not be able to scan and switch the corresponding function settings.

  • Page 34: Codabar

    N130BT User Manual Codabar Enable/Disable Codabar Enable (Default) Disable Start and stop characters Enable CLSI Disable CLSI (Default) Enable this parameter to remove the start and stop characters, and insert spaces after the first, fifth and tenth characters of the 14-character Codabar barcode.

  • Page 35: Check Bit Algorithm

    N130BT User Manual 1-bit check 2-bit check Check bit algorithm 1 MSI MOD10/MOD10 (Default) 2 MSI MOD10/MOD11 Transmit check character Transmit check character Disable (Default) Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable (Default) Disable Check and transmit character Interleaved 2 of 5 barcode data does not contain the check digit.

  • Page 36: Convert I 2 Of 5 To Ean-13

    N130BT User Manual Not check (Default) USS check OPCC check Transmit check character: Transmit check character Disable (Default) Convert I 2 of 5 to EAN-13 Convert I 2 of 5 to EAN-13 Disable (Default) Matrix 2 of 5 Enable/Disable Matrix 2 of 5...

  • Page 37: Industrial 2 Of 5

    N130BT User Manual Not check (Default) Check Transmit check character Transmit check character Disable (Default) Industrial 2 of 5 Enable/Disable Industrial 2 of 5 Enable Disable (Default) Standard 25 Enable/Disable Standard 25 Enable Disable (Default) ISSN Enable Disable (Default)

  • Page 38: Isbn

    N130BT User Manual ISBN Enable Disable (Default) Data bit setting Use 13 bits (Default) Use 10 bits ISBT 128 Enable/Disable ISBT 128 Enable (Default) Disable GS1 128 Enable/Disable GS1 128 Enable (Default) Disable Gs1-128 emulation mode for UCC/EAN composite code...

  • Page 39: Gs1 Databar

    N130BT User Manual GS1 DataBar Enable/Disable GS1 DataBar Enable (Default) Disable Convert GS1 DataBar to UPC/ENA Convert DataBar to UPC/ENA Disable (Default) GS1 DataBar Limited Enable/Disable GS1 DataBar Limited Enable Disable (Default) GS1 DataBar Expanded Enable/Disable GS1 DataBar Expanded Enable...

  • Page 40: 1D Barcode Inverse

    N130BT User Manual 1D Barcode Inverse Disable(Default) Enable Automatic detection 1D Barcode Anti-color Auto (Default) Disable...

  • Page 41: 2D Barcode Setting

    N130BT User Manual 2D Barcode Setting PDF417 Enable/Disable PDF417 Enable (Default) Disable Data Matrix Anti-color Auto (Default) Disable Only read Anti-color color Enable/Disable Data Matrix Enable (Default) Disable Mirror Images Auto (Default) Enable Disable...

  • Page 42: Inverse

    N130BT User Manual Inverse Disable (Default) Enable Auto Enable/Disable QR Enable (Default) Disable Enable/Disable Micro QR code (this setting is only valid when enable QR) Enable (Default) Disable Inverse Disable (Default) Enable Auto...

  • Page 43: Anti-Color

    N130BT User Manual Anti-color Auto (Default) Only read Anti-color color Disable Aztec Inverse Disable (Default) Enable Auto Anti-color Auto (Default) Only read Anti-color color Disable...

  • Page 44: Han Xin

    N130BT User Manual Han Xin Anti-color Auto (Default) Only read Anti-color color Disable Inverse Disable (Default) Enable Auto...

  • Page 45: Chapter 6 Troubleshooting

    N130BT User Manual Chapter 6 Troubleshooting Q: There are some barcodes cannot be scanned. a) Firstly, check the barcode type and enable the barcode function; if there is verified, try to close the verification. b) Unable to know the barcode type, then set all barcodes allow to be read.

  • Page 46: Chapter 7 Scanner Settings

    N130BT User Manual Chapter 7 Scanner Settings Barcode Setting Format Prefix Operand Data 5 BYTES 1 BYTE 1BYTE~250BYTE Set barcode Code 128 type Barcode Prefix Fixed prefix: +N+S- Operand The operand is the following command data Data Indicates parameter data carried by this command...

  • Page 47: General Settings (Default Hid Single Scan Mode)

    N130BT User Manual General settings (default HID single scan mode) Host mode (CDC, HID, BT, COM） Operand: 0x41 USB Virtual Serial Port USB Virtual Keyboard General Serial Port Data 0x02 0x01 0x03 0x04 Set scanner interface mode Trigger mode (Single scanning, scanning continuously, auto sensing)

  • Page 48: Data Prefix

    N130BT User Manual Data prefix Operand: 0x52 Disable Custom Define Data0 0x00(Default) 0x01~0xfd Data1 0x00 0x01~0xfd Note: 1. If the character set to be 0x20, you need to set the data = 0xFE. 2. If only one character is set, you need to set another to 0x00 Disable.

  • Page 49: Multi Code Quantity

    N130BT User Manual Multi code quantity Operand: 0x4B ..Data 0x00 0x02 0x03 ..0x06 0x07 Set whether to start scanning multiple barcode modes at the same time and set the number of scanning barcodes simultaneously. Multi code sensitivity Operand: 0x4C Level 1 ..

  • Page 50: Timeout Setting Of The Same Barcode In Non-Single Scan Mode

    N130BT User Manual Timeout setting of the same barcode in non-single scan mode Operand: 0x4F Variable Data 0x00~0x63 Data: 0x00 indicates that there is no Timeout Invalid. If there is a barcode, it can still output. 0x01 indicates the timeout of 100ms.
  • Page 51 N130BT User Manual ◼ Commands that support only barcodes Set F1~F12 (only analog key output is supported) Set the barcode content as follows: Name F1 Value 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x1 0x10 0x15 Users can directly write the appropriate data to generate the appropriate barcode, then scan the barcode can achieve the function of virtual key output.

  • Page 52: Barcode Function Settings

    N130BT User Manual Barcode function settings ITF cut the first few bits of data Operand: 0x55 Enable Disable Data 0x01 (Default) 0x02~0x32 Note: 0x02 indicates cutting the first data; 0x32 indicates cutting 49 data from the front. Disable Cut the first data...

  • Page 53: Skip The Number Of Characters Before Barcode Data

    N130BT User Manual Skip the number of characters before barcode data Operand: 0x59 data: *0: Do not skip barcode data 1-31: skip the number of characters before barcode data *Not skip barcode data Skip 1 character before barcode data Skip 5 character before barcode data...

  • Page 54: Insert Characters Into Barcode Data

    N130BT User Manual Insert characters into barcode data (up to 8 characters) Operand: 0x5C Data: Data0 ~ data1: the position of the inserted data in the barcode data Data2: data inserted in corresponding position (range: 0x01 ~ 0x7F) Note: Data0 ~ data1 Calculation method: data0 = (x/64) +0x20 data1 = (x%64) +0x20, where x is the position of the character to be inserted (range: 1 ~ 6143).

  • Page 55: Appendix Ⅰ Barcode Enabling Settings

    N130BT User Manual Appendix Ⅰ Barcode Enabling Settings Operand: 0x40 Data: 2BYTE data Set the barcode enabling parameter, DATA 0 is the barcode parameter, DATA 1 is the barcode parameter variable. The following is the parameter default value. 0 is OFF, 1 is ON...
  • Page 56 N130BT User Manual Japan Postal 0x19 Enable Australia Post 0x1A Enable Netherlands KIX Code 0x1B Enable USPS 4CB 0x1C Disable UPU FICS Postal 0x1D Disable GS1 DataBar-14 0x1E Enable GS1 DataBar Limited 0x1F Disable GS1 DataBar Expanded 0x20 Disable 0x21...

  • Page 57: Appendix Ⅱ Data Code Prefix And Suffix

    N130BT User Manual Appendix Ⅱ Data code prefix and suffix E.g. Adding prefixes “@!”, steps: Scan the setting barcode【open prefix 1】--> Scan the setting barcode【@】 Scan the setting barcode【open prefix 2】--> Scan the setting barcode【!】 The detailed barcode is set as follows:...
  • Page 58 N130BT User Manual "...
  • Page 59 N130BT User Manual < >...
  • Page 60 N130BT User Manual...
  • Page 61 N130BT User Manual ‘...
  • Page 62 N130BT User Manual...
  • Page 63 N130BT User Manual...

  • Page 64: Appendix Ⅲ Ascii Code Table

    N130BT User Manual Appendix Ⅲ ASCII Code Table Hexadecimal Decimal Character NUL （Null char.） SOH （Start of Header） STX （Start of Text） ETX （End of Text） EOT （End of Transmission) ENQ （Enquiry） ACK （Acknowledgment） BEL （Bell） BS （Backspace） HT （Horizontal Tab）...
  • Page 65 N130BT User Manual ! （Exclamation Mark） " （Double Quote） # （Number Sign） $ （Dollar Sign） % （Percent） & （Ampersand） ` （Single Quote） ( （Right / Closing Parenthesis） ) （Right / Closing Parenthesis） * （Asterisk） + （Plus） , （Comma） - （Minus / Dash）...
  • Page 66 N130BT User Manual [ （Left / Opening Bracket） \ （Back Slash） ] （Right / Closing Bracket） ^ （Caret / Circumflex） _ （Underscore） ' （Grave Accent）...
  • Page 67 N130BT User Manual { （Left/ Opening Brace） | （Vertical Bar） } （Right/Closing Brace） ~ （Tilde） DEL （Delete）...
