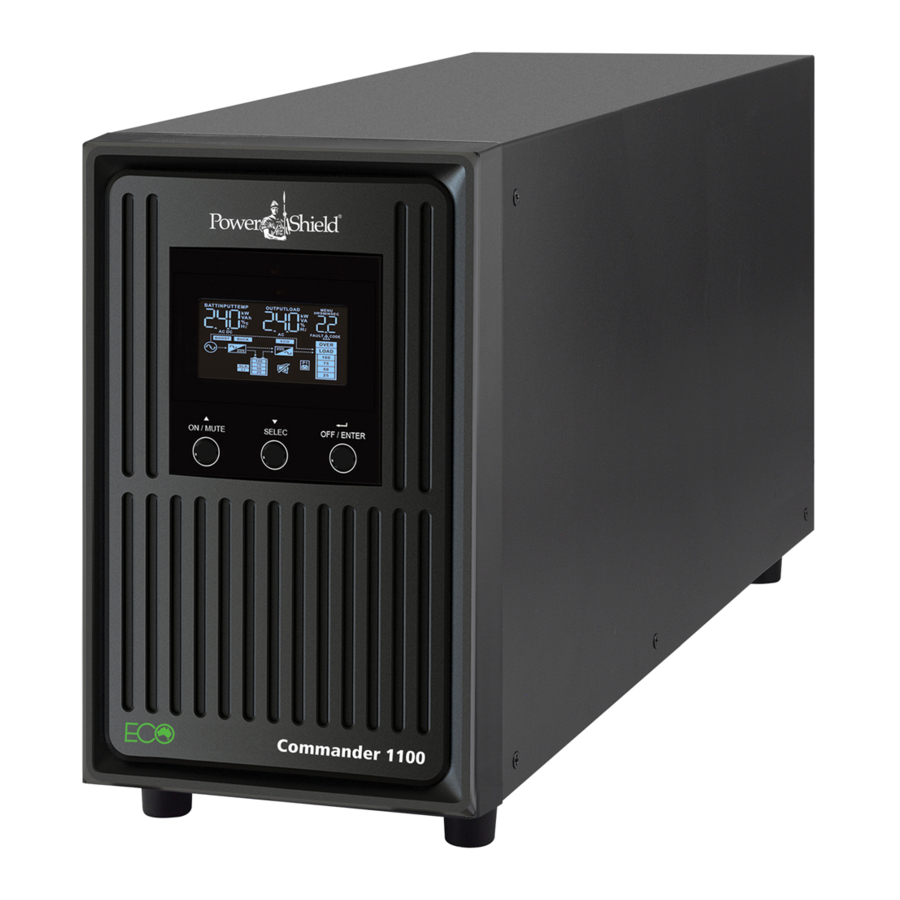

- Page 1 User Manual Commander RT 1100/2000/3000 VA Line Interactive Sinewave UPS Uninterruptible Power Supply System IMPORTANT Download latest software www.powershield.com.au/downloads NetGuard® www.powershield.com.au...
- Page 2 Introduction Thank you for choosing PowerShield. PowerShield Commander RT UPS series are designed to provide the highest level of protection against disturbances found on electrical power supply lines. It is suitable for most applications including IT, security, telephone, broadcasting, medical etc.
- Page 3 SAFETY EARTHING TERMINAL - Indicates the primary safety ground. This symbol indicates that you should not discard the UPS or the UPS batteries in the trash. The UPS may contain sealed, lead-acid batteries. Batteries must be recycled. www.powershield.com.au...
-
Page 4: Table Of Contents
4. Troubleshooting ....................... 17 4-1. Battery Replacement....................18 4-2. Battery Kit Assembly (option) .................. 19 5. Service ..........................21 6. Storage and Maintenance ....................22 6-1. Operation ....................... 22 6-2. Storage ........................22 7. Contacting PowerShield..................... 22 8. Specifications ........................23 www.powershield.com.au... -
Page 5: Important Safety Warning
Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system. Pluggable equipment includes a protective earth conductor that carries the leakage current from the load devices ( computer equipment ). Total leakage current must not exceed 3.5mA. www.powershield.com.au... -
Page 6: Operation
Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It is toxic. Please replace the fuse only with the same type and amperage in order to avoid fire hazards. Do not dismantle the UPS system. www.powershield.com.au... -
Page 7: Installation And Setup
Output receptacles: connect to mission-critical loads. AC input Input circuit breaker Emergency power off function connector (EPO) USB communication port RS-232 communication port SNMP intelligent slot External battery connector (only available for 2000/3000 models) External battery pack numbers detection port www.powershield.com.au... -
Page 8: Installation Of The Ups
( black coloured outlets ). Please connect non-critical devices to the programmable outlets and critical devices to the general outlets. During power failure, you may extend the backup time to critical devices by setting shorter backup time for non-critical devices. www.powershield.com.au... - Page 9 UPS unit and plug the other end to battery bank. See below chart for detailed connection. Models : PSCRT2000,PSCRT3000 PSRTBB8(2K only)/PSRTBB12(3K only) NOTE: Maximum connected external battery boxes up to 2 units. www.powershield.com.au...
- Page 10 Install NetGuard UPS monitoring software to fully configure UPS shutdown. Please follow steps below to download and install monitoring software: 1. Go to the website http://www.powershield.com.au/downloads 2. Click NetGuard software icon and then choose your required OS to download the software.
-
Page 11: Operations
Warning & Fault info/ Warning Setting operation Input/output & Fault info/ and Battery Setting info operation UPS status UPS status Backup time info Load info Backup time info Display Function Backup time information Indicates the backup time in pie chart. www.powershield.com.au... -
Page 12: Audible Alarm
Indicates the Battery level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates low battery. Indicates there is something wrong with battery. 3-3. Audible Alarm Battery Mode 2 beeps every 30 seconds Low Battery Rapid one beep every second Overload 2 short beeps every 2 seconds Continuously sounding Fault www.powershield.com.au... -
Page 13: Lcd Display Wordings Index
Interface Setting For 208/220/230/240 VAC models, you may choose the following output voltage: 208: presents output voltage is 208Vac 220: presents output voltage is 220Vac 230: presents output voltage is 230Vac 240: presents output voltage is 240Vac (Default setting) www.powershield.com.au... - Page 14 TOE: the LCD display is vertical. (Default setting) 05: LCD display backlight setting Interface Setting Aon: LCD display backlight is on all the time Aut: LCD display backlight will be off after pressing the buttons 60seconds. (Default setting) www.powershield.com.au...
- Page 15 Push “Up” button to change the value of backup time according your demand. Then press “Enter” to confirm the setting. Step 5: Press “Up“ button (ON/MUTE) to switch to "00" of program list. Then press “Enter” button to exit setting menu. www.powershield.com.au...
-
Page 16: Operating Mode Description
When the input voltage is beyond the acceptable range or power failure and alarm is sounding 2 beeps every 30 seconds, UPS will backup power from battery. Standby mode UPS is powered off and no output supply power, but still can charge batteries. www.powershield.com.au... -
Page 17: Faults Reference Code
Battery is not connected 2 short beeps every 2 seconds Overcharge Continuously sounding Site wiring fault 2 short beeps every 2 seconds EPO enable 2 short beeps every 2 seconds Over temperature Continuously sounding Charger failure Continuously sounding Battery Fault Continuously sounding www.powershield.com.au... -
Page 18: Troubleshooting
UPS output. sounding. Fault code is shown as 14 and The UPS shut down Check output wiring and if alarm is continuously sounding. automatically because short connected devices are in circuit occurs on the UPS short circuit status. output. www.powershield.com.au... -
Page 19: Battery Replacement
Step 4 Step 5 Step 7 Remove the top cover of After replacing the Re-connect the battery wires. battery box and replace the batteries, put the battery inside batteries. box back to original location and screw it tightly. www.powershield.com.au... -
Page 20: Battery Kit Assembly (Option)
Put the front panel back to the unit. 4-2. Battery Kit Assembly (option) NOTE : We RECOMMEND TO USE POWERSHIELD CERTIFIED BATTERIES FOR ASSEMBLYING YOUR OWN BATTERY PACK. NOTICE: Please assemble battery kit first before installing it inside of UPS. Please select correct battery kit procedure below to assemble it. - Page 21 Step 2: Connect all battery terminals by following below chart. Tapes Tapes Step 3: Put assembled battery packs on Step 4: Cover the other side of plastic shell as one side of plastic shells. below chart. Then, battery kit is assembly well. www.powershield.com.au...
-
Page 22: Service
The standard warranty is TWO (2) years from the date of purchase. The standard PowerShield procedure is to replace the original unit with a factory refurbished unit. PowerShield will ship the replacement unit once the defective unit has been received by the service department, or cross ship upon the receipt of a valid credit card number. -
Page 23: Storage And Maintenance
Commander RT series contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. Please contact your dealer or visit PowerShield web site. www.powershield.com.au/support.php Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material. -
Page 24: Specifications
COMPLIANCE EN62040-1-1 2003, IEC60950-1-1 Safety EN62040-2 2006 Directive 2011/65/EU RoHS * Derate capacity to 80% of capacity when the output voltage is adjusted to 208VAC. **Product specifications are subject to change without further notice. Powershield Part # : 990-1100rev01 www.powershield.com.au...
