Summary of Contents for PowerShield Centurion RT 6000VA

  • Page 2 Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

  • Page 3: Table Of Contents

    Table of Contents 1. SAFETY AND EMC INSTRUCTIONS ....................1 1-1. T ....................... 1 RANSPORTATION AND TORAGE 1-2. P ............................1 REPARATION 1-3. I ............................1 NSTALLATION 1-4........................ 2 ONNECTION ARNINGS 1-5. O ............................2 PERATION 1-6. S ............................3 TANDARDS 2.

  • Page 4: Safety And Emc Instructions

    1. Safety and EMC instructions Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 1-1. Transportation and Storage Please transport the UPS system only in the original package to protect against shock and impact.

  • Page 5: Connection Warnings

    1-4. Connection Warnings • This UPS should be connected with TN earthing system. • The power supply for this unit must be single-phase rated in accordance with the equipment nameplate. It also must be suitably grounded. • Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

  • Page 6: Standards

    1-6. Standards * Safety IEC/EN 62040-1 * EMI Conducted Emission.......:IEC/EN 62040-2 Category C3 Radiated Emission........:IEC/EN 62040-2 Category C3 *EMS ESD............:IEC/EN 61000-4-2 Level 4 RS............:IEC/EN 61000-4-3 Level 3 EFT............:IEC/EN 61000-4-4 Level 4 SURGE........... :IEC/EN 61000-4-5 Level 4 CS............:IEC/EN 61000-4-6 Level 3 Power-frequency Magnetic field....

  • Page 7: Installation And Operation

    2. Installation and Operation There are two different types of online UPS: standard and long-run models. Please refer to the following model table. Model Type Model Type standard model Long-run model 10KL Parallel function is also available for these two types and related installation and operation of Parallel function will be described in detail in the following content.

  • Page 8: Rack/Tower Installation

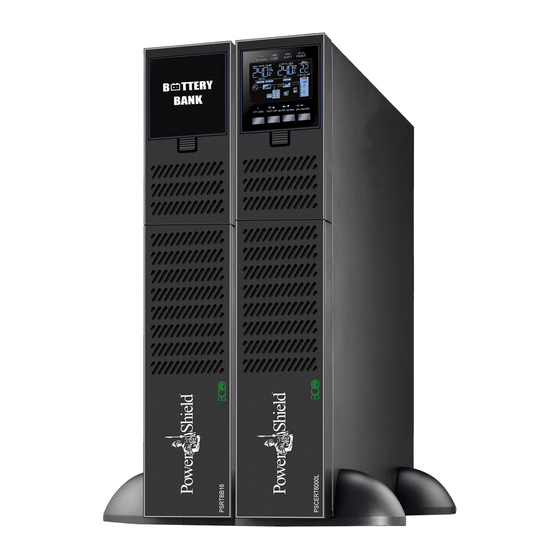

    8) Input circuit breaker 9) Output terminals 10) Output Ground 11) Input Ground 12) Input terminals 13) Cooling Fan 14) External maintenance bypass switch port 15) Battery pack output circuit breaker 16) External battery connector 2-3. Rack/Tower Installation 2-3-1 Tower Installation The UPS system is shipped with two sets of feet and 6 extensions (2 short extensions plus 4 long extensions) that can be used to tower install the UPS module in 2U or UPS module with one battery bank in 4U.

  • Page 9: Single Ups Installation

    2-3-2 Rack Installation Please follow below steps to mount UPS into 19” rack or rack enclosure. Step 1: Attach mounting ears to the side mounting Chart 1 holes of UPS using the screws provided and the ears should face forward. Please refer to chart 1. Step 2: Lift the UPS module and slide it into rack Chart 2 enclosure.
  • Page 10 Remove the terminal block cover on the rear panel of UPS. Then connect the wires according to the following terminal block diagrams: (Connect the earth wire first when making wire connection. Disconnect the earth wire last when making wire disconnection!) Terminal Block wiring diagram NOTE 1: Make sure that the wires are connected tightly with the terminals.

  • Page 11: Ups Installation For Parallel System

    2-5. UPS Installation for Parallel System If the UPS is only available for single operation, you may skip this section to the next. 1) Install and wires the UPSs according to the section 2-3. 2) Connect the output wires of each UPS to an output breaker. 3) Connect all output breakers to a major output breaker.

  • Page 12: Operations

    3. Operations 3-1. Button Operation Button Function  Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS. ON/Enter Button  Enter Key: Press this button to confirm the selection in setting menu. ...
  • Page 13 LCD Panel: Display Function Backup time information Indicates battery discharge time in numbers. H: hours, M: minutes, S: seconds Fault information Indicates that the warning and fault occurs. Indicates the fault codes, and the codes are listed in details in section 3-9. Mute operation Indicates that the UPS alarm is disabled.

  • Page 14: Audible Alarm

    3-3. Audible Alarm Description Buzzer status Muted UPS status Bypass mode Beeping once every 2 minutes Battery mode Beeping once every 4 seconds Fault mode Beeping continuously Warning Overload Beeping twice every second Others Beeping once every second Fault Beeping continuously 3-4.
  • Page 15 for system safety. 5) If the overload time is longer than acceptable time listed in spec at AC mode, the UPS will automatically transfer to Bypass mode. After the overload is removed, it will return to AC mode. If the overload time is longer than acceptable time listed in spec at Battery mode, the UPS will become fault status.
  • Page 16 2) In Bypass mode, output voltage of the UPS is still present. In order to cut off the output, switch off the input breaker. A few seconds later, there is no display shown on the display panel and UPS is complete off.

  • Page 17: Parallel Operation

    NOTE 2: All parameter settings will be saved only when UPS shuts down normally with internal or external battery connection. (Normal UPS shutdown means turning off input breaker in bypass/no output mode). 3-4-13. Operation of changing battery numbers in LCD setting 1) In bypass mode, press “ESC”...
  • Page 18 not, please check if the parallel cables are connected correctly. Then Turn on another UPS. A few seconds later, the UPS will enter to battery mode and add to the parallel system. If you have the third UPS, follow the same procedure of 3). Then, the parallel system is complete. 3-5-4.

  • Page 19: Abbreviation Meaning In Lcd Display

    3-6. Abbreviation Meaning in LCD Display Abbreviation Display content Meaning Enable Disable Auto Battery Normal mode (not CVCF mode) CVCF mode Subtract Not allowed Allow Reserved OP.V Output voltage Parallel 3-7. LCD Setting Parameter 2 Parameter 3 Parameter 1 There are three parameters to set up the UPS. Parameter 1: It’s for program alternatives.
  • Page 20 Battery backup time setting Reserved Reserved for future Reserved Reserved for future Hot standby function enable/disable Battery voltage adjustment Charger voltage adjustment Inverter voltage adjustment Output voltage calibration Charging current setting Battery capacity and group setting Battery number setting *Y means that this program can be set in this mode. Note: All parameter settings will be saved only when UPS shuts down normally with internal or external battery connection.
  • Page 21 finished the startup, there will be a few seconds of voltage pulse (same as the input voltage) on the bypass output. If you need to remove the pulse on this mode to protect your load better, you could contact the dealer for help. For the UPS with parallel function, this pulse situation won’t happen.
  • Page 22 08: Bypass mode setting  Interface Setting Parameter 2: OPN: Bypass allowed. When selected, UPS will run at Bypass mode depending on bypass enabled/disabled setting. FBD: Bypass not allowed. When selected, it’s not allowed for running in Bypass mode under any situations. Parameter 3: ENA: Bypass enabled.
  • Page 23 12: Hot standby function enable/disable  Interface Setting Parameter 2: HS.H Enable or disable Hot standby function. You may choose following two options in Parameter 3: YES: Hot standby function is enabled. It means that the current UPS is set to host of the hot standby function, and it will restart after AC recovery even without battery connected.

  • Page 24: Operating Mode/Status Description

    17: Charging current setting  Interface Setting Parameter 2: Set up charging current of the charger charging current of the charger 001~004: Set the from 1A To 4A. Parameter 3: Fine-turning charge current ± 0~± 5: you may choose ‘+’ as add or ‘-‘ as Sub to adjust charging voltage.
  • Page 25 Operating mode/status AC mode Description When the input voltage is within acceptable range, UPS will provide pure and stable AC power to output. The UPS will also charge the battery at AC mode. LCD display ECO mode Description When the input voltage is within voltage regulation range and ECO mode is enabled, UPS will bypass voltage to output for energy saving.

  • Page 26: Fault Code

    Battery Test Description When UPS is in AC mode or CVCF mode, press “Test” key for more than 0.5s. Then the UPS will beep once and start “Battery Test”. The line between I/P and inverter icons will blink to remind users. This operation is used to check the battery status.

  • Page 27: Warning Indicator

    3-10. Warning Indicator Warning Icon (flashing) Alarm Overload Beeping twice every second Overcharge Beeping every second EPO enable Beeping every second Fan failure/Over temperature Beeping every second Charger failure Beeping every second I/P fuse broken Beeping every second Overload 3 times in 30min Beeping every second Battery unconnected Beeping every second...

  • Page 28: Trouble Shooting

    4. Trouble Shooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in the front The AC input power is not Check if input cable firmly display panel even though the mains is connected well.

  • Page 29: Storage And Maintenance

    5. Storage and Maintenance 5-1. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months...

  • Page 30: Specifications

    6. Specifications...
  • Page 31 CompuGuard, SafeGuard, Defender, Commander, Centurion: 2 years Platinum Range: 1 year To claim a warranty our contact details are as follows Call Service on 1300-305-393 Visit http://powershield.com.au/rma-application/ to process an RMA Power Shield Pty Ltd (Head Office) U3, 205 Camboon Rd Malaga, WA 6090 Any claim for expenses must be provided to us in writing and should be sent to our office, detailed above.
