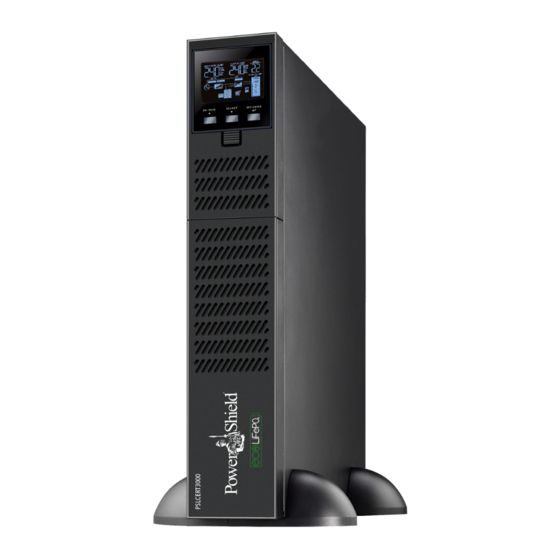

- Page 2 Introduction Thank you for choosing PowerShield. PowerShield Centurion UPS series are designed to provide the highest level of protection against disturbances found on electrical power supply lines. It is suitable for most applications including IT, security, telephone, broadcasting, medical etc.
- Page 3 Indicates the primary safety ground. This symbol indicates that you should not discard the UPS or the UPS batteries in the trash. The UPS may contain Lithium Iron Phosphate (LiFePO4 or more simply LiFe) batteries. Batteries must be recycled. www.powershield.com.au...
-
Page 4: Table Of Contents
3-6. Operating Mode Description .............. 18 3-7. Faults Reference Code ............... 19 3-8. Warning indicator ................20 4. Troubleshooting ..................21 5. Storage and Maintenance ................ 22 5-1. Operation ..................22 5-2. Storage .................... 22 6. Specifications ..................23 www.powershield.com.au... -
Page 5: Important Safety Warning
Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system. When installing the equipment, ensure that the sum of the leakage current of the UPS and the connected devices does not exceed 3.5mA. www.powershield.com.au... -
Page 6: Operation
Disconnect the charging source and load prior to installing or performing service and maintenance on the battery. Remove battery grounds during installation and maintenance to reduce likelihood of shock. Remove the connection from ground if any part of the battery is determined to be grounded. www.powershield.com.au... - Page 7 When changing batteries, always install the same number and same type of batteries or battery packs. Manufacturer Type Rated PowerShield LIFE-247500 25.6 V dc, 7.5 Ah LIFE-485000 48 V dc, 5.0 Ah LIFE-722500 76.8 V dc, 2.5 Ah For UPS with internally mounted battery ...
-
Page 8: Installation And Setup
Store the original package in a safe place for future use. NOTE: The PowerShield Lithium Iron Phosphate (LiFePO4) online UPS models support internal LiFePO4 batteries. Please refer to the following model table. Model No. -
Page 9: Operating Principle
AC input. unit. This UPS can be used as either a stand-alone tower or rack mounted in a 19” chassis. Please choose from the appropriate installation instructions below to position the UPS accordingly. Rack-mount Installation Step 1 Step 2 www.powershield.com.au... -
Page 10: Setting Up The Ups
Step 3 Contact www.powershield.com.au on 1300-305-393 for optional PowerShield Rail Kit - PSRK 2-4. Setting up the UPS Please take note of the points below to select an appropriate location for the UPS installation. 1. Install the UPS indoors, in a clean environment, where it is away from window and doors. - Page 11 1 and pin 2 closed (a metal plate is connected to Pin 1 and Pin2) for UPS normal operation. To activate Emergency Power OFF (EPO) function, remove the two screws on the EPO port to remove the metal plate. Illustration is in the closed switch To activate EPO position for normal UPS operation. function, remove these two screws. www.powershield.com.au...
- Page 12 2. Click Downloads software icon and choose your required OS to download the NetGuard software in the https://powershield.com.au/downloads downloads page. 3. Follow the on-screen instructions to install the NetGuard software. 4. When the computer re-starts, the NetGuard monitoring software will appear as an orange plug icon located in the system tray, near the clock.
-
Page 13: Operations
Exit setting mode or return to the upper menu: When working in setting Button mode, press ON/Mute and Select buttons simultaneously for 0.2 seconds to return to the upper menu. If it’s already in top menu, press these two buttons at the same time to exit the setting mode. www.powershield.com.au... -
Page 14: Lcd Panel
UPS status Indicates that programmable management outlets are working. Indicates the UPS alarm is disabled. Indicates the UPS is working in bypass mode. Indicates the UPS powers the output directly from the mains Indicates the UPS connects to the mains. www.powershield.com.au... -
Page 15: Audible Alarm
Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Active open Active close Estimated autonomy time Running autonomy time Shutdown Battery Low Over Load Over input current Battery No Connect Over Charge Site wiring fault Temperature Charger www.powershield.com.au... -
Page 16: Ups Parameter Settings
BAT 50: presents output frequency is 50Hz BAT 60: presents output frequency is 60Hz If converter mode is enabled, you may choose the following output frequency: CF 50: presents output frequency is 50Hz CF 60: presents output frequency is 60Hz www.powershield.com.au... - Page 17 230-264: setting the high voltage point in parameter 3 from 230Vac to 264Vac. (Default: 264Vac) LLS: Bypass low voltage point For 200/208/220/230/240 VAC models: 170-220: setting the low voltage point in parameter 3 from 170Vac to 220Vac. (Default: 170Vac) www.powershield.com.au...
- Page 18 0-999: setting the backup time in minutes from 0-999 for general outlets on battery mode. DIS: Disable the autonomy limitation and the backup time will depend on battery capacity. (Default) Note: When setting as “0”, the backup time will be only 10 seconds. www.powershield.com.au...
-
Page 19: Operating Mode Description
The UPS will also charge the battery at online mode. ECO mode Energy saving mode: When the input voltage is within voltage regulation range, UPS will bypass voltage to output for energy saving. The UPS will also charge the battery at ECO mode. www.powershield.com.au... -
Page 20: Faults Reference Code
Fault event Fault code Icon Bus start fail Battery voltage too high 27 Bus over Battery voltage too low Bus under Charger output short Inverter soft start fail Over temperature Inverter voltage high Overload Inverter voltage Low Charger failure www.powershield.com.au... -
Page 21: Warning Indicator
2 short beeps every 2 seconds Battery replacement 2 short beeps every 2 seconds EEPROM error 2 short beeps every 2 seconds NOTE: “Site Wiring Fault” function can be enabled/disabled via software. Please check software manual for the details. www.powershield.com.au... -
Page 22: Troubleshooting
Fault code is shown as 43 and the The UPS shut down Remove excess loads from automatically because of UPS output and restart it. icon is lighting on LCD overload at the UPS display. Alarm is continuously output. sounding. www.powershield.com.au... -
Page 23: Storage And Maintenance
Before storing, charge the UPS for 5 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -10°C ~ 35°C Every 3 months 1 hours @5~35℃ -10°C ~ 25°C Every 6 months 1 hours@5~25℃ www.powershield.com.au... -
Page 24: Specifications
6. Specifications www.powershield.com.au... - Page 25 Range: 1 year Gamatronic Range: 1 year To claim a warranty our contact details are as follows Call Service on 1300-305-393 Visit https://powershield.com.au/support-menu/rma-application/ to process an RMA Power Shield Pty Ltd (Head Office) U3, 205 Camboon Rd Malaga, WA 6090 Any claim for expenses must be provided to us in writing and should be sent to our office, detailed above.
