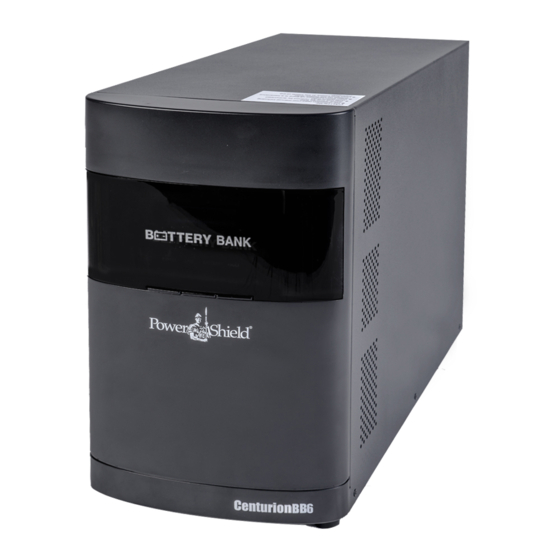

Centurion tower online ups
Hide thumbs Also See for PSCE1000:

Advertisement

www.powershield.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSCE1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for PowerShield PSCE1000

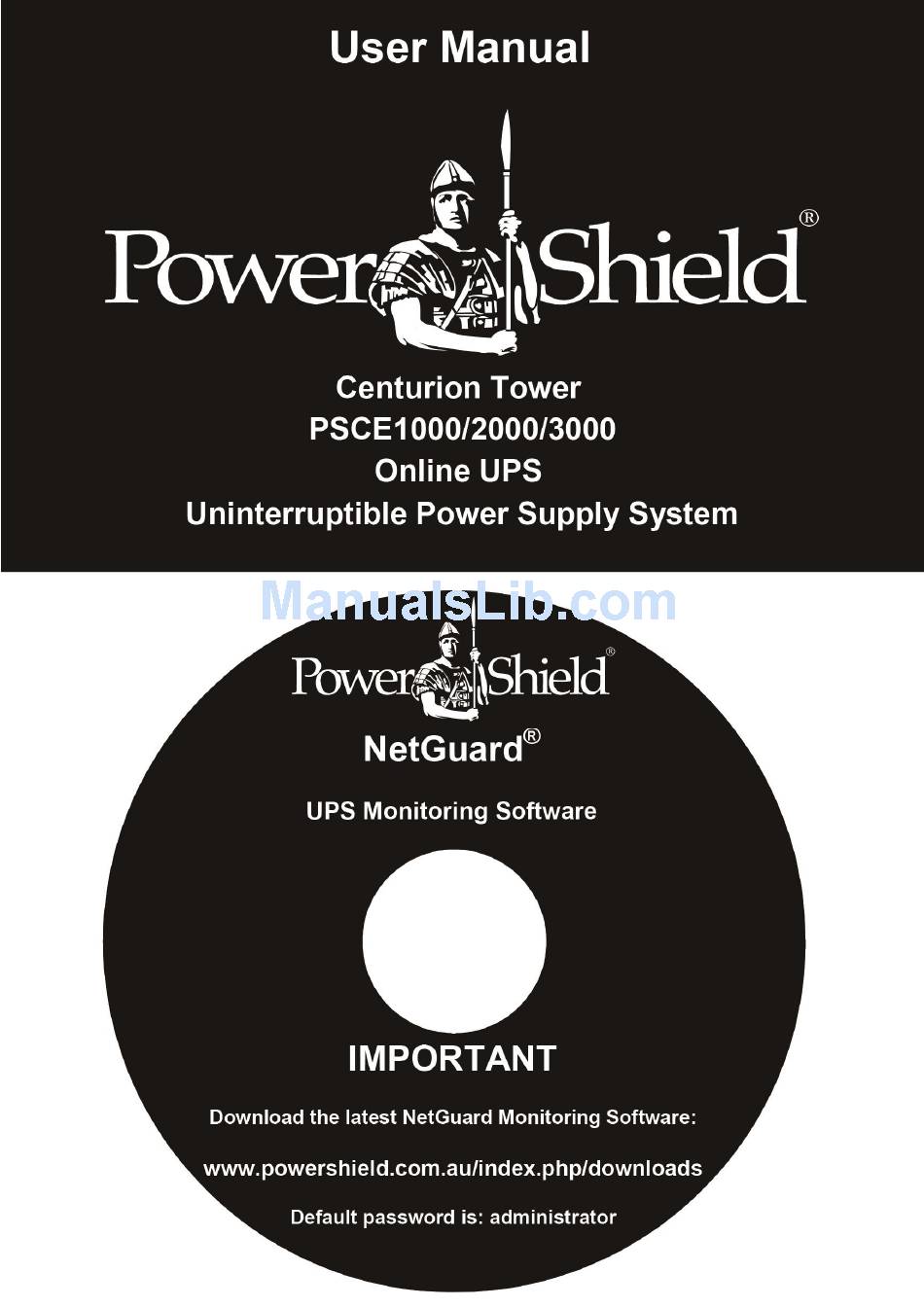

  • Page 1 www.powershield.com.au...
  • Page 2 This user manual contains instructions relating to safety, installation, operation, maintenance and warranty of this product. Please keep this manual in a safe place for future references. *1: PowerShield does not recommend to use any of its products in life support application and /or in direct patients care. www.powershield.com.au...
  • Page 3 SAFETY EARTHING TERMINAL - Indicates the primary safety ground. This symbol indicates that you should not discard the UPS or the UPS batteries in the trash. The UPS may contain sealed, lead-acid batteries. Batteries must be recycled. www.powershield.com.au...
  • Page 4: Table Of Contents

    3-7. Faults Reference Code ..................15 3-8. Warning indicator ....................15 4. Troubleshooting ......................16 5. Service ........................18 6. Storage and Maintenance ................... 19 6-1. Operation ......................19 6-2. Storage ......................19 7. Contacting PowerShield ....................19 8. Specifications ......................20 www.powershield.com.au...
  • Page 5: Important Safety Warning

    Do not connect domestic appliances such as hair dryers to UPS output sockets.   The UPS can be operated by any individual without previous experience. Always connect the UPS system to an earthed shockproof outlet that is easily  accessible and close to the UPS system. www.powershield.com.au...
  • Page 6: Operation

    Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin  and eyes and may be toxic. Replacement fuses must be of the same type and amperage (current rating) in  order to avoid fire hazards. Do not dismantle the UPS system.  www.powershield.com.au...
  • Page 7: Installation And Setup

    NOTE : Long Runtime UPS systems do not contain batteries in the UPS system. Battery bank needs to be purchased when Long Runtime model is used. Model Number Type Model Number Type PSCE1000 PSCE1000L Standard Long PSCE2000 PSCE2000L Runtime...
  • Page 8: Setup The Ups

    Please provide enough space between UPS and external battery bank for  ventilation. Also, do not stack battery banks. Stacking results in a tipping hazard. 1. Remove DC connector cover from the rear panel of the unit and from the www.powershield.com.au...
  • Page 9: Communication Port

    The UPS is equipped with intelligent slot perfect for SNMP or AS400 card. When installing SNMP or AS400 card in the UPS, it will provide advanced communication and monitoring options. Note : AS400 and SMNP card cannot work at the same time. www.powershield.com.au...
  • Page 10 Please follow steps below to download and install monitoring software from the internet: 1. Go to the website http://www.powershield.com.au 2. Click PowerShield NetGuard software icon and then choose your required OS to download the software. 3. Follow the on-screen instructions to install the software.
  • Page 11: Operations

     Exit setting mode or return to the upper menu: When working in Select Button setting mode, press ON/Mute and Select buttons simultaneously for 0.2 seconds to return to the upper menu. If it’s already in main menu, press these two buttons at the same time to exit the setting mode. www.powershield.com.au...
  • Page 12: Lcd Panel

    Indicates the load or the UPS output is short circuit. Programmable outlets information Indicates that programmable management outlets are working. Mode operation information Indicates the UPS connects to the mains. Indicates the battery is working. Indicates the bypass circuit is working. www.powershield.com.au...
  • Page 13: Audible Alarm

    Beep every second Fault Continuously Beeping Bypass Mode Beep every 10 seconds 3-4. LCD display wordings index Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Battery Battery AH Charger current Charger boost voltage Charger float voltage Converter www.powershield.com.au...
  • Page 14: Ups Setting

    240: presents output voltage is 240Vac (Default) 02: Frequency Converter enable/disable  Interface Setting Parameter 2 & 3: Enable or disable converter mode. You may choose the following two options: CF ENA: converter mode enable CF DIS: converter mode disable (Default) www.powershield.com.au...
  • Page 15 Down key or Up key. HLS: Bypass high voltage point 230-264: setting the high voltage point in parameter 3 from 230Vac to 264Vac. (Default: 264Vac) LLS: Bypass low voltage point 170-220: setting the low voltage point in parameter 3 www.powershield.com.au...
  • Page 16 12: Battery total AH setting  Interface Setting Parameter 3: Set up the total battery AH of the UPS. 7-999: setting the battery total capacity from 7-999 in AH. Please set the correct total capacity of battery if external battery bank is connected. www.powershield.com.au...
  • Page 17 15: Charger Float voltage setting  Interface Setting Parameter 3: Set up the charger float voltage. 2.20-2.33: setting the charger float voltage from 2.20 V/cell to 2.33V/cell. (Default: 2.28V/cell) 00: Exit setting  Interface Setting Exit the setting mode. www.powershield.com.au...
  • Page 18: Operating Mode Description

    Alarm is sounding every 10 second. Standby mode UPS is powered off and no output supply power, but still can charge batteries. Fault mode When a fault has occurred, the icon and the fault code will be displayed. www.powershield.com.au...
  • Page 19: Faults Reference Code

    Sounding every 2 seconds EEPROM error Sounding every 2 seconds Fan failure Sounding every 2 seconds Battery replacement Sounding every 2 seconds NOTE: “Site Wiring Fault” function can be enabled/disabled via software. Please check software manual for the details. www.powershield.com.au...
  • Page 20: Troubleshooting

    LCD display and alarm is connected. sounding every 2 seconds. Fault code is shown as 27 and Battery voltage is too high Contact PowerShield. or the charger is fault. the icon is lighting on LCD display and alarm is continuously sounding.
  • Page 21 LCD display and alarm is UPS output. continuously sounding. Fault code is shown as 01, 02, A UPS internal fault has Contact PowerShield 03, 11, 12, 13 and 41 on LCD occurred. There are two display and alarm is possible results: continuously sounding.
  • Page 22: Service

    PowerShield procedure is to replace the original unit with a factory refurbished unit. PowerShield will ship the replacement unit once the defective unit has been received by the service department, or cross ship upon the receipt of a valid credit card number. The customer pays for shipping the defective unit to PowerShield.
  • Page 23: Storage And Maintenance

    Centurion series contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. Please contact your dealer or visit PowerShield web site. www.powershield.com.au/support.php Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.
  • Page 24: Specifications

    8. Specifications MODEL PSCE1000(L) PSCE2000(L) PSCE3000(L) CAPACITY* 1000 VA / 900 W 2000 VA / 1800 W 3000 VA / 2700 W INPUT 160VAC/140VAC/120VAC/110VAC± 5% Low Line Transfer ( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
  • Page 25 Platinum Range: 1 year To claim a warranty our contact details are as follows Call Service on 1300-305-393 Visit www.powershield.com.au/rmaform/ to process an RMA Power Shield Pty Ltd (Head Office) U3, 205 Camboon Rd Malaga, WA 6090 Any claim for expenses must be provided to us in writing and should be sent to our office, detailed above.
  • Page 26 UPS if it cannot be repaired. DYNAMIX will ship the repaired/replacement unit once the defective unit has been received and tested by the service department. The customer pays all shipping charges to return the defective UPS to DYNAMIX. DYNAMIX pays the freight charges to ship the repaired/replacement UPS back to the customer within New Zealand. www.powershield.com.au...
