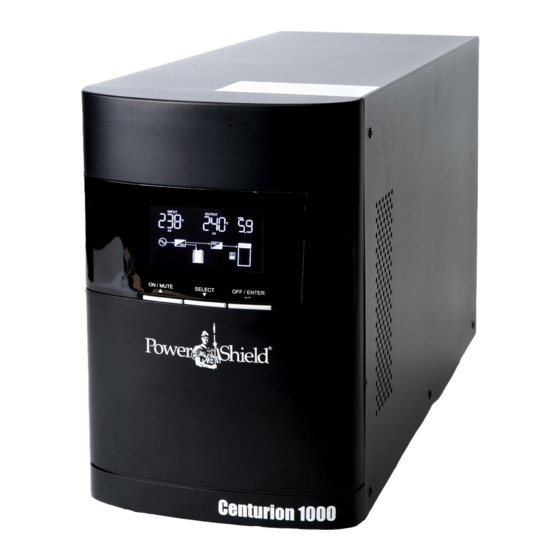

- Page 2 Do not lift heavy loads without assistance. This equipment is intended for installation in a controlled temperature indoor area free from conductive contaminants. *1: PowerShield does not recommend to use any of its products in life support application and /or in direct patients care. www.powershield.com.au...
-
Page 3: Table Of Contents
3-1. Button operation 3-2. LCD Panel 3-3. Audible Alarm 3-4. LCD display wordings index 3-5. UPS Setting 3-6. Operating Mode Description 3-7. Faults Reference Code 3-8. Warning indicator 4. Troubleshooting…………………………………………………………... 5. Service………………………………………………………………………. 6. Storage and Maintenance……………………………………………… 7. Contact PowerShield…………………………………………………….. 8. Product Specification……………………………………………………... -
Page 4: Important Safety Warning
Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system. Pluggable equipment includes a protective earth conductor that carries the leakage current from the load devices ( computer equipment ). Total leakage current must not exceed 3.5mA. www.powershield.com.au... -
Page 5: Operation
1-4. Operation Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof socket outlet) during operations since this would cancel the protective earthing of the UPS system and of all connected loads. The UPS system features its own, internal current source (batteries). The UPS output ... -
Page 6: Installation And Setup
Long Runtime model is used. Model Number Type Model Number Type PSCE1000/PSCER1000 PSCE1000L/PSCER1000L PSCE1500/PSCER1500 PSCE1500L/PSCER1500L Standard Long Runtime Runtime PSCE2000/PSCER2000 PSCE2000L/PSCER2000L PSCE3000/PSCER3000 PSCE3000L/PSCER3000L 2-1. Rear panel view PSCE1000(L) / PSCE1500(L) TOWER PSCE2000(L) TOWER PSCE3000(L) TOWER www.powershield.com.au... - Page 7 PSCER1000(L)/PSCER1500(L) RACK PSCER2000(L) RACK PSCER3000(L) RACK 1. Programmable outlets (WHITE COLOUR OUTLETS): connect to non-critical loads. 2. General outlets (BLACK COLOUR OUTLETS): connect to mission-critical loads. 3. AC input inlet 4. Input circuit breaker 5. Output circuit breaker 6. Emergency power off function connector (EPO) 7.
-
Page 8: Setup The Ups
Plug the UPS input cord into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. Centurion series come with Australian power cord in the package. For 1000/2000VA : 10A Australian input plug to IEC socket For 3000VA :... - Page 9 1. Remove DC connector cover from the rear panel of the unit and from the battery bank input connector. 2. Connect DC cable from the DC connector of UPS rear panel to the input DC connector of Battery bank. Turn on battery circuit breaker of Battery banks. NB : Battery banks can be used with both types of UPS’s.
- Page 10 Please follow steps below to download and install monitoring software from the internet: 1. Go to the website http://www.powershield.com.au 2. Click PowerShield NetGuard software icon and then choose your required OS to download the software. 3. Follow the on-screen instructions to install the software.
-
Page 11: Operations
3. Operations 3-1. Button operation Button Function Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS. Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at least 5 seconds to disable or enable the alarm system. -
Page 12: Lcd Panel
Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates overload. Indicates the load or the UPS output is short circuit. Programmable outlets information Indicates that programmable management outlets are working. Mode operation information Indicates the UPS connects to the mains. Indicates the battery is working. www.powershield.com.au... -
Page 13: Audible Alarm
Indicates the bypass circuit is working. Indicates the ECO mode is enabled. Indicates the Inverter circuit is working. Indicates the output is working. Battery information Indicates the Battery level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is fault. Indicates low battery level and low battery voltage. -
Page 14: Ups Setting
There are three parameters to set up the UPS. Parameter 1 Parameter 1: It’s for program alternatives. There are 9 programs to set up. Refer to below table. Parameter 2 and parameter 3 are the setting options or values for each program. Parameter 2 Parameter 3 www.powershield.com.au... - Page 15 01: Output voltage setting Interface Setting Parameter 3: Output voltage For 208/220/230/240 VAC models, you may choose the following output voltage: 208: presents output voltage is 208Vac 220: presents output voltage is 220Vac 230: presents output voltage is 230Vac 240: presents output voltage is 240Vac 02: Frequency Converter enable/disable ...
- Page 16 0-999: setting the backup time in minutes from 0-999 for general outlets on battery mode. 0: When setting as “0”, the backup time will be only 10 seconds. 999: When setting as “999”, the backup time setting will be disabled. (Default) 00: Exit setting www.powershield.com.au...
-
Page 17: Operating Mode Description
3-6. Operating Mode Description Operating mode Description LCD display Online mode When the input voltage is within acceptable range, UPS will provide pure and stable AC power to output. The UPS will also charge the battery at online mode. ECO mode Energy saving mode: When the input voltage is within voltage regulation range, UPS will bypass... -
Page 18: Warning Indicator
Sounding every second Over Charge Sounding every second Site wiring fault EPO enable Sounding every second Fan Failure Sounding every second Over temperature Sounding every second Charger failure Sounding every second Out of bypass voltage range Sounding every second www.powershield.com.au... -
Page 19: Troubleshooting
LCD display and alarm is connected. sounding every second. Fault code is shown as 27 and the Battery voltage is too high Contact PowerShield. or the charger is fault. icon is lighting on LCD display and alarm is continuously sounding. - Page 20 UPS output. Fault code is shown as 1, 2, 3, 4, A UPS internal fault has Contact PowerShield 11, 12, 13 and 41 on LCD display occurred. There are two and alarm is continuously possible results: sounding.
-
Page 21: Service
5. Service WARRANTY CONDITION: The standard warranty is TWO (2) years from the date of purchase. The standard PowerShield procedure is to replace the original unit with a factory refurbished unit. PowerShield will ship the replacement unit once the defective unit has been received by the service department, or cross ship upon the receipt of a valid credit card number. -
Page 22: Storage And Maintenance
6. Storage and Maintenance 6-1. Operation Centurion series contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. Please contact your dealer or visit PowerShield web site. -
Page 23: Product Specification
8. Specifications CAPACITY* 1000 VA / 800 W 1500 VA / 1200 W 2000 VA / 1600 W 3000 VA / 2400 W INPUT 160VAC/140VAC/120VAC/110VAC± 5% or 80VAC/70VAC/60VAC/50 VAC± 5% Low Line Transfer ( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) Voltage Low Line Comeback 175 VAC ±... - Page 24 990-1004rev02 www.powershield.com.au...
