PowerShield Defender Series User Manual

Line interactive ups uninterruptible power supply system

Table of Contents

Download this manual

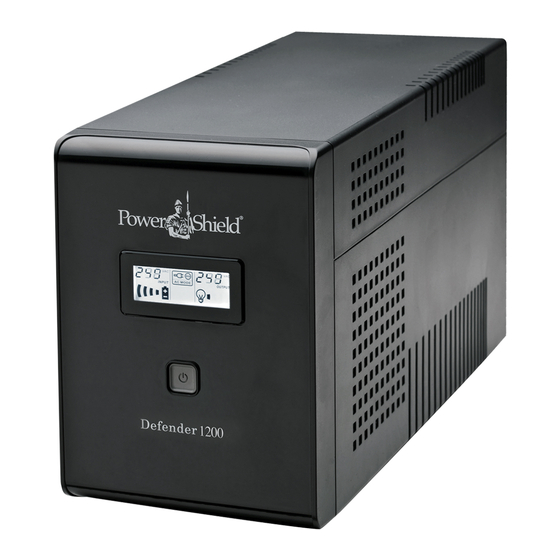

Defender Series

PSD 650 l 1200 l 1600 l 2000

Line Interactive UPS

Uninterruptible Power Supply System

1. Introduction

Thank you for your purchasing the Defender 650/1200/1600/2000. It is designed

to provide safe and reliable power protection to your precious electronics equipment.

Before you start using the product, please read this user's manual. It contains

instructions relating to safety, installation, operation maintenance and warranty.

Please keep this manual in a safe place for furture use.

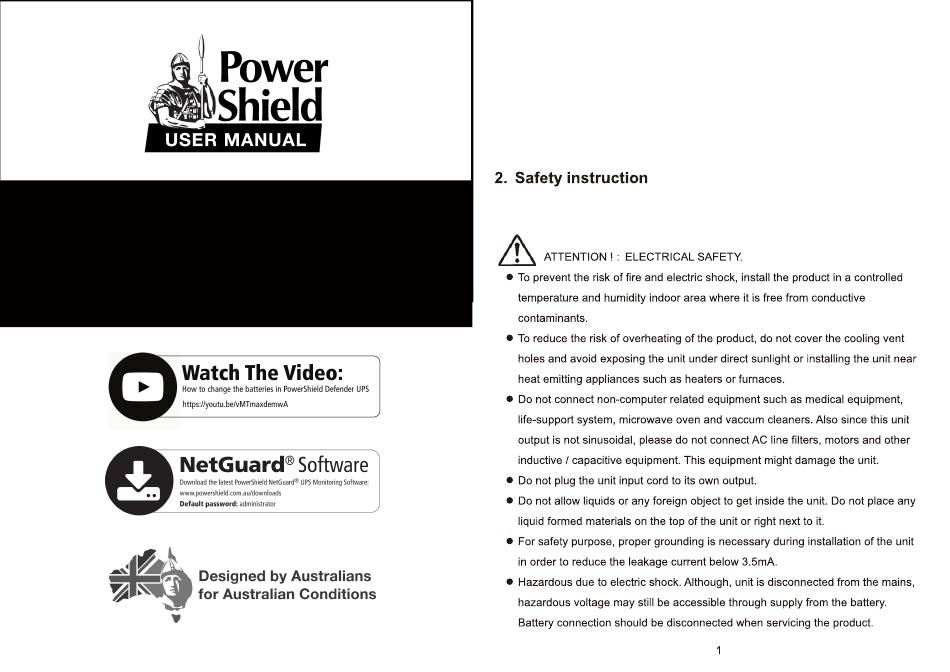

Please read carefully the following safety instructions before using the Defender

650/1200/1600/2000.

Table of Contents

Do you have a question about the Defender Series and is the answer not in the manual?

Page 1 Please keep this manual in a safe place for furture use. Please read carefully the following safety instructions before using the Defender 650/1200/1600/2000. Defender Series PSD 650 l 1200 l 1600 l 2000 Line Interactive UPS Uninterruptible Power Supply System...
Page 2 PowerShield Defender 650/1200/1600/2000VA unit PowerShield Defender User’s Manual USB Communication cable...
Page 3 PSD1200/1600/2000 PSD650 Breaker will trip when there is overload / short occurs at output of the unit. Circuit breaker for 1200/1600/2000 is rated at 10Amp and for 650 is reated at 5Amp.
Page 4 There is power distrbances / black out. the unit is supplying power 1. Please download the latest NetGuard Monitoring software from from battery. www.powershield.com.au/index.php/downloads Beeps 2 beeps every 30 sec 2. When the installation is completed, NetGurad agent icon will appear on the Battery Remain...
Page 5 Deffender 650/1200/1600/2000’s have a user replaceable battery feature. Please read warning on the front page about battery safety and follow the steps carefully shown below. Please use only PowerShield approved battery pack to maximize the performance of the unit. 1. Shutdown all connected equipment and turn the UPS off by pressing on /off button 2.
Page 7 PSD650 PSD1200 PSD1600 PSD2000 650VA/390W 1200VA/720W 1600VA/960W 2000VA/1200W 312Joules/ 6500Amps 5.2kg 11.1kg 11.5kg 12.86kg...

Defender psd 2000Defender psd 1200Defender psd 1600Defender psd 650
