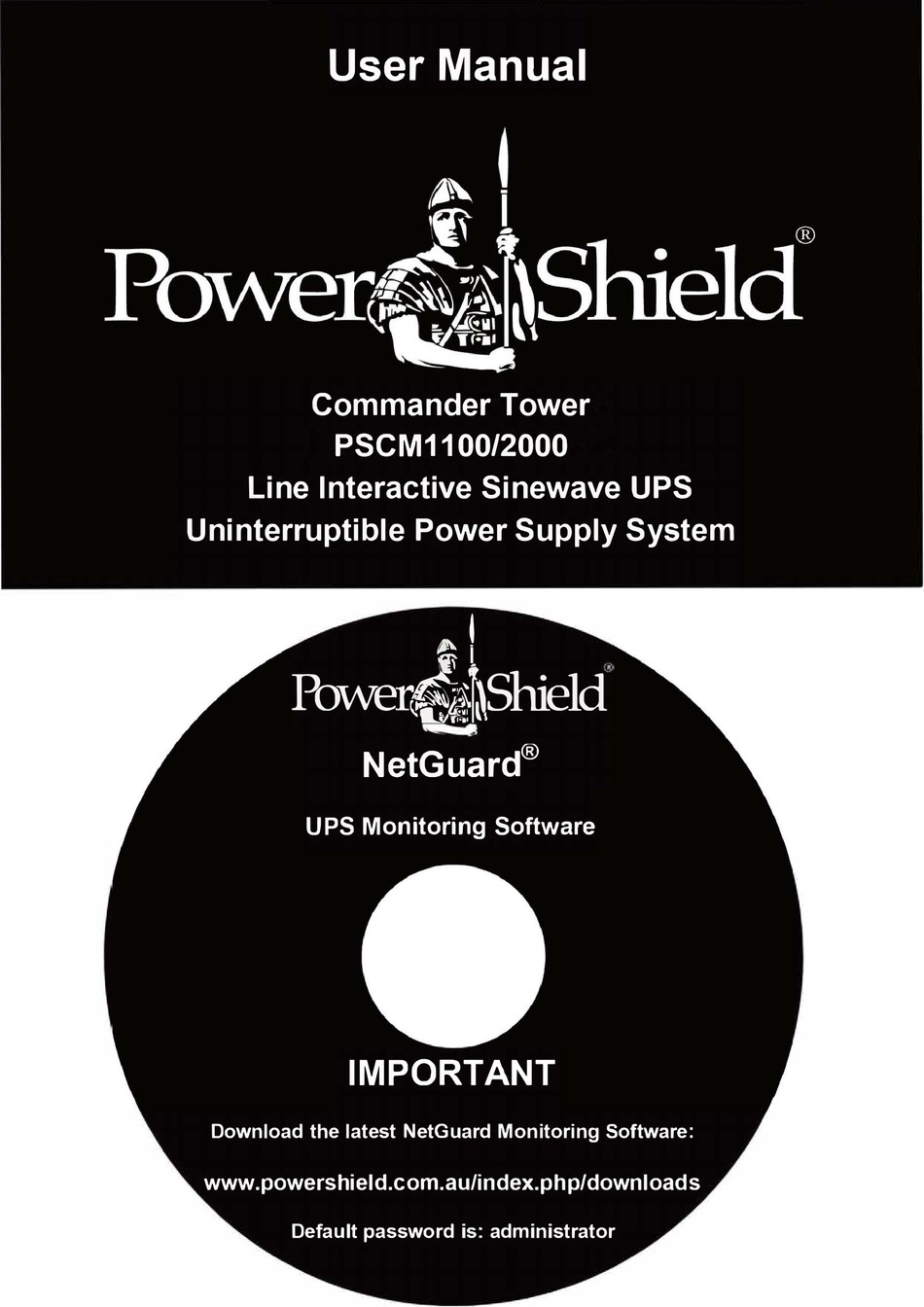

User Manual

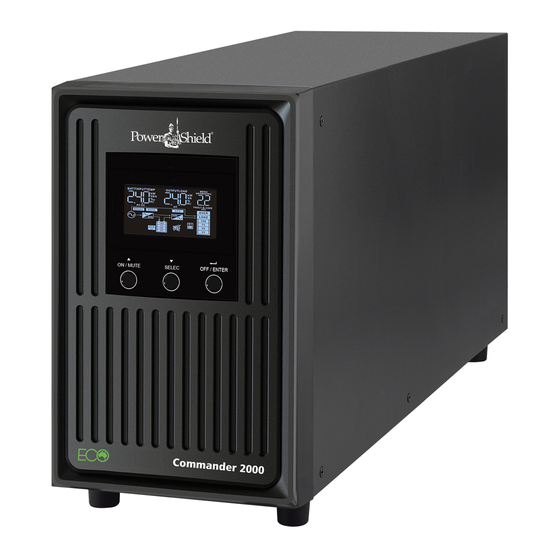

Commander Tower
PSCM1100/2000
Line Interactive Sinewave UPS
Uninterruptible Power Supply System
lbwer�f�Shield
UPS Monitoring Software
IMPORTANT
Download the latest NetGuard Monitoring Software:
www.powershield.eom.au/index.php/downloads
Default password
t
�
l
-
"'
®
NetGuard
is:
administrator
"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PowerShield PSCM1100
Summary of Contents for PowerShield PSCM1100
- Page 1 User Manual Commander Tower PSCM1100/2000 Line Interactive Sinewave UPS Uninterruptible Power Supply System � lbwer�f�Shield "' " ® NetGuard UPS Monitoring Software IMPORTANT Download the latest NetGuard Monitoring Software: www.powershield.eom.au/index.php/downloads Default password administrator...
- Page 2 Introduction Thank you for choosing PowerShield. PowerShield Commander UPS series are designed to provide the highest level of protection against disturbances found on electrical power supply lines. It is suitable for most applications including IT, security, telephone, broadcasting, medical etc.
- Page 3 SAFETY EARTHING TERMINAL - Indicates the primary safety ground. This symbol indicates that you should not discard the UPS or the UPS batteries in the trash. The UPS may contain sealed, lead-acid batteries. Batteries must be recycled. www.powershield.com.au...
-
Page 4: Table Of Contents
3-7. Faults Reference Code ..................... 15 3-8. Warning Indicator ....................15 4. Troubleshooting ....................... 16 5. Service ..........................18 6. Storage and Maintenance ....................19 6-1. Operation ....................... 19 6-2. Storage ........................19 7. Contacting PowerShield..................... 19 8. Specifications ........................20 www.powershield.com.au... -
Page 5: Important Safety Warning
Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system. Pluggable equipment includes a protective earth conductor that carries the leakage current from the load devices (computer equipment). Total leakage current must not exceed 3.5mA. www.powershield.com.au... -
Page 6: Operation
Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It is toxic. Please replace the fuse only with the same type and amperage in order to avoid fire hazards. Do not dismantle the UPS system. www.powershield.com.au... -
Page 7: Installation And Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1. Rear Panel View PSCM1100 PSCM1500/PSCM2000 Programmable outlets: connect to non-critical loads. - Page 8 To allow for unattended UPS shutdown/start-up and status monitoring, connect the communication cable one end to the USB/RS-232 port and the other to the communication port of your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and monitor UPS status through PC. www.powershield.com.au...
- Page 9 Install NetGuard UPS monitoring software to fully configure UPS shutdown. Please follow steps below to download and install monitoring software: 1. Go to the website http://www.powershield.com.au/downloads 2. Click NetGuard software icon and then choose your required OS to download the software.
-
Page 10: Operations
Indicates the backup time in numbers. HRS: hours, MIN: minutes, SEC: seconds Warning & Fault information Indicates that the warning and fault occurs. Indicates the warning and fault codes, and the codes are listed in details in 3-5 section. Setting Operation www.powershield.com.au... -
Page 11: Audible Alarm
Battery information Indicates the Battery level by 0-25%, 26-50%, 51-75%, and 76-100%. 3-3. Audible Alarm Battery Mode 2 beeps every 30 seconds Low Battery Rapid one beep every second Overload 2 short beeps every 2 seconds Continuously sounding Fault www.powershield.com.au... -
Page 12: Lcd Display Wordings Index
3-5. UPS Setting Parameter 2 Parameter 3 Parameter 1 There are three parameters to set up the UPS. Parameter 1: It’s for program alternatives. Refer to below table. Parameter 2&3: It’s is the setting options or values for program. www.powershield.com.au... - Page 13 0-999: setting the backup time in minutes from 0-999 for general outlets on battery mode. DIS: Disable the autonomy limitation and the backup time will depend on battery capacity. (Default setting) Note: When setting as “0”, the backup time will be only 10 seconds. www.powershield.com.au...
- Page 14 Press the “Up“ button (ON/MUTE) to switch to "02" of program list. Then press “Enter“ button to enter value setting of parameter 2. Press the “Up” button to change the value to “ENA” to enable the programmable outlet function. Then press “Enter” button again to confirm the setting. www.powershield.com.au...
-
Page 15: Operating Mode Description
When the input voltage is beyond the acceptable range or power failure and alarm is sounding 2 beeps every 30 seconds, UPS will backup power from battery. Standby mode UPS is powered off and no output supply power, but still can charge batteries. www.powershield.com.au... -
Page 16: Faults Reference Code
Continuously sounding Charger failure Continuously sounding Continuously sounding (At this time, UPS is off to Battery Fault remind users of something wrong with battery) 2 short beeps every 2 seconds Replace Battery EEPROM error 2 short beeps every 2 seconds www.powershield.com.au... -
Page 17: Troubleshooting
Fault code is shown as 14 and The UPS shut down Check output wiring and if alarm is continuously sounding. automatically because short connected devices are in circuit occurs on the UPS short circuit status. output. www.powershield.com.au... - Page 18 Contact your dealer to replace the battery. Fault code is shown as 45 on LCD The charger does not have Contact your dealer. display. At the same time, alarm is output and battery voltage continuously sounding. is less than 10V/PC. www.powershield.com.au...
-
Page 19: Service
The standard warranty is TWO (2) years from the date of purchase. The standard PowerShield procedure is to replace the original unit with a factory refurbished unit. PowerShield will ship the replacement unit once the defective unit has been received by the service department, or cross ship upon the receipt of a valid credit card number. -
Page 20: Storage And Maintenance
6-1. Operation Commander series contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. Please contact your dealer or visit PowerShield web site. www.powershield.com.au/support.php 6-2. Storage Before storing, charge the UPS 5 hours. Store the UPS covered and upright in a cool, dry location. -
Page 21: Specifications
USB and RS-232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry Interface contact PowerShield NetGuard® software – supports Windows based operating system, Linux, Software Unix and Mac AC mode, Batt.Mode, Load Level, Input Voltage, Output Voltage, Overload, Fault,...
