Blodgett BCH-30E Parts List
Electric modular skillets
Hide thumbs
Also See for BCH-30E:
- Brochure & specs (12 pages) ,
- Specifications (2 pages) ,
- Installation operation & maintenance (22 pages)
Subscribe to Our Youtube Channel
Related Manuals for Blodgett BCH-30E
Summary of Contents for Blodgett BCH-30E
-
Page 1: Parts List

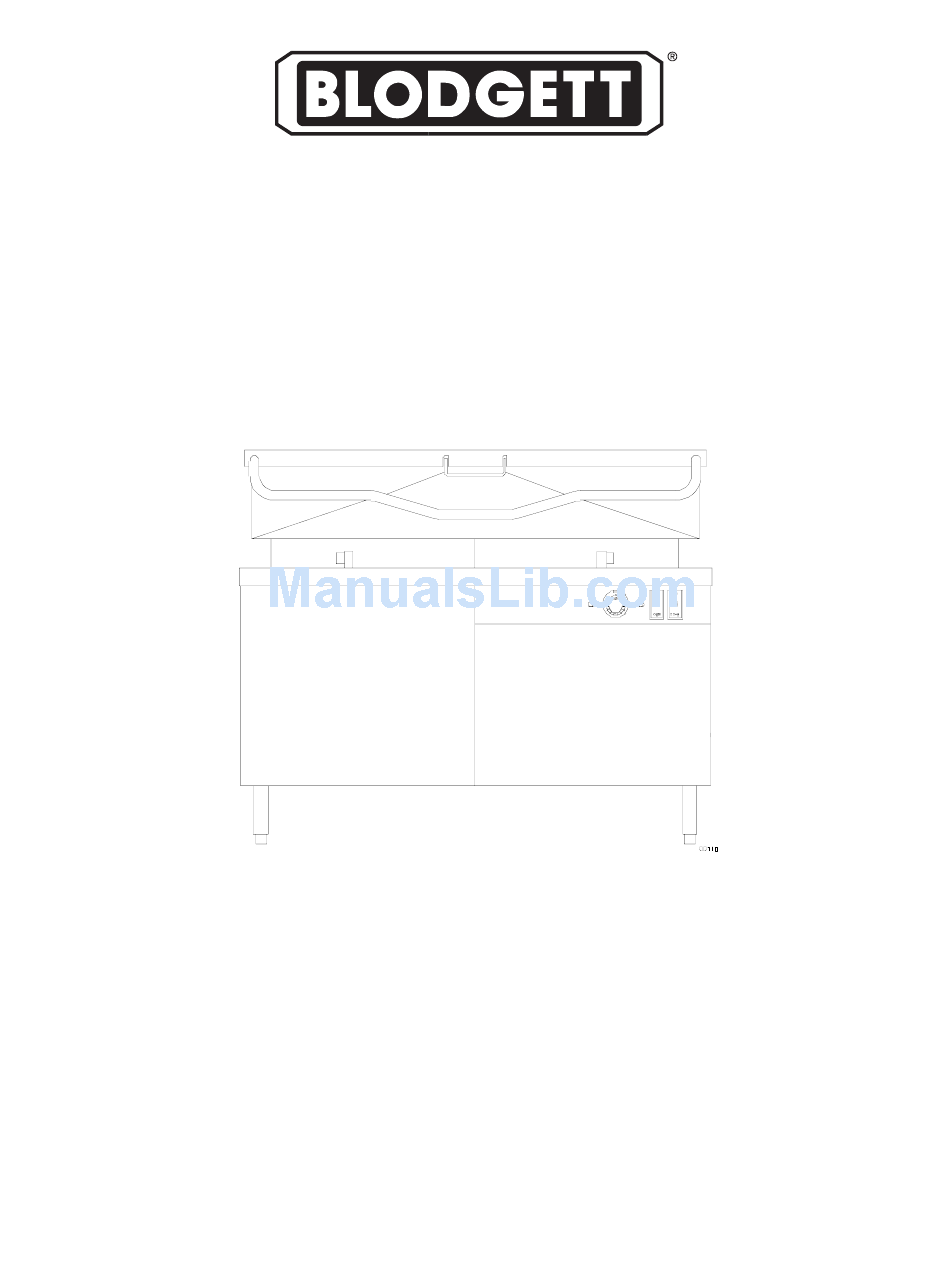

PARTS LIST ELECTRIC MODULAR SKILLETS BLODGETT MODELS: BCH-30E BCH-40E Revised April 6, 2007 BLODGETT OVEN CO ▪ 44 lakeside Ave ▪ Burlington, VT 05446 Tel. 800-331-5842 ▪ Fax 802-860-3732 ▪ www.blodgett.com... - Page 2 PARTS LIST, ELECTRIC MODULAR UNITS, MODELS BCH-30, BCH-40 FIGURE 1...
- Page 3 ITEM Part No. 41308 41309 42224 42480 40452 40347 40380 41140 42372 42374 42294 42377 40936 40487 42363 42364 40951 41005 40994 41006 40849 40848 41883 41884 40949 43373 40840 DESCRIPTION Pan Cover Pan Cover Pour Lip Strainer Tilt Bracket Bushing Left Hand Door Left Hand Door...
- Page 4 PARTS LIST, ELECTRIC MODULAR UNITS, MODELS BCH-30, BCH-40 ITEM Part No. 41004 40941 40941 40734 40734 40733 43374 40373 40381 42476 40277 42476 40183 40184 41543 41546 43106 41100 41526 43107 41520 40098 43299 43300 41165 40223 41166 43375 DESCRIPTION High Limit Thermostat Contactor 208V Contactor 240/380/415/480V, 600V...
- Page 5 ITEM Part No. 40428 43178 40185 41945 41946 41947 41948 41949 41949 42280 42273 42274 42279 42272 42275 42276 42277 42278 * ** 44 41767 * ** 45 41769 * ** 46 40977 40984 40980 40985 NOT SHOWN. ** SELECT AS REQUIRED. DESCRIPTION Thermostat Bulb Enclosure Element Clamp...
- Page 6 PARTS LIST, ELECTRIC MODULAR UNITS, MODELS BCH-30, BCH-40 FIGURE 2...
- Page 7 ITEM Part No. 40786 40787 40788 40649 40650 40651 40652 43376 40793 41930 41929 43377 40657 40660 42255 41932 41931 DESCRIPTION Hose Assembly Flow Control Elbow Motor ½ HP 115/208/230/1/60 Motor ½ HP 380/480V, (Optional) Motor ½ HP, 220/50, (Optional) Directional Valve Pump complete with Integral Relief Valve...
