Blodgett BLT-30E Parts List

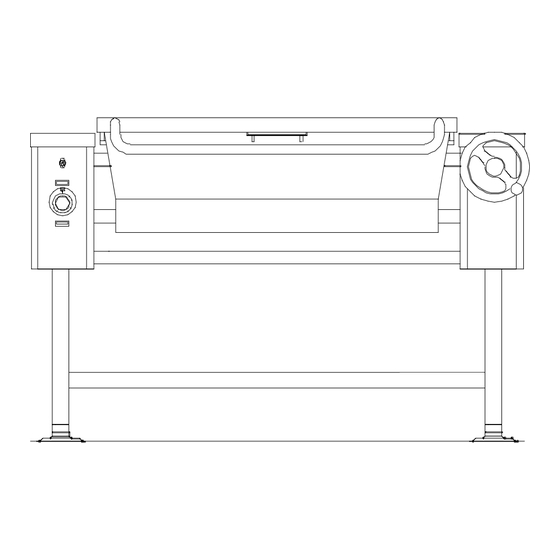

Electric tilting skillet
Hide thumbs
Also See for BLT-30E:
- Brochure & specs (12 pages) ,
- Specifications (2 pages) ,
- Installation operation & maintenance (12 pages)
Related Manuals for Blodgett BLT-30E
Summary of Contents for Blodgett BLT-30E
-
Page 1: Parts List
PARTS LIST ELECTRIC TILTING SKILLET MODELS: BLT-30, 40E BLODGETT OVEN CO ▪ 44 lakeside Ave ▪ Burlington, VT 05446 Tel. 800-331-5842 ▪ Fax 802-860-3732 ▪ www.blodgett.com 2007-06-26... - Page 2 PARTS LIST - ELECTRIC TILTING SKILLETS MODELS BLT-30E, BLT-40E...
- Page 3 ITEM Part Number 42224 40889 40887 41300 40342 41883 40953 ** 8 40848 40849 40994 41005 41171 40103 41130 41474 40206 40108 41299 41554 41095 40132 40249 40123 40126 40113 40082 40266 DESCRIPTION Strainer Left Hand Console Cover Grease Nipple Trunnion Housing Assembly -LH Left Hand Console Decal Power Switch...
- Page 4 40888 40404 42478 40072 40365 40280 40102 40100 43357 MODELS BLT-30E, BLT-40E DESCRIPTION Jam Nut 3/8 - 16 Decal Tilt Set Screw 3/8 - 16 x ½ Tilt Shaft Thrust Bearing Thermostat Mounting Bracket Component Mounting Plate Hex Nut 10 - 32...
- Page 5 ITEM Part Number 43358 40108 41840 43291 41303 40877 **52 41389 41390 41391 41392 40397 41987 41959 40108 40206 41091 41092 * 59 41099 SELECT AS REQUIRED. NOT SHOWN. DESCRIPTION Element Block Tie Down Nut, 3/8 - 16 Bellville Washer Flat Washer, 5/16 Insulation Hi Limit...
- Page 6 HINGE ITEM Part Number 42112 41543 41546 43106 41100 43345 43107 41520 40098 40462 MODELS BLT-30E, BLT-40E DESCRIPTION LARGE HINGE ASSEMBLY Lock Pin End Lock Plate Stationary Disc Core Spring Rotary Disc End Stop Plate Cap Screws Base Plate ASSEMBLY...
- Page 7 DRAW-OFF VALVE 2007-06-26...
- Page 8 PARTS LIST - ELECTRIC TILTING SKILLETS ITEM Part Number 40553 41809 40662 40559 40560 40562 40561 43246 MODELS BLT-30E, BLT-40E DESCRIPTION 1-1/2" DRAW OFF VALVE ASSEMBLY Acorn Nut 10 - 24 UNC Handle, Stainless Steel Gland Nut Bonnet “O” Ring Stem Assembly Valve Body QUANTITY...
- Page 9 ITEM Part Number DESCRIPTION 40554 2" DRAW OFF VALVE ASSEMBLY 41809 Acorn Nut 10 - 24 UNC 40662 Handle, Stainless Steel 40563 Gland Nut 40564 Bonnet 40566 “O” Ring 40565 Stem Assembly 42481 Valve Body ITEM Part Number 40556 40567 40568 40569 40570...
- Page 10 PARTS LIST - ELECTRIC TILTING SKILLETS, MODELS, BLT-30, 40E 2007-06-26...
