INSTALLATION AND OPERATION MANUAL
CLFE4+2SMS[POE](C,U) Series
10/100TX DROP/INSERT/REPEAT 4TX/2EX
SELF-MANAGED SWITCH WITH POE+

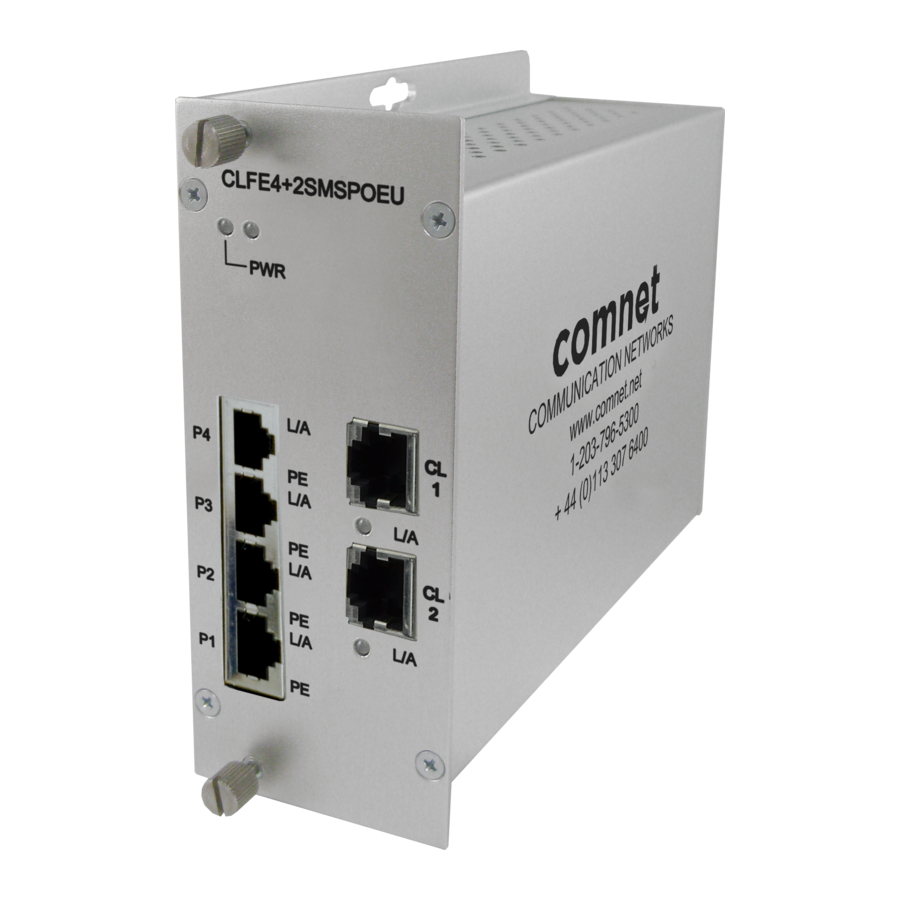

The ComNet CLFE4+2SMS[POE](C,U) is a six-port Ethernet switch with add/drop/repeat
functionality and provides 4 copper ports operating at 10/100Mbps and is designed to
combine four electrical ports along with the incoming Cat5, UTP or Coax CopperLine®
extension port into a further CopperLine extension port that forwards this data to
the next CopperLine network device. There is no programming required to use this
product. The ComNet CLFE4+2SMS(C,U) comes pre-programmed, preventing network
video flooding with DIP switch selection of the first CopperLine port as an uplink or as
an unmanaged switch. Ports 1–4 of the CLFE4+2SMSPOE(C,U) can supply up to thirty
(30) watts of Power over Ethernet (PoE) and incorporate PoE+ features based on the
IEEE 802.3at standard. It is "Plug-and-Play".
INS_CLFE4+2SMS[POE](C,U)_REV– 10/27/11 PAGE 1
Advertisement
Table of Contents
Related Manuals for Comnet CLFE4+2SMS Series
Summary of Contents for Comnet CLFE4+2SMS Series
- Page 1 CLFE4+2SMS[POE](C,U) Series 10/100TX DROP/INSERT/REPEAT 4TX/2EX SELF-MANAGED SWITCH WITH POE+ The ComNet CLFE4+2SMS[POE](C,U) is a six-port Ethernet switch with add/drop/repeat This manual serves the following functionality and provides 4 copper ports operating at 10/100Mbps and is designed to ComNet Model Numbers: combine four electrical ports along with the incoming Cat5, UTP or Coax CopperLine®...
- Page 2 INSTALLATION AND OPERATION MANUAL INSTALLATION AND OPERATION MANUAL CLFE4+2SMS[POE](C,U) SERIES CLFE4+2SMS[POE](C,U) SERIES CLFE4+2SMSU PHYSICAL DESCRIPTION Figure 1 – Physical Features of CLFE4+2SMSU Table 1 – Physical Feature Descriptions Call-out Description Manual Reference Power Indicating LED (Unlabeled LED Reserved for Future Use) See Table 3 - Indicating LEDs See Installation Instructions, Step 5 10/100 TX RJ-45 Ports 1 through 4 and Link/Activity (L/A) Indicating LEDs...
- Page 3 INSTALLATION AND OPERATION MANUAL CLFE4+2SMS[POE](C,U) SERIES CLFE4+2SMSPOEU PHYSICAL DESCRIPTION Figure 1 – Physical Features of CLFE4+2SMSPOEU Table 1 – Physical Feature Descriptions Call-out Description Manual Reference Power Indicating LED (Unlabeled LED Reserved for Future Use) See Table 3 - Indicating LEDs See Installation Instructions, Step 5 10/100 TX RJ-45 Ports 1 through 4 and Link/Activity (L/A) Indicating LEDs See Table 3 - Indicating LEDs...
- Page 4 Use Power Connectors RTN and +Vin RTN and +Vin Contact the ComNet Design Center, or refer to the appropriate installation and operation manual when configuring and specifying power for a deployment. † 8 - VERIFY FUNCTIONALITY See LED table below and Troubleshooting Guide if corrective action is needed.
- Page 5 INSTALLATION AND OPERATION MANUAL CLFE4+2SMS[POE](C,U) SERIES Table 4 – Approximate Maximum Extended Distances¹ Media COAX - RG59/U UTP - 1 pair UTP - 4 pair Extended Port Data Rate 100M 100M 100M 5,000 ft 2,000 ft 3,000 ft 1,000 ft 3,000 ft 2,000 ft Extended Distance...
- Page 6 INSTALLATION AND OPERATION MANUAL INSTALLATION AND OPERATION MANUAL CLFE4+2SMS[POE](C,U) SERIES CLFE4+2SMS[POE](C,U) SERIES Application notes Mixed PoE and Non-PoE systems can be implemented. Lower data rates generally provide longer operating distances. Figure 4 – Typical Application Legend CLFE4+2SMSC CLFE4+2SMSPOEC CAT5e/6 Cable CLFE1EOC PoE Power Power...
- Page 7 T: +44 (0)113 307 6400 F: +44 (0)113 253 7462 INFO-EUROPE@COMNET.NET TECH SUPPORT: 1.888.678.9427 INS_CLFE4+2SMS[POE](C,U)_REV– 10/27/11 PAGE 7 © 2016 Communication Networks. All Rights Reserved. “ComNet,” the “ComNet Logo,” “CopperLine,” and the “CopperLine Logo” are registered trademarks of Communication Networks.
