INSTALLATION AND OPERATION MANUAL
CWGE24MODMS
MODULAR 24 PORT MANAGED SWITCH
V2.02 – October 2010

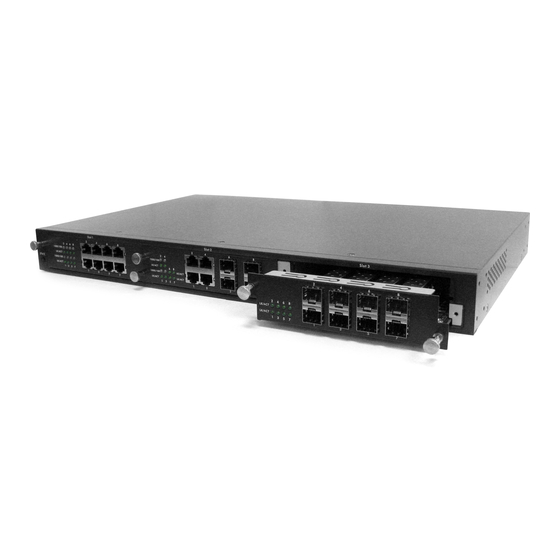

The ComNet™ CWGE24MODMS Managed Ethernet Switch Chassis provides transmission of twenty-four (24)
Ethernet Ports with the use of three eight port expansion modules. This Ethernet switch is easily configurable by
selecting, sold separately, eight port modules that allow for all copper, optical with four copper and four SFP
modules, or all optical with SFP modules making the CWGE24MODMS switch available for use with either
conventional CAT-5e copper or optical transmission media. The 24 electrical ports support the 10/100/1000
Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for
simplicity and ease of installation. These network managed layer 2 switches are optically (1000 BASE-FX) and
electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of
installation, and no electrical or optical adjustments are ever required. The CWGE24MODMS incorporates LED
indicators for monitoring the operating status of the managed switch and network. The CWGE24MODMS and its
corresponding modules are designed for installation in benign (0º – +45º C) operating environments.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWGE24MODMS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comnet CWGE24MODMS

Summary of Contents for Comnet CWGE24MODMS

  • Page 1 SFP modules, or all optical with SFP modules making the CWGE24MODMS switch available for use with either conventional CAT-5e copper or optical transmission media. The 24 electrical ports support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for...

  • Page 2: Fcc Warning

    FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    4.2
 Module Features ....................... 11
 4.3
 Module Hardware Description .................. 12
 4.3.1
Module LED Indicators..................12
 4.3.2
Port Description....................14
 4.4
 Installing Module in CWGE24MODMS Switch Chassis..........14
 4.5
 Module Troubleshooting ................... 15
 Chapter 5 Network Application ........................16
 5.1 Desktop Application....................17
...
  • Page 4 7.4.1 System Information..................22
 7.4.2 Switch Information................... 23
 7.4.2.1 Main Board .................... 23
 7.4.2.2 Management Software ................23
 7.4.3 IP Configuration ....................24
 7.4.4 DHCP Configuration ..................25
 7.4.5 Firmware Update ..................... 27
 7.4.5.1 TFTP Download Firmware ..............27
 7.4.5.2 TFTP Backup Configuration ..............27
 7.4.5.3 TFTP Restore Configuration ..............
  • Page 5 7.6.1.3 VLAN Entry .................... 44
 7.6.2 Rapid Spanning Tree ..................45
 7.6.2.1 STP System Configuration ..............45
 7.6.2.2 STP Port Configuration................47
 7.6.3 SNMP....................... 48
 7.6.4 QoS ........................51
 7.6.4.1 QoS Configuration ................. 51
 7.6.4.2 Port-bace Configuration ................ 51
 7.6.4.3 COS Configuration ................52
 7.6.4.4 DSCP Configuration ................
  • Page 6 7.9 Save Configuration ....................69
 7.10 System Reboot ......................70
 Troubleshooting............................71
 Appendix A- Command Sets ........................73
 Commands Set List ......................73
 System Commands Set ....................74
 Port Commands Set ......................76
 Mac / Filter Table Commands Set ................... 79
 Port Mirroring Commands Set ..................

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction The CWGE24MODMS Managed Switch is a modular switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. The switch is targeted to workgroup, department or backbone computing environments.

  • Page 8: Hardware Features

    1.1 Hardware Features IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit fiber IEEE 802.3ab 1000Base-T IEEE 802.3x Flow control and Back pressure IEEE 802.3ad Port trunk with LACP Standards IEEE 802.1d Spanning tree protocol IEEE 802.1w Rapid spanning tree IEEE 802.1p Class of service IEEE 802.1q VLAN Tagging IEEE 802.1x User authentication...

  • Page 9: Software Feature

    1.2 Software Feature Management SNMP v1/v2c, Telnet, RMON1, CLI and Web management. RFC 2863 Interface Group MIB, RFC 1213 MIBII, RFC 1493 Bridge MIB, RFC 2674 VLAN MIB, RFC 1643 Ethernet Like MIB, RFC 1215 Trap MIB, RFC 1757 RMON MIB, Private MIB Cold start/Warm start trap, SNMP Trap...
  • Page 10 Port Mirror Supports 3 mirroring types: “RX”, “TX” and “Both” packet. Bandwidth Control Per port support ingress rate limiting and egress rate shaping control. IP Management Security: Support IP addresses security to prevent Access security unauthorized intruder. Support IEEE802.1x User-Authentication and can report to RADIUS server.

  • Page 11: Package Contents

     Four Rubber Feet  Power Cord  Rack-mounted kit  RS232 Cable  User Guide Compare the contents of your CWGE24MODMS Managed Switch package with the standard checklist above. If any item is missing or damaged, please contact your local dealer.

  • Page 12: Chapter 2 Hardware Description

    Chapter 2 Hardware Description This section describes the hardware of the CWGE24MODMS Managed Switch. 2.1 Physical Dimension The physical dimensions of the CWGE24MODMS Managed Switch are 440mm(W) x 280mm(D) x 44mm(H)

  • Page 13: Rear Panel

    2.2 Rear Panel The 3-pronged power plug is located at the Rear Panel of the CWGE24MODMS Managed Switch as shown in figure below. The switches will work with AC in the range 100-240V AC, 50-60Hz. The DC redundant power jack is optional.

  • Page 14: Chapter 3 Hardware Installation

    Chapter 3 Hardware Installation 3.1 Desktop Installation Set the switch on a sufficiently large flat space with a power outlet nearby. The surface where you put your Switch should be clean, smooth, level, and sturdy. Make sure there is enough clearance around the switch to allow attachment of cables, power cord and air circulation.

  • Page 15: Rack-Mounted Installation

    3.2 Rack-mounted Installation The switch comes with a rack-mounted kit and can be mounted in an EIA standard size 19-inch rack. The switch can be placed in a wiring closet with other equipment, provided there is proper ventilation. Perform the following steps to rack mount the switch: Position one bracket to align with the holes on one side of the switch and secure it with the smaller bracket screws.

  • Page 16: Chapter 4 Module Hardware Description

    Chapter 4 Module Hardware Description 4.1 Package Contents Unpack the contents of the module package and verify them against the checklist below: Module (your selection of the following):  CWGE24MODMS/8TX CWGE24MODMS/8FXSCM1 CWGE24MODMS/8FXSCS1 CWGE24MODMS/8FXSFP CWGE24MODMS/8TX4SFP4 User Guide  If any item is damaged or missing, please contact your local dealer or provider...

  • Page 17: Module Features

    4.2 Module Features Gigabit copper: complies with IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX,  IEEE802.3ab 1000Base-T Gigabit fiber: complies with IEEE802.3z Gigabit fiber ( SX or LX)  Connector: Gigabit copper (RJ45), Gigabit SX (SC, Multimode Fiber), Gigabit LX (SC,  Single Mode Fiber) LED: Gigabit Fiber (Link/Activity), Gigabit Copper (Link/Activity, 100/1000) ...

  • Page 18: Module Hardware Description

    The LED Indicators gives real-time information of systematic operation status. The LED indicators are located on each module. The LED indicators will be different depending on which module is installed in the CWGE24MODMS Chassis. The following tables provide descriptions of the LED status and their meaning for each module:...
  • Page 19 CWGE24MODMS/8TX4SFP4 Module Status Meaning Gigabit Copper Green Link on 1000Mbps mode Amber Link on 100Mbps speed mode 1000/100 Link on 10Mbps speed mode / No device attached Green Ethernet Link is connected Blink The port is receiving or transmitting data.

  • Page 20: Port Description

    The slot only supports 3.3 VDC; therefore, please confirm the transceiver’s power voltage is same as module. 4.4 Installing Module in CWGE24MODMS Switch Chassis A. Remove the module slot cover from the chassis switch. B. Install the module by inserting it into the guides and sliding it in until it stops. Press it firmly.

  • Page 21: Module Troubleshooting

    4.5 Module Troubleshooting Select the proper UTP cable for 1000Base-T (Gigabit 1000T) module.  Select the proper Fiber cable to construct your network. The Fiber TX and RX port  should be connect to partner’s right fiber port. Example: TX connects to partner’s Fiber RX connector and RX should to partner’s TX connector.

  • Page 22: Chapter 5 Network Application

    This section provides you a few samples of network topology in which the switch can be used. In general, the CWGE24MODMS Managed Switch is designed as a segment switch. That is, with its large address table (16K MAC address) and high performance, it is ideal for interconnecting networking segments.

  • Page 23: Desktop Application

    For enterprise networks where large data broadcast are constantly processed this switch is suitable for a department user to connect to the corporate backbone. You can use the CWGE24MODMS Managed Switch to connect PCs, workstations, and servers to each other. All the devices in this network can communicate with each other by connecting directly to the switch.

  • Page 24: Chapter 6 Console Management

    Chapter 6 Console Management 6.1 Connecting to the Console Port The Console port is a female DB-9 connector that enables a connection to a PC or terminal for monitoring and configuring the Switch. Use the supplied RS232 cable with a male DB-9 connector to connect a terminal or PC to the Console port.

  • Page 25: Cli Management

    The settings of communication parameters After finishing the parameter settings, click “OK“. When the blank screen shows up, press Enter key to get into command line mode. Please see below figure for login screen. 6.3 CLI Management The system supports console management (CLI command). After you login to the system, you will see a command prompt.

  • Page 26: Chapter 7 Web-Based Management

    Chapter 7 Web-Based Management This section introduces the configuration and functions of the Web-Based management. 7.1 About Web-based Management On CPU board of the switch there is an embedded HTML web site residing in flash memory, which offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

  • Page 27: System Login

    User Name: admin  Password: admin  7.3 System Login Launch a browser, such as Microsoft Internet Explorer, via the PC Key in “http:// “+” the IP address of the switch”, and then Press “Enter”. The login screen will appear right after Key in the user name and password.

  • Page 28: System

    7.4 System 7.4.1 System Information Assigning the system name, location and view the system information System Name: Assign the name of switch. The maximum length is 31 bytes  Description: Display the description of switch. The maximum length is 31 bytes ...

  • Page 29: Switch Information

    7.4.2 Switch Information 7.4.2.1 Main Board Hardware Version: display the hardware version  Fan 1 Status: display the status of Fan 1  Fan 2 Status: display the status of Fan 2  7.4.2.2 Management Software Firmware Version: display the firmware version Configure Data version: display the configure data version Command Line Version: display the command line version Web UI Version: display the Web UI version...

  • Page 30: Ip Configuration

    7.4.3 IP Configuration User can configure the IP Settings. IP Address Mode:  Static: IP address of this switch will be assigned by user. DHCP: IP address of this switch will be assigned by the network DHCP server. IP Address: Assign the IP address that the network is using. If IP Address Mode ...

  • Page 31: Dhcp Configuration

    IP configuration interface 7.4.4 DHCP Configuration The system provides the DHCP server function. By enabling the DHCP server function, the switch system will be a DHCP server. DHCP Server Settings  DHCP Server: Enable or disable the DHCP Server function. Enable – the switch will be a DHCP server on your local network.
  • Page 32 DNS Servers: Domain Name Server IP Address in your network. Lease Duration (hours): Assign the lease duration time in hours And then, click DHCP Server Configuration interface DHCP Client Information  Display the DHCP Client information that has gotten an IP address from the DHCP server.

  • Page 33: Firmware Update

    7.4.5 Firmware Update 7.4.5.1 TFTP Download Firmware It provides the functions to allow a user to update the switch firmware. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server. TFTP Server IP Address: Fill in your TFTP server IP. Firmware File Name: The name of firmware image.

  • Page 34: Tftp Restore Configuration

    TFTP-Configuration Backup interface 7.4.5.3 TFTP Restore Configuration User can restore EEPROM value from TFTP server, but user must put back the backup file in TFTP server, switch will download it back. TFTP Server IP Address: Fill in the TFTP server IP. Restore File Name: Fill in the correct restore file name.

  • Page 35: System Event Log

    7.4.6 System Event Log 7.4.6.1 LOG Configuration You can mark the check box of Local Logging, Remote Logging, and SMTP Logging to enable the functions of LOG Configuration. Local Logging: Mark this check box for enabling to set Flash Level and RAM Level. Set ...
  • Page 36 LOG Configuration interface...

  • Page 37: Logging Events Level

    7.4.6.2 Logging Events Level User can select the system log events and SMTP events. When selected events occur, the system will send out the log information. The range of Logging Event Level is from level 0 to level 7. When the level value is the same as the one among Local Logging, Remote Logging, and SMTP Logging, the system will issue a log record to location where user has designated.

  • Page 38: Logging Ram Table

    7.4.6.3 Logging RAM Table Logging RAM Table displays the logs that have been sent to RAM. Logging RAM Table interface. 7.4.6.4 Logging Flash Table Logging Flash Table displays the logs that have been sent to Flash ROM. Logging ROM Table interface...

  • Page 39: Security Manager

    7.4.7 Security Manager Change login user name and password for the management security issue User Name: Key in the new user name (The default is “root”)  New Password: Key in the new password (The default is “root”)  Confirm Password: Re-type the new password ...

  • Page 40: Port

    7.5 Port 7.5.1 Port Statistics Display the port statistic information. Port Statistic interface...

  • Page 41: Port Information

    7.5.2 Port Information The following information provides the current port statistic information Port Information interface 7.5.3 Port Control In Port configuration, user can view every port status that depended on user setting and the negotiation result. Port: select the port that user wants to configure. State: Current port status.
  • Page 42 Auto Negotiation: enable or disable auto negotiation Speed: when Auto Negotiation is disabled, user can select the port link speed. Duplex: set full-duplex or half-duplex mode of the port. Flow Control: set flow control function is Enable or Disable. The default value is Enabled.

  • Page 43: Port Trunk

    7.5.4 Port Trunk The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link Aggregation Group, and enable its transmission and reception functions in an orderly manner.

  • Page 44: Trunk Information

    Trunk Configuration interface 7.5.4.2 Trunk Information After setting up the trunk group, user will see the related information as below. Trunk Information interface...

  • Page 45: Port Activity

    7.5.4.3 Port Activity User will see the related information of LACP Port Activity State as below. Port Activity interface 7.5.5 Port Mirror The port mirror is a method for monitor traffic in switched networks. Traffic through ports can be monitored by specific port. That means traffic goes in or out monitored ports will be duplicated into analysis port.
  • Page 46 Port Mirror Configuration interface Port Mirroring State: enable or disable the port mirror function Analysis Port: Select a port for analyzing all monitor port traffic. User can connect mirror port to LAN analyzer or Netxray. Monitor Port: The ports which user wants to monitor. All monitored port traffic will be copied to analysis port.

  • Page 47: Rate Limiting

    7.5.6 Rate Limiting User can set up the bandwidth rate and packet limitation type of each port. Input  State: There are 4 check boxes of Bc, Mc, UnkUc, KnownUc for selecting.  Rate (1~1526)(Rate*655Kbps): Type in the input rate limit in number between ...

  • Page 48: Protocol

    7.6 Protocol 7.6.1 VLAN A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would allow you to isolate network traffic, so only the members of the VLAN will receive traffic from the same members of VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.

  • Page 49: Port Vlan Id Configuration

    7.6.1.2 Port VLAN Id Configuration Port: Select the port number in the table list. VLAN ID: Key in the VLAN ID. Ingress Filter: Enable or Disable the ingress filter. Acceptable Frame Type: Choose Tag only or All type. Click Port VLAN Id Configuration interface...

  • Page 50: Vlan Entry

    7.6.1.3 VLAN Entry Edit the existing VLAN Group. Select the VLAN group in the table list. Click VLAN Table Configuration interface User can add/ remove the ports from a VLAN group. Click VLAN Table Configuration - Edit interface Mark the check box to tag the ports of a VLAN group. Click...

  • Page 51: Rapid Spanning Tree

    VLAN Table Configuration - Edit interface 7.6.2 Rapid Spanning Tree The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol.
  • Page 52 reconfiguration. Enter a value between 6 through 40. Hello Time (1-10): the time that controls switch sends out the BPDU packet to  check RSTP current status. Enter a value between 1 through 10 Forward Delay Time (4-30): the number of seconds a port waits before changing ...

  • Page 53: Stp Port Configuration

    7.6.2.2 STP Port Configuration User can configure path cost and priority of every port. 1. Select the port in Port column. 1. Priority: Decide which port should be blocked by priority in LAN. Enter a number 0 through 240. 2. Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified port.

  • Page 54: Snmp

    RSTP Port Configuration interface 7.6.3 SNMP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.
  • Page 55  SNMP Community String User can define new community string set and remove unwanted community string. RO: Read only. Enable requests accompanied by this string to display MIB-object  information. RW: Read write. Enable requests accompanied by this string to display MIB-object ...
  • Page 56 SNMP Configuration interface...

  • Page 57: Qos

    7.6.4 QoS User can configure QoS policy and priority setting, per port priority setting, COS and DSCP setting. 7.6.4.1 QoS Configuration Queue Profile: Select the queue profile from the column list.  Priority Precedence: There are 4 priority precedence selections available. ...

  • Page 58: Cos Configuration

    Port-base Configuration interface 7.6.4.3 COS Configuration Set up the COS priority level.  COS priority: Set up the COS priority level 0~7, 7 is the highest priority.  Click COS Configuration interface...

  • Page 59: Dscp Configuration

    7.6.4.4 DSCP Configuration Set up the DSCP priority.  Mapping DSCP priority: The system provides 0~63 DSCP priority level. Each level has 8 types of priority – 0~7, 7 is the highest priority. When the IP packet is received, the system will check the DSCP level value in the IP packet that has been received.

  • Page 60: Sntp

    7.6.5 SNTP User can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows user to synchronize switch clocks in the Internet. 1. 1. SNTP Server Link Status: Display the link status of SNTP server. 2. 2. Switch Current Time: Display the current time of the switch. 3.
  • Page 61 CET - Central European FWT - French Winter MET - Middle European +1 hour
 1 pm
 MEWT - Middle European Winter SWT - Swedish Winter
 EET - Eastern European, USSR Zone 1
 +2 hours
 2 pm
 BT - Baghdad, USSR Zone 2
 +3 hours
...

  • Page 62: Igmp

    7.6.6 IGMP The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch.

  • Page 63: Igmp Static Configuration

     Click IGMP Configuration interface 7.6.6.2 IGMP Static Configuration Multicasts are similar to broadcasts, they are sent to all end stations on a LAN or VLAN. Multicast filtering is the system by which end stations only receive multicast traffic if they register to join specific multicast groups.

  • Page 64: Lldp

    Click  If you want to delete an entry from table, select the entry and click "Delete". IGMP Static Configuration interface 7.6.7 LLDP The Link Layer Discovery Protocol (LLDP) specified in this standard allows stations attached to an IEEE 802 LAN to advertise, to other stations attached to the same IEEE 802 LAN, the major capabilities provided by the system incorporating that station, the management address or addresses of the entity or entities that provide management of those capabilities, and the identification of the station’s point of attachment to the IEEE 802 LAN required by...

  • Page 65: Lldp Neighbor Table

    LLDP Configuration interface 7.6.7.2 LLDP Neighbor Table User will see all information of port by LLDP enable. LLDP Neighbor Table interface...

  • Page 66: Security

    7.7 Security 7.7.1 802.1x/ RADIAS 802.1x is an IEEE authentication specification that allows a client to connect to a wireless access point or wired switch but prevents the client from gaining access to the port until it provides authority, like a user name and password that are verified by a separate server. 7.7.1.1 Misc Configuration Mode: Enable or disable 802.1 x protocols.

  • Page 67: 2Port Configuration

    MISC Configuration interface 7.7.1.2 Port Configuration Port Configuration interface...

  • Page 68: 3Radius Client Configuration

    You can configure 802.1x authentication state for each port. The State provides Disable, Authorize, Accept and Reject. Disable: This function is disabled.  Authorize: The specified port is set to the Authorized or Unauthorized state in  accordance with the outcome of an authentication exchange between the supplicant and the authenticator.

  • Page 69: Port Security

    Radius Client Configuration interface 7.7.2 Port Security Use the MAC address table to ensure the port security. 7.7.2.1 Static MAC Address Table User can add a static MAC address; it remains in the switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again.

  • Page 70: Filter Mac Address Table

    Static MAC Addresses interface Add the Static MAC Address User can add static MAC address in switch MAC table. MAC Address Port VLAN ID: list the MAC Address Port. VLAN ID MAC Address: Specify the destination MAC address to add to the address table. Port.No: pull down the selection menu to select the port number.
  • Page 71 MAC Filtering interface MAC Address: Enter the MAC address that user wants to filter. Vid: enter the Vid of the MAC address (between 1 and 4094). Click If user wants to delete the MAC address from filtering table, select the MAC address and click...

  • Page 72: Mac Address Table Aging

    7.7.2.3 MAC Address Table Aging Aging Status: Pull-down menu to enable MAC address table aging function. Aging Time (20~620): Assign the aging time in second. Address Aging interface 7.7.2.4 Dynamic MAC Address Table Dynamic Mac Address Table interface...

  • Page 73: Ip Security

    7.7.3 IP Security User can assign up to 10 security IP addresses for accessing the switch via HTTP, TELNET or both, any other IPs which are not included will be restricted. IP Security interface Mode: When mode is set at ON, user can assign up to 10 Security IP addresses. HTTP: mark the check box to enable the access via HTTP for the assigned IP TELNET: mark the check box to enable the access via TELNET for the assigned IP.

  • Page 74: Acl

    7.7.4 ACL An ACL is a sequential list of permit or deny conditions that apply to IP addresses. This switch tests ingress or egress packets against the conditions in an ACL one by one. A packet will be accepted as soon as it matches a permit rule, or dropped as soon as it matches a deny rule.

  • Page 75: Factory Default

    7.8 Factory Default Reset switch to default configuration. Click to reset all configurations to the default value or to reset all configuration except reserved IP, user name and password. Factory Default interface 7.9 Save Configuration Save all configurations that user has made in the system. To ensure the all configuration will be saved.

  • Page 76: System Reboot

    7.10 System Reboot Reboot the switch in software reset. Click to reboot the system. System Reboot interface...

  • Page 77: Troubleshooting

    Troubleshooting This section is intended to help you solve the most common problems that may occur on the CWGE24MODMS Managed Switch. Incorrect connections  The switch port can automatically detect straight or crossover cable when linked with another Ethernet device. For the RJ45 connection, use correct UTP or STP cables. The 10/100/1000Mbps port uses 2-pairs twisted cable and the Gigabit 1000T port uses 4 pairs twisted cable.
  • Page 78 Improper Network Topologies  It is important to make sure that you have a valid network topology. Common topology faults include excessive cable length and too many repeaters (hubs) between end nodes. In addition, you should make sure that your network topology contains no data path loops. Between any two ends nodes, there should be only one active cabling path at any time.

  • Page 79: Appendix A- Command Sets

    Appendix A- Command Sets Commands Set List Modes Access Method Prompt Exit Method About This Model The user commands available at the user level are a subset of those available at the privileged Begin a session with Enter logout or User EXEC switch>...

  • Page 80: System Commands Set

    System Commands Set Netstar Command Description Defaults Example Commands Level Set switch system name string switch(config)# system name Global system name xxx [system name] configuration mode Set switch system location switch(config)# system location Global string system location xxx [system Location] configuration mode system...
  • Page 81 reload Halt and perform a cold restart switch(config)# Global reload configuration mode default Restore to default switch(config)#default Global no: restore all to default. configuration yes: reserved ip, username and password. mode Changes a login username. admin username switch(config)#admin Global (maximum 32 words) [Username] username xxxxxx configuration...

  • Page 82: Port Commands Set

    Port Commands Set Netstar Command Description Default Example Commands Level Use the Ethernet interface interface Interface switch(config)#interface configuration command gigaethernet configuration gigaethernet 1 [port ID] mode Use the module Ethernet switch(config)#interface interface configuration gigaethernet 1 command duplex Interface Use the duplex configuration Auto switch(config)#interface command to specify the...
  • Page 83 jumbo [size] Interface Set jumbo frame size. 1522 switch(config)#interface Use the no form of this configuration gigaethernet 1 command to default value. mode switch(config-if)# jumbo 1524 [Jumbo size must be even and switch(config-if)# jumbo 10240 between 1522~10240] Disable switch(config)#interface rate-limit Interface Set rate-limit input mode.
  • Page 84 rate-limit Interface Set rate-limit output rate Disable switch (config)#interface output-rate configuration value. gigaethernet 1 Range is 1~3130 for 312Kbps [value] mode switch (config-if)# unit on the port. rate-limit output-rate 1000 Output rate limit must be between 1~3130 shutdown Interface Use the shutdown Enable switch (config)#interface Interface configuration...

  • Page 85: Mac / Filter Table Commands Set

    Mac / Filter Table Commands Set Netstar Command Default Description Example Commands Level 300 secs (Enable) mac-address-tabl Global Use the mactbl aging-time global configuration command switch(config)# e aging-time [sec.] configuration to set the length of time that a mac-address-table aging-time mode dynamic entry remains in the MAC address table after the...
  • Page 86 mac-address-tabl Global Configure MAC address switch(config)#mac-address-ta configuration table(filter) e filter hwaddr ble filter hwaddr mode [MAC] vlan 000012348678 vlan 1 Remove an entry of MAC [VLAN-ID] address table (filter) switch(config)#no mac-address-table filter mac-address-tabl hwaddr 000012348678 vlan 1 e filter hwaddr [MAC] vlan [VLAN-ID] show...

  • Page 87: Port Mirroring Commands Set

    Port Mirroring Commands Set Netstar Command Description Default Example Commands Level Interface Use the port monitor interface switch(config)#interface monitor configuration configuration command to gigaethernet 1 [port number] mode enable Switch Port Analyzer switch(config-if)#monitor 3 both [rx | tx | both] (SPAN) port monitoring on a port.

  • Page 88: Qos Commands Set

    QOS Commands Set Netstar Command Description Default Example Commands Level show qos Privileged Show QoS settings switch#show qos EXEC Configure COS Priority Qid = qos priority cos Global switch(config)#qos priority cos Traffic [Cos] [Qid] configuration Class mode no qos priority cos (Default) switch(config)# no qos priority Set DSCP Map...

  • Page 89: Spanning Tree Commands Set

    qos priority Global Set Priority Precedence Port-base switch(config)# qos priority precedence configuration precedence port-base [port-base| mode switch(config)# qos priority cos-only| precedence cos-only dscp-only| dscp-first] switch(config)# qos priority precedence dscp-only no qos priority precedence switch(config)# qos priority precedence dscp-first (Default) switch(config)# no qos priority precedence Spanning Tree Commands Set Netstar...
  • Page 90 spanning-tree Global Use the spanning-tree 20 sec switch(config)#spanning-tree max-age global configuration max-age configuration max-age 15 command to change the [6~40seconds] mode interval between messages the spanning tree receives from the root switch. If a switch does not receive a bridge protocol data unit (BPDU) message from the root switch within this interval, it recomputed the...

  • Page 91: Vlan Commands Set

    stp-admin-p2p Interface Use the stp-admp2p interface Enable switch (config)#interface configuration command to [disable|enable|aut configuration gigaethernet 1 configure a port AdmP2P mode switch(config-if)# variable. stp-admin-p2p auto switch(config-if)# stp-admin-p2p enable switch(config-if)# stp-admin-p2p disable Use the stp-admedge interface Enable stp-admin-edge Interface switch (config)#interface configuration command to [disable|enable] configuration...
  • Page 92 show vlan mode [GroupName| switch(vlan)#show vlan 2 VLAN ID] Port Base VLAN mode no vlan group VLAN database Delete port base group ID switch(vlan)#no vlan group 2 [VLAN ID] mode vlan port-based VLAN database Add new port based VALN switch(vlan)#vlan port-based grpname mode grpname test grpid 2 port 2-4...
  • Page 93 switchport Interface Add port to the VLAN switch(config)#interface allowed vlan configuration gigaethernet 1 8021q add [VLAN mode switch(config-if)# switchport allowed vlan 8021q [tagged|untagged] add 2 tagged Remove port to the VLAN switch(config-if)# switchport switchport allowed vlan 8021q allowed vlan remove 2 8021q remove [VLAN ID] switch(config-if)#...

  • Page 94: System Log Commands Set

    Set ingress filter disable switch(config)# switchport Interface interface gigaethernet 1 ingress-filtering configuration switch(config-if)# mode switchport ingress-filtering no switchport ingress-filtering switch(config-if)# no switchport ingress-filtering show vlan Privileged Show VLAN of Group Name or switch#show vlan id VLAN ID information [id|name] EXEC vlanid: 1 ~ 4094 [VLAN ID | Name] show interfaces...
  • Page 95 logging-local Global Set system log level Flash:3(le Switch(config)# vel 3-0) logging-local history flash 3 history [flash | configuration RAM:7(lev ram] [level] mode el 7-0) no logging-local history [flash | ram] Set the level of each logging Level 7 Switch(config)# logging-events Global events.
  • Page 96 logging trap Global Set system log trap Switch(config)# logging trap 4 [value] configuration mode no logging trap Switch(config)# no logging trap Clear system log buffer Switch(config)# clear logging-local Global clear logging-local flash [flash | ram] configuration mode Set the SMTP server address Switch(config)# logging sendmail Global...

  • Page 97: Sntp Commands Set

    logging sendmail Global Add or delete system log Switch(config)# SMTP destination-email logging sendmail dst-0 {dst-0|dst-1} configuration address [email addr] mode bill@this-company.com Switch(config)# no logging no logging sendmail sendmail dst-0 bill@this-company.com {dst-0|dst-1} [email addr] logging sendmail Global Enable or disable system log Disable Switch(config)# SMTP...

  • Page 98: Igmp Commands Set

    sntp server Global Set SNTP server IP address. switch(config)# sntp server 192.168.10.5 [ipaddr] configuration mode no sntp server Global Set SNTP server IP address to NULL switch(config)# no sntp server default. configuration mode Enable SNTP Client. sntp enable Global switch(config)#sntp enable configuration mode Disable SNTP Client.

  • Page 99: Trunk Commands Set

    igmp vlan [vid] Global Adds a static multicast group switch(config)# igmp vlan 1 and its member port. static [ipaddr] configuration static 224.0.0.251 gigaethernet [gigaethernet|port mode -channel] [port] no igmp vlan [vid] Global Remove a static multicast switch(config)# no igmp vlan 1 group and its member port.
  • Page 100 trunk mode Interface Configure the mode of the static switch(config)# interface trunk group. [lacp|static] configuration port-channel 1 switch(config-if)# mode no trunk mode trunk mode static switch(config-if)# no trunk mode Adds a port to a trunk. channel-group Interface switch(config)# interface If the trunk group doesn’t exist, [group id] configuration gigaethernet 1...

  • Page 101: Snmp Commands Set

    SNMP Commands Set Netstar Command Description Default Example Commands Level snmp name Global Configure station name. switch(config)# snmp name [station name] configuration station1 mode Configure station location. snmp location Global switch(config)# snmp location [station location] configuration Taiwan mode Configure station contact. snmp contact Global switch(config)# snmp contact...

  • Page 102: Dhcp Server Commands Set

    DHCP Server Commands Set Netstar Command Description Example Commands Level Enable dhcp server and add dhcpserver [ip Global switch(config)#dhcpserver lease entry. start] [ip number] configuration 192.168.1.5 5 Netmask [255.255.255.0]: mode 255.255.255.0 Gateway [192.168.10.254]: 192.168.10.254 DNS [192.168.10.254]: 192.168.10.254 Lease Duration [24](hours) no dhcpserver Global Disable dhcp server.

  • Page 103: Commands Set

    802.1X Commands Set Netstar Command Description Example Commands Level Use the 802.1x global Disable switch(config)# 8021x enable 8021x enable Global configuration command to configuration enable 802.1x protocols. mode 8021x misc Global Use the 802.1x misc quiet switch(config)# 8021x misc period global configuration quietperiod configuration quietperiod 10...

  • Page 104: Lldp Commands Set

    show 8021x Privileged Displays a summary of the switch#show 8021x 802.1x properties and also the EXEC port status. 8021x system Global Use the 802.1x system radius switch(config)# 8021x system IP global configuration radiusip configuration radiusip 192.168.1.1 command to change the radius [IP address] mode server IP.

  • Page 105: Acl Commands Set

    lldp-port [disable Interface Use those commands to set Disable switch(config)# interface lldp port tx and rx mode. |rx|tx|both] configuration gigaethernet 1 mode switch(config-if)# lldp-port disable switch(config-if)# lldp-port rx ACL Commands Set Netstar Command Description Defaults Example Commands Level acl-port Interface Use the acl-port interface Disable switch(config)# interface...
