Important Safety Warning:
Read and keep these directions
Heed all warnings
Follow all instructions
do not use this apparatus near water
Clean only with a dry cloth
Install in accordance with the manufacturer's
instructions
this installation should be made by a qualified
service person and should conform to all local codes
See further safety instructions on Page 18
Tech SupporT: 1.888.678.9427
INSTALLATION AND OPERATION MANUAL

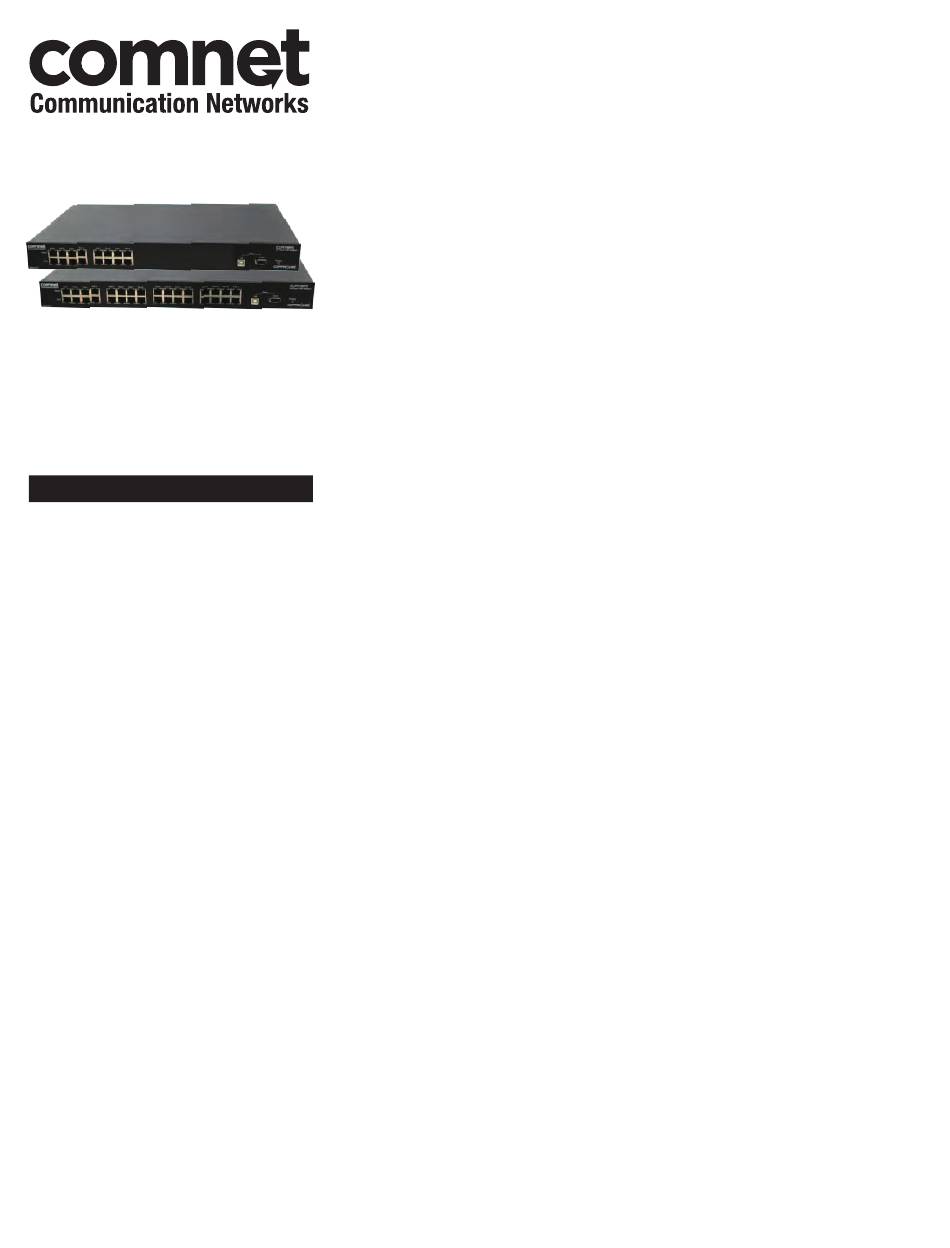

CLFE(X)IPS

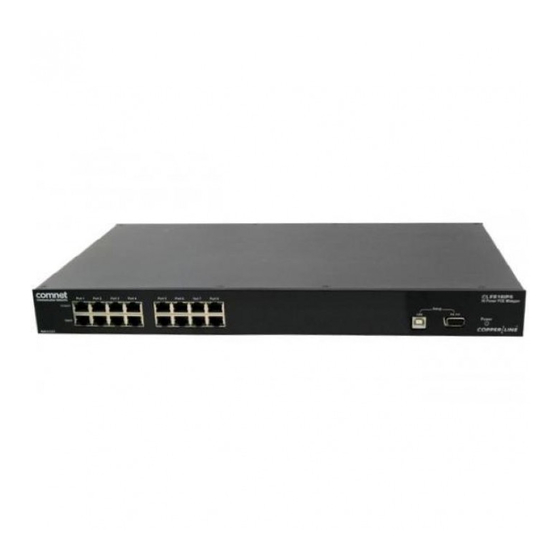

HIGH-PowER PoE MId-SPAN INjECtoR
the ComNet
CopperLine® CLFE8IPS and CLFE16IPS are 8 and 16 port high power
™
PoE midspans. they are compatible with 10/100/1000 Baset Ethernet networks.
they meet IEEE 802.3af and IEEE 802.3at standards and deliver up to 37w per port
simultaneously on all ports without requiring power management. the PoE function
can be set up with windows GUI or use the default plug and play option. No IP
settings or configurations are required and they are completely transparent to the
Ethernet network and higher layer protocols.
LEd indicators are provided for rapidly ascertaining the operating status of the
device. See Figures 3 and 4 on Page 3 for LEd explanations.
the CopperLine CLFE8IPS and CLFE16IPS models are 1 RU high and can be easily
installed in 19" racks. See Figure A on Page 17 for mounting instructions.
INS_CLFE(X)IPS_REV–
12/15/11
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comnet CLFE IPS Series
Summary of Contents for Comnet CLFE IPS Series
- Page 1 INSTALLATION AND OPERATION MANUAL CLFE(X)IPS HIGH-PowER PoE MId-SPAN INjECtoR the ComNet CopperLine® CLFE8IPS and CLFE16IPS are 8 and 16 port high power ™ Important Safety Warning: PoE midspans. they are compatible with 10/100/1000 Baset Ethernet networks. Read and keep these directions Heed all warnings they meet IEEE 802.3af and IEEE 802.3at standards and deliver up to 37w per port...
-
Page 2: Power Supply Connection
INSTALLATION AND OPERATION MANUAL CLFE(X)IPS FIGURE 1 – CLFE8IPS POweR SUPPly CONNeCTiON BACK AC Power Cord Supplied CAT5/6 CAT5/6 FRONT CLFE8IPS Port 1 Port 2 Port 3 Port 4 Port 5 Port 6 Port 7 Port 8 Communication Networks Hi Power POE Midspan Output Setup RS-232... -
Page 3: Installation
Power is off YELLOW – Connection is oK No connection No connection FIGURE 5 – POSSIBLE ETHERNET CONFIGURATION Multiple Configurations are possible. Consult ComNet Design Center. CopperLine Managed High Power Midspan ≤3,000ft (914m) Cat-5 data + Power CLFE1UTP CLFE1UTP PoE Camera data +Power ≤5,000ft (1524m) Coax... -
Page 4: Firmware Window
INSTALLATION AND OPERATION MANUAL CLFE(X)IPS Hardware Setup Please follow the following steps to install the Midspan: » Connect an AC power cable to the Midspan » Use either a Serial (DB9) or a USB cable to connect the Midspan to the Host PC. »... -
Page 5: User Input
INSTALLATION AND OPERATION MANUAL CLFE(X)IPS Figure 6: Firmware Window User Input Firmware File: Enter the firmware filename needs to be used. This is the firmware that will run inside the Midspan for its operation. A new unit has all the necessary programing and does not need this step. Status Command Progress:... -
Page 6: System Configuration Window
INSTALLATION AND OPERATION MANUAL CLFE(X)IPS System Configuration Window The “System Configuration” window provides access to setting global configurations and status view of major parameters. Figure 7: System Configuration Window User Inputs Power Management Mode (PM) Power Management can be used in the following modes: »... - Page 7 INSTALLATION AND OPERATION MANUAL CLFE(X)IPS › For High Power Mode the power budgeted is based on ILIM/ICUT selected value. · For ILIM/ICUT – 504/465 mA, the power budgeted is 22.5W · For ILIM/ICUT – 563/545 mA, the power budgeted is 26.5W ·...
-
Page 8: System View Window
INSTALLATION AND OPERATION MANUAL CLFE(X)IPS System View Window The “System View” window enables viewing status of all ports on a single screen. Figure 8: System View Window Status Power Available Shows the Midspan total available power. Port Allocated Shows the total power allocated by the system. The allocated power varies based on the selected Power Management Mode. - Page 9 INSTALLATION AND OPERATION MANUAL CLFE(X)IPS Port Power Shows the power currently delivered by the port. If the port is not in “Delivering” mode it will show “N/A”. Commands Poll If the Poll box is checked it will enable continuous refreshing of parameters otherwise the polling is disabled.
-
Page 10: Multiple Port Configuration Window
INSTALLATION AND OPERATION MANUAL CLFE(X)IPS Multiple Port Configuration Window The Multiple “Port Configuration” window enables to apply same configuration to multiple ports in a single screen. This is the fastest way to apply similar changes to multiple ports. Figure 9: Multiple Port Configuration Window User Input Disable Check this box to disable selected ports. - Page 11 INSTALLATION AND OPERATION MANUAL CLFE(X)IPS Classification Choose the classification type for selected ports: » “Bypass” for ignoring classification. » “.3af” for IEEE 802.3af classification signature Disconnect Type Choose the disconnect type for selected ports: » “None” for disabling disconnect. Once powered on the port will be ON forever. »...
-
Page 12: Port Configuration Window
INSTALLATION AND OPERATION MANUAL CLFE(X)IPS Port Configuration Window The “Port Configuration” window enables to configure a single port or view its status. Figure 10: Port Configuration TAB Screen Shot User Input Port Enter the port number for which configuration needs to be changed or status needs to be viewed. - Page 13 INSTALLATION AND OPERATION MANUAL CLFE(X)IPS Disconnect Type Selects the power disconnect type to be used. » “None” for disabling disconnect. Once powered on the port will be ON forever. » “AC” for AC disconnects. » “DC” for DC disconnects. Violation Type Selects the violation type to be used by the port during delivering state: »...
- Page 14 INSTALLATION AND OPERATION MANUAL CLFE(X)IPS Overload Counter Shows how many times the port has been in overload status. Short Counter Shows how many times the port has been shorted. Power Denied Counter Shows how many times the port has denied power to loads. Invalid Detection Counter Shows how many times the port has been detected an invalid load.
-
Page 15: Disclaimer Of Warranty
Operation or usage other than described will considered as a violation of intended use. DISCLAIMER OF WARRANTY Software is provided As Is with all faults. To the extent permitted by law, ComNet, its dealers. Distributors and other appointed agencies hereby disclaim all warranties, whether expressed or implied, including and without limitations warranties that the product is free of defects, merchantability, fit for a particular purpose and non-infringing. - Page 16 This Agreement constitutes the entire agreement between ComNet and you concerning the subject matter hereof, and it may only be modified by a written amendment signed by an authorized executive of ComNet. » Except to the extent applicable law, if any, provides otherwise, this Agreement will be governed by the laws of the state of Connecticut, U.S.A., excluding its conflict of law provisions.
-
Page 17: Installation Considerations
INSTALLATION CONSIDERATIONS the CLFE8IPS and CLFE16IPS can be installed as Standalone modules or can be rack-mounted with the addition of the provided 19-Inch Rack-Mounting Ear Brackets. FIGURE A Dimensions are for the ComNet CopperLine CLFE8IPS and CLFE16IPS modules ™ ®... -
Page 18: Important Safety Instructions
