Humanscale M2.1 Installation Instructions
Slatwall mount
Hide thumbs
Also See for M2.1:
- Assembly instructions manual (32 pages) ,
- Installation instructions (2 pages) ,
- Assembly instructions manual (24 pages)
Advertisement
Quick Links

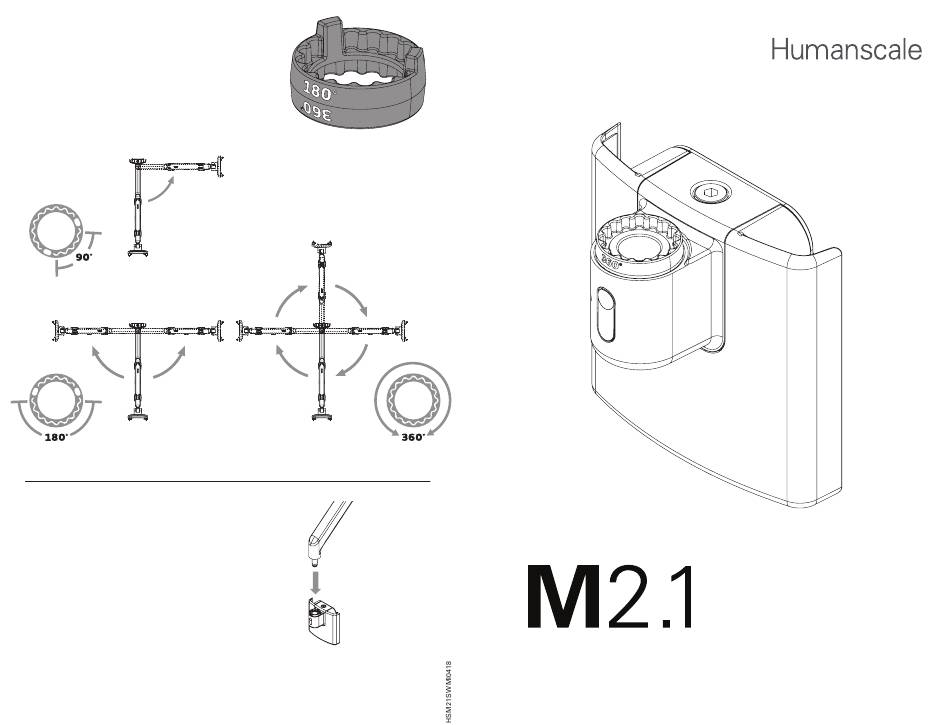

STEP 7:
Position the stop ring to limit the
arm's range of motion if desired.
The marked angle will be in the
center of the range of motion.
Arm can rotate 90º
Arm can rotate 180º
STEP 8:
Insert monitor arm into the mount
until release button locks in place.
To remove arm press release button
and pull the arm up near the joint.
www.humanscale.com
Arm can rotate
without stopping
SlatWall Mount
Installation Instructions
Advertisement
Related Manuals for Humanscale M2.1
Summary of Contents for Humanscale M2.1
- Page 1 Arm can rotate 180º Arm can rotate without stopping STEP 8: Insert monitor arm into the mount until release button locks in place. To remove arm press release button and pull the arm up near the joint. SlatWall Mount Installation Instructions www.humanscale.com...
- Page 2 STEP 1: STEP 3: Remove the front cover from Turn top screw clockwise to the mount and place mount tighten the lower hook until on rail with both hooks the mount is securely positioned to grip rails. fastened to the rail. FRONT COVER STEP 2:...
