1.1 Introduction

The CTI 2500C-8-TC Eight-Point Thermocouple Input Module is a member of Control
Technology's family of I/O modules compatible with the Compact System Chassis. It is
designed to translate a J, K, T, E, R, S, N thermocouple or millivolt input signal from the field
device into an equivalent digital word which is then sent to the programmable controller
(PLC).
Features
•
8 Thermocouple inputs
•
Supports Classic and Classic Plus Modes
•
7 Segment Display for Module Status indication
•
No user calibration
•
Supports J, K, T, E, R, S, & N thermocouples and millivolt inputs
•
Software Configurable Range Selection
•
Uses 2500C-32F-CJC removable wiring connector(sold separately)

1.2 Front Panel Description

The module front panel includes a 7-segment status display for showing module status, and
a 32-pin removable I/O wiring connector.

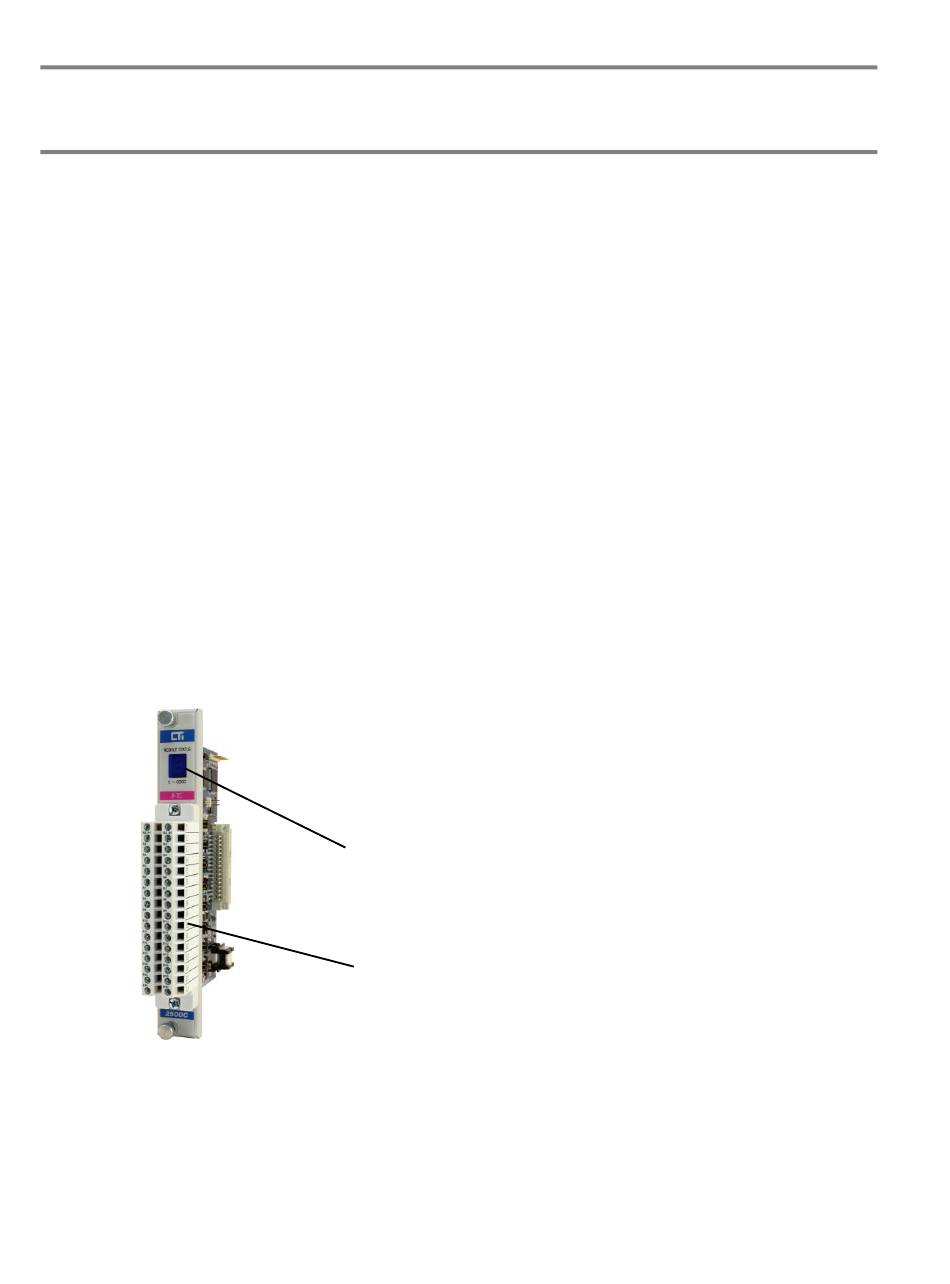

Figure 1 2500C-8-TC Front Panel

6

CHAPTER 1

Status display
I/O wiring connector
with built in CJC
OVERVIEW
2500C-8-TC Installation and Operation Guide
