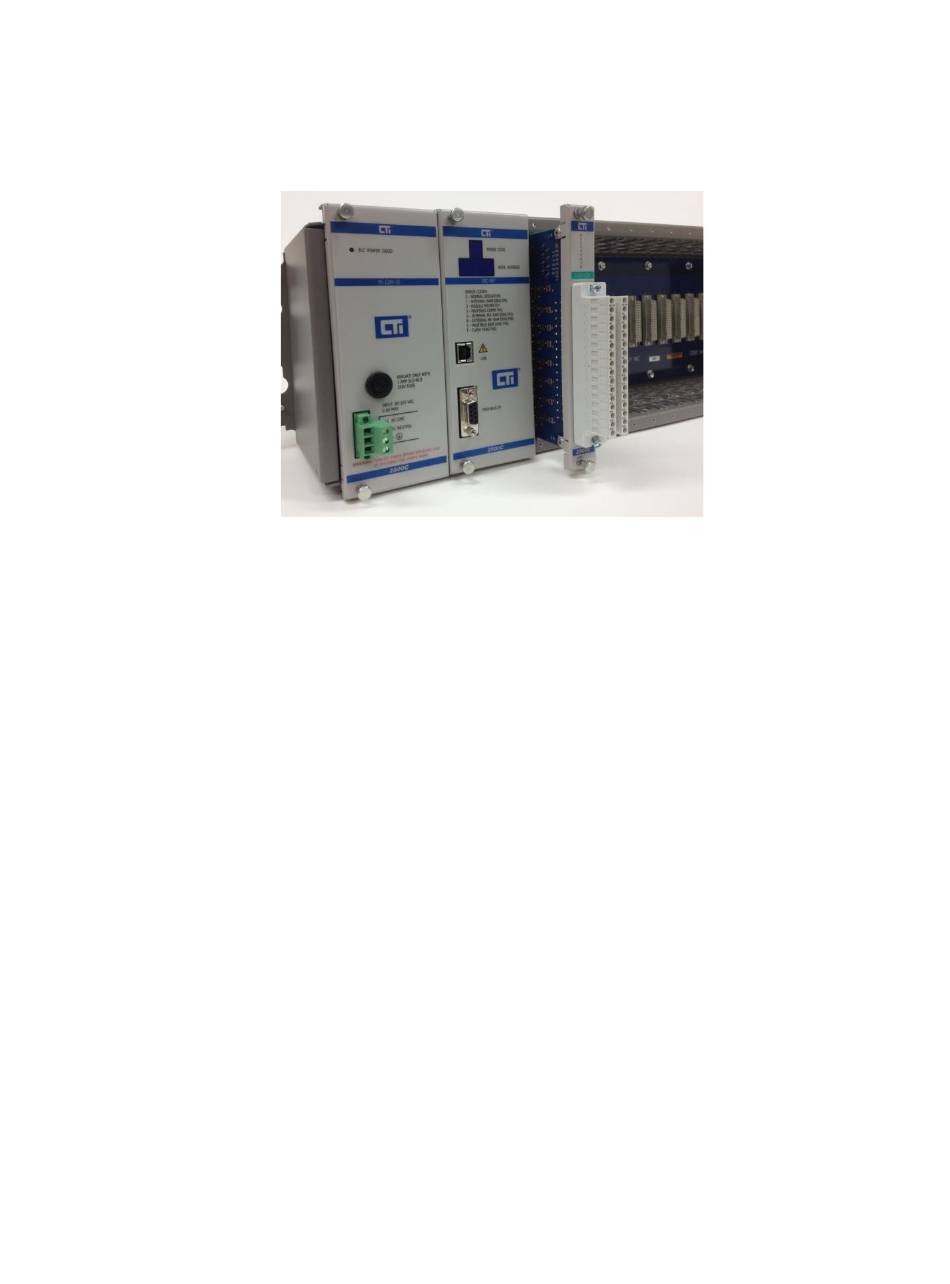

Physical Installation; Figure 28 2500C-8-Tc Module Physical Installation Picture - Control Technology 2500 Series Installation And Operation Manual

8-channel thermocouple input module

Hide thumbs Also See for 2500 Series:

Table of Contents

2.5 Physical Installation

Remove AC power from the rack. Align the circuit board with the connector next to the

power supply. Slide the controller into the rack until the connector seats. Use the

thumbscrews to secure the controller in the rack.

IMPORTANT NOTE:

The 2500-8-TC is designed to allow "hot-swapping" the module under power in the event

that a replacement is needed. When "hot-swapping" the module, use the following

procedure.

1. Make sure all field devices connected to the module are placed into a "safe" state

2. Remove the I/O connector from the front of the module

3. Loosen the module retaining screws and remove it from the base

4. Ensure the jumper configuration of the replacement module matches the one just

removed

5. Install the replacement module and tighten the retaining screws. The replacement

module must be the same model number as the one removed.

6. Reattach the I/O connector to the module

7. Ensure the replacement module is operating properly

8. Remove the field devices from "safe" state

2500C-8-TC Installation and Operation Guide
