2.4.1 Operation Mode Jumpers - Selecting Operation Mode
The module operational mode is selecting using the jumper at JP11. For Classic mode, the
jumper should be installed at the "C" position. For Classic Plus mode it should be installed
at the "CP" position. The module ships from the factory set for Classic mode operation.

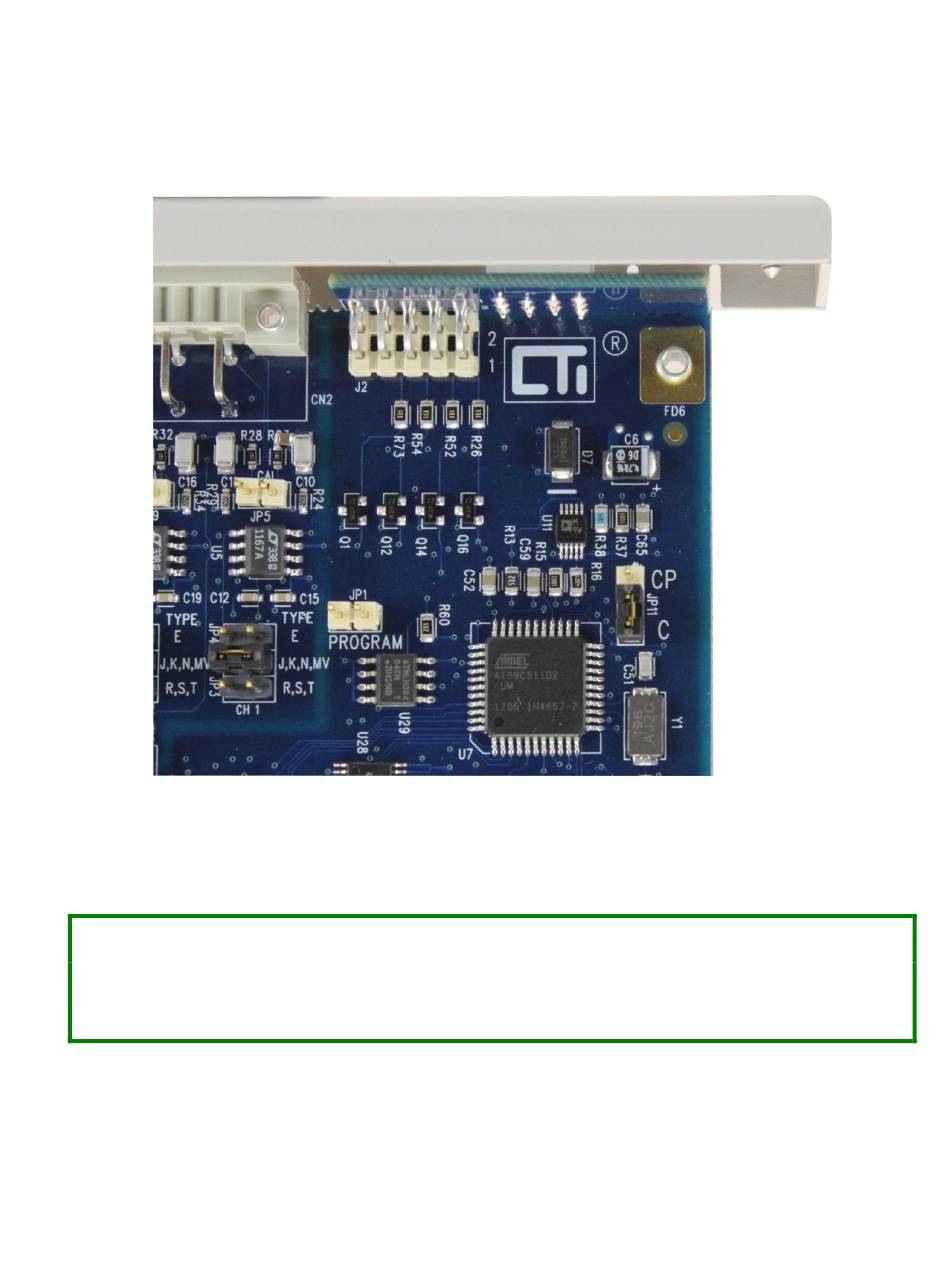

Figure 23 2500C-8-TC Operation Mode Jumpers Picture
NOTE
JP1 is used for factory test purposes and should not be populated. If your module has a jumper at
JP1 PROGRAM position please remove before inserting the module.
2500C-8-TC Installation and Operation Guide
21
