2598-8 8-Point
AC Discrete Output Module
Specifications
Outputs per Module:
Isolation:
Output Voltage:
Maximum Output Current:
Maximum Surge Current:
"ON" State Voltage Drop:
"OFF" State Leakage Current:
Description
Turn On Time:

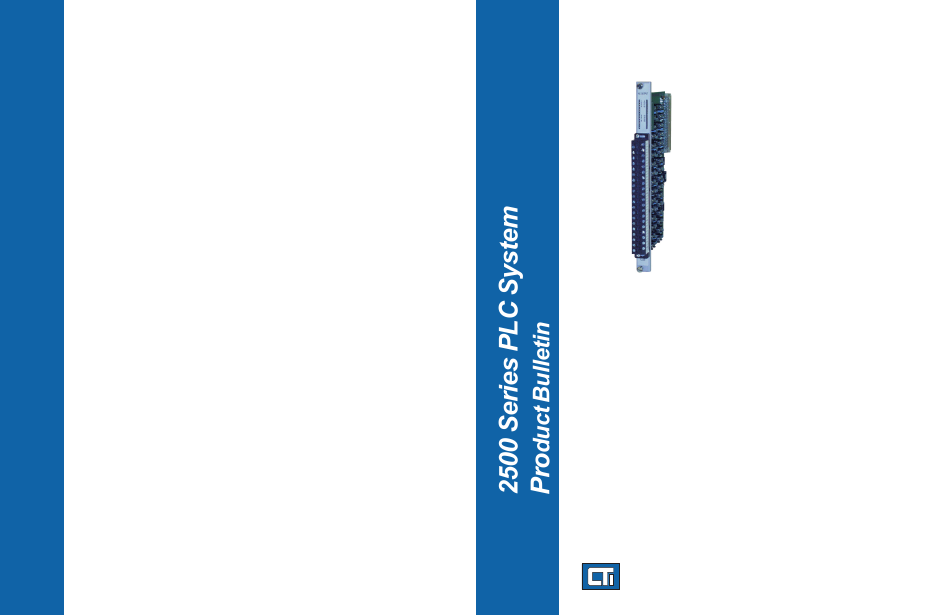

The 2598-8 8-Point AC Discrete Output Module
Turn Off Time:
provides eight outputs isolated in groups of
Fuses:
two from the CTI 2500 Series or Simatic® 505 I/
O base. The module utilizes solid-state output
circuits to switch on or off external devices such
as pilot lamps, motor starters, or solenoids. The
Connector:
2598-8 is designed to switch externally supplied
Wire Gauge:
11 to 240 VAC. The internal logic signals are
isolated from the external outputs to 2100 VDC. Backplane Power:
Module Size:
Features
Operating Temperature:
8 AC output points
Storage Temperature:
Replaces Siemens® 505-4608, -4808
3000 VDC group-to-group isolation
Relative Humidity:
2100 VDC channel-to-backplane isolation
Isolation in groups of two
Agency Approvals:
Wide 11-240 VAC output range
2.0 Amps per output
16 Amps total module output
Shipping Weight:
Individually fused outputs
Sourcing outputs
Single-wide module
Control Technology Inc.
5734 Middlebrook Pike, Knoxville, TN 37921-5962
Phone: 865/584-0440 Fax: 865/584-5720
8
2100 VAC channel-to-backplane
3000 VAC group-to-group
11 VAC to 240 VAC
2A per point
16A per module
for Class 1 Div 2 locations:
2A per point @ 50C
1.5A per point @ 60C
3 Amps for 15 Sec
1.0 V @ 1.0 Amp
1 mA @ 120 VAC
1 AC cycle
1 AC cycle
8, 2.5 amp, 250V,
Type: Littelfuse #21602.5,
Bussman GDA-2.5 (field replaceable)
Removable
14 - 22 AWG
1.0 Watt max.
Single-wide
0 to 60 C
o o
(32 to 140 F)
o o
-40 o to 85 o C
(-40 o to 185 o F)
5% to 95%
(non-condensing)
UL, UL-Canada, Class 1 Div 2, CE
1.5 lb. (0.68 Kg)
