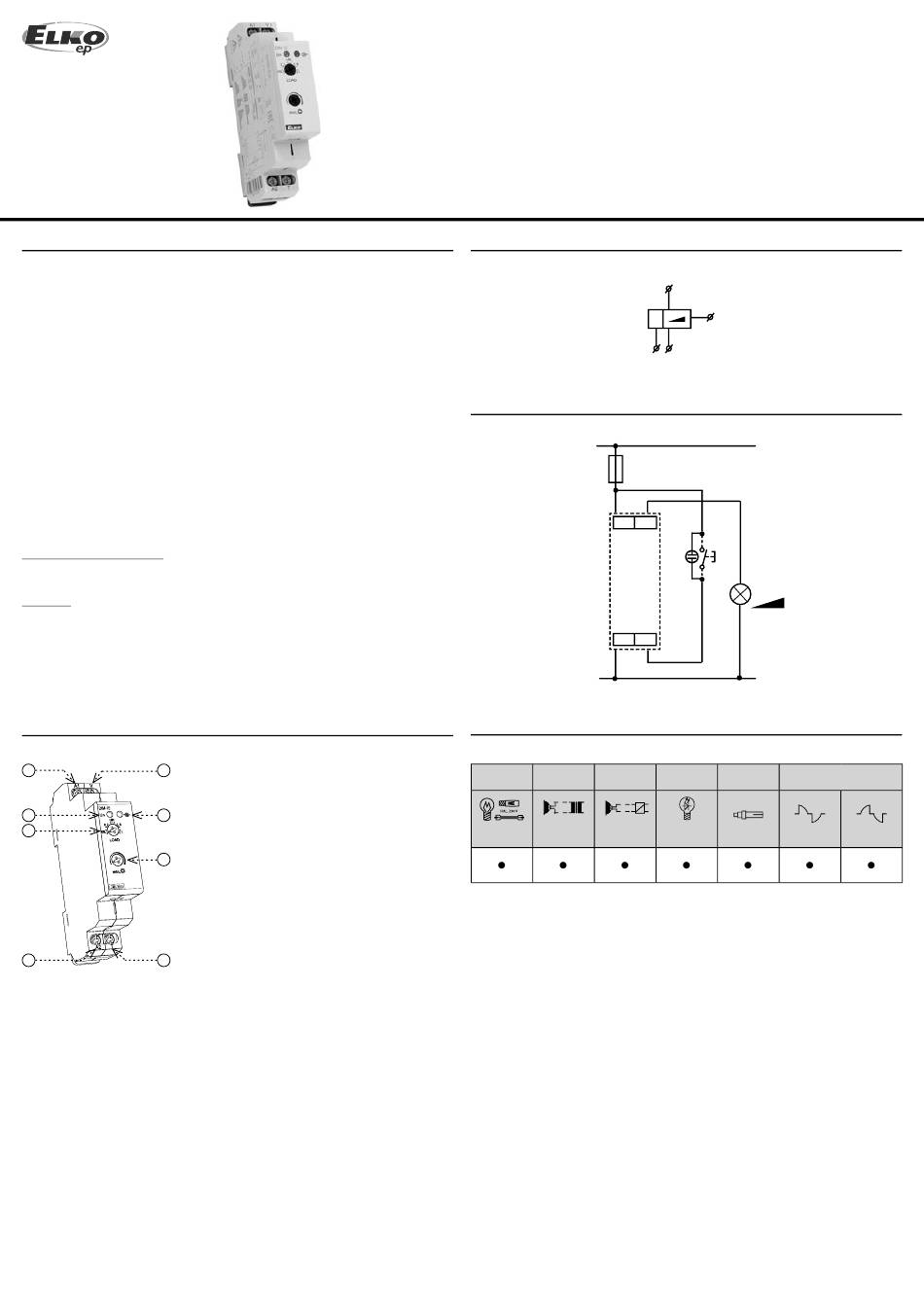

Elko DIM-15 Manual

ELKO EP, s.r.o.
Palackého 493
769 01 Holešov, Všetuly
Czech Republic
Tel.: +420 573 514 211
e-mail: elko@elkoep.com
www.elkoep.com
02-89/2016 Rev.: 0
Characteristics
• designated for dimming of:
R - bulbs, halogen lamps
L - low-voltage el. bulbs 12/24 V wound transformers
C - low-voltage el. bulbs 12/24 V electronic transformers
ESL - dimmable compact fl uorescent lamps
LED - LED lamps
• enables gradual setting of luminance by push-button (non-detent) or parallel buttons
• returns to last state upon re-energization
• type of light source is set by switch-over on the front panel of device
• min. luminance, set by potentiometer on the front panel, eliminates fl ashing of light
sources
• supply voltage 230 V AC
• output status is indicated by red LED:
- shines when output is active (with arbitrary luminance intensity)
- fl ashes while heating overload, at the same time output is disconnected
• 1-MODULE version, DIN rail mounting, saddle terminals
Mounting recommendation:
- on each side of device keep a gap with width 0.5 of module (cca 9 mm) for better device
cooling
Warrning:
- it is not recommended to connect light sources with diff erent types and brands, to one
dimmer
Description
1 5
2
6
3
7
4 8

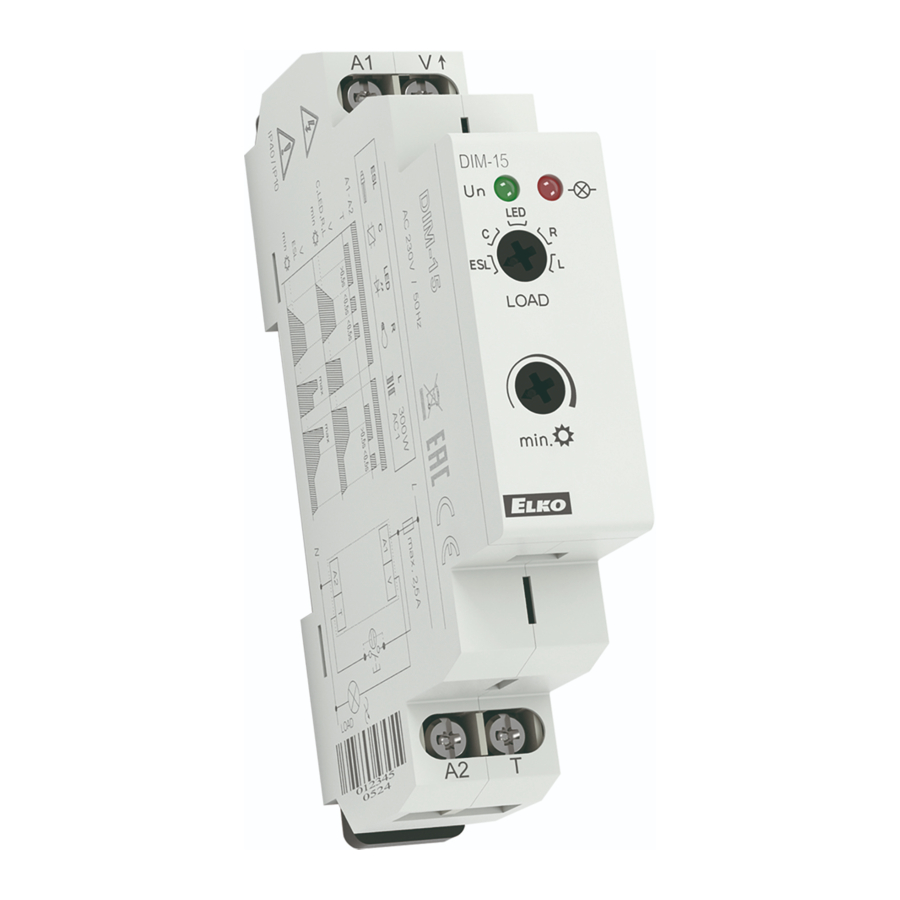

1. Supply voltage L
2. Supply voltage indication
3. Light source type selection:
ESL - dimmable compact fl uorescent lamps
C - low-voltage el. bulbs 12/24 V electronic
transformers
LED - LED lamps
R - bulbs, halogen lamps
L - low-voltage el. bulbs 12/24 V wound
transformers
4. Supply voltage N
5. Output
6. Output indication
7. Minimal luminance setting
8. Controlling input
DIM-15
Controlled dimmer
Symbol
Connection
L
A1
A2
N
Product loadability
a b c
R L C
a) lamp,halogen light
b) low-voltage el.bulbs 12/24V wound transformers
c) low-voltage el.bulbs 12/24V electronic transformers
d) LED bulbs
e) saving fl uorescent lamps
f) switching management
x - dimmable
xx - incline edge
xxx - descending edge
1 / 2
A1
V
T A2
T 2.5 A - ballast protection recommended
V
T
d e
230V AC
x x
EN
f
xx xxx
