SmartDim LED Puck Multiwire
Device User Guide
Commissioning instructions for the ELKO Smart system, devices and app.
01/2024
www.elko.no

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartDim EKO20002 and is the answer not in the manual?

Questions and answers

Related Manuals for Elko SmartDim EKO20002

Summary of Contents for Elko SmartDim EKO20002

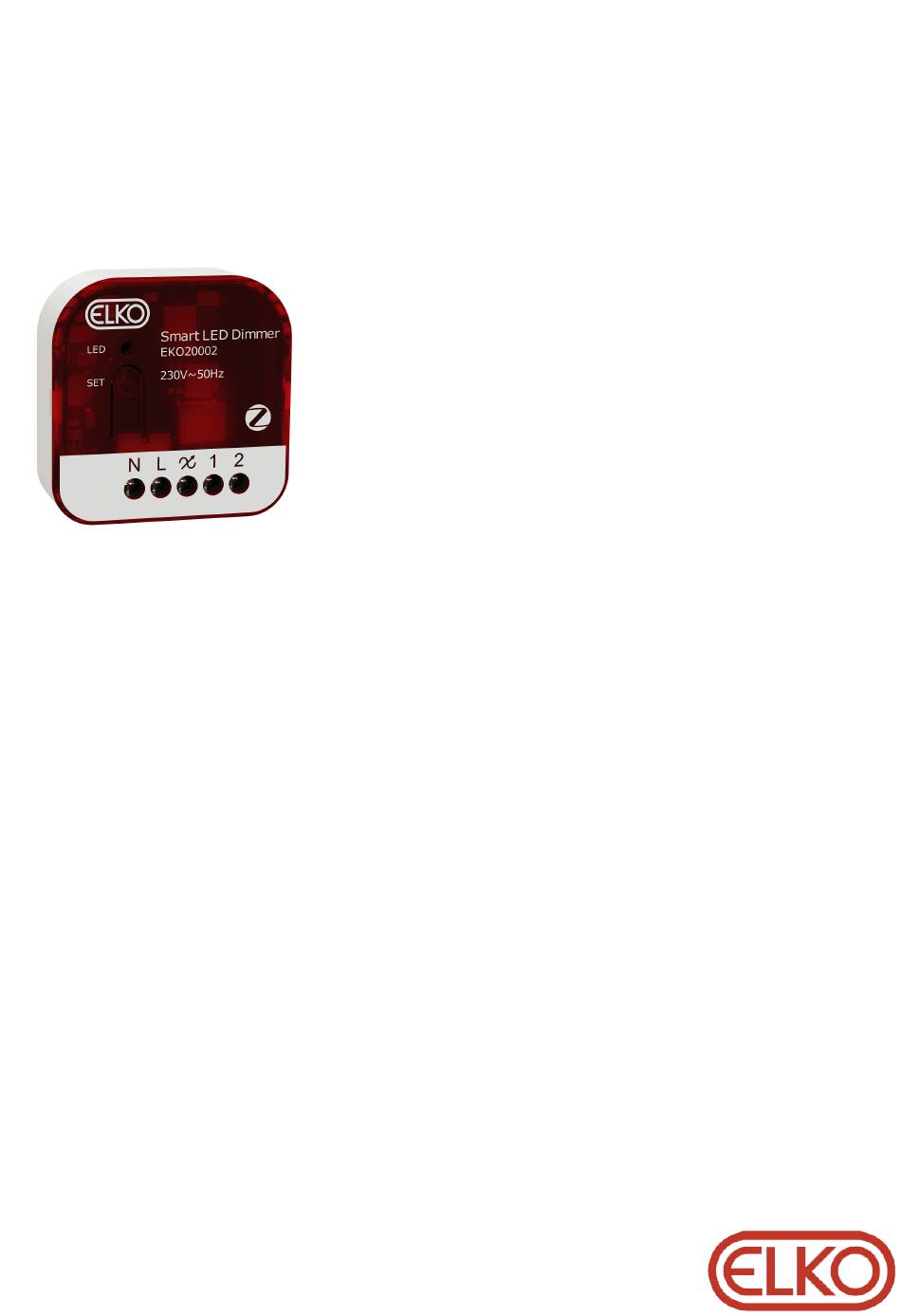

  • Page 1 SmartDim LED Puck Multiwire Device User Guide Commissioning instructions for the ELKO Smart system, devices and app. 01/2024 www.elko.no...
  • Page 2 ELKO. ELKO does not grant any right or license for commercial use of the document or its content, except for a non-exclusive and personal license to consult it on an "as is"...

  • Page 3: Table Of Contents

    Table of Contents Safety Information ..................4 SmartDim LED Puck Multiwire ..............5 For your safety ...................5 About the device..................6 Installing the device ..................6 Testing the device..................6 Smart Light Control..................7 About Smart Light Control..............7 Installing dimmer for Smart Light Control ..........7 Pairing Wireless switch with Puck............8 Pairing Wireless switch with 2 Pucks ............9 Pairing two dimmers................12 Setting brightness level manually ............13...

  • Page 4: Safety Information

    Safety Information Safety Information Important Information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service, or maintain it. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

  • Page 5: Smartdim Led Puck Multiwire

    SmartDim LED Puck Multiwire SmartDim LED Puck Multiwire EKO20002 For your safety DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH Safe electrical installation must be carried out only by skilled professionals. Skilled professionals must prove profound knowledge in the following areas: •...

  • Page 6: About The Device

    It transforms a conventional switch into a connected device which can be controlled from the switch or through the ELKO Smart app. It can switch and dim the ohmic or capacitive loads and it is also compatible with dimmable LEDs.

  • Page 7: Smart Light Control

    SmartDim LED Puck Multiwire Smart Light Control About Smart Light Control Smart Light Control is a wireless connectivity solution for Zigbee devices without the need for a SmartHub or smartphone application. Smart Light Control Kit is your starting point for wireless home automation. It performs functions like switching and dimming using a Wireless switch via a Zigbee network.

  • Page 8: Pairing Wireless Switch With Puck

    SmartDim LED Puck Multiwire Pairing Wireless switch with Puck To pair the Wireless switch to the Puck, you must put the Wireless switch and the Puck into the pairing mode at the same time. IMPORTANT: The electrical connection to terminal 2 is mandatory for Smart Light Control to function.

  • Page 9: Pairing Wireless Switch With 2 Pucks

    SmartDim LED Puck Multiwire 2. Follow any one of the options to pair Puck : – Short press the Set (setup/reset) button 5 times in quick succession on the Puck with a screwdriver. – Short press the mechanical push-button 5 times in quick succession. The status LED blinks green on the Puck LED.
  • Page 10 SmartDim LED Puck Multiwire 1. Short press the right side of the rocker 5 times in quick succession on the Wireless switch. The status LED blinks green. WARNING HAZARD OF ELECTRIC SHOCK • Observe the regulations for working on live parts. •...
  • Page 11 SmartDim LED Puck Multiwire 3. Short press the left side of the rocker 5 times in quick succession on the Wireless switch. The status LED blinks green. 4. Repeat step 2 on the second Puck. The light connected to the Puck blinks for a few times. The status LED stops blinking green on the Wireless switch and the Puck.

  • Page 12: Pairing Two Dimmers

    SmartDim LED Puck Multiwire Pairing two dimmers You can pair 2 puck as a part of Smart Light Control for wireless home automation. NOTE: • One or more puck should be connected with a 2 gang push-button. • You must put the both the puck in a pairing mode at the same time. The pairing mode will be active for about a minute.

  • Page 13: Setting Brightness Level Manually

    SmartDim LED Puck Multiwire Setting brightness level manually You can set the minimum/maximum brightness of the dimmer. IMPORTANT: Set the minimum/maximum brightness settings of the dimmer only after pairing it with Wireless Switch. 1. To enter the dimmer settings mode, follow any one of the options: •...

  • Page 14: Using The Wireless Switch In Smart Light Control Kit

    SmartDim LED Puck Multiwire 3. Wait for the time out for 30 s or short press the mechanical push-button 2 times to confirm the settings. The dimmer blinks for few times indicating that the setting is saved. 2 × < 1 s Setting maximum brightness: 1.

  • Page 15: Resetting The Device In Smart Light Control Kit

    • Integrating into ELKO System ◦ If you wish to integrate the devices into ELKO System, reset all the devices in Smart Light Control Kit and refer to Pairing the device with ELKO SmartHub, page DUG_Multiwire Puck Dimmer_ELKO-00...

  • Page 16: Led Indications In Smart Light Control Kit

    SmartDim LED Puck Multiwire LED indications in Smart Light Control Kit Pairing the device in Smart Light Control Kit User Action LED Indication Status Press the push button 5 times in quick LED blinks green, once per second. Pairing mode is active for 60 seconds. When succession.

  • Page 17: Pairing The Device With Smart Hub

    SmartDim LED Puck Multiwire Pairing the device with Smart Hub Using the ELKO Smart app, first pair your device with the ELKO SmartHub to access and control the device. You can either add the device manually or do an auto-scan to pair it.
  • Page 18 SmartDim LED Puck Multiwire 4. To pair the device with install code, tap Add Device with Install Code to display the slide-up menu. Select any one of the options (B): – Scan Install Code: you can scan the device for the install code. TIP: You can find the QR code on the rear side of the device.
  • Page 19 SmartDim LED Puck Multiwire 7. In the app, select Confirm LED is flashing orange and tap Start configuration (C). Cancel How to Pair Device Short-press S/R button 3 times. After a few seconds, a solid green LED indicates that the device is successfully paired to the Hub.

  • Page 20: Pairing Device With Auto Scan

    NOTE: If you have multiple hubs, do Step 4 or proceed to Step 5. 4. Tap Select hub and select the ELKO SmartHub from the slide-up menu. 5. Short press the Set (setup/reset) or the mechanical push button-1 for 3 times (<...

  • Page 21: Checking The Type Of Wiring Mode

    SmartDim LED Puck Multiwire Checking the type of wiring mode Using the ELKO Smart app, you can check whether the dimmer is connected with or without neutral wire. To check the type of wiring mode: 1. On the Home page, tap All devices > Dimmer Micromodule.

  • Page 22: Configuring The Device

    Configuring the device Changing the device icon You can change the device icon using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the icon. 2. At the top-right corner of the screen, tap 3.

  • Page 23: Renaming The Device

    Cancel Save Changing the device location You can change the device location using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the location. 2. At the top-right corner of the screen, tap 3.

  • Page 24: Dimmer Settings

    SmartDim LED Puck Multiwire Dimmer settings Using the app, you can manage the Dimmer modes and settings. To access the dimmer settings: 1. On the Home page, tap All devices > Dimmer Micromodule. 2. On the device control panel page, tap Settings. Settings Auto Group Control...
  • Page 25 SmartDim LED Puck Multiwire Dimming range You can restrict the maximum and minimum brightness of the load connected to the device. This is done to avoid flickering and switching off the LED. Tap Dimming Range (B) and do either or both of the following: –...

  • Page 26: Using The Device

    SmartDim LED Puck Multiwire Toggle mode setting Using this setting, the device will remember the last state of the device. Tap Toggle Mode Setting (C) and select any one of the following: – 100% - The LED glows at maximum brightness every time it is turned on. –...

  • Page 27: Manual Operation

    This is the lamp's behavior and the dimmer cannot alter/ change it. Adjusting the brightness level using app Using the ELKO Smart app, you can increase/decrease the brightness level remotely. To increase/decrease the brightness level: 1. On the Home page, tap All devices.
  • Page 28 SmartDim LED Puck Multiwire 4. In the slide-up menu, drag the sliding bar (B) to increase/decrease the brightness. My Home Welcome Home Set your home location for more information. Home Away All Devices • • • Dimmer Micromodule Home Automations 5.

  • Page 29: Setting Up A Schedule

    SmartDim LED Puck Multiwire Setting up a schedule The device can be fully controlled by a schedule. Once the schedule is set, the device operates at a given time. 1. On the Home page, Tap All devices > Dimmer Micromodule. 2.

  • Page 30: Push Button Control

    SmartDim LED Puck Multiwire Push button control Using the app, you can configure the Push Button to control devices connected locally and also to remotely control a moment or a group. To access push button control settings: 1. On the Home page, tap All devices > Dimmer Micromodule. 2.
  • Page 31 SmartDim LED Puck Multiwire Group control A group allows you to trigger set of device action at the same time that are usually performed together. Using the app, you can create group based on your needs (such as bed time). Creating a group 1.
  • Page 32 SmartDim LED Puck Multiwire Adding a group In Group Control page, tap on the group to save the to save the settings. Group Control 2G Dimmer • • • 2G Switch • • • Unbind Editing a group 1. In Group Control page, locate the group you want to edit and tap 2.
  • Page 33 SmartDim LED Puck Multiwire Unbinding a group 1. In Group Control page, tap on the group you want to unbind. 2. Tap Unbind to remove the group assigned to a push button setting. Group Control 2G Dimmer • • • 2G Switch •...
  • Page 34 SmartDim LED Puck Multiwire Push button moment control A Moment allows you to group multiple actions that are usually performed together. Using the app, you can create moments based on your needs (such as movie night) and configure them to the Wireless Switch push buttons. Creating a moment for push button 1.
  • Page 35 SmartDim LED Puck Multiwire 7. Tap Save to verify and save the moment. Moment settings Cancel Save Edit Name Action (1/80) 1G Dimmer Dimmer:On Show on Home Page Assigning moment to push button In Moment Control page, tap on the moment to save the to save the settings. Moment Rest mode •...
  • Page 36 SmartDim LED Puck Multiwire Editing a push button moment 1. In Moment Control page, locate the moment you want to edit and tap 2. On the Edit page, you can tap each item to change the settings and tap Save. TIP: •...
  • Page 37 SmartDim LED Puck Multiwire Deleting a lighting moment 1. In Moment Control page, locate the moment you want to delete and tap 2. Tap Delete. NOTE: Deleting a moment will unbind the moment from push button setting. Cancel Moment Settings Save Lights Group...

  • Page 38: Creating A Moment

    Creating a moment Moment allows you to group multiple actions that are usually done together. Using the ELKO Smart app, you can create moments based on your needs. 1. On the Home page, tap 2. Go to Moment > + to create a moment.
  • Page 39 SmartDim LED Puck Multiwire 3. Tap Edit name (A), enter the name of the moment and tap Save. TIP: You can choose the cover image that represents your moment by tapping Moment settings Cancel Save Edit name Action (0/10) Edit name Add Task Cancel Save...
  • Page 40 SmartDim LED Puck Multiwire 6. Tap Run the device > Dimmer Micromodule to select either or all the functions to add in the moment: – Dimmer (D): turn on/off the device. – Brightness (E): set the percentage of brightness required. Select function Next Dimmer...
  • Page 41 SmartDim LED Puck Multiwire Editing a moment To edit a moment: 1. On the Moment tab, locate the moment you want to edit and tap 2. On the Edit page, you can tap each item (such as dimmer, shutter, delay, temperature, etc.) to change the settings.

  • Page 42: Creating An Automation

    Creating an automation An automation allows you to group multiple actions that are usually done together, triggered automatically or at scheduled times. By using the ELKO Smart app, you can create automations based on your needs. 1. On the Home page, tap the 2.
  • Page 43 SmartDim LED Puck Multiwire 6. In the Add Condition menu, you can do either or all of the following options (C): – When weather changes: select the various weather settings. – Schedule: set the time and day. – When device status changes: select the device and it’s function. NOTE: You can add one or more conditions using Automation settings Cancel...
  • Page 44 SmartDim LED Puck Multiwire 9. In the Add task menu, you can do either or all of the following options (F): – Run the device: select the devices that you want to trigger. – Moment or Automation: select the moment which you want to trigger or select the automation that you want to enable or disable.
  • Page 45 SmartDim LED Puck Multiwire Example of an automation This demonstration shows you how to create an automation to turn on the dimmer at the scheduled time. 1. Go to Automation > + to create an automation. 2. Tap Edit name, enter the name of the automation and tap Save. TIP: You can choose the cover image that best represents your automation by tapping 3.
  • Page 46 SmartDim LED Puck Multiwire 8. In the Automation Settings page, tap Save. Automation settings Cancel Save My Moment Any condition is met (1/10) Schedule:05:30 Action (2/80) Dimmer Micromodule Dimmer:On Dimmer Micromodule All-Day Once the automation is saved, it is visible on the Automation tab. You can tap the toggle switch on the automation to enable it.

  • Page 47: Removing The Device

    SmartDim LED Puck Multiwire Removing the device Using the ELKO Smart app, you can remove a device from the device list. To remove the device: 1. On the Home page, tap All devices > Dimmer Micromodule. 2. Tap to display more details.

  • Page 48: Resetting The Device

    SmartDim LED Puck Multiwire Resetting the device You can reset the device to factory default manually. 1. Short press the Set (Setup/Reset) button 3 times (< 0.5 s) and then long press the Set (Setup/Reset) button once (>10 s). Short press the mechanical push button-1 for 3 times and then long press the push button once for 10 s.

  • Page 49: Led Indication

    SmartDim LED Puck Multiwire LED indication Pairing the device User Action LED Indication Status Short press the setup/reset button LED blinks orange once Pairing mode is active for 30 seconds. When pairing is completed, or push button 3 times. per second. LED glows green for a few seconds before turning off.

  • Page 50: Technical Data

    SmartDim LED Puck Multiwire Technical data Nominal power Load value Load type Load name 2 wire (without neutral) 3 wire (with neutral) 5 - 200 W (max. 0.8 A) 0- 200 W (max. 0.8 A) 5 - 80 W (max. 0.5 A) 0- 80 W (max.
  • Page 51 EU Declaration of Conformity Hereby, ELKO, declares that this product is in compliance with the essential requirements and other relevant provisions of RADIO EQUIPMENT DIRECTIVE 2014/53/EU. Declaration of conformity can be downloaded on ELKO.no. Trademarks This guide makes reference to system and brand names that are trademarks of their relevant owners.
  • Page 52 ELKO AS Sandstuveien 68, 0680 Oslo Pb 6598 Etterstad, 0607 Oslo Norway +47 67 79 39 00 support@elko.no www.elko.no As standards, specifications, and design change from time to time, please ask for confirmation of the information given in this publication.
