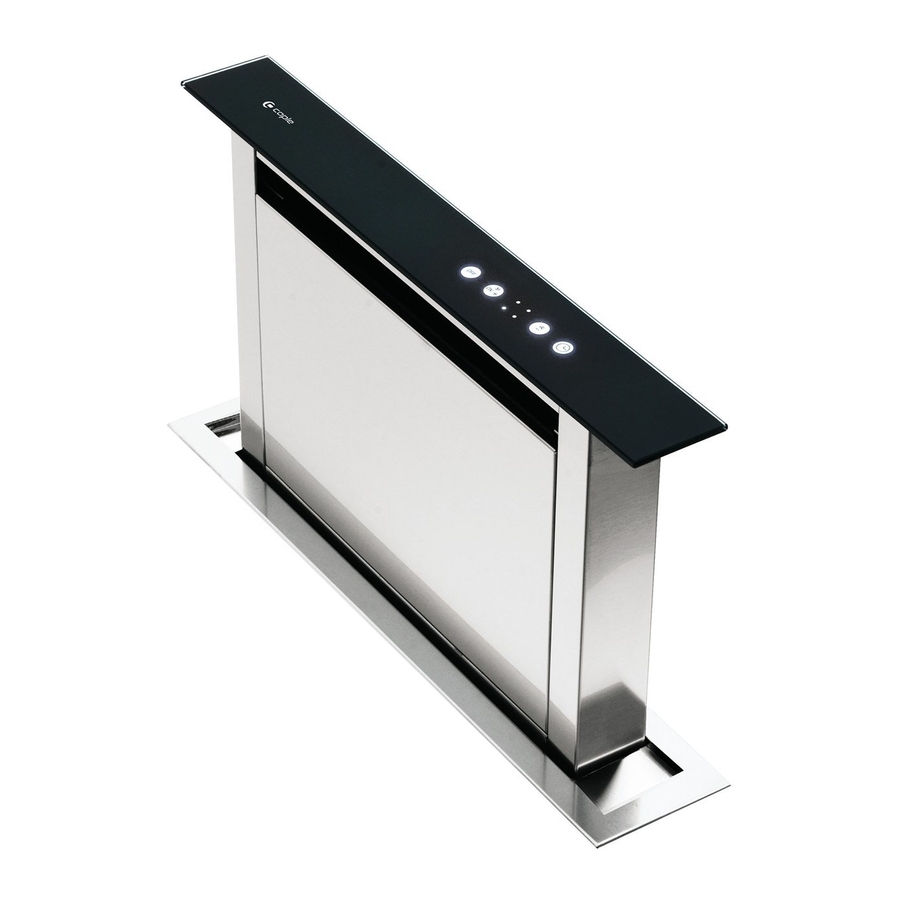

- Page 1 D o w n d r a f t H o o d I n s t r u c t i o n M a n u a l DD6 06 B K Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Safety Instructions Dimensions Installing the Extractor Grease Filter Removal, Installing the Activated Charcoal Filter Electrical Connection Operating the Downdraft Extractor Cleaning the Extractor Troubleshooting Aftersales Service Caple Contact Details Instruction manual DD606BK Please keep this instruction manual for future reference... -
Page 3: Safety Instructions
Your appliance is designed for normal domestic use. It is not designed for commercial or industrial use, or for purposes other than those for which it was designed. Instruction manual DD606BK Please keep this instruction manual for future reference... - Page 4 - Do not ever change or try to change the characteristics of this appliance. This would be a danger. Repairs must be performed only by an authorised Caple engineer. - Always disconnect the hood before carrying out cleaning or maintenance operations.
- Page 5 In the event a downdraft is installed with an external motor, for normal downdraft operation, it is necessary to use an external motor made by Caple. The air collected must not be conveyed into a flue used for smoke or fumes from appliances powered by anything other than electricity (central heating systems, etc.).
- Page 6 Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
-
Page 7: Dimensions
For gas hobs, a minimum 50mm gap must be left between the edge of the gas hob and the For gas hobs, a minimum 50mm gap must be left beetween the edge of downdraft frame. the gas hob and the downdraft frame Instruction manual DD606BK Please keep this instruction manual for future reference... -
Page 8: Installing The Extractor
3. Make a rectangular opening in the back part of the cook top (842x100mm for the 90cm model and 542x100mm for the 60cm model). Instruction manual DD606BK Please keep this instruction manual for future reference... - Page 9 (Fig. 7). The motor can be installed either on the front or rear side of the downdraft. After having installed 2 mm 2 mm the motor, then connect the air ducts. Instruction manual DD606BK Please keep this instruction manual for future reference...
- Page 10 Connect the internal or external motor cable to the terminal board found inside the plastic box on the downdraft wiring. When performing the electrical connection, take care to respect the colours of the electrical wires and connect it correctly (Fig 14). Instruction manual DD606BK Please keep this instruction manual for future reference...
- Page 11 Before connecting the air exhaust hose, make sure that the motor non-return valves can rotate freely. In case of outside air discharge installation, fit a non-return valve to prevent wind and back air from entering. Instruction manual DD606BK Please keep this instruction manual for future reference...
- Page 12 In case fumes and vapour cannot be evacuated outside, the appliance can also be used in recirculation mode. Activated charcoal filters are required for this type of installation (the DD606BK requires CAP27CF). Air recycled through the charcoal filters is recirculated into the kitchen, due to a duct conveying the air beneath the cabinet.
-
Page 13: Grease Filter Removal, Installing The Activated Charcoal Filter
Downdraft, and in any case they should be replaced at least once every 6 months. N OT E : Replacement filters (CAP27CF) can be purchased at www.caple.co.uk. After having replaced the filters, reinstall the front stainless steel panel, otherwise the Downdraft is not enabled to function. Instruction manual DD606BK... -
Page 14: Electrical Connection
The appliance must be fed through a differential protection device (RCD), with a nominal residual current not exceeding 30mA. If the power cord is damaged, call the Caple after-sales service to avoid any risk. WA R N I N G : ›... - Page 15 Check that: › Power is enough. › Feeder lines (mains) are in good condition. › The cable diameter complies with installation regulations. Instruction manual DD606BK Please keep this instruction manual for future reference...
-
Page 16: Operating The Downdraft Extractor
Grease filters saturation: After 30 hours of working, the speed indica- tors “D” will all flash simultaneously, signaling Instruction manual DD606BK the grease filters saturation. Please keep this instruction manual for future reference... - Page 17 • This signals that all filters have been satu- • This signals that all filters have be Instruction manual DD606BK nd if on, the light; then it retracts the ex- Please keep this instruction manual for future reference This function can be stopped by pr rated by all LEDs switching on.
- Page 18 › If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after 7 minutes operation. Operation speeds can also be changed during operation. The energy consumption of the appliance in standby mode is lower than 0.5W. Instruction manual DD606BK Please keep this instruction manual for future reference...
-
Page 19: Cleaning The Extractor
Replace the used charcoal filter on an insert the active charcoal filter. average of every six months. Replace the used charcoal filter on an average of every six months. Instruction manual DD606BK Please keep this instruction manual for future reference... -
Page 20: Troubleshooting
» The non-return valves of the suctioning unit are free to rotate. The downdraft stops in the middle of Check that: operation. » There is not a power outage. » The omnipolar device has not tripped. Instruction manual DD606BK Please keep this instruction manual for future reference... -
Page 21: Aftersales Service
Any maintenance operation on your appliance should be carried out by: › Either your retailer; › Or another Caple approved engineer or similar qualified person. If a problem still persists and further assistance is required, please contact our Caple after sales team on: T - 0117 938 7420 E - service@caple.co.uk... - Page 22 N OT E S : Instruction manual DD606BK Please keep this instruction manual for future reference...
- Page 23 N OT E S : Instruction manual DD606BK Please keep this instruction manual for future reference...
-
Page 24: Caple Contact Details
Caple Service BS11 8DW Fourth Way T: 0117 938 1900 Avonmouth E: service@caple.co.uk Bristol www.caple.co.uk...
