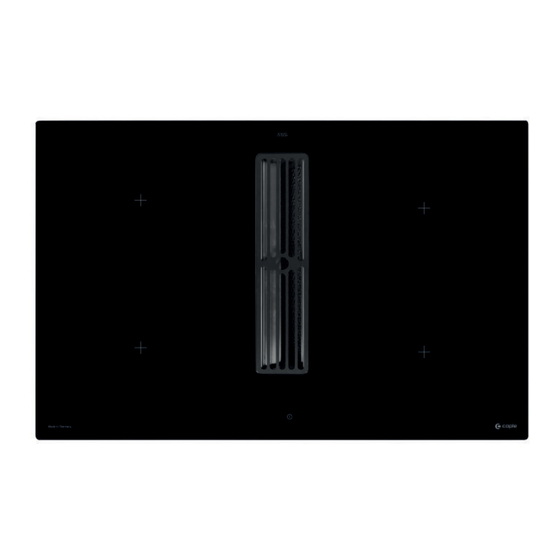

- Page 1 I n d u c t i o n D o w n d r a f t E x t r a c t o r I n s t r u c t i o n M a n u a l DD8 2 0 BK Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
- Page 2 C O N T E N T S Introduction Safety Instructions Appliance Description Operating the Hob Operating the Downdraft Care and Maintenance Troubleshooting Installation After Sales Caple Contact Details Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 3 To ensure that you get the best results from your new induction downdraft extractor, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple product should give you years of trouble-free use. To register ownership, please ensure you complete and return the guarantee card supplied with the appliance or visit www.caple.co.uk and register here.
- Page 4 - Protect your appliance against atmospheric effects. - Do not expose it to effects such as sun, rain, snow, dust or excessive humidity. - Materials around the appliance (i.e. cabinets) must be able Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 5 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard. Instruction manual DD820BK 5 Please keep this instruction manual for future reference...
- Page 6 - Do not put flammable or combustible materials on or near the appliance when it is operating. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 7 - The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised. Instruction manual DD820BK 7 Please keep this instruction manual for future reference...
- Page 8 The use of unsuitable hob protective grids and hob covers may result in accidents. - Inappropriate hob guards can cause accidents. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 9 - Hot pans should not cover the sensor keys, since this will cause the appliance to switch off automatically. Instruction manual DD820BK 9 Please keep this instruction manual for future reference...
- Page 10 - Do not use harsh abrasive cleaners or scourers to clean the hob surface. - Keep the sensor keys clean since the appliance may consider dirt to be finger contact. Instruction manual DD820BK Please keep this instruction manual for future reference...
-
Page 11: Appropriate Use
Live components have been installed near this symbol. Covers bearing this sign may only be remo only be removed by a certified skilled electrician. certified skilled electrician. Instruction manual DD820BK 11 Please keep this instruction manual for future reference... - Page 12 Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
- Page 13 7. Power level control 15. Power setting display will only become visible when the hob has been 8. Stop key (pause) 16. Fan Indication switched on. Instruction manual DD820BK 13 Please keep this instruction manual for future reference...
- Page 14 Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 15 Automatic function Automatic function Automatic function Automatic function Replace the carbon filter Replace the carbon filter Replace the carbon filter Replace the carbon filter Replace the carbon filter Instruction manual DD820BK 15 Please keep this instruction manual for future reference...
- Page 16 N OT E : Pressing a sensor key and keeping it pressed (for approx. 3 seconds) may activate the automatic boost function . See the section on Automatic boost function. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 17 The base of pots and pans must be of a certain diameter; if it is not, the induction heat will not be switched on. Always place pots and pans in the middle of a cooking zone in order to achieve the best efficiency. Instruction manual DD820BK 17 Please keep this instruction manual for future reference...
- Page 18 S E L E C T E D C O O K I N G L E V E L O P E R AT I O N T I M E L I M I T I N M I N U T E S Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 19 Cast iron pans with an enamelled base. aluminium, oven-proof glass, wood, ceramic and terracotta. Pans made of multi-layer stainless steel, stainless ferrite steel and aluminium with special base. Instruction manual DD820BK 19 Please keep this instruction manual for future reference...
-
Page 20: Unsuitable Cookware
The base of the pan must be flat and smooth. optimal optimal Richtig: gutes Kochgeschirr! See the 'Induction Hob Cookware' help-sheet on the appliance web page for further information. Instruction manual DD820BK Please keep this instruction manual for future reference... - Page 21 › Use the right sized pan for the quantity of food you are cooking. A large pan which is hardly filled will use up a lot of energy. Instruction manual DD820BK 21 Please keep this instruction manual for future reference...
- Page 22 Roasting, getting juices Roasting Bringing to the boil, browning, roasting Power boost (highest power output) A higher power level may need to be selected for cooking pots without a lid. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 23 If no pot is placed on the cook zone it the power level set and the will switch off after 10 minutes. *The power boost function is activated immediately. See ‘Power Boost’ section for further information. Instruction manual DD820BK 23 Please keep this instruction manual for future reference...
- Page 24 2. Press the STOP/PAUSE key instead of the selected power settings, the interval sign will light up. any other key any other key (except the ON/OFF Key). Instruction manual DD820BK Please keep this instruction manual for future reference (except the ON/OFF Key).
- Page 25 › Power level W H AT C A N N OT B E R E S TO R E D : › Operation time limit (it is counted from 0) Instruction manual DD820BK 25 Please keep this instruction manual for future reference...
- Page 26 N OT E : In case of a power cut the child lock will be cancelled, i.e. deactivated. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 27 The pan will need to cover at least half of the cooking zones used in order to be recognised by the pan recognition device. N OT E : Bridge function only available on right hand side of hob. Instruction manual DD820BK 27 Please keep this instruction manual for future reference...
- Page 28 These keys are used to set the timer and the automatic switch-off function of the cooking zones as well as the automatic delay stop of the fan ction. the automatic switch-off function of the elay stop of the fan Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 29 › If several cooking zones have been programmed with the automatic switch-off function, the cooking zones as well as the automatic delay stop of the fan timer display will always show the cooking zone with the shortest time. Instruction manual DD820BK 29 Please keep this instruction manual for future reference...
- Page 30 The minute minder will switch off after approx. 120 min. when the ON/OFF key is used for for switching off. for switching off. switching off. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 31 The power setting can be raised while the automatic boost function is in operation. A reduction in the power setting will switch off the automatic boost function. 1x, 2x, 3x 1x, 2x, 3x 1x, 2x, 3x 1x, 2x, 3x Instruction manual DD820BK 31 Please keep this instruction manual for future reference...
- Page 32 › An activated lock will remain activated even if the hob is switched off. It must therefore be dimmed light. de-activated when cooking is re-commenced. lock key will light up brightly › In the event of a power cut the lock will be cancelled, i.e. deactivated. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 33 The display for this cooking zone will initially blink, after which the highest possible power setting will be Modules (power management) consistently displayed. Instruction manual DD820BK 33 Please keep this instruction manual for future reference...
- Page 34 M M i i n n M M i i n n M M i i n n M M i i n n 1x, 2x, 3x Instruction manual DD820BK Please keep this instruction manual for future reference 1x, 2x, 3x...
- Page 35 If a cooking zone is switched on, the timer does not run until the cooking zone has been switched off. If the hob is switched off using the ON/OFF key during fan after run-time, the timer runs down to a low fan level. Instruction manual DD820BK 35 Please keep this instruction manual for future reference...
- Page 36 F A N I N D I C A T O R ( 1 6 ) The power setting indicator shows the power setting which has been selected, or; Automatic function Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 37 If no carbon filter is used, the display indication must also be reset. ay for a cooking process is deleted. d the touch control must be pressed ndication must also be reset. Instruction manual DD820BK 37 Please keep this instruction manual for future reference...
- Page 38 Never rinse right next to glasses or light-coloured porcelain. WA R N I N G : Do not operate the fan without grease filters. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 39 If recirculating your appliance, the Charcoal Filter Recirculation Kit (CAP83CF) can be purchased. The charcoal filter must be replaced at least every 6 months to ensure it remains effective. Replacement filter (CAP84CF) can be purchased from www.caple.co.uk or via our national sales office tel: 0117 938 1900.
- Page 40 You may need to repeat the cleaning process several times. In time, the decoration will wear off and dark stains will appear as a result of using aggressive cleaning agents and faulty pan bases. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 41 Do not interfere with or try to repair the appliance; this could cause injury to persons and damage to the appliance. Always have such work done by a Caple approved engineer or similar qualified persons. PLEASE NOTE: If your appliance is faulty, please check whether you can rectify the problem yourself by consulting these instructions for use.
- Page 42 A N E R R O R C O D E ( E R X X O R E X ) I S I N D I C AT E D ? The appliance has developed a technical defect. Please call Caple Service.
- Page 43 There is a risk of electric shocks if the glass ceramic hob develops fractures, cracks, tears or damage of any other kind. Immediately switch off the appliance. Disconnect the fuse immediately and call Customer Service. Instruction manual DD820BK 43 Please keep this instruction manual for future reference...
- Page 44 5 mm In order to better ventilate the hob, an air gap of 5mm should be left at the front. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 45 › The hob must under no circumstances be sealed with silicone sealant. This would make it impossible to remove the hob at a later date without damaging it. Instruction manual DD820BK 45 Please keep this instruction manual for future reference...
- Page 46 There is a risk of breakage if the hob is canted or sub-jected to stress during installation. IMPORTANT: There is a risk of breakage if the hob is canted or sub-jected to stress during installation. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 47 Silicone adhesive must not get under the support surface. If this occurs it will not be possible to remove the hob again at a later stage. No liability will be assumed in the case of failure to observe these instructions. 4,5 -0,5 Instruction manual DD820BK 47 Please keep this instruction manual for future reference...
- Page 48 D I M E N S I O N S 170mm 180mm 100mm Inset cut-out 750 x 500mm. Refer to manual for further information. Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 49 Replacement filter (CAP84CF) can be purchased from www.caple.co.uk or via our national sales office tel: 0117 938 1900. KIT/961W includes 2 x 90 degree vertical bends and 2 x 1 metre flat channels to allow you to connect the downdraft hob to your recirculation kit as shown in the image above.
- Page 50 S I D E V I E W O F R E C I R C U L AT I N G I N S TA L L AT I O N : 600mm 550mm 540mm 40mm 170mm min. 100mm 15mm Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 51 R E A R V I E W O F R E C I R C U L AT I N G I N S TA L L AT I O N : Rear view of 90cm cabinet Rear view of 90cm cabinet Instruction manual DD820BK 51 Please keep this instruction manual for future reference...
- Page 52 WARNING OF ELECTRICAL ENERGY RISK OF FATAL INJURY Instruction manual DD820BK Please keep this instruction manual for future reference Live components have been installed near this symbol. Covers bearing this sign may only be removed by a...
- Page 53 Potential-free relay contact Relay connection (B) Switching capacity max. 240V, 4A Potential-free relay contact F R O N T V I E W Instruction manual DD820BK 53 Please keep this instruction manual for future reference...
- Page 54 Fuse rating: 32amp U K I N S TA L L AT I O N : Power supply - Mains voltage: 220-240V 1N~, 50/60Hz Component rated voltage: 220-240V Fuse rating: 32amp Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 55 › If the mains cable of this appliance is damaged it will need to be replaced with a special connection cable. In order to avoid any risks, this must be carried out by Caple Service or an approved engineer.
- Page 56 2x Induction cooking zone Ø cm/kW 19 x 21/ 2,1/ 3,0* Bridging Function... kW Max. air stream... m Power Supply Hob.. kW Fan... kW 0.168 * Power when the power boost function is activated Instruction manual DD820BK Please keep this instruction manual for future reference...
- Page 57 No items may be on the touch control sensor keys when the appliance is being connected. Touch-Control Sensortasten vorhanden sein! Briefly wipe over the surface of the hob with a sponge and soapy water and then dry with a clean cloth. Instruction manual DD820BK 57 Please keep this instruction manual for future reference...
- Page 58 Any maintenance operation on your appliance should be carried out by: › Either your retailer; › Or another Caple approved engineer or similar qualified person. If a problem still persists and further assistance is required, please contact our Caple after sales team on: T - 0117 938 7420 E - service@caple.co.uk...
- Page 59 N OT E S : Instruction manual DD820BK 59 Please keep this instruction manual for future reference...
- Page 60 Caple Service BS11 8DW Fourth Way T: 0117 938 1900 Avonmouth E: service@caple.co.uk Bristol www.caple.co.uk...
