Summary of Contents for Caple DD606SS

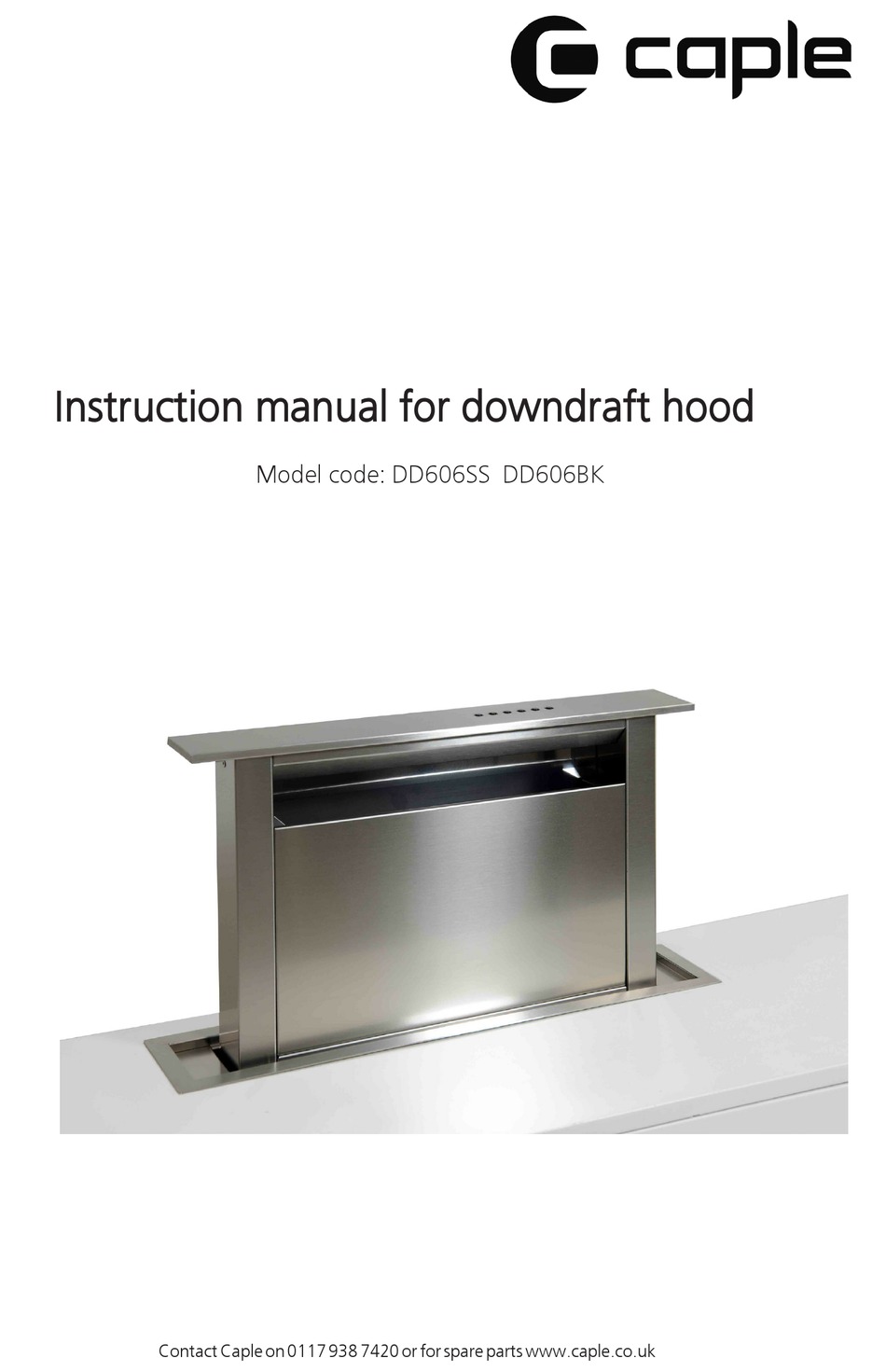

- Page 1 Instruction manual for downdraft hood Instruction manual for downdraft hood Model code: DD520BK Model code: DD606SS DD606BK Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
- Page 3 seguenze negative per l’ambiente e per la salute, che potrebbero derivare da uno smaltimento inade- guato del prodotto. Per informazioni più dettagliate sul riciclaggio di questo prodotto, contattare l’ufficio comunale, il servizio locale di smaltimento rifiuti o il negozio in cui è stato acquistato il prodotto. Questo elettrodomestico è...
- Page 5 Repairs must be performed only by necessary to use a external motor made by an authorised Caple technician. Caple. - Always disconnect the hood before carrying The air collected must not be conveyed into a out cleaning or maintenance operations.
-
Page 6: Table Of Contents
Contents Dimensions Installing the extractor Removing the grease filters and installing the charcoal filters Electrical connection How the downdraft extractor works Cleaning the extractor Troubleshooting Aftersales service Images (fig.1 to Fig.13) -
Page 7: Dimensions
Dimensions Note: The Downdraft worktop cutout can be connected to the hob cutout, but only for electric hobs. For gas hobs, a minimum 50mm gap must be left beetween the edge of the gas hob and the downdraft frame... -
Page 8: Installing The Extractor
Installing the extractor 4. Put the Downdraft in the opening, inserting it from above as shown in (Fig. 2). 5. Fix the downdraft inside the cabinet, using Before carrying out the appliance the special fixing brackets supplied with the installation, please check that all product (Fig. -
Page 9: Removing The Grease Filters And Installing The Charcoal Filters
Recirulaton mode Connect the internal or external motor cable to In case fumes and vapour cannot be evacuated the terminal board found inside the plastic box outside, the appliance can also be used in on the downdraft wiring. When performing the recircualtion mode. -
Page 10: Electrical Connection
The appliance must be fed through a differential protection device (RCD), with a nominal residual current not exceeding 30mA. If the power cord is damaged, call the Caple after-sales service to avoid any risk. WARNING The downdraft connection to the electrical network must be carried out only by professional and qualified technicians. -
Page 11: How The Downdraft Extractor Works
How the downdraft Other functions: extractor works Automatic turn off: After 4 hours of continuous use from the last function selected, the appliance turns off and closes automatically. A: Lower the extraction panel - '0' switch Grease filters saturation: This serves to close the extraction panel After 30 hours of working, the speed either completely or in intermediate positions indicators “D”... - Page 12 Safety system: If there is an obstacle present while the extractable unit is closing, the Downdraft stops closing and rises again thanks to a security system to prevent harm. TIMING As a result of the new EU65 “Energy la- bel” and EU66 “ Ecodesign” regulations issued by the European Commission, which came into force as from Janua- ry 1st, 2015 , our products have been...
-
Page 13: Cleaning The Extractor
Cleaning the extractor Careful maintenance helps to ensure the correct operation and good performance over time. CAUTION The hood must be disconnected from the electrical network, both by unplugging the appliance from the socket and activating the magnetic circuit breaker (safety cut-out), before removing the metal grease filters. -
Page 14: Troubleshooting
Aftersales service Any service or repairs should be carrier out by a qualified person, please contact Caple Service either by telephone 0117 938 7420 or by email service@caple.co.uk NOTE When contacting Caple Service, please provide the appliance details shown on the appliance labels (Type Fig.13-A and equipment Fig.1-B and also the production date Fig.13-C). -
Page 15: Images (Fig.1 To Fig.13)
IMAGES... - Page 16 2 mm...
- Page 18 10/09 90002103999 220 - 240V - 50 HZ ATTUATORE 12Vcc 68W EQUIPMENT TYPE FSEE S - 002 - EM_TC X22 - Q3 - X0...
- Page 20 Serial number Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 90000256600 - GM 04/2015 00000000000 - GM 03/2014 90002020422 - GM 02/12 90002020422 - GM 02/2014...
