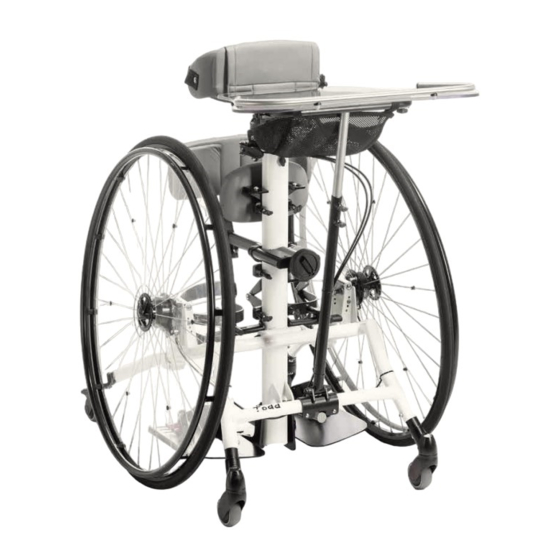

- Page 1 Instructions for use. todd. the moveable standing trainer.
- Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Transport ........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling and transport ..................06 2.3 Application areas, use according to the intended purpose ..... - Page 4 Contents. 5. Technical data................24 6. Guarantee................... 25 7. Identification................26 7.1 EC declaration of conformity ................26 7.2 Serial number / date of manufacture .............27 7.3 Product version ......................27 7.4 Issue of the document ....................27 7.5 Name and address of the manufacturer, specialist dealer supplying the product ........................27...
-
Page 5: Preparation
1. Preparation. 1.1 Transport On receiving the product, please check it for completeness, lack of faults and any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please cause an inventory (de- termination of the faults) to be made in the presence of the forwarder. Please send a complaint in writing to the specialist dealer responsible. -
Page 6: Product Description
2. Product description. 2.1 Material information The base frame and the individual elements are made of steel or alumi- nium which are non-corroding and powder-coated. All body supports (except for the knee pelotte pads) are padded and covered. The covers are made of 100% polyester or polyamide textile substrate, and are flame resistant (according to DIN EN 1021-1+2). -
Page 7: Application Areas, Use According To The Intended Purpose
2.3 Application areas, use according to the intended purpose Indications The standing trainer todd. is designed for indoor use and allows the user to move around by means of drive wheels with handrims. It serves to train standing in users who can hardly stand or who cannot stand, in particular due to: •... -
Page 8: Use Not In Accordance With The Intended Purpose / Warning Gui
• Angular adjustment of the central column mechanical from 0° - 15 • incl. drum brakes, easy to operate via locking lever • Adjustable wheel camber 2.5.1 Equipment acc. HMV (Medical Aids Register) Acc. the HMV (Medical Aids Register), the standing trainer todd. requires the provision of heel edges and footstraps. -
Page 9: List Of Accessories
2. Product description. 2.6 List of accessories • Headrest • Chest structure • Therapy table with edge • Chest pelotte pad with lateral • Shelf basket guide • Rear wheels • Backstrap • Rear wheels with closed hand rims • Knee pelotte pads •... -
Page 10: General Settings
2. Product description. 2.8 General settings todd. is completely assembled and delivered in the smallest possible setting. Before the user is placed into the standing trainer, the necessary presettings must be carried out. User dimensions Presettings Taking the user's Carrying out adjustments to the standing trainer... -
Page 11: Getting In And Out
2. Product description. 2.9 Getting in and out Once all presettings have been car- ried out, please first lock all two castors (A) or drum brake (B) for get- ting in and out. Now bring the cent- ral column into vertical position (see Point 3.1) and remove the buttocks pelotte pad. -
Page 12: Settings
3. Settings Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 13: Angular Adjustment Of The Central Column
3. Settings 3.1 Angular adjustment of the central column The central column can be adjusted mechanically from 0 - 15° via a clam- ping lever. Please secure the standing trainer against inadvertent rolling away and apply the parking brake (A). In order to adjust the angle, loosen the clam- ping lever (B), bring the central column into the required position and turn the... -
Page 14: Rear Wheels / Drum Brake
3. Settings 3.3 Rear wheels / drum brake The drive wheels are puncture-free and removable. Please press the but- ton in the middle of the wheel hub (A) and the drive wheel can be easily re- moved and replaced. When inserting the quick release axles, you should be able to hear it engage with an audible "click". -
Page 15: Wheel Camber
When adjusting the wheel camber, the positions of these rollers are ch- anged, but can be readjusted using a Torx screw (B). In the abducted version of the todd. the rear support roller is automatically adjusted with the adjustment of the centre column. -
Page 16: Foot Plate
3. Settings 16 16 3.6 Foot plate The foot plate is adjustable in height and can be altered by loosening the four screws (A) on the central column (see Point 3.2). To adjust the depth, loosen the star screw (B+C), which is located under the foot plate. -
Page 17: Heel Edges
3. Settings 3.8 Heel edges The heel edges are mounted onto the foot plate or the divided foot plate. They can be adjusted in width, depth and angle. In order to adjust the width or the angle, loosen the wing screws (A) below the foot plate and bring the heel edges into the required position. -
Page 18: Combined Spine And Pelvic Pelotte Pad
3. Settings 18 18 3.11 Combined spine and pelvic pelotte pad The combined spine and pelvic pe- lotte pad is width, height and depth adjustable. The height can be adjusted by loo- sening the screw (A). Now bring the combined spine and pelvic pelotte pad into the required position. -
Page 19: Buttocks Pelotte Pad
3. Settings 3.12 Buttocks pelotte pad The buttocks pelotte pad is self-lo- cking and can be adjusted in height and depth. In order to lock the buttocks pelotte pad, please tighten the wing screw below the support tube (A) after inser- tion. -
Page 20: Chest Harness / Chest Pelotte Pad With Lateral Guide
3. Settings 3.13 Chest harness / chest pelotte pad with lateral guide Both the chest harness and the chest pelotte pad with lateral gui- de are adjustable in height, depth and angle. In addition, the height can also be adjusted via the height adjustment on the central column (see Point 3.2). -
Page 21: Back Pelotte Pad
3. Settings 3.14 Back pelotte pad The height and the depth of the back pelotte pad can be adjusted as a whole via the buttocks pelotte pad mount (see Point 3.12). The back pe- lotte pad (A) itself is additionally ad- justable in height and is inserted into the buttocks pelotte pad mount. -
Page 22: Therapy Table
3. Settings 3.17 Therapy table The therapy table can be adjusted in angle. In addition, the height can also be adjusted via the height adjustment on the central column (see Point 3.2.). In order to adjust the depth, please loosen the twist grips (A) under the therapy table and move them into the required position. -
Page 23: Repairs And Cleaning
The covers can be removed and washed at 30° in the washing machine. Please also pay attention to our general cleaning and hygiene advice. This can be found at www.schuchmann.de/en/media-library. 4.2 Repairs Please carry out a daily visual inspection and check the standing trainer regularly for cracks, breaks, missing parts and malfunctions. -
Page 24: Technical Data
5. Technical data. Dimensions - basic model Size 1 Size 2 Size 3 Size 4 Body size 75 - 110 cm 100 - 130 cm 120 - 155 cm 150 - 175 cm Wheel size 24“ 28“ 30“ 32“ 36“ 32“... -
Page 25: Guarantee
6. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 26: Identification
EG Konformitätserklärung EC Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Dütestraße 3 · 49205 Hasbergen · Deutschland / Germany Tel. +49 (0) 5405 909-0 · Fax +49 (0) 5405 909-109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Produktklasse 1... -
Page 27: Serial Number / Date Of Manufacture
Date of manufacture 7.3 Product version The todd. standing trainer is available in four sizes and can be supplemen- ted through a diverse range of accessories (see Point 2.6). 7.4 Issue of the document todd. instructions for use - Change status A; Issue 01.2020 7.5 Name and address of the manufacturer, specialist dealer supplying... - Page 28 schuchmann.de...
