Installation
Applicable to Three Phase models:
OCPP0422
OCPP0423

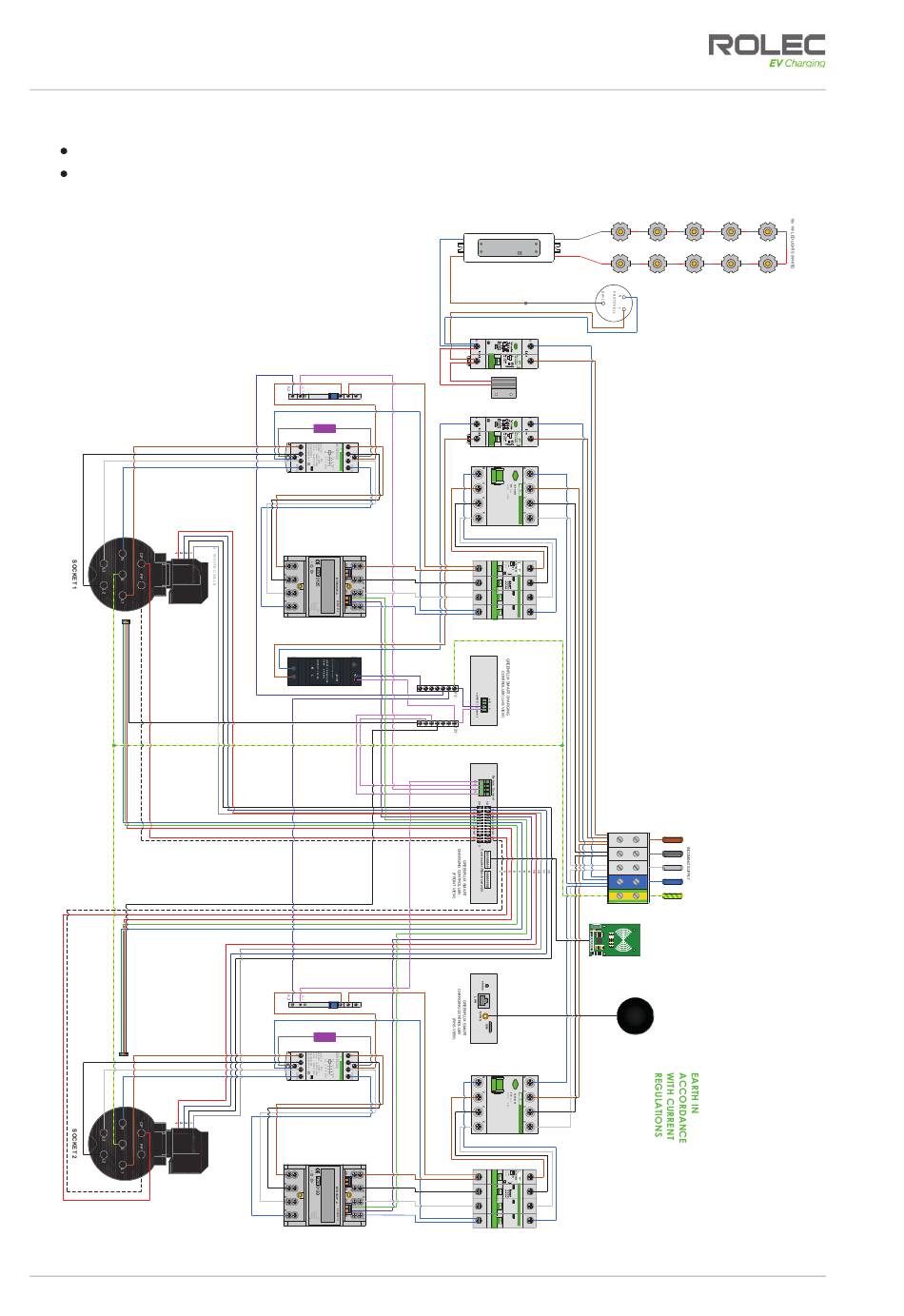

Figure 10 Double Socket Three Phase Quantum OCPP – Schematic
Quantum:EV OpenCharge
Page 14 of 21
AC-N (BLUE)
AC-L (Brown)
SNUBBER
SNUBBER
EVQROCM-01-V01-R0 Installation and Operation Manual
LED Driver
DC V- (Rlack)
Con s ta n t Curre nt Cla s s 2 Po we r Su p ply
Mo del: L D010H-CU03536-51
Inp ut: 100-240Vac ~ 0.25A 50/60Hz
Ou tpu t: 25-36Vdc 350mA
DC V+ (Red)
Watt: 12.6W Max.
IP67
ta= 60°C tc= 90°C
WHITE CABLE
NEUTRAL
LIVE 1
LIVE 2
LIVE 3
EARTH
