PROFESSIONAL MODULAR SERIES
Professional Fold Down
Side Shelves
(pack of 2)
Model No. BA1018
(shown on BBQ
sold separately)
Professional Sink & Fridge Module
Model No. BQ1013GFP
TOOLS REQUIRED
Standard Phillips-head screw driver.
Gasmate
®
is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Important: Retain these instructions for future use.
Professional 6 Burner Premium BBQ
Model No. BQ1011P
Professional Bench Module
Model No. BQ1014P
Reference Models ONLY
Please refer to the diagrams for completed assembly of modules
Aber Holdings Ltd - N.Z www.gasmate.co.nz
0
Professional 45
Corner Module
Model No. BQ1012P
Professional Drawer Module
Model No. BQ1021P
IMPORTANT: Remove all packing and transit protection
before assembly.
CAUTION: Ensure no packing material is left in BBQ
before lighting.
03503 11/16
Advertisement
Table of Contents
Related Manuals for Gasmate Modular Series
Summary of Contents for Gasmate Modular Series
- Page 1 Standard Phillips-head screw driver. CAUTION: Ensure no packing material is left in BBQ before lighting. Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Holdings Ltd - N.Z www.gasmate.co.nz Important: Retain these instructions for future use. 03503 11/16...
- Page 2 Use 2 screws, 2 rubber washers and 2 washers as shown. There is no need for nuts as the cabinets have captive nuts inside the panels. Use 2 screws, 2 rubber washers and 2 washers as shown to connect a 45 degrees corner section.
- Page 3 Demonstrating how to connect another 45 degrees corner section. Use 2 screws, 2 rubber washers and 2 washers as shown to connect the final module.

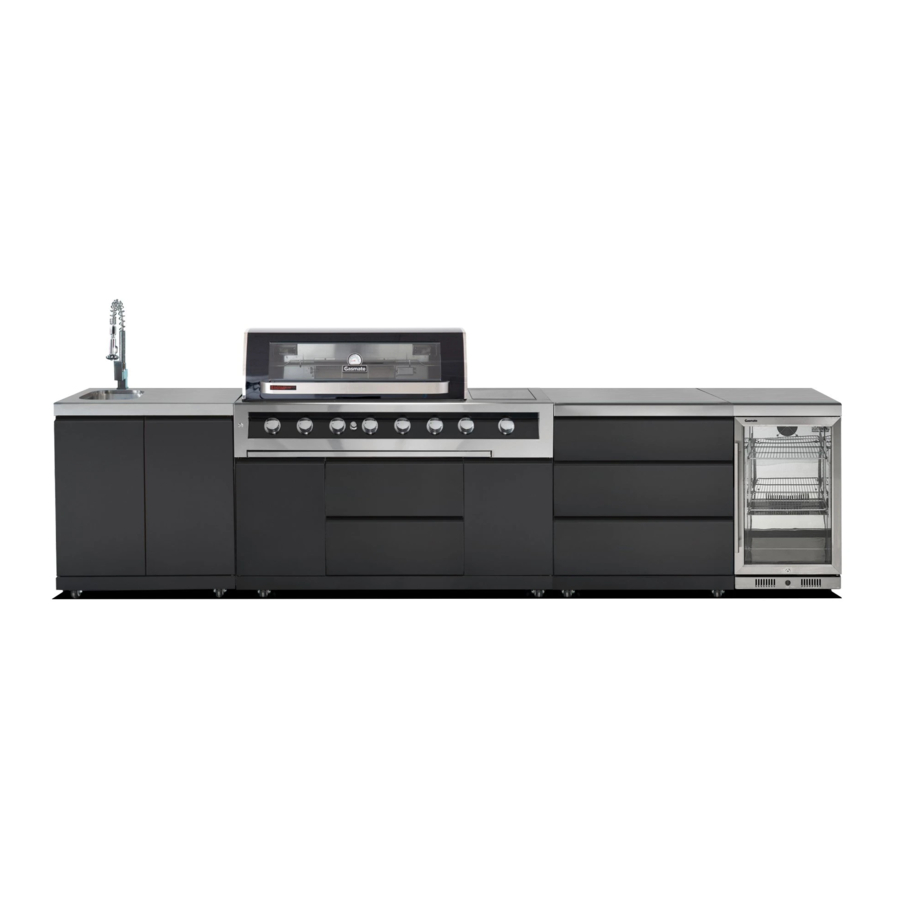

- Page 4 Finished Outdoor Kitchen Gas Grill (For Reference Only) Models purchased may differ from those shown.
- Page 5 ASSEMBLY INSTRUCTIONS - 45 Corner Module. Corner Model No. BQ1012P PARTS LIST Top Panel Front Pillar Rear Pillar (2) Base Panel Castors (3) Washers (12) ASSEMBLY 1. Attach the 3 castors to the base panel. 2. Attach the front pillar to the base using 2 screws.
- Page 6 ASSEMBLY INSTRUCTIONS - Side Shelves. Model No. BA1018P 1. Pre-assemble the top two screws, leaving them loose. 2. Hang the side shelf onto these 2 screws. 3. Insert two screws into the lower holes and tighten. Four (4) M6X15 Screws and washers Side shelves can be folded down by first lifting up and then rotating down as shown.
