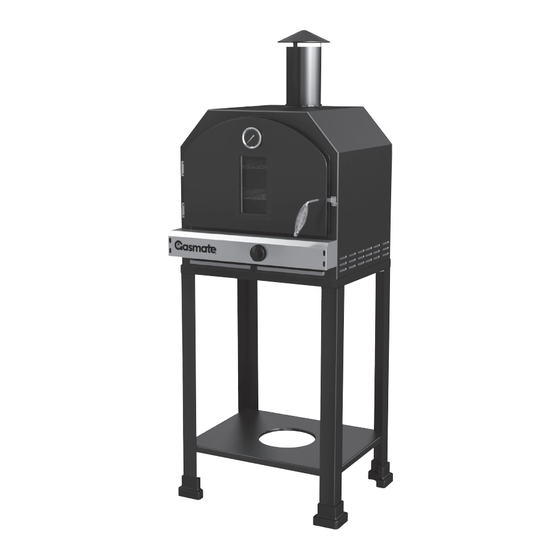

Pizza Oven with Stand
Model No. P0104
• Cooks up to 3 pizzas at a time
• Use to cook a variety of food
• Easy clean vitreous enamel interior
• Powerful 22MJ/h stainless steel burner
• Viewing window and temperature
gauge
• Powder coated finish
• Cool touch handle
• Includes food safe ceramic pizza stone
• Rotary piezo ignition
• AGA Certified
• Propane gas
• Certified for conversion to Natural Gas
FOR OUTDOOR USE ONLY
Gasmate
®
is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Ltd - Hamilton, N.Z.
www.gasmate.co.nz
Important: Retain these instructions for future use.
02695 01/11
Advertisement
Table of Contents
Related Manuals for Gasmate P0104
Summary of Contents for Gasmate P0104
- Page 1 • Propane gas • Certified for conversion to Natural Gas FOR OUTDOOR USE ONLY Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Ltd - Hamilton, N.Z. www.gasmate.co.nz Important: Retain these instructions for future use. 02695 01/11...
-
Page 2: Table Of Contents
CONTENTS GENERAL INFORMATION Gas Installation Codes Section Page • Appliances must be used in accordance with the General information installation requirements of your gas supply authority, or the Australian Standard AS 5601. General assembly • Appliances for use with bottled gas are labelled ‘propane gas’. -
Page 3: Specifications
Location of your Appliance Always close the cylinder valve when the appliance is not in use. Do not subject the cylinder to DO NOT use in garages, porches, sheds, excessive heat. breezeways or other enclosed areas. Your appliance is to be used OUTDOORS and is not Specifications intended to be installed in or on recreational Specifications can be found on the data label... -
Page 4: General Assembly
GENERAL ASSEMBLY LIGHTING PROCEDURE Connecting & Disconnecting to Burner Operation & Gas Source Ignition System Check Familiarise yourself with the general information 1. With cylinder valve in ‘OFF’ position push and and safety guidelines located at the front of this turn the control knob. -
Page 5: Operating Procedure
Burner Operation & Ignition system check Problem Possible Reason Solution Valve on cylinder is closed Open valve on cylinder Burner will not ignite Control knob is closed Turn knob to high when lighting Igniter is faulty Use a long barbecue match Burner has gone out Check that the gas bottle is not empty and re-ignite the burner... -
Page 6: Care And Maintenance
CARE & MAINTENANCE Care & Maintenance Preheating As with all appliances, proper care and It is necessary to preheat the appliance for at maintenance will keep them in top operating least 15 minutes before cooking certain foods, condition and prolong their life. By following depending on the type of food and the cooking these cleaning procedures on a timely basis, your temperature. -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Tools Needed for Assembly • Phillips screwdriver • Adjustable wrench Note: Remove any transit protection material STEP 1 Lay the Pizza Oven on it’s back and attach the washers and rubber feet by using 4*M5 screws 30mm long. STEP 2 Stand the Pizza Oven on it’s feet and attach the chimney to... - Page 8 STEP 3 Attach the rear heat shield to the Pizza Oven using 4*M5 screws 30mm long and the spacers as shown. STEP 4 Position the wire racks ensuring the folded down tabs locate into the holes of the front of the rack supports.
- Page 9 STEP 6 Attach the 4 leg assemblies to the frame as shown using 12*M6 screws 12mm long and nuts. Align the two dimples at the top of the legs with the dimples on the top frame. Ensure foot A and Foot B are diagonally opposite each other (note: the legs angle out at the bottom from front to back).
- Page 10 STEP 8 Locate the Pizza Oven on top of the stand as shown...
-
Page 11: Natural Gas Conversion
NATURAL GAS CONVERSION Conversion ONLY to be done by an authorised person. TO BE INSTALLED ONLY ON OR IN A SERVICING INSTRUCTIONS NON-COMBUSTIBLE ENCLOSURE Appliances should be serviced at least annually Note: Recommended clearances must be maintained. and servicing must only be carried out by a Licensed Plumber or Authorised Person. -
Page 12: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS Within a partial enclosure that includes an overhead cover and more than two walls, the This appliance shall only be used in an above following will apply: ground open-air situation with natural ventilation, at least 25% of the total wall area is completely without stagnant areas, where gas leakage and open, and at least 30% of the remaining wall area products of combustion are rapidly dispersed by...
