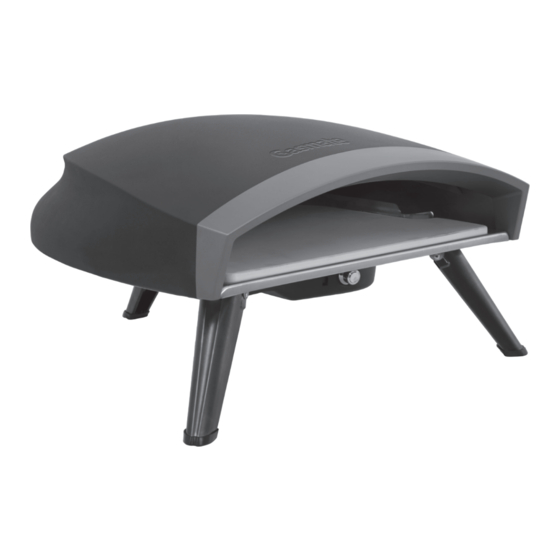

16"GAS PIZZA OVEN
• Powerful 28.8 MJ/h cast iron burner
• Electronic Ignition
• Durable powder coated body
• Stainless steel inner layer for better heat
retaining and durability.
Important: Retain these instructions for future use.
PORTOFINO
Model No. PO3106-16
OUTDOOR USE ONLY
Gasmate® is a registered trademark of
Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Living, N.Z. www.gasmate.co.nz
• Stainless steel folding legs
• Generous cooking space
• Includes QCC regulator and hose
• Gas certified to New Zealand Standards
5555 05/23
Advertisement
Related Manuals for Gasmate PORTOFINO PO3106-16
Summary of Contents for Gasmate PORTOFINO PO3106-16
- Page 1 • Stainless steel inner layer for better heat • Gas certified to New Zealand Standards retaining and durability. OUTDOOR USE ONLY Important: Retain these instructions for future use. 5555 05/23 Gasmate® is a registered trademark of Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living, N.Z. www.gasmate.co.nz...
- Page 2 SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION & DANGER WARNINGS • This instruction manual contains important information necessary for the proper WARNING assembly and safe use of the appliance • Read and follow all warnings and • DO NOT SPRAY AEROSOLS IN THE instructions before assembling and using the VICINITY OF THIS APPLIANCE WHILE IT IS appliance...
- Page 3 • This appliance is only intended to be used WARNING! Contact your local municipality for with LPG gas. Do not use lava rocks, any building codes regulating the installation of outdoor barbecue appliances. Outdoor briquettes, charcoal or other fuel sources. installations must conform to Australian and •...
- Page 4 PARTIAL ENCLOSURES INSTALLATION POSITIONING The appliance shall only be used in an above ground, open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convention. WARNING • Do not use the gas pizza oven in enclosed or on small balconies. •...
- Page 5 SETTING UP YOUR OVEN INSTALLATION GUIDE • Place a soft matt or rug down to protect the • This appliance shall only be used in an exterior of your pizza oven during the setup above ground open-air situation with natural process.
- Page 6 GAS SAFETY ONLY USE THE HOSE ASSEMBLY Please take a moment to review all of the safety SPECIFIED BY THE MANUFACTURER requirements before operating the appliance when using gas. ON THIS APPLIANCE. REPLACEMENT HOSE ASSEMBLIES MUST BE THOSE • Do not disconnect any gas fittings while the SPECIFIED BY THE MANUFACTURER.
- Page 7 IMPORTANT! IMPORTANT! Keep the gas hose away from hot surfaces and protect from dripping grease. Avoid unnecessary twisting Keep the gas hose away from hot surfaces and protect from dripping grease. Avoid unnecessary twisting of hose. Visually inspect the hose prior to each use for cracks, excessive wear or other damage. Replace of hose.
- Page 8 WARNING! DO NOT USE AN ADAPTOR AT THE CYLINDER CONNECTION 1. Do not store a spare LPG cylinder under or near this appliance. 2. Never fill the cylinder beyond 80 percent full 3. If the information in item 1&2 is not followed exactly, a fire causing death or serious injury may occur. CAUTION: Place dust cap on cylinder valve outlet whenever the cylinder is not in use.
- Page 9 FIRST USE To burn off any residual manufacturing oils, it’s important to run your Pizza Oven for a period of time without cooking. 1. Turn on the gas supply at your gas cylinder. 2. Press and hold the control knob down and turn to the Max heating position for at least 15 seconds. You will hear the ignitor ‘clicking’...
- Page 10 USING YOUR PIZZA OVEN There is a lot of variability when it comes to cooking pizzas, including the type of dough, thickness, types of toppings, etc which will all vary your cooking time and optimum heat settings. It may take some trial and error to begin with! Our recommended setting is as follows.
- Page 11 OVEN EXPLODED DIAGRAM...
- Page 12 DESCRIPTION FIGURE DESCRIPTION FIGURE Shell plate Decorative plate assembly Decorative plate Tail flame baffle seals Inner lining plate Insulating cotton Burner assembly Thermocouple Pizza stone Pizza stone baffle Pulse diaphragm Bottom plate Foot base Feet Gas inlet Ignition needle assembly Valve heat shield Pulse igniter Control panel...
- Page 13 CLEANING & MAINTENANCE Enamel Cleaning General Cleaning of Painted Surface When cleaning your pizza oven use a mild dish DO NOT USE AN ACID DETERGENT AND/ soap combined with warm water and a microfiber OR ANTI-RUST CLEANER ON THE CONTROL cloth to clean the surface.
- Page 14 TROUBLESHOOTING If you think you’ve got a problem with your Pizza Oven, follow the following troubleshooting steps to try and resolve it. If you have any questions, contact after-sales service. It is recommended to replace the gas hose every 5 years. Replacement hose assemblies and regulators can be purchased from your nearest hardware store.
- Page 15 TECHNICAL SPECIFICATION Model PO3106-16 Gas type ULPG Burner injector size 1.03mm Burner gas pressure 3.0KPA 0063-23 Total gas consumption 28.8MJ/h PIN 0063DO7094 ESS 000002441V3R7 Warning: For storage and cylinder exchange, disconnect hose at the cylinder only. DO NOT disconnect hose from the appliance. Minimum clearances from pizza oven to combustible surfaces.
- Page 16 NEW ZEALAND ONLY For warranty details visit www.gasmate.co.nz For warranty claims return to place of purchase. Your purchase receipt will be required for warranty claims. Important: Retain these instructions for future use.
