Gasmate GSB001 Quick Start Manual

Gasmate GSB001 Quick Start Manual

Charcoal spit roaster small

Advertisement

Quick Links

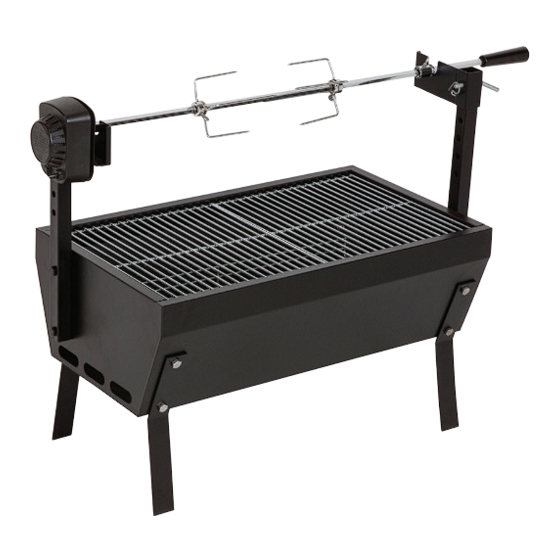

Charcoal Spit Roaster Small
• Steel construction firebox
• High temperature powdercoated
• 2 Chrome plated grills
• 2 Chrome plated prongs with
4 tines
FOR OUTDOOR USE ONLY
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLET
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS OR SPRAY AEROSOLS NEAR THIS APPLIANCE
DO NOT OPERATE THE APPLIANCE INDOORS
DO NOT OPERATE IN AN ENCLOSED AREA. ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.
MINIMUM CLEARANCES FROM COMBUSTIBLE MATERIALS: 3 METRES
Gasmate
is a registered trademark of:
®
Important: Retain these instructions for future use.
03027 04/13
Model No. GSB001
• 240V x 50Hz motor
• Cooking surface
• Overall dimensions
Sitro Group Australia Pty Ltd
Aber, Hamilton, N.Z
600mm x 320mm
950mm x 360mm x 620mm
www.sitro.com.au
www.gasmate.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSB001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gasmate GSB001

  • Page 1 Charcoal Spit Roaster Small Model No. GSB001 • 240V x 50Hz motor • Steel construction firebox • Cooking surface • High temperature powdercoated 600mm x 320mm • 2 Chrome plated grills • Overall dimensions • 2 Chrome plated prongs with...
  • Page 2: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR BARBECUE. • Never use charcoal that has been pre treated with lighter fluid. Use only a WARNING high grade plain charcoal or charcoal/ wood mixture. •...
  • Page 3 IMPORTANT SAFEGUARDS • Never leave coals and ashes in barbecue ROTISSERIE MOTOR unattended. Before barbecue can be left unattended, remaining coals and When using electrical appliances, basic ashes must be removed from barbecue. safety precautions should always be Use caution to protect yourself and followed, including the following: property.
  • Page 4: Exploded Diagram

    EXPLODED DIAGRAM PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Motor Hexagon Screw Prong Split Pin Skewer Fixing Pin Handle Support Assembly A Sleeve Support Post Cooking Grate Hexagon Screw Support Assembly B Charcoal Grate...
  • Page 5 ASSEMBLY INSTRUCTIONS Tools Needed 2 Adjustable spanners. Step 1 Attach the four legs using eight M8x16mm bolts and nuts. Step 2 Attach the two support posts using four M8x35mm bolts and nuts.
  • Page 6 Step 3 Slide the support assemblies onto the posts and secure with the fixing pin and split pin.
  • Page 7 Step 4 Place the charcoal grate into the bottom of the body. The cooking grates fit into the top of the body if required.
  • Page 8 Step 5 Slide the motor onto the support assembly, then position the prongs sleeve and handle onto the rotisserie shaft as required.
  • Page 9: Completed Assembly

    Completed Assembly...
  • Page 10: Cleaning And Care

    OPERATING INSTRUCTIONS COOkING This appliance is designed for use only with Cooking directly over hot coals, ideal for quality charcoal briquettes, lump charcoal or searing in juices and grilling food requiring wood. less than 25 minutes of grilling time, such as steaks,ham burgers, hotdogs, chickenparts, First Use vegetables and fruit.
  • Page 11: Rotisserie Cooking

    ROTISSERIE COOkING Rolled Meat A rolled piece of meat only requires the Rotisserie cooking produces foods that are rotisserie skewer to be inserted through the moist, flavourful and attractive, as the turning centre of the length of meat then secured and food self bastes.
  • Page 12 Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty. Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Ltd - Hamilton, N.Z www.gasmate.co.nz...
