Gasmate PORTOFINO PO3104-12 Manual

Gasmate PORTOFINO PO3104-12 Manual

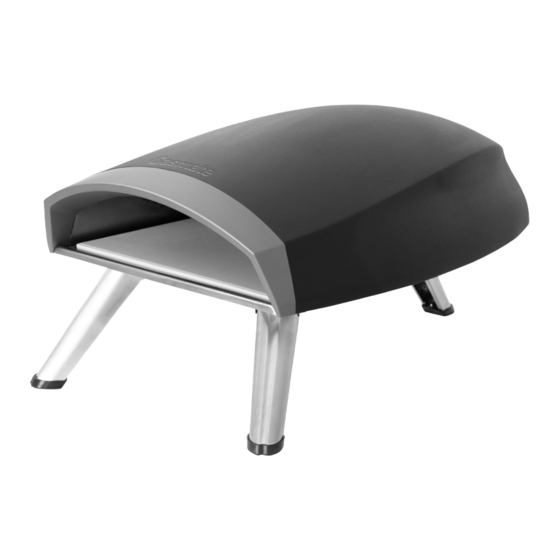

12"gas pizza oven

Advertisement

Quick Links

12" GAS PIZZA OVEN
• Powerful 16.2 MJ/h cast iron burner
• Electronic ignition
• Durable powder coated body
• Stainless steel inner layer for better heat
retention and durability
This LCC27 Regulator can only be used with the new safer industry standard LCC27 Gas Cylinder Connection.
PORTOFINO
Model No. PO3104-12
OUTDOOR USE ONLY
LCC27 REGULATOR SUPPLIED
Important: Retain these instructions for future use.
Gasmate® is a registered trademark of
Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber, N.Z. www.gasmate.co.nz
• Stainless steel folding legs
• Generous 12 inch stone cooking surface
• Includes LCC27 Safe Lok regulator and hose
• Gas certified to Australian Standards
04522 04/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTOFINO PO3104-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gasmate PORTOFINO PO3104-12

  • Page 1 This LCC27 Regulator can only be used with the new safer industry standard LCC27 Gas Cylinder Connection. Important: Retain these instructions for future use. 04522 04/23 Gasmate® is a registered trademark of Sitro Group Australia Pty Ltd www.gasmate.com.au Aber, N.Z. www.gasmate.co.nz...
  • Page 2 SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION & WARNING! Contact your local municipality for • Never operate this appliance within 1.5m of • Always turn off the gas supply when the WARNINGS any structure or combustible material and at appliance is not in use any building codes regulating the installation least 3m away from objects that may spark of outdoor barbecue appliances.
  • Page 3 PARTIAL ENCLOSURES SETTING UP YOUR OVEN INSTALLATION GUIDE INSTALLATION POSITIONING The appliance shall only be used in an above ground, open air situation with natural ventilation, without • Place a soft matt or rug down to protect the • This appliance shall only be used in an stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and exterior of your pizza oven during the setup above ground open-air situation with natural...
  • Page 4 GAS SAFETY ONLY USE THE HOSE ASSEMBLY TYPE IMPORTANT! Please take a moment to review all of the safety LCC27 Cylinder 27 SPECIFIED BY THE MANUFACTURER requirements before operating the appliance Keep the gas hose away from hot surfaces and Connection Device when using gas.
  • Page 5 GAS SAFETY OVEN EXPLODED DIAGRAM DISCONNECTING THE GAS MATCH LIGHTING PROCESS After cooking, turn off the gas from the gas If for some reason, the ignitor fails to produce cylinder before turning off your Pizza Oven. This a spark at the electrode, the appliance can be will allow any gas left within the burner and/or lit by a long barbecue match using the match hose assembly type 27 to be used up safely.
  • Page 6 CLEANING & MAINTENANCE DESCRIPTION FIGURE DESCRIPTION FIGURE Enamel Cleaning General Cleaning of Painted Surface Decorative plate Shell assembly DO NOT USE AN ACID DETERGENT AND/ When cleaning your pizza oven use a mild OR ANTI-RUST CLEANER ON THE CONTROL dish soap combined with warm water and a PANEL.
  • Page 7 TROUBLESHOOTING If you think you’ve got a problem with your Pizza Oven, follow the following troubleshooting steps to try and resolve it. If you have any questions, contact after-sales service. It is recommended to replace the gas hose every 5 years. Replacement hose assemblies and regulators can be purchased from your nearest hardware store.

This manual is also suitable for:

667686
