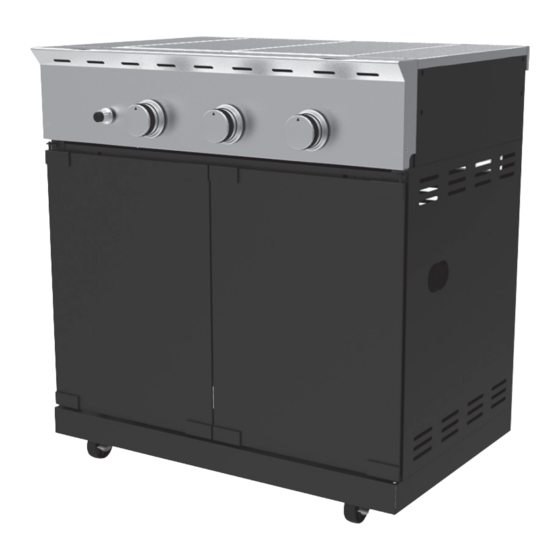

Specialist Deluxe Series II
FEATURES
• Twin brass cap side burners with
satin enamel cast iron grate
• Single satin enamel cast burner with
satin enamel cast iron hotplate
• L.E.D. Control knobs
• Stylish cabinet with glass doors
and drawer
• Electronic ignition
Gasmate
®
is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Important: Retain these instructions for future use.
03192 08/14
Breakfast Cart
BQ8322
• 4 Castors (2 locking)
• Dimensions (L 800 x D 600 x H
• Operates on Universal L.P.G.
• Certified for conversion to
• IAPMO Oceana certified
Aber – Hamilton, N.Z.
880mm)
Natural Gas
www.gasmate.co.nz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate Specialist Deluxe II BQ8322
Summary of Contents for Gasmate Specialist Deluxe II BQ8322
- Page 1 • Stylish cabinet with glass doors Natural Gas and drawer • IAPMO Oceana certified • Electronic ignition Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber – Hamilton, N.Z. www.gasmate.co.nz Important: Retain these instructions for future use. 03192 08/14...
-
Page 2: General Information
GEnERAl InFoRmATIon Hose & Regulator Safety The regulator and hose assembly supplied with the ImPoRTAnT barbecue are suitable for Propane Gas or Universal L.P.G. only. Read these instruction carefully prior to use. A gas regulator adjusted to have an outlet Familiarise yourself with the appliance before pressure of 2.75kPa is supplied for connection to connecting it to it’s gas container. -
Page 3: Customer Service
IF THERE IS A lEAK FoR YoUR SAFETY • Turn the cylinder off. • Failure to comply with these instructions • Ventilate the area to disperse gas. could result in a fire or explosion which • Check all connections. could cause serious bodily injury, death or •... -
Page 4: Protect Children
GEnERAl InFoRmATIon location of your Barbecue FoR YoUR SAFETY DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue • Do not store or use petrol or other is not intended to be installed in or on recreational flammable liquids in the vicinity of this or vehicles and/or boats and should not be placed... -
Page 5: Care And Maintenance
CARE & mAInTEnAnCE Care of Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating Use and care of the cooking surface is important. condition and prolong their life. Your new gas Do not use pans on the cooking surface. Do not barbecue is no exception. -
Page 6: Exploded Diagram
EXPloDED DIAGRAm... -
Page 7: Parts List
PARTS lIST 1. Base Panel Assy. 2. Castor with Lock 3. Castor no Lock 4. Right Door Assy. 5. Left Door Assy. 2pcs 2pcs 6. Cabinet Left Side 7. Back Panel 8. Cabinet Beam 1pc 9. Magnet 10. Cabinet Right Panel Side Panel 11. - Page 8 ASSEmBlY InSTRUCTIonS Remove any transit protection material. Tools Required: Phillips Head Screwdriver & Adjustable Spanner. STEP 1 Use M6*12 screw (x16pcs) to fix swivel castor (with lock) x 2pcs and swivel castor (without lock) x 2pcs under the base panel. Note: Fit the locking Swivel castors at the rear of the base, so the locks can be accessed from the back of the Cart without the skirt panel being in the way.
- Page 9 STEP 3 Use M6*12 screw (x5pcs) to fix the back panel onto base panel, cabinet left side panel and cabinet right side panel. STEP 4 Use M4*10 screw (x4pcs) to fix the magnet to cabinet beam, then use M6*12 screw (x4pcs) to fix the beam between two cabinet side panels, as shown.
- Page 10 STEP 5 Use M3*10 screw (x8pcs) and M3 nut (x8pcs) to fix the fat cup bracket and swivel cover onto the cabinet top panel, then use M5*10 screw (x6pcs) to fix the top panel onto cabinet side panels, and insert the fat cup to the bracket, as shown. STEP 6 To fit the cabinet doors, insert the fixed upper pin into the bracket as shown in the picture, then...
- Page 11 STEP 7 Feed the regulator through the hole in cabinet top panel as shown, use M6*12 screw (x4pcs) to fasten the body assy onto cabinet side panels. Use 3.5*10 tapping screw to fix the swivel cover after hose is in position. STEP 8 Connect the regulator to the cylinder and leak test all...
- Page 12 ConnECTIon WITH BBQ STEP 1 Loosen M4*10 screw (x1pc) and M6*12 screw (x4pcs) to remove the side shelf assembly. STEP 2 Use M6*16 (x4pcs) and M6 nut (x4pcs) to connect the breakfast cart to the right of BQ8342 as shown in picture, and use the screws (1pc of M4*10 and 4pcs of M6*12 in step 1) to attach right side table assembly to the right side of breakfast cart.
-
Page 13: General Assembly
GEnERAl ASSEmBlY Connecting & Disconnecting to Gas lIGHTInG PRoCEDURE Source Burner operation & Ignition System Familiarise yourself with the general information Check and safety guidelines located at the front of this 1. With cylinder valve in ‘OFF’ position push manual. electronic ignition button. -
Page 14: Operation
oPERATIon Burner operation & Ignition System Check Problem Possible Reason Solution Valve on gas bottle closed Open valve on gas bottle Control knob is closed Turn knob to high when lighting Burner will not ignite Igniter is faulty Use a long barbecue match. Insert through the hole at side of barbecue Burner has gone out Check that the gas bottle is not empty... -
Page 15: Natural Gas Conversion
nATURAl GAS ConvERSIon Installation, operation & maintenance SERvICInG InSTRUCTIonS Instructions Appliances should be serviced at least annually and servicing must only be carried out by a To BE InSTAllED onlY on oR In A Licensed Plumber or Authorised Person. non-ComBUSTIBlE EnCloSURE Clean the Burner Ports and top with a Soft Brush. -
Page 16: Safe Appliance Locations
SAFE APPlIAnCE loCATIonS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
