Summary of Contents for Gasmate GM160-016

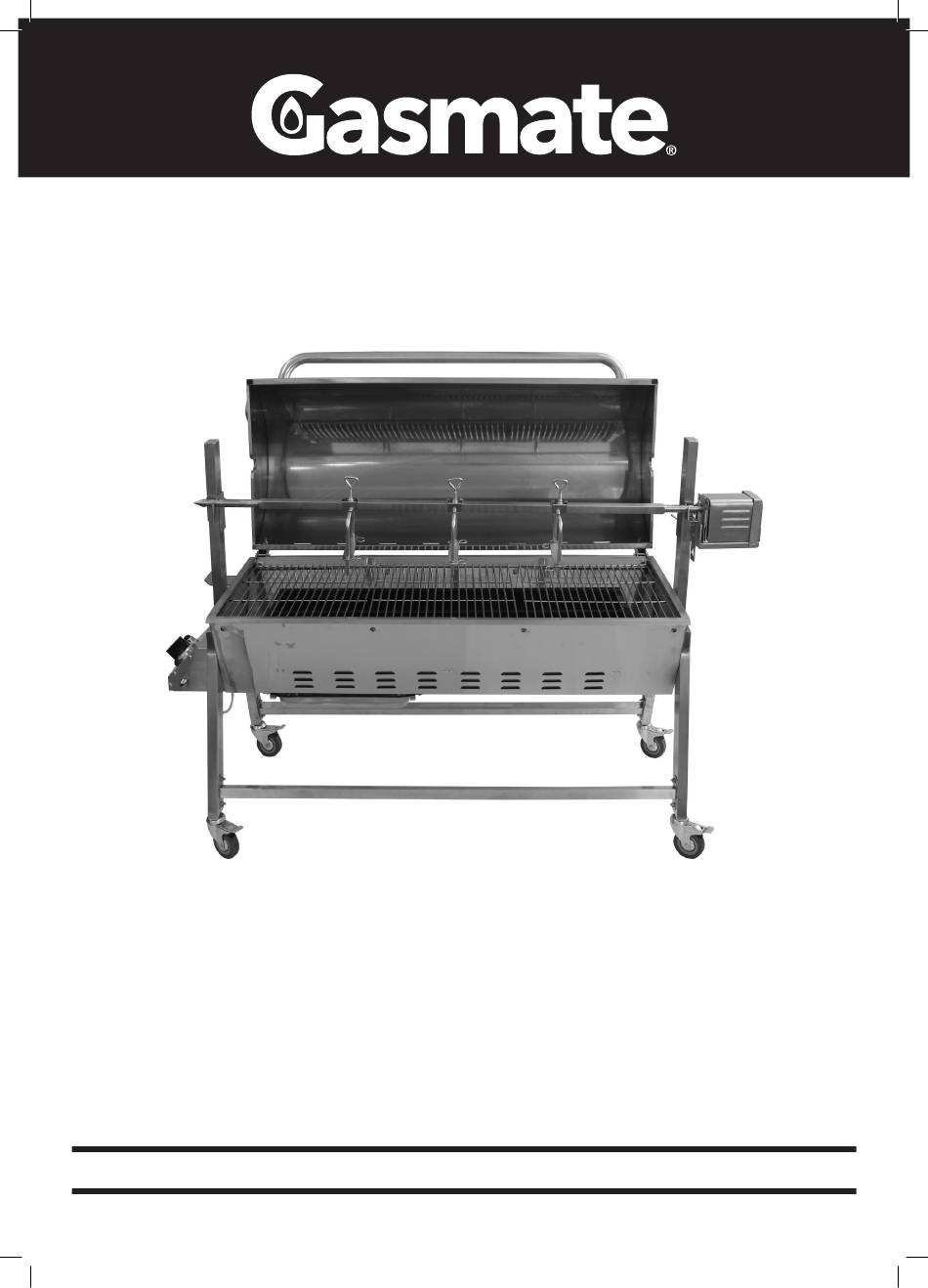

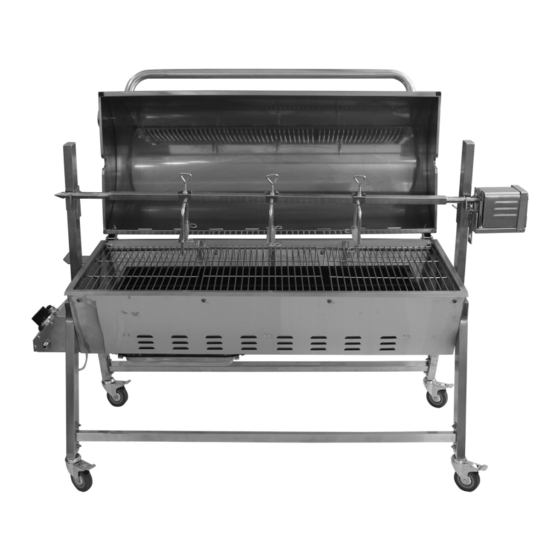

- Page 1 Dual Fuel Spit Roaster Model No. GM160-016 FOR OUTDOOR USE ONLY OPERATES ON LPG & CHARCOAL Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber, Hamilton, N.Z. www.gasmate.co.nz Important: Retain these instructions for future use. 4515-06/16...
-
Page 2: General Information
GENERAL INFORMATION Gas Cylinder Use & Safety IMPORTANT This is a low pressure Spit Roaster and must only be used Read these instruction carefully prior to use. with the hose and regulator supplied. Your Spit Roaster is Familiarise yourself with the appliance before designed for use with 9Kg LPG cylinders. -
Page 3: For Your Safety
GENERAL INFORMATION FOR YOUR SAFETY • Never lean over cooking surface when lighting. Failure to comply with these instructions could result in a fire or explosion which could cause serious bodily • Never alter or modify the regulator or gas supply injury, death or property damage. -
Page 4: Protect Children
GENERAL INFORMATION Location of your Spit Roaster FOR YOUR SAFETY DO NOT use your Spit Roaster in garages, porches, Using Charcoal breezeways, sheds or other enclosed areas. Your Spit • Never use charcoal that has been pre-treated Roaster is to be used OUTDOORS. The Spit Roaster is not with lighter fluid. -
Page 5: Exploded Diagram
EXPLODED DIAGRAM... -
Page 6: Parts List
PARTS LIST Description Description Spit rod Motor assembly Fork assembly Cylinder hook U-Shaped fork assembly Spit rod support tube assembly Brace prong lock Leg assembly R Clip Castor-3” without brake Counterweight shaft Castor-3” with brake Counterweight Roaster body assembly Cooking grill Drip tray brace-left Spit shaft far end bracket Drip tray... - Page 7 ASSEMBLY INSTRUCTIONS Step 2 Fit the castor wheels. Ref # 16 Ref # 15 Ref # 16 Ref # 15 Ref # 17 Ref # 17 Step 3 Fit the firebox onto the legs. Ref # 18 Ref # 18 Ref # 14 Ref # 14 Ref # 15,16,17...
- Page 8 ASSEMBLY INSTRUCTIONS Step 4 Fit the drip tray brace. Ref #21 Ref #21 Ref # 19 Ref # 19 Ref # A M4×10×4 PCS Ref # A M4×10×4 PCS Step 5 Fit the motor and supports. Ref # 9 Ref # 9 Ref # 11,12 Ref # 11,12...
- Page 9 ASSEMBLY INSTRUCTIONS Step 6 Fit the cooking grills if required. Ref # 8 Ref # 8 Ref # 10 Ref # 10 Ref # 20 Ref # 20 Step 7 Detail of shaft, prong, brace and counterweight assembly. Ref # 2 Ref # 3,4,5 Ref # 2 1,12...
- Page 10 ASSEMBLY INSTRUCTIONS Step 8 Fitting the shaft assembly to the spit: Lower the height of the far end bracket so that it is at the same level as the motor end rest bracket. Fit the shaft in place on the rest bracket (not engaged into the motor).
- Page 11 ASSEMBLY INSTRUCTIONS Step 9 Remove Charcoal tray and cooking grills when operating on gas only. Unscrew the igniter cap and insert a AA battery with the “ + “ end upwards.
- Page 12 ASSEMBLY INSTRUCTIONS Step 10 Step 11 Attach the regulator to your gas cylinder. Turn on the gas cylinder ensuring that all of the controls on the BBQ are turned OFF at this point. DO NOT ATTEMPT TO LIGHT THE BBQ!!. Step 12 Step 13a Use a solution of soapy water (dishwashing liquid and water...
- Page 13 GENERAL INFORMATION Regulator Safety Feature Connecting & Disconnecting to Gas Source All QCC regulators (the part that attaches to the gas Familiarise yourself with the general information and cylinder to regulate the flow of gas) have a safety feature safety guidelines located at the front of this manual. included that restricts gas flow in the event of a gas leak.
-
Page 14: After Use
LIGHTING PROCEDURE – GAS LIGHTING PROCEDURE – CHARCOAL Before lighting your Spit Roaster for the first time, read the instructions fully to ensure the Spit Roaster is assembled 1. With cylinder valve in OFF position press the electronic correctly and is ready for use. igniter button. -
Page 15: Operating Procedure
Burner Operation & Ignition System Check Problem Possible Reason Solution Valve on cylinder is closed Open valve on cylinder Burner will not ignite Control knob is closed Turn knob to high when lighting Electronic igniter is faulty Use a long spit roaster match Burner has gone out Check that the gas cylinder is not empty and re-ignite the burner... - Page 16 • Ensure the ‘outdoor’ extension cord is not placed across walkways so that it is not a trip hazard. Deluxe Spit Roaster GM160-016 • DO NOT use in damp or wet conditions. Voltage 240V AC~50 Hz •...
-
Page 17: Care And Maintenance
CARE & MAINTENANCE How to maintain your Spit Roaster As with all appliances proper care and maintenance will keep them in top operating condition and prolong their life. 1. Wipe over the outside stainless steel surface with a light Your new spit roaster is no exception. By following these water repellent oil, wipe the inside with a vegetable oil cleaning procedures on a timely basis, your spit roaster will or similar edible oil. -
Page 18: Rotisserie Cooking
COOKING TIMES ROTISSERIE COOKING This will vary according to the type and weight of the Rotisserie cooking produces foods that are moist, food you are cooking. Insert a meat thermometer into the flavourful and attractive, as the turning food self-bastes. Although the rotisserie is best for larger pieces of meat or centre of the meat (avoiding bone) which will provide a poultry, nearly anything can be used if prepared properly. -
Page 19: Safe Appliance Locations
The following figures are diagrammatic representations of outdoor areas. Rectangular areas have been used in these the same principles apply to any other shaped area. figures - the same principles apply to any other shaped area. Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au...
