SMWB Series

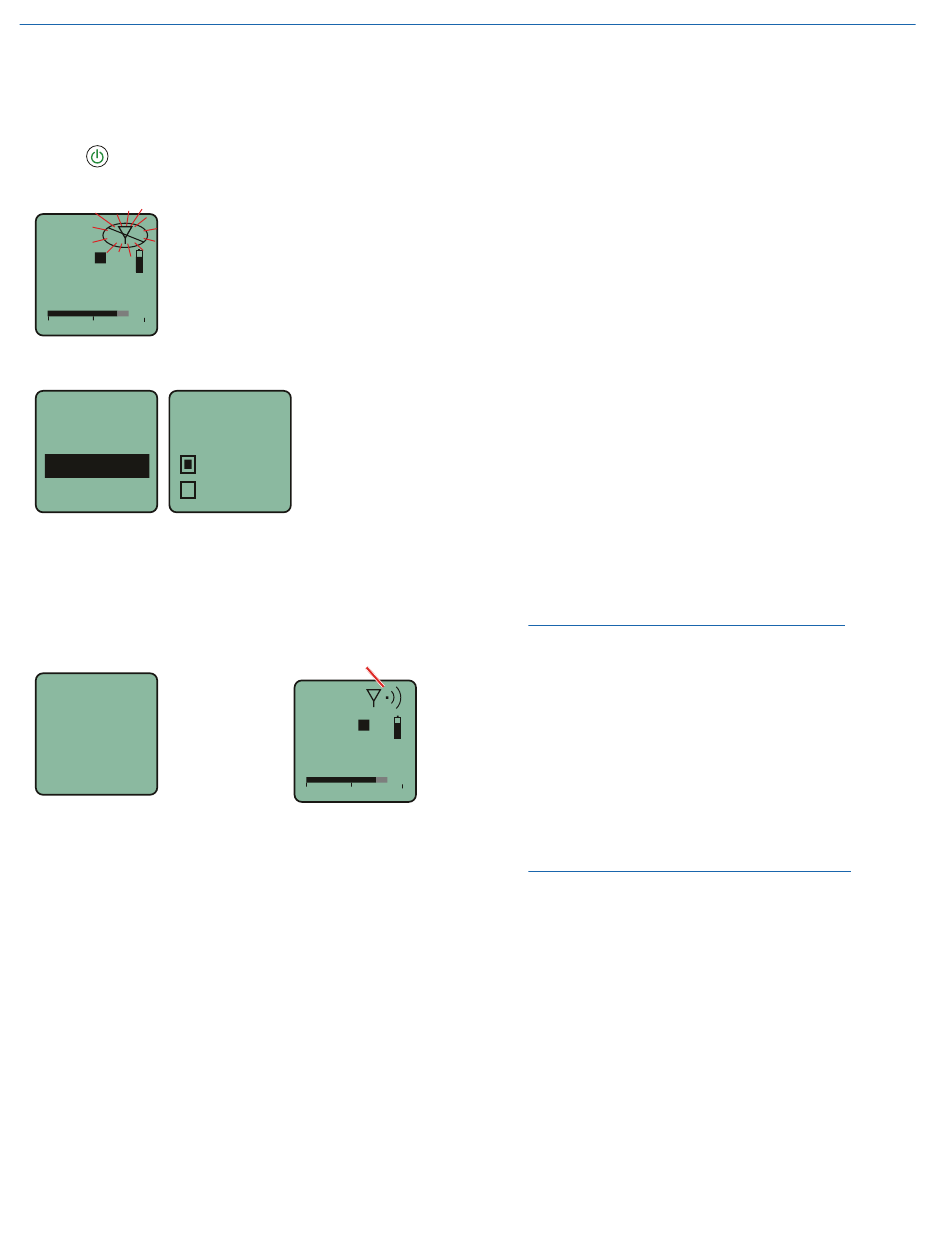

Turning Power ON

Short Button Press

When the unit is turned off, a short press of the power
button will turn the unit on in the Standby Mode with
the RF output turned off.
RF indicator blinks
b 19
A E
494.500
-40 -20 0
To enable RF output from the Standby Mode, press the
Power button, select Rf On? option, then select yes.
Resume Rf On?
Pwr Off
Rf On?
AutoOn?

Long Button Press

When the unit is turned off, a long press of the power
button will start a countdown to turn the unit on with the
RF output turned on. Continue to hold the button until
the countdown is complete.
Hold
Hold power
for
button until
the counter
Rf On
reaches 3
...3
If the button is released before the countdown is com-
pleted, the unit will power up with the RF output turned
off.
6
No
Yes
RF indicator not blinking
b 19
A E
503.800
-40 -20
Power Button Menu
When the unit is already turned on, the Power Button is
used to turn the unit off, or to access a setup menu.
A long press of the button turns the power off.
A short press of the button opens a menu for the fol-
lowing setup options. Select the option with the UP and
DOWN arrow buttons then press MENU/SEL.
• Resume returns the unit to the previous screen and
operating mode
• Pwr Off turns the unit off
• Rf On? turns the RF output on or off
• AutoOn? selects whether or not the unit will turn on
automatically after a battery change
• Blk606? - enables Block 606 legacy mode for use
with Block 606 receivers.
• Remote enables or disables the audio remote con-
trol (dweedle tones)
• Bat Type selects the type of battery in use
• Backlit sets the duration of the LCD backlight
• Clock sets the Year/Month/Day/Time
• Locked disables the control panel buttons
• LED Off enables/disables control panel LEDs
NOTE: The Blk606? feature is only available on
Bands B1 or C1.

Menu Shortcuts

From the Main/Home Screen, the following shortcuts
are available:
• Record: Press the MENU/SEL + UP arrow simulta-
0
neously
• Stop Recording: Press the MENU/SEL + DOWN
arrow simultaneously
NOTE: The shortcuts are only available from the
main/home screen AND when a microSDHC
memory card is installed.
