5.2 Bolt-On Ladder Stanchion Anchor Installation
Before installation, ensure fixed ladder meets minimum strength requirements of 1,200 lbs Minimum Ultimate Strength per rung,
rungs are 1/2" to 1-1/4" diameter, and have a spacing of 12" +/- 2". Ensure structure and fixed ladder connections to the structure can
withstand a load of 3,600 lbs in both the downward and outward directions. All installations must be approved to local standards by a
Qualified Person. Refer to Section 7.0 for inspection requirements to be completed before the use of this product.
5.2.1 Determine desired mounting location. The Bolt-On Ladder Stanchion Anchor is capable of being mounted in the center of
(3) rungs to optimize climbing comfort or offset to either side of the ladder to enable the user to transition onto a platform,
rooftop, etc., and can be mounted to the front or rear of the ladder rungs depending on allowable clearance; see Figures 4-7.
Ensure Ladder Stanchion is mounted high enough to maintain overhead SRL anchorage.

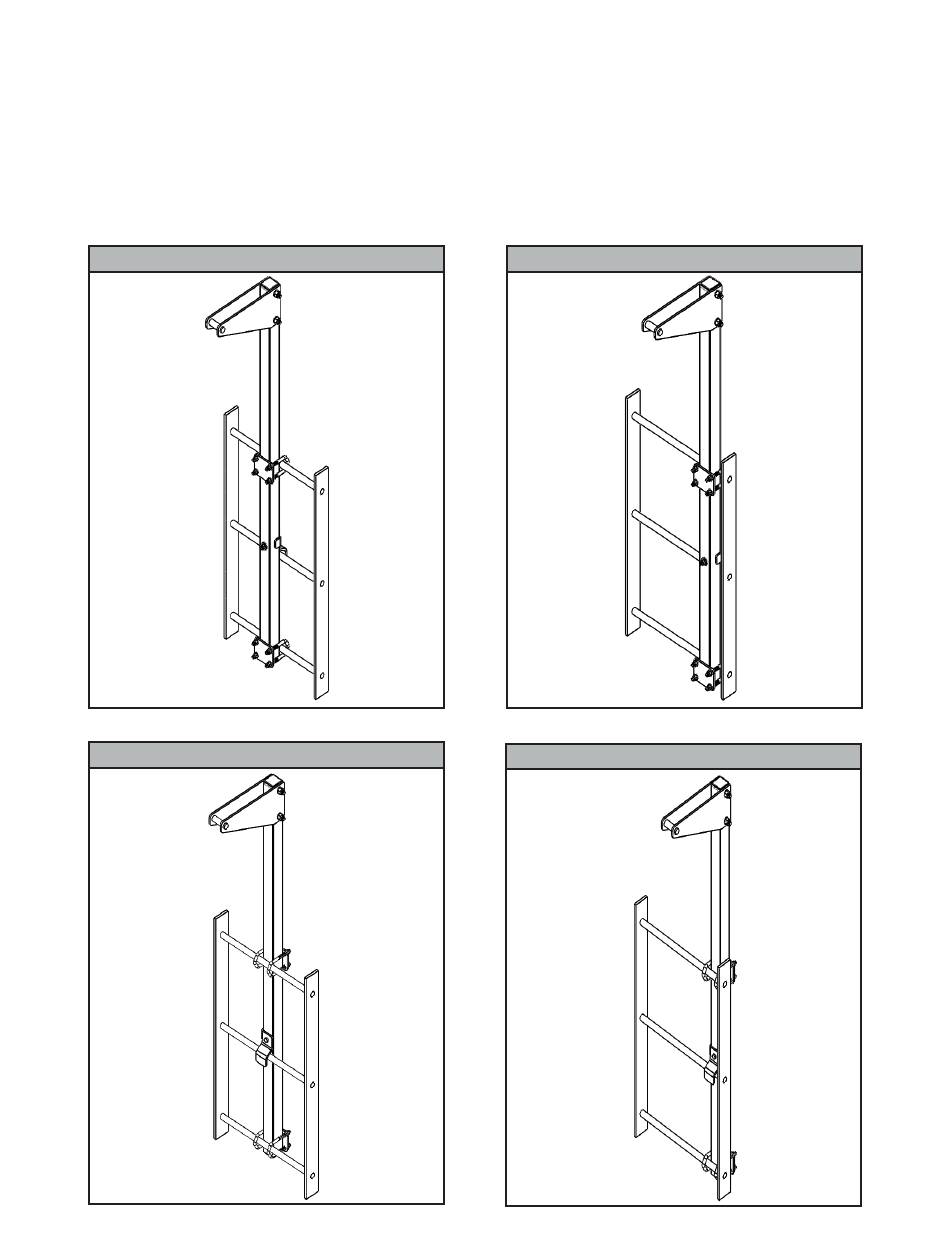

Figure 4 - Bolt-On Stanchion Center Mounted Front
Figure 6 - Bolt-On Stanchion Center Mounted Rear
MANC29 REV B
Figure 5 - Bolt-On Stanchion Side Mounted Front
Figure 7 - Bolt-On Stanchion Side Mounted Rear
