5.2.2 If installing the Ladder Stanchion Anchor to the rear of the ladder rungs, it is necessary to reinstall the Bent Center Mount
in the required orientation with the included 3/8" diameter bolt, washer, lock washer, and nut; torque to 15 ft-lbs; see Figure 8.
5.2.3 Place the Anchor onto the fixed ladder using the Bent Center Mount to hold the stanchion in place; see Figure 9.
5.2.4 Connect top mount bracket to uppermost of the (3) rungs using (2) V-bolts with nuts, lock washers, and mounting plate.
Ensure Ladder Stanchion Anchor is positioned in desired location on rungs and is fully upright. Tighten V-Bolts so ladder
stanchion is stable, but do not fully torque bolts until all mounts are attached; see Figure 10.
5.2.5 Connect bottom mount bracket to lowermost of the (3) rungs using (2) V-bolts with nuts, lock washers, and mounting
plate. Tighten V-Bolts so ladder stanchion is stable, but do not fully torque bolts; see Figure 11.
5.2.6 Ensure Bolt-On Ladder Stanchion Anchor is fully upright and in desired location. Torque all V-Bolts to 12-17 ft-lbs in the
order they were installed. When torqueing V-Bolts, it is necessary to alternate the tightening of the nuts in small increments to
ensure the V-Bolt is evenly tightened.
5.2.7 Install compatible FallTech SRL to attachment point using approved loading carabiner. Connect tagline to SRL.

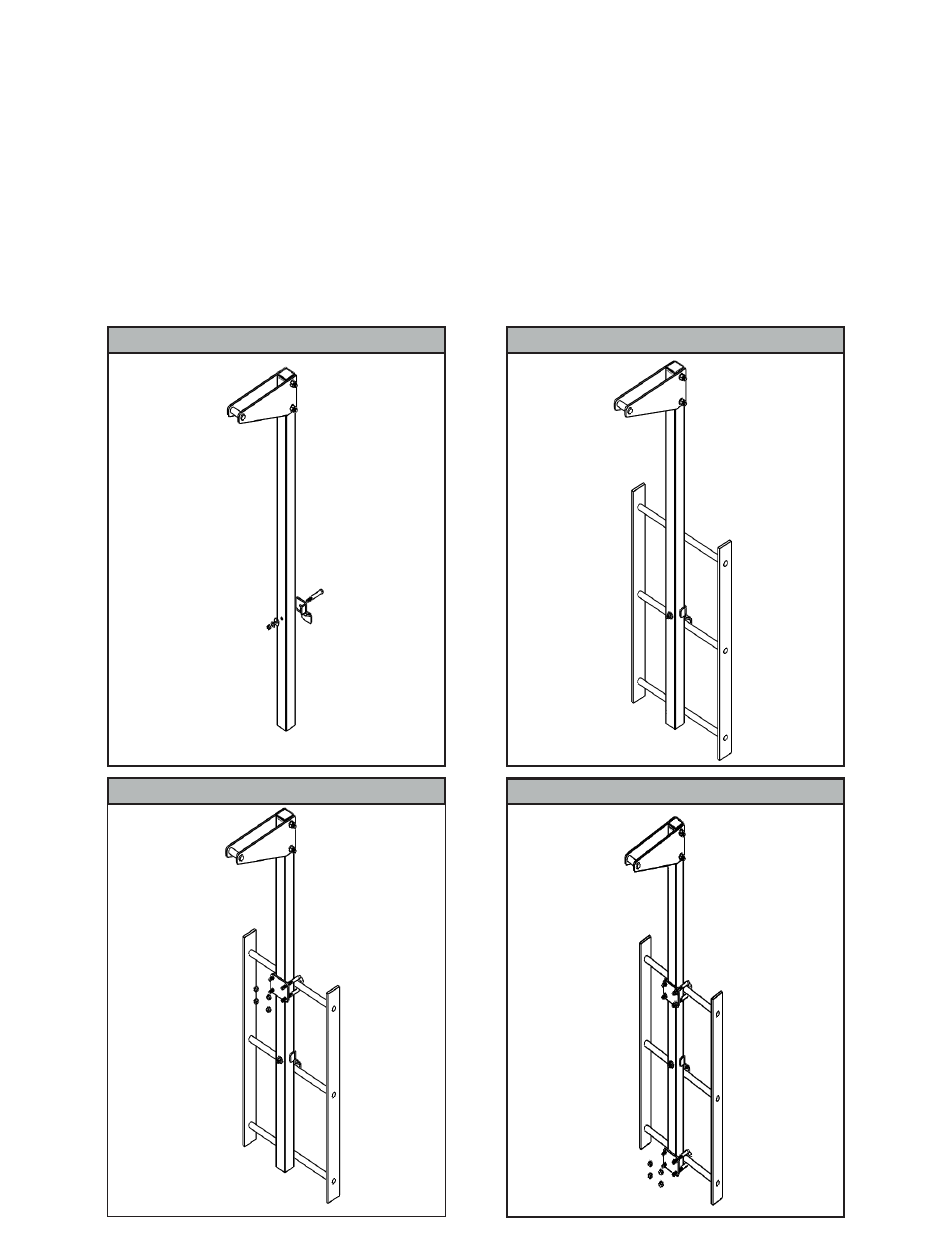

Figure 8 - Bolt-On Stanchion Installation: Step 1
Figure 9 - Bolt-On Stanchion Installation: Step 2
Figure 11 - Bolt-On Stanchion Installation: Step 4
Figure 10 - Bolt-On Stanchion Installation: Step 3
MANC29 REV B
022020
7
