Assembly, Installation, and Use

5.1 Bolt-On Ladder Stanchion Anchor Assembly
5.1.1 Large offset Ladder Stanchions, 6160512 and 6161012, require assembly upon arrival before installation. The top bracket
must be rotated to the upright position and secured with the included 1/2" diameter bolt, lock washer, and nut; see Figures 2
and 3. Torque both 1/2" diameter bolts to 57 ft-lbs.

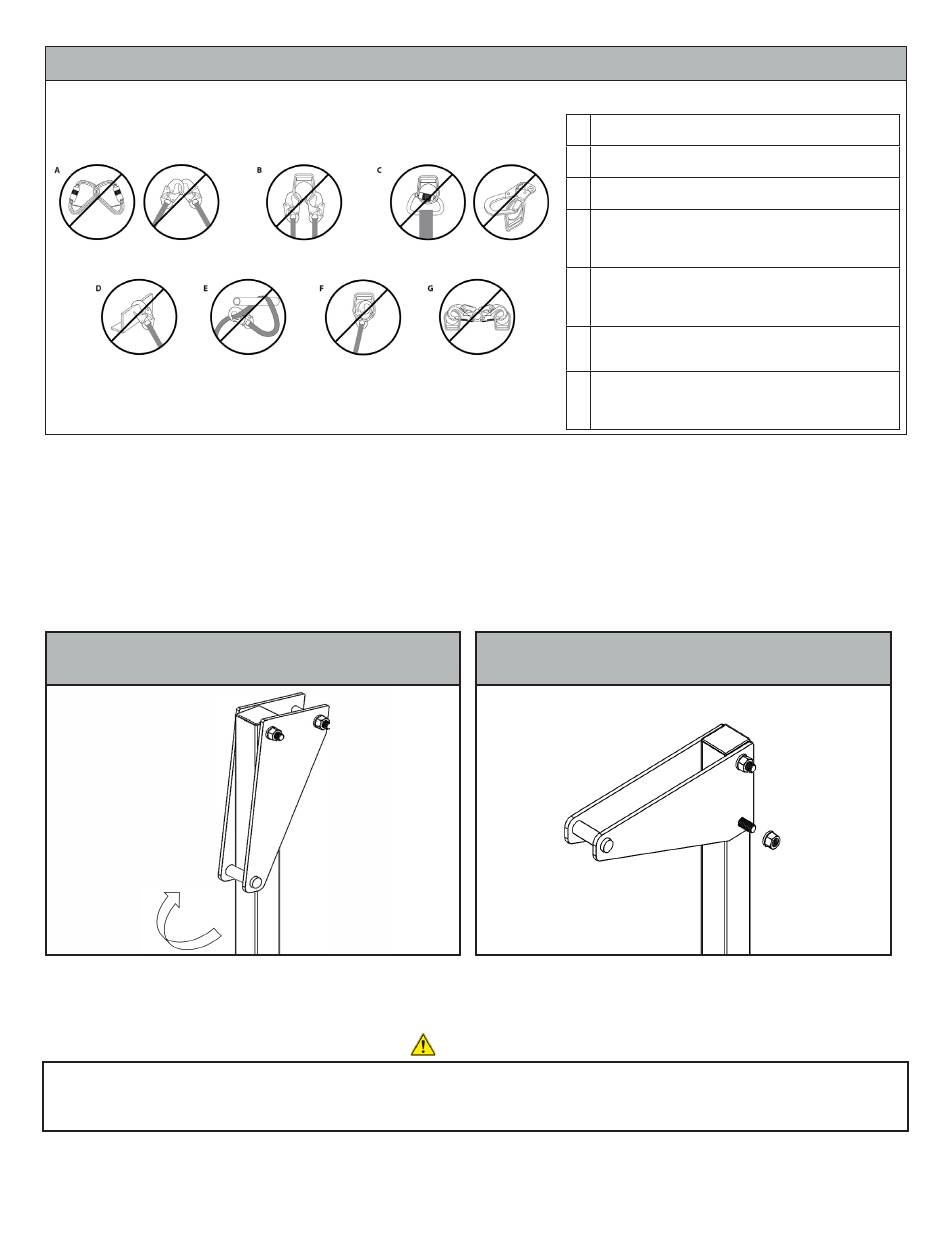

Figure 2 - Large Offset Bolt-On Stanchion As Shipped
Do not alter or intentionally misuse this equipment. Consult FallTech® when using this equipment in combination with components or
subsystems other than those described in this manual. Installation of the Cable Anchor must be done under the supervision of a
MANC29 REV B
Figure 1 - Non-Compatible Connections
WARNING
Competent Person trained in its design and use.
022020
A Never connect two active components (snap hooks or carabiners)
to each other.
B Never connect two active components (snap hooks or carabiners)
to a single D-ring at the same time.
C Never connect in a way that would produce a condition of loading
on the gate.
D Never attach to a object in a manner whereby the gate (of the
snap hook or carabiner) would be
prevented from fully closing and locking. Always guard against
false connections by visually inspecting for closure and lock.
E Never attach explicitly to a constituent subcomponent (webbing,
cable or rope) unless specifically provided for by the manufactur-
er's instructions for both subcomponents (snap hook or carabiner
and webbing, cable or rope).
F
Never attach in a manner where an element of the connector
(gate or release lever) may become caught on the anchor thereby
producing additional risk of false engagement.
G
Never attach a spreader snap hook to two side/positioning
D-rings in a manner whereby the D-rings will engage the gates;
the gates on a spreader must always be facing away from the
D-rings during work positioning.
Figure 3- Large Offset Bolt-On Stanchion Assembled
