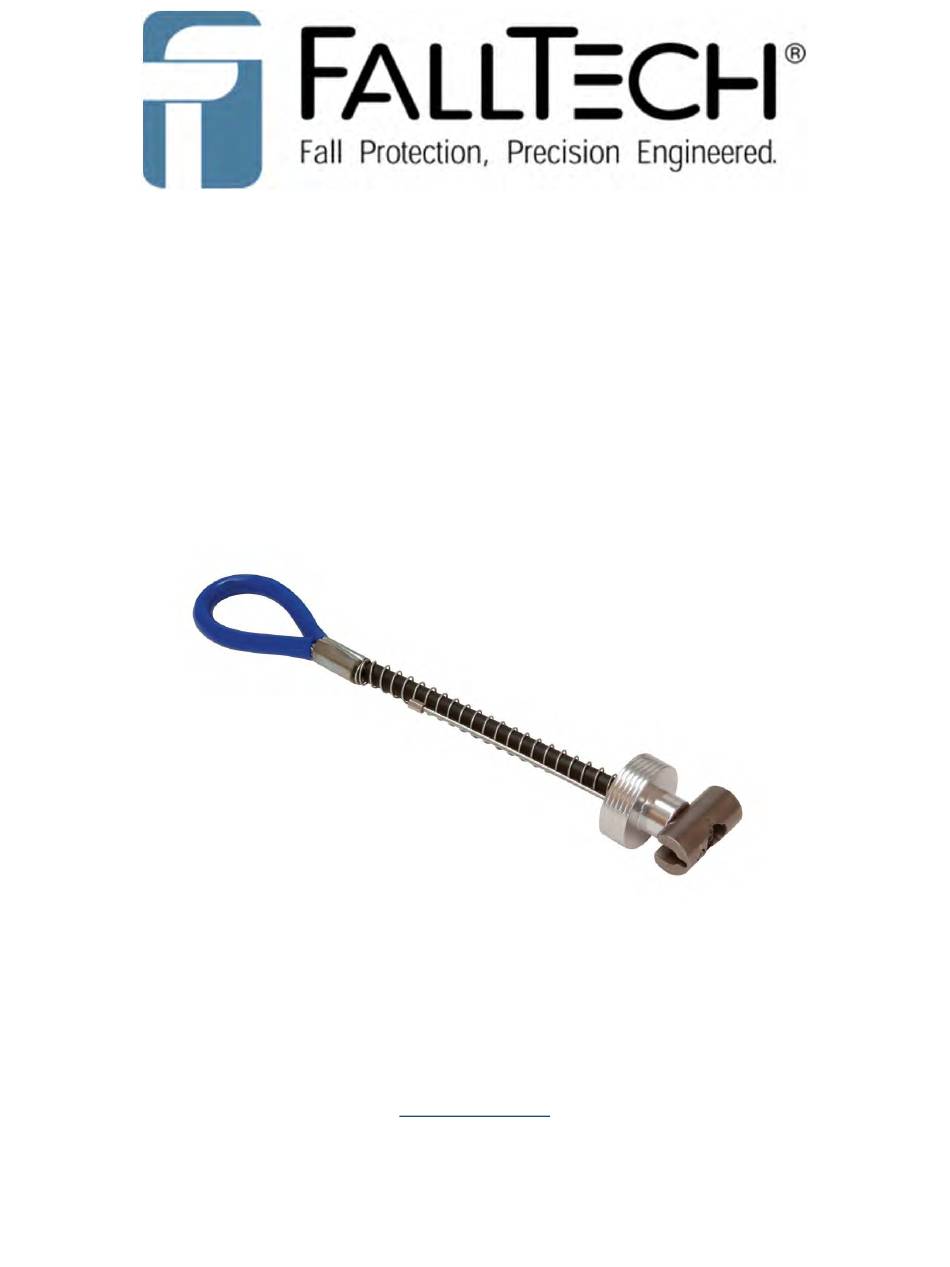

- Page 1 Installation and Operation Instruction Manual Toggle Lok Anchor - Model #7442 Portable Concrete Anchorage Connector ANSI Z359.1 5,000 lbs / 22.24 kN FallTech, Inc 1306 Alameda Street Compton, CA 90221 800-719-4619 / 323-752-0066 www.falltech.com...
- Page 2 WARNING Do not use an incompatible connector with any ToggleLok™ Anchor. Refer to the separate instruction sheet supplied with the connecting device. This product is designed for use in precast concrete and steel only. Follow all manufacturers instructions. Only trained professional personnel should install, maintain, inspect and use this product and it component or other personal protective equipment in conjunction with the product.

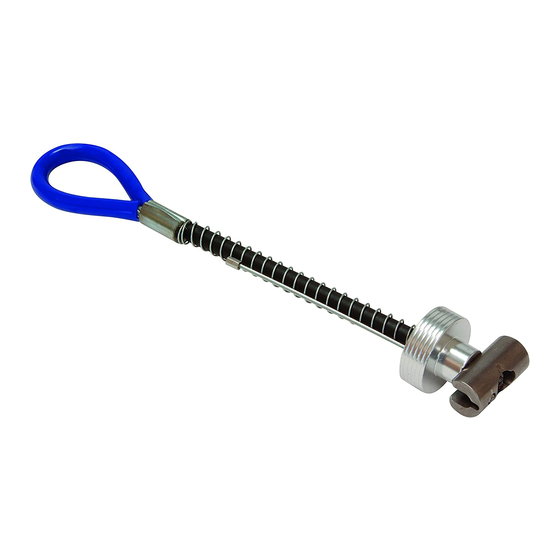

- Page 3 6,000 PSI. Do not anchor in uncured/wet concrete. Model #7442 is color coded with BRIGHT BLUE TUBING on the attachment loop. It is to be used for FALL PROTECTION ONLY. This unit is not to be used for hoisting or lowering tools, personnel, or material.
- Page 4 Meets OSHA regulations including 1926.502 and ANSI A10.32-04 and/or 2359.1-2007. Made in USA. Max arrest force: 1800 lbs Free fall limit: 6ft. Anchorage Connector Style (estilio) 7442 Size (tamano) N/A Date of Mfg: 4/12/12 (fecha de fabricacion) Material: 7x19 cable: Shaft and Loop...
-
Page 5: Installation
Swage Spring Anchor Loop Toggle End Termination Main Cable Cable Hole plug Return Wire Figure 1 – ToggleLok Component Parts Main Cable 7x19 Aircraft Cable End Termination 304 Stainless Steel Axle assembly 17-4 ph Stainless Steel Toggle Bar 304 Stainless Steel ... - Page 6 Figure 2 – Free Fall Distance and Swing Fall Distance PRE INSTALLATION INSPECTION Ensure the following: The unit is straight and operates smoothly The label is affixed to the unit The cable is not kinked, frayed or damaged The metal components are not damaged The Toggle Bar operates freely MOUNT THE TOGGLELOK The ToggleLok is designed for mounting on a hollow core concrete structure, or on a...
- Page 7 Concrete Hollow Core Mount Drill a ¾ in. diameter hole in the center of the core hollow. Never drill the hole closer than 6” to any edge or corner. Use a rotary hammer drill and industrial grade SDS bit. Do not use a masonry bit. ...
- Page 8 INSTALLATION IN STEEL BEAM Select a suitable location and orientation in the beam. The anchor may be installed in any of three acceptable installation configurations; a vertical tensile load from the lower flange, horizontal shear load from a flange, and horizontal shear load from the web of the beam.
-
Page 9: Installation Inspection
Drill a ¾ in. hole. Clear away any debris. Push the Toggle Bar into the insert position. Insert the Toggle Bar into the hole and push the loop until the spring reaches full compression. Hold the hole plug in place and allow the spring to fully expand. The Toggle Bar will rotate into the deployed position. - Page 10 Store in a locked area Do not allow other equipment to fall onto the unit or place it where it can be stepped on. Keep the unit free of grease, dirt and oil. Do not lend the unit to others. DISPOSAL If a fall arrest event has occurred, or if inspection has revealed a fault or unsafe condition, dispose of the unit by cutting the main cable.
