CHILDHOOD STARTS HERE
The components of this gym can be combined with others to create different play sets.
Read this sheet and all instructions included with the different parts before assembly.
See the Instructions and Owner's Manual included in carton 63006-445 for important
Cartons for this Play Set:
1 63006-421 Williamsburg Box 1 Hardware)
1 63006-422 Williamsburg Box 2
1 63006-423 Williamsburg Box 3
1 63006-445 Williamsburg Roof (Hdwre & Instr)
1 SH946-102 Access Ladder, 5ft
1 63058-202 4 Position Swing Beam
1 63060-222 9ft Swing Beam Legs (Hdwre & Instr)
1 50546-777 3 Swings, 1 Trapeze
1 15166-400 10 ft. Super Wave Slide
1 AG942-400 Access Ladder Handles (Hdwre & Instr)
2 SM964-402 Gable Fans (Hdwre & Instr)
2 SM963-402 Dormer (Hdwre & Instr)
1 AA918-603 Chin-up bar (Hdwre & Instr)
1 AH201-102Q Rock Climbing Wall (Hdwre & Instr)
1 SD920-800Q Williamsburg Picnic Table (Hdwre & Instr)
1 SC908-800Q Williamsburg Play Floor (Hdwre & Instr)
1 63008-221 Skybox 1 (Hdwre & Instr)
1 63008-222 Skybox 2
1 SJ926-810 Skybox Roof (Hdwre & Instr)
1 8400-202 Spiral Slide, Green (Hardware)
1 63033-102 Spiral Skybox Mount (Hdwre & Instr)
1 AG943-400 Slide Handle (Hdwre & Instr)
1 AG942-400 Access Ladder Handles (Hdwre & Instr.)
© Copyright 2018, Creative Playthings
This is the best order of assembly to create this specific set.
safety information.
WILL9WPP11

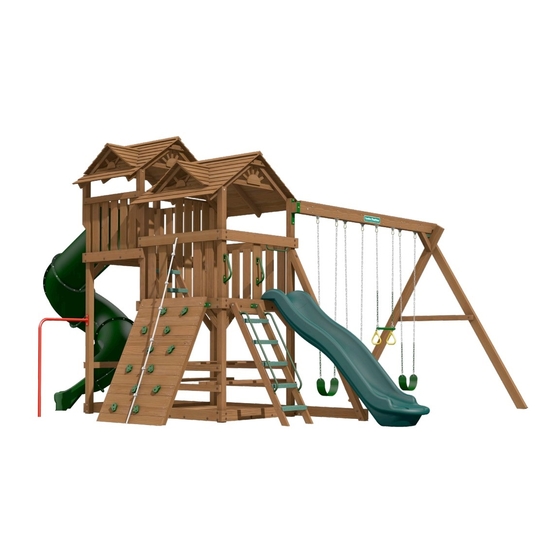

Williamsburg Premium Pack 11
• Start by assembling the Williamsburg tower. Instructions and
hardware are in the cartons noted at left.
• Wait to install the Access Ladder, Slide, and Wall Slats until after
the rest of the play set is complete.
• Wmsbg step 2. Do not install the sandbox end adjacent to to
where the Skybox will be mounted. It will be altered when install-
ing the Skybox.
• Wmsbg step 7. Do not install the safety rail. It will be used for the
Picnic Table.
• Wmsbg step 14. Do not install the back End Wall Support. It will
not be needed.
• Wmsbg step 15. No Swing Mount is needed.
• Once the roof, roof supports, and ridge cap are installed, pro-
ceed with the Skybox tower.
• Skybox step 2. Do not use the method shown in step 2. Alter the
Wmsbg sandbox end and the Skybox sandbox sides as shown
at the bottom of page 19 in order to fit the Wmsbg play floor.
• Skybox step 11. Use the front posts from The Skybox Roof
(SJ926-810) in place of the post extensions.
Dimensions of assembled package:
19' 4" wide x 21' 8" deep x 12' 9" tall
WILLIAMSBURG PREMIUM PACK 11
WILL9WPP11-100 Rev A (04-18)
