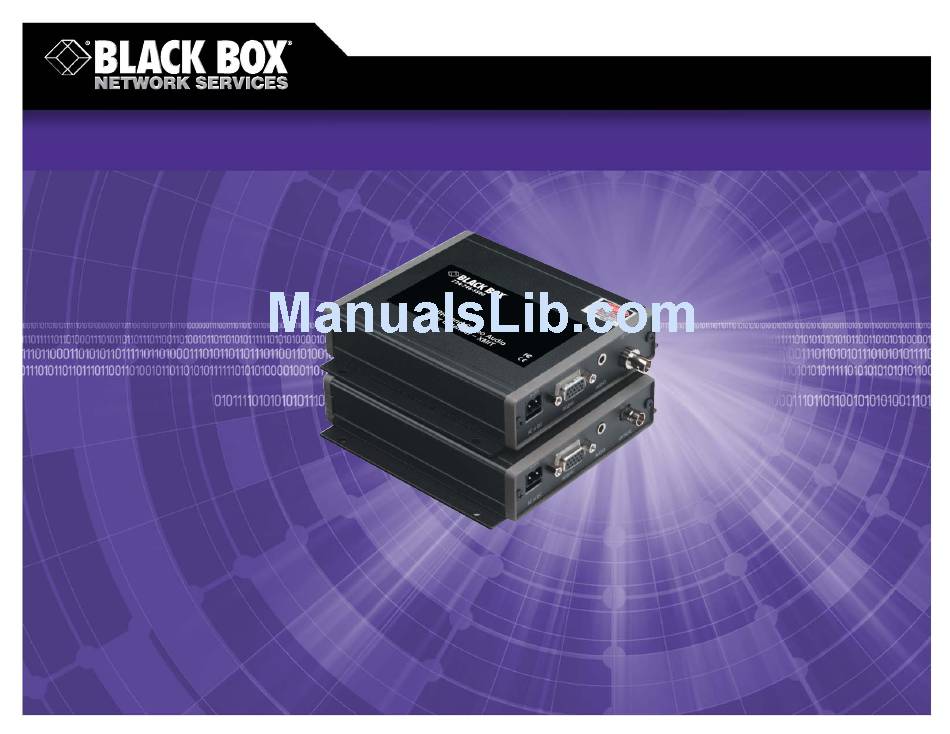

© 2007. All rights reserved. Black Box Corporation.
RGB/Stereo-Audio Fiber Extenders
Extend the distance between a high-resolution
Extend the distance between a high-resolution
stereo audio RGB source and a high-resolution
stereo audio RGB source and a high-resolution
stereo audio display.
stereo audio display.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Black Box AC1021A-XMIT
Summary of Contents for Black Box AC1021A-XMIT
- Page 1 © 2007. All rights reserved. Black Box Corporation. RGB/Stereo-Audio Fiber Extenders Extend the distance between a high-resolution Extend the distance between a high-resolution stereo audio RGB source and a high-resolution stereo audio RGB source and a high-resolution stereo audio display.
- Page 2 2/26/2007 724-746-5500 #11976 Send audio and video over a single-strand fiber cable. RGB/Stereo-Audio Fiber Extender, Transmitter (AC1021A-XMIT) Laptop Remote monitors with speakers OVERVIEW Do you need to send high-resolution RGB and audio signals over single-mode or multimode fiber? Then look no further than the RGB/Stereo-Audio Fiber Extenders! They work in point-to- point, point-to-multipoint, and drop-and-repeat configurations.
- Page 3 Fiber: (2) ST; All: Power: (1) terminal block Indicators — LEDs: (1) Power, (1) Video, (1) Audio Power — AC1021A-XMIT, AC1021A-REC: 9–24 VAC or VDC, 5 W; AC1022A: 95–250 VAC, 9 W; AC1023A–AC1024A: 9–24 VAC or VDC, 8 W Size — AC1021A-XMIT, AC1021A-REC: 1.2"H x 5"W x 5.3"D (3 x 12.7 x 13.5 cm);...
