2.2 SELECTING A LOCATION AND INSTALLING THE CONTROLLER
A. Location for Controller:
1. Versions P, V, C and D:
machine operator to operate the controller and to see the tension meter easily. Be sure the location is free
of vibration, and is dry and clean. Take care to choose a place that the controller won't be struck and
damaged by anything or anyone.
2. Version P only:
They will therefore require shop air to be brought to its input, and the output is brought to the clutch or
brake. In addition, a connection cable must be run between the pneumatic unit and the controller. Choose
a location which is free from vibration.
B. Installation of Controller:
1. Versions P, V, C and D:
socket head cap screws. Install the screws on the mounting surface to match the screw hole dimensions
on the back surface of the WebHandler
loose about 6 turns. Position the keyholes in the back panel of the enclosure over the screws and slide it
down until it locks in place. The cover must be open to tighten the mounting screws.
2. Version P only:
or brake. Drill four holes in a pattern 4" W x 7.5" H. Use four screws to attach the pneumatic enclosure
to your machine.

2.3 POWER VOLTAGE SELECTION

™
The WebHandler
Confirm that the correct voltage for your application has been selected. The AC voltage select switch is located
on the power board (in the bottom of the unit) next to the fuses. See Figure 3 for location of the board.
Select a location on the machine frame or a wall that will be convenient for the
The remote pneumatic enclosure is designed for mounting close to your brake or clutch.
The enclosure is fastened to the mounting surface you have chosen by two
The pneumatic enclosure should be attached to your machine in the area of your clutch
Model 3 controller is designed to operate on either 115v-60Hz or 230v-50/60Hz power.

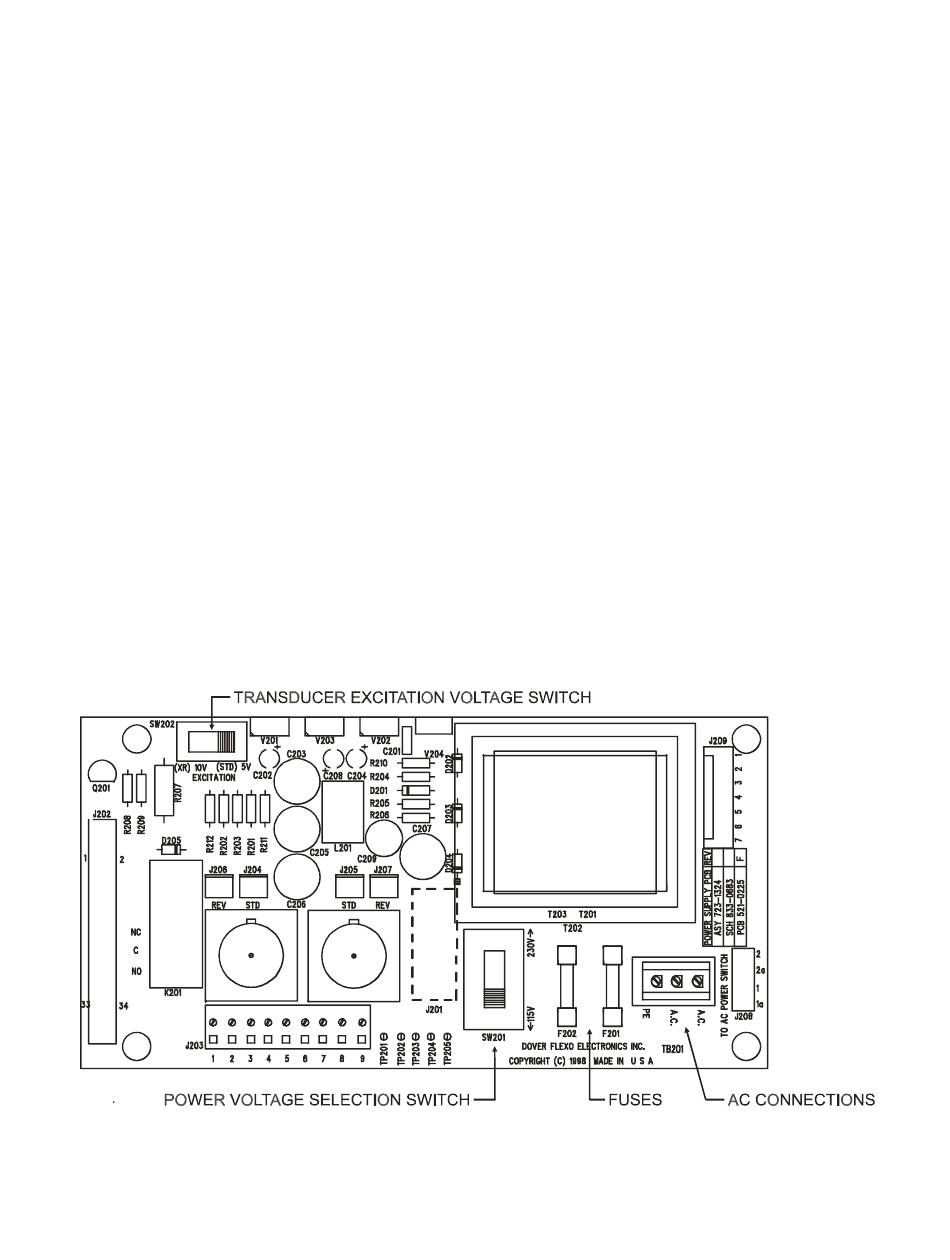

Figure 6 - POWER BOARD
™
Model 3 enclosure. See Section 2.1, Dimensions. Leave them
