ELECTRICAL CONNECTIONS FOR STANDARD FEATURES
Depending on the feature you will be using, you may not need to make all of the connections shown. These
connections are made on the Terminal Board. See Figure 3 for location of Terminal Board.

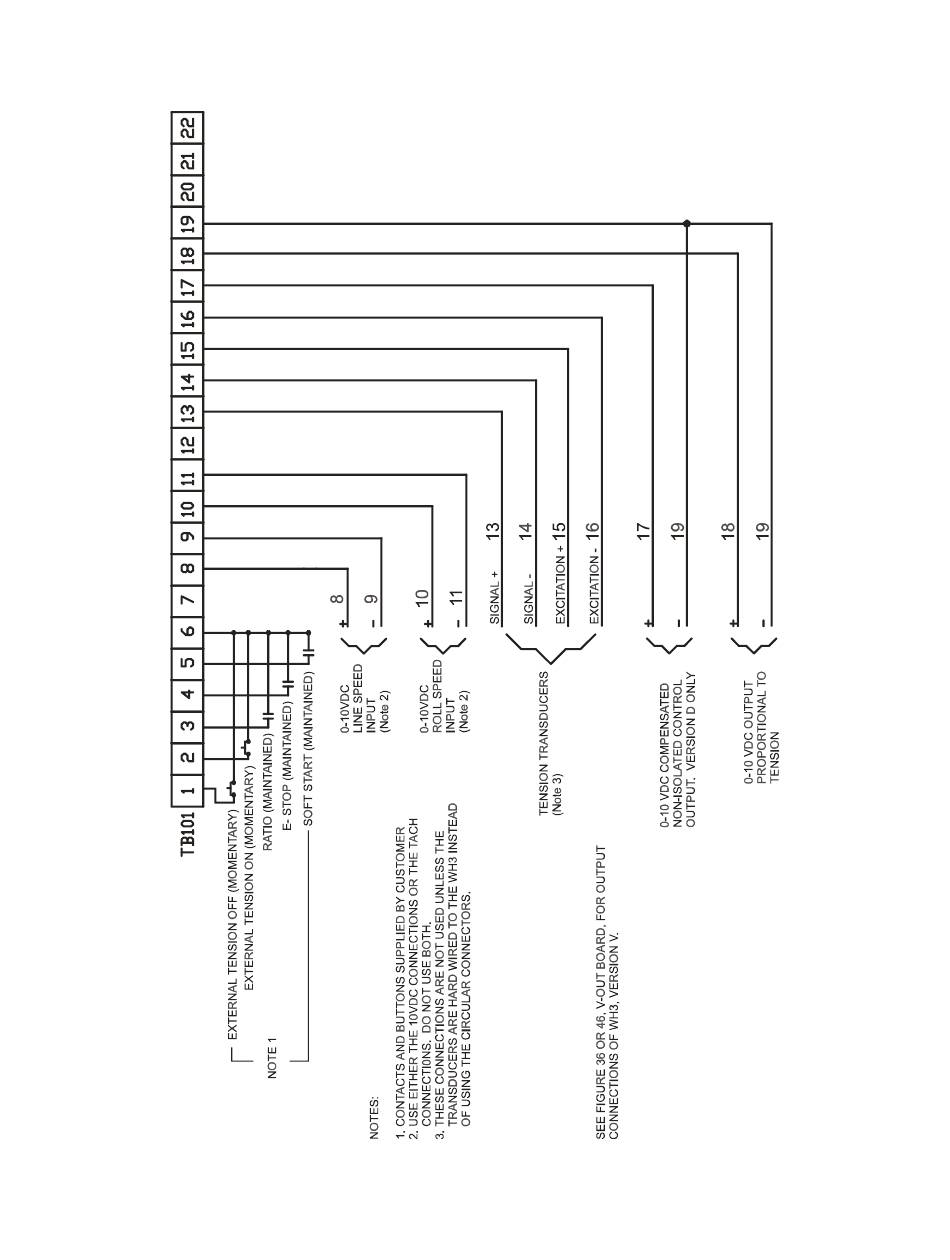

Figure 11 - ELECTRICAL CONNECTIONS FOR STANDARD FEATURES
11
