DFE WebHandler 3 Instruction Manual page 34

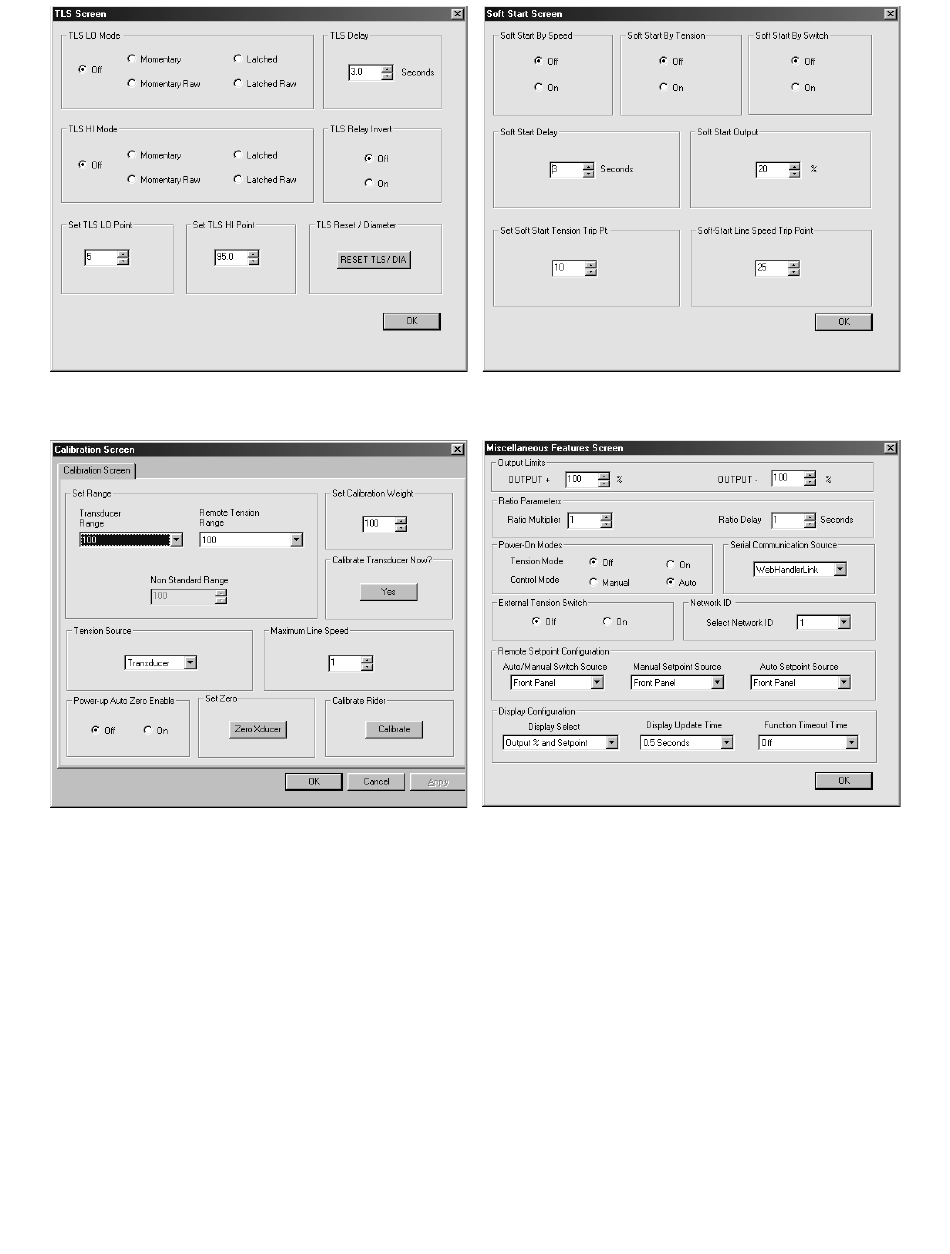

Figure 28 - TLS and SOFT START SCREENS
Figure 29 - CALIBRATION and MISCELLANEOUS FEATURES SCREENS
Calibration: Transducer and Remote Tension Ranges, Calibration Weight, Tension Source,
Maximum Line Speed, Powerup Auto Zero enable, Rezero, Rider calibration
Misc. Features: Positive and negative Output limits, Ratio multiplier and delay, Power-on
control and tension modes, Serial Communication Source (see below), Enable external tension
switch, Serial Network ID, Remote auto/manual switch, and manual and auto setpoint sources.
Diagnostic (to be used only with assistance of DFE technical service personnel): Reading raw
A to D converter values, selecting and writing to the D to A converters, reading port pin values,
Gain, Stability, and Response upper limits, reinitialization of all controller settings to default.
28
