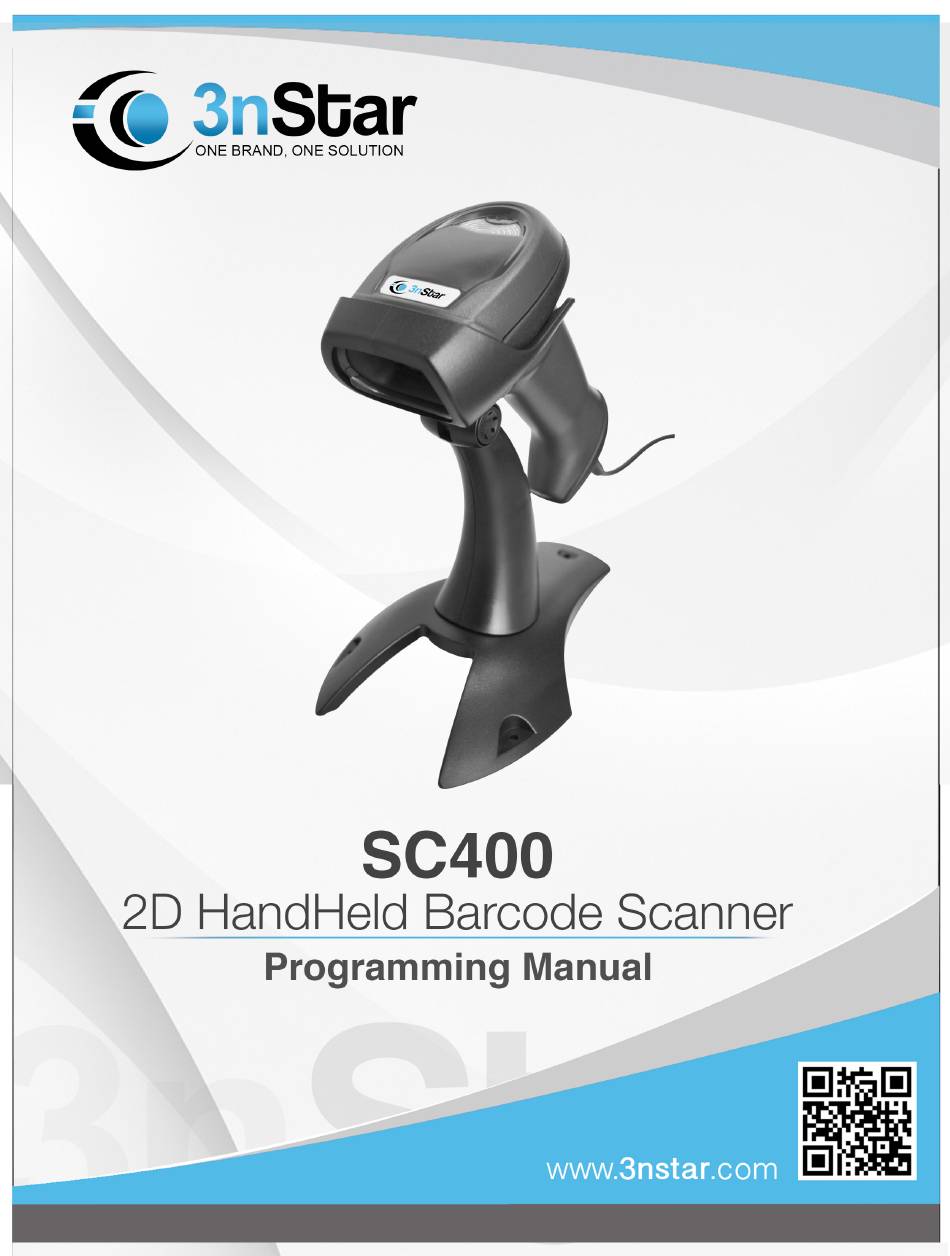

3nStar SC400 Programming Manual

2d handheld barcode scanners
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3nStar SC400

Summary of Contents for 3nStar SC400

  • Page 2: Table Of Contents

    Table of Contents 一、Disclaimer ................................二、Revision History ................................ 6 1、Chapter 1 Getting Started ............................7 1.1 I n troduction ................................7 1.2 A bout This Guide ..............
  • Page 3 4.1 General Configuration ............................27 5、Chapter 5 Symbologies ............................. 32 5.1 Ge neral Settings ..............................32 5.2 1D Symbologies ..............................33 5.3 Code 128 ..............
  • Page 4 7.4 Appendix 4: ASCII Table ............................74 7.5 Appendix 5: Digit Barcodes ..........................78...

  • Page 5: 一、Disclaimer

    一、Disclaimer Please read through the manual carefully before using the product and operate it according to the manual. It is advised that you should keep this manual for future reference.

  • Page 6: 二、Revision History

    二、Revision History Vers ion Desc ript ion Date V1.0.0 Initial release. Jan 13, 2014 V1.0.5 Setting correction. Sep17, 2014 V1.0.6 Add OCR setting, add Index and page number with hyperlink Feb 3, 2015...

  • Page 7: 1、Chapter 1 Getting Started

    The SC400 support all mainstream 1D and standard 2D barcode symbologies (e.g., PDF417, QR Code M1/M2/Micro and Data Matrix) as well as GS1-DataBarTM (RSS) (Limited/Stacked/Expanded versions). It can read barcodes on virtually any medium - paper, plastic card, mobile phones and LCD displays.

  • Page 8: About This Guide

    1.2 About This Guide SC400 SC400 This guide provides programming instructions for the Users can configure the scanning the programming barcodes included in this manual...

  • Page 9: Barcode Scanning

    1.3 Barcode Scanning The SC400 features fast scanning and decoding accuracy . Barcodes rotated at any angle can still be read with ease. When scanning a barcode, simply center the aiming beam or pattern projected by the SC400 over the barcode.

  • Page 10: Barcode Programming

    1.4 Barcode Programming 1.5 Factory Defaults Scanning the following barcode can restore the engine to the factory defaults. See Appendix 1: Factory Defaul ts Table for more information. Note: Use this feature with discretion. Restore All Facto ry Defaults...

  • Page 11: 2、Chapter 2 Communication Interfaces

    2、Chapter 2 Communication Interfaces SC400 provides a TTL-232 interface and a USB interface to communicate with the host device. The host device can receive scanned data and send commands to control the engine or to access/alter the configuration information of the engine via the TTL-232 or USB interface.
  • Page 12 2.2 TTL- 232 Interface Serial communication interface is usually used when connecting the engine to a host device (like PC, POS). However, to ensure smooth communication and accuracy of data, you need to set communication parameters (including baud rate, parity check, data bit and stop bit) to match the host device. The serial communication interface provided by the engine is based on TTL-level signals.

  • Page 13: Baud Rate

    2.3 Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the Host requirements. 2400 4800 9600 19200 38400 57600 115200...

  • Page 14: Data Bit & Parity Check& Stop Bit

    2.4 Data Bit & Parity Check& Stop Bit None Pari ty /8 Data Bit s/1 Stop Bit None Pari ty /7 Data Bit s/1 Stop B it None Pari ty /7 Data Bit s/2 Stop Bits Even Pari ty /8 Data Bit s/1 Stop Bit Even Pari ty /7 Data Bit s/1 Stop Bit Even Pari ty /7 Data Bit s/2 Stop Bits Odd Pari ty /8 Data Bit s/1 Stop Bit...

  • Page 15: Usb Interface

    2.5 USB Interface Before using USB Communication interface, scanner must be set as USB cable. Please reset the scanner after set USB cable。 USB Cable Reset 2.6 USB HID- KBW When you connect the engine to the Host via a USB connection, you can enable the USB HID-KBW feature by scanning the barcode below.

  • Page 16: Usb Country Keyboard Types

    2.7 USB Country Keyboard Types Keyboard layouts vary from country to country. The default setting is 1-U.S. keyboard. 1 - U.S. 2 – UK 3 - Denmark 4 - France 5 - Finland 6 - Tur key_F 7 - Italy 8 - Norw ay...
  • Page 17 9 - Albania 10 - Belgium 11 – Bosnia 12 – Brazil 13 – Croatia 14 – Czech 15 –Dutch 16 – Estonia 17 – Germany 18 – Greek...
  • Page 18 19 – Hungary 20 – Irish 21 – Latvia 22-Lithun nia 23 – Macedonia 24 – Spain 25 – Poland 26 –Portugal 27 –Romania 28 –Russia...

  • Page 19: Convert Case

    2.8 Convert Case Scan the appropriate barcode below to convert barcode data to your desired case. No Case Convers ion Con vert All to Upper Case Con vert All to Lower Case Example: When the Conv ert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”.

  • Page 20: Usb Com Port Emu Lation

    2.9 USB COM Port Emu lation If you connect the engine to the Host via a USB connection, the USB COM Port Emu lation feature allows the Host to receive data in the way as a serial port does. A driver is required for this feature. USB COM Port E mulati on...

  • Page 21: 3、Chapter 3 General Configuration

    3、Chapter 3 General Configuration 3.1 Trigger Mode If the Trigger Mode is enabled, you could activate the scanner by providing an external hardware trigger,or using a serial trigger command.when in manual trigger mode,the scanner scans until a barcode is read,or until the hardware trigger is released。when in serial mode,the scanner scans until a barcode has been read or until the deactivate command is sent.
  • Page 22 3.2 Continue Mode This set the scanner to work in Continue mode. Continue Mode...

  • Page 23: Video Reverse

    3. 4 Video Reverse 3. 5 Illumination 3.6 Beeper - Good Read...

  • Page 24: Beeper Tone - Good Read

    3.7 Beeper Tone - Good Read Middle High 3.8 Beeper During- Good Read Normal Short 3. 9 Beeper Number- Good Read...

  • Page 25: Barcode Scanning Delay

    3.10 Barcode Scanning Delay No Delay Delay 500MS Delay 2000ms 3.11 Ship Image Ship Imag...

  • Page 26: 4、Chapter 4 Data Formatting

    4、Chapter 4 Data Formatting 4.1 General Configuration Add CR Add LF Add CRLF Add TAB...

  • Page 27: 5、Chapter 5 Symbologies

    5、Chapter 5 Symbologies 5.1 General Settings Enab le/Disable All Symbologi es If the Disable All Symbologies feature is enabled, the engine will not be able to read any non-programming barcodes except the programming barcodes. Enable All Symbologies Disable All Symbologies...

  • Page 28: Symbologies

    5.2 1D Symbologies 5.3 Code 128 Restore Factory Defau lts Restore the Facto ry Defaults of Co de 128 Enable/Disable Code 128 Enable Code 128 Disable Code 128 Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.

  • Page 29: Ean - 8

    5.4 EAN- 8 Restore Factory Defaults Restore the Facto ry Defaults of EAN-8 Enable/Disable EAN- 8 Enable EAN-8 Disable EAN-8 Transmit Check Digit EAN-8 is 8 digits in length with the last one as its check digit used to verify the accuracy of the data.
  • Page 30 Enable 2 -Digit Add -On Code Dis able 2 -Digit Add -On Code Enable 5 -Digit Add -On Code Disable 5 -Digit Add -On Code Add- On Code Required EAN-8 Add -On Code Required EAN-8 Add -On Code Not Requ ired 5.5 ENA/JAN - 8 Addenda Separator When this feature is enabled.
  • Page 31 5.6 EAN- 13 Restore Factory Defaults Restore the Facto ry Defaults of EAN-13 Enable/Disable EAN- 13 Enable EAN-13 Disable EAN-13 Transmit Check Digit Transm it EAN-13 Check Digit Do Not Transmit EAN-13 Check Digit Add- On Code Enable 2 -Digit Add -On Code Dis able 2 -Digit Add -On Code...

  • Page 32: Ena/Jan - 8 Addenda Separator

    Enable 5 -Digit Add -On Code Disable 5 -Digit Add -On Code Add- On Code Required EAN-8 Add -On Code Required EAN-8 Add -On Code Not Required 5.7 ENA/JAN - 8 Addenda Separator When this feature is enabled. there is a space between the data from the barcode and the Data from the addenda.

  • Page 33: Isbn Translate

    Enable/Disable ISBN Enable ISBN Disable ISBN 5.8 ISBN Translate When enable this feature and is scanned,ENA13 Bookland symbols are translated into their equivalent ISBN number format. Enable ISBN Translate Dis able ISBN Translate UPC- E Restore Factory Defaults Restore the Facto ry Defaults of UPC-E Enable/Disable UPC- E0/E1 Enable UPC-E0...
  • Page 34 Enable UPC-E1 Disable UPC-E1 UPCE0 Check Digit Enable UPC-E0 Check Digit Disable UP C-E0 Check Digit UPCE0 Expand UPCE0 expand expands the UPCE code to the 12 digit,UPC-A format. Enable UPC -E0 Expand Dis able UPC -E0 Expand UPCE0 Addenda Required When required is scanned, the scanner will only read UPC-E barcodes that have addenda.
  • Page 35 Enable UPC -E0 Separator Dis able UPC -E0 Separator UPCE0 Number System The number system digit of upc. Symbol is normally transmitted at the begging of the scanned data ,but the unit can be programmed so it will not transmit it. Enable UPC -E0 Number System Dis able UPC -E0 Number System UPCE0 Addenda...
  • Page 36 UPC- A Restore Factory Defaults Restore the Facto ry Defaults of UPC-A Enable/Disable UPC- A Enable UPC-A Disable UPC-A UPC- A Check Digit Enable UPC-A Check Digit Disable UPC-A Check Digit UPC- A Addenda Required When required is scanned, the scanner will only read UPC-E barcodes that have addenda.
  • Page 37 Enable UPC -A Required Disable UPC -A Required UPC- A Addenda Separator Enable UPC -A Separator Disable UPC -A Separator UPC- A Number System The number system digit of upc. Symbol is normally transmitted at the begging of the scanned data ,but the unit can be programmed so it will not transmit it.
  • Page 38 Enable 2 Digit Addenda Disable 2 Digit Addenda Enable 5 Digit Addenda Disable 5 Digit...

  • Page 39: Interl E Aved 2 Of 5

    5.9 Interleaved 2 of 5 Restore Factory Defaults Restore the Facto ry Defaults of Int erl eaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable Interl eaved 2 of 5 Disable Interl eaved 2 of 5 Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.
  • Page 40 Interleaved 2 of 5 Check Digit No check Char Validate not Transmit Validate and Transmit...

  • Page 41: M Atrix 2 Of 5

    5.10 Matrix 2 of 5 Restore Factory Defaults Restore the Facto ry Defaults of Matr ix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5 Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.

  • Page 42: Industrial 2 Of 5

    5.11 Industrial 2 of 5 Restore Factory Defaults Restore the Facto ry Defaults of Industri al 2 of 5 Enable/Disable Industrial 2 of 5 Enable Indus tri al 2 of 5 Disable Indus tr ial 2 of 5 Message Length Message length can be set to the maximum value, minimum value.

  • Page 43: Code 93

    5.12 Code 39 Restore Factory Defaults Restore the Facto ry Defaults of Co de 39 Enable/Disable Code 39 Enable Code 39 Disable Code 39 Transmit Start/Stop Character Transm it Start/S top Character Do not Transmit Start/S top Character...
  • Page 44 Code 39 Check Character No Check Char Validate and Transmit Validate no Transmit Code 39 Append Enable Append Disable Append...
  • Page 45 5.13 Code 39 Full ASCII Enable Code 39 Full ASCII Disable Code 39 Full ASCII Code 39 Code page Codabar Restore Factory Defaults Restore the Facto ry Defaults of Co dabar Enable/Disable Codabar...
  • Page 46 Enable Codabar Disable Codabar Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid. The maximum value and minimum value can be set using Programming command . Please check the programming command guide for the detail.

  • Page 47: Code 32

    Validate no Transmit 5.14 Code 93 Restore Factory Defaults Restore the Facto ry Defaults of Co de 93 Enable/Disable Code 93 Enable Code 93 Disable Code 93 Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.
  • Page 48 Programming command Max: 020D0325. Min: 020D0210. Code 93 Append Enable Disable Code 93 App end Code 93 Append Code93 Code page GS1- Databar (RSS) Restore Factory Defau lts Restore the Facto ry Defaults of GS1-Databar...
  • Page 49 Enable/Disable GS1 Databar Enable GS1-DataBar Disable GS1-DataBar Code 11 Restore Factory Defaults Restore the Facto ry Defaults of Code 11 Enable/Disable Code 11 Enable Code 11 Disable Code 11 Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.
  • Page 50 Code 11 Check Digit Required 1 Check Digit 2 Check Digit 5.15 Code 32 Enable Code 32 Disable Code 32 Restore Factory Defau lts Restore the Facto ry Defaults of MSI Enable/Disable MSI Enable MSI Disable MSI...
  • Page 51 Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid. The maximum value and minimum value can be set using Programming command . Please check the programming command guide for the detail. Example: Set the Barcode Message length of the minimum value is 10, the maximum value is 25, Programming command Max: 020E0410.

  • Page 52: Symbologies

    6.1 2D Symbologies 6.2 PDF 417 Restore Factory Defau lts Restore the Facto ry Defaults of PDF 417 Enable/Disable PDF 417 Enable PDF 417 Disable PDF 417 Enable/Disable Macro PDF 417 Macro Macro Enable PDF 417 Disable PDF 417 Message Length Message length can be set to the maximum value, minimum value.

  • Page 53: Qr Code

    Example: Set the Barcode Message length of the minimum value is 10, the maximum value is 25, Programming command Max: 020E0410. Min: 020E035. 6.3 QR Code Restore Factory Defaults Restore the Facto ry Defaults of QR Code Enable/Disable QR Code Enable QR Code Disable QR C Message Length...

  • Page 54: Data Matrix

    6.4 Data Matrix Restore Factory Defaults Restore the Facto ry Defaults of Data Matri Enable/Disable Data Matrix Enable Data Matr ix Disable Data Matrix Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.

  • Page 55: Maxicode

    6.5 Maxicode Restore Factory Defaults Restore the Facto ry Defaults of Maxicode Enable/Disable Maxicode Enable Maxicode Disable Maxicode Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.

  • Page 56: Aztec

    6.6 Aztec Restore Factory Defaults Restore the Facto ry Defaults of Aztec Enable/Disable Aztec Enable Disable Aztec AZtec Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.
  • Page 57 OCR code Enable OCR Code Disable OCR Code Hanxin Restore Factory Defaults Restore the Facto ry Defaults of Hanxin Enable/Disable Hanxin Enable Disable Hanxin Hanx Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.

  • Page 58: Postal Symbologies

    6.7 Postal Symbologies China Postal Code Restore Factory Defau lts Restore the Facto ry Defaults of China Postal Code Enable/Disable China Postal Code Enable China Postal Code Dis able China Postal Code Telepen Restore Factory Defau lts Restore the Facto ry Defaults of Telepen Enable/Disable Telepen Enable China Telepen Dis able China Telepen...

  • Page 59: 7、Appendix

    7、Appendix 7.1 Appendix 1: Factory Defaults Table Parameter Facto ry Default Remark Progr amm ing Bar code Barcode Programming Enable Programming Barcode Data Enable Comm unicati on Setti ngs Options: TTL-232, USB HID-KBW, Interface USB HID-KBW USB COM Port Emulation Baud Rate 115200 Parity Check...
  • Page 60 Parameter Facto ry Default Remark Illum inati on & Aiming Illumination Normal Aiming Normal Beep & LED Indications Startup Beep Enabled Notification Enabled Beep after Good Decode (Non-Programming Beep Tone Barcode) Beep Volume Loud Beep after Good Decode (Programming Barcode) Enabled LED Notification for Good Decode Enabled...
  • Page 61 Parameter Facto ry Default Remark Symbologies Video Reverse Disabled Applicable to all symbologies. Code 128 Code 128 Enabled Maximum Length Minimum Length （ ） GS1-128 UCC/EAN-128 GS1-128 Enabled Maximum Length Minimum Length AIM-128 AIM-128 Enabled Maximum Length Minimum Length EAN-8 EAN-8 Enabled Check Digit...
  • Page 62 Parameter Facto ry Default Remark ISBN ISBN Enabled ISBN Format ISBN-13 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required UPC-E UPC-E Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required Extend to UPC-A Disabled System Character “0”...
  • Page 63 Parameter Facto ry Default Remark ITF-14 ITF-14 Enabled Check Digit Do not transmit Matrix 2 of 5 Matrix 2 of 5 Disabled Parity Check Enabled Check Digit Do not transmit Maximum Length Minimum Length Indus tri al 2 of 5 Industrial 2 of 5 Enabled Parity Check...
  • Page 64 Parameter Facto ry Default Remark Cod abar Codabar Enabled Parity Check None Check Digit Do not transmit Start/Stop Character Do not transmit Start/Stop Character Format ABCD/ABCD Maximum Length Minimum Length Code 93 Code 93 Enabled Parity Check Enabled Check Digit Do not transmit Maximum Length Minimum Length...
  • Page 65 Parameter Facto ry Default Remark MSI-Plessey MSI-Plessey Enabled Parity Check One check digit, MOD10 Check Digit Do not transmit Maximum Length Minimum Length PDF 417 PDF 417 Enabled Maximum Length 2710 Minimum Length QR Code QR Code Enabled Micro QR Enabled Maximum Length 7089...

  • Page 66: Appendix 2: Aim Id Table

    7.2 Appendix 2: AIM ID Table Symbolog y AIM ID Remark Standard EAN-13 EAN-13 EAN-13 + 2/5-Digit Add-On Code Standard EAN-8 EAN-8 ]E4…]E1… EAN-8 + 2-Digit Add-On Code ]E4…]E2… EAN-8 + 5-Digit Add-On Code Standard UPC-E UPC-E UPC-E + 2/5-Digit Add-On Code Standard UPC-A UPC-A UPC-A + 2/5-Digit Add-On Code...
  • Page 67 Symbolog y AIM ID Remark Code 93 Standard Code 93 One check digit MOD11; transmit check digit Two check digits, MOD11/MOD11; transmit check digit Code 11 Do not transmit check digit after parity check No parity check GS1-DataBar (RSS) Standard GS1-DataBar Pless ey Standard Plessey One check digit, MOD10;...

  • Page 68: Appendix 3: Code Id Table

    7.3 Appendix 3: Code ID Table Symbolog y Code ID Code 128 GS1-128(UCC/EAN-128) AIM-128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Matrix 2 of 5 Industrial 2 of 5 Standard 2 of 5 Code 39 Codabar Code 93 Code 11...
  • Page 69 7.4 Appendix 4: ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3)
  • Page 70 Char (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Right / Closing Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) <...
  • Page 71 Char > (Greater Than) (Question Mark) (AT Symbol) (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket)
  • Page 72 Char (Caret / Circumflex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)
  • Page 73 7.5 Appendix 5: Digit Barcodes...
