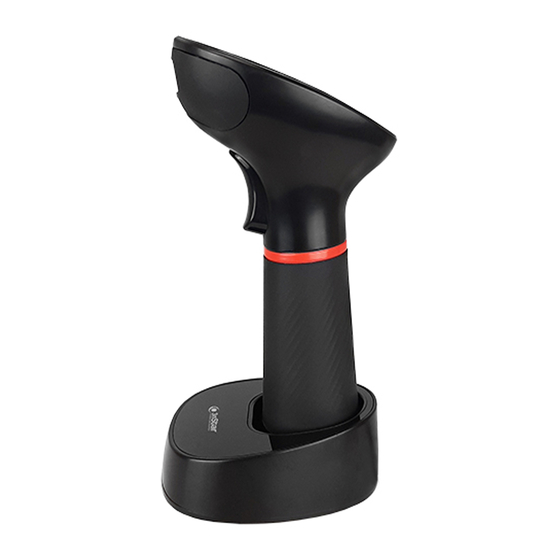

3nStar SC440 Setup Manual

2d wireless barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

2D Wireless Barcode Scanner
2.4GHz. & BT SETUP MANUAL
SC440

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC440 and is the answer not in the manual?

Questions and answers

Related Manuals for 3nStar SC440

Summary of Contents for 3nStar SC440

  • Page 1 2D Wireless Barcode Scanner 2.4GHz. & BT SETUP MANUAL SC440...

  • Page 2: Table Of Contents

    Table of Content Version No. Description ....................2 1. Basic Function ......................4 2. Indicator Description ....................4 2.1 LED Details ...................... 4 2.2 Buzzer Details ....................4 2.3 Voice Setting ..................... 5 2.4 Voice Frequency ....................5 2.5 Battery Function ....................5 3.

  • Page 3: Version No. Description

    Version No. Description Remarks: Please refer to the corresponding manual version for the detailed version function. * Manual Version V4.3: Support software version above 01.44 Function Upgrade: function key add Ctrl, Alt, Shift & GUI. * Manual Version V4.2: Support software version above 01.40 Function Upgrade: Japanese language setting.

  • Page 4: Basic Function

    1. Basic Function Factory Default Software Version 2. Indicator Description 2.1 LED Details Green light --> charging (1) Steady flash means charging. (2) Will goes out when the battery is fully charged. Blue light --> Status (1) One quick flash for one successful scanning. (2) Flash will goes out if USB/2.4G/ Bluetooth HID are not connected.

  • Page 5: Voice Setting

    (1) USB/2.4G/Bluetooth is disconnected; (2) Data upload unsuccessfully or the storage Flash is full; (3) Setting code failed; Three short tones with high and low rhythm --> Status: Insufficient power, ready to enter off state; 2.3 Voice Setting Sound Volume High(*) Medium Sound Type...

  • Page 6: Wireless Transfer Description

    3. Wireless Transfer Description 3.1 Output Method USB Priority Output(*) Simultaneous Output USB, 2.4G& Bluetooth “USB Priority Output(*)” : When using USB cable, data transfer wire USB cable only. “Simultaneous Output”: USB and 2.4G or Bluetooth output simultaneously. (Determined by communication mode). If output is unsuccessful, will alarm.

  • Page 7: Communication Mode

    Clear All Data Upload Statistical Data ( Amount of data ) Upload All Data *Remarks “Clear All Data” is only effected under inventory mode. 3.3 Communication Mode Receiver Mode(*) Bluetooth HID Mode Bluetooth BLE Mode Bluetooth SPP Mode ◆When switched to HID mode. The Bluetooth matched previously will be connected automatically. ◆“Bluetooth BLE Transparent Transmission Mode”...

  • Page 8: Type Of Usb-Hid Data

    3.5 Type of USB-HID Data Keyboard function key (*) Send Chinese Characters Send ASCII 4. Sleeping Time Setting No Sleep Enter Sleep 1min(*) 2min 5min 10min 30min...

  • Page 9: Conversion

    5. Conversion 5.1 GS Characters Conversion None(*) GS Converts To <GS> GS Converts To | GS converts to ] GS Converts To ^] 5.2 Letter Case Conversion Normal Letter Case(*) All Uppercase All Lowercase Case Inversion 6. Language Setting...
  • Page 10 USA(*) German France Italy Canadian Spain Brazil Sweden Portugal Belgium Turkey-F Turkey-Q Italian14 Netherlands Poland Finland Latin America Serbia Hungary Denmark...

  • Page 11: Setting

    Norway Japan 7. 2.4G Setting Receiver Mode(*) Scan this code, scanner will enter 2.4G mode automatically and connect to the receiver which is matched last time by default. 7.1 Pairing 2.4G Receiver Pairing Two ways to enter “2.4G Receiver Pairing” setting (1) Scan the “Receiver Pairing”...

  • Page 12: Bluetooth Setting

    Disable (*) Enable *Remarks: Disable: New data need to wait after all data is upload completely. Enable: New data will be saved in the cache and send to devices automatically, so no need to wait all data transfer completely, this is to support continuous scanning.

  • Page 13: Long Press 8S To Enter Bluetooth Hid Pairing Setting

    (2) After scan the “Bluetooth HID Pairing” bar-code, then Double-click the button, it will prompt once. (3) If the Bluetooth is not matched within 1 minute, it will exit automatically and with 3 beeps. *Remarks: When exiting pairing, if the new device is not connected, will connect to the device which is matched last time automatically by default.

  • Page 14: Bluetooth Hid Rssi Setting

    8.6 Bluetooth HID RSSI Setting Bluetooth SPP Mode Scan the “Bluetooth SPP Mode” bar-code to enter, and it can be matched directly in the broadcast state by default. 8.7 Bluetooth BLE Mode Bluetooth BLE Mode Scan the “Bluetooth BLE Mode” bar-code, it will automatically enter into the Bluetooth BLE mode, and automatically connect the Bluetooth that was matched last time by default.

  • Page 15: Bluetooth Name Default

    8.8.3 Bluetooth Name Default Bluetooth Name Default *Remarks: Scan the “Bluetooth Name Default” bar-code Or the “Default Setting” bar-code, custom Bluetooth names will be cleared. 8.9 Bluetooth Name&Address Setting 8.9.1 Get Bluetooth Name Get Bluetooth Name This code only worked under the Bluetooth HID/SPP/BLE mode. 8.9.2 Get Bluetooth Address Get Bluetooth Address This code only worked under the Bluetooth HID/SPP/BLE mode.

  • Page 16: Hide Character Function Settings

    10. Hide Character Function Settings 10.1 Hide the First Character Hide the First Character Shortcut Settings for Hiding the digit from the beginning Note: How many digits are hidden from the beginning by default The format is as follows: ^&600&^ to ^&6FF&^,00~FF are hidden digits Hide the first 1 digit Hide the first 2 digit Hide the first 3 digit...

  • Page 17: Hide The Last Character

    Hide the first 15 digit 10.2 Hide the last Character Hide the last Character Note: Shortcut Settings for Hiding the digit from the last The format is as follows: ^&700&^ to ^&7FF&^,00~FF are hidden digits Hide the last 2 digit Hide the last 1 digit Hide the last 3 digit Hide the last 4 digit...

  • Page 18: Data Code Table

    11. Data Code Table Data Code Table 12. ASCII Code Table ASCII Code Table...
  • Page 19 SOH(start of headline) STX (start of text) “...
  • Page 20 & < >...
  • Page 22 function key F1 Caps Lock function key F3 function key F4 function key F2 function key F5 function key F7 function key F6 function key F8 function key F9 function key F10 function key F11 function key F12 Print Screen Pause Insert Scroll Lock...
  • Page 23 /(keypad) Num Lock(keypad) *(keypad) Enter(keypad) +(keypad) -(keypad) 3(keypad) 2(keypad) 1(keypad) 6(keypad) 4(keypad) 5(keypad) 9(keypad) 8(keypad) 7(keypad) AB~CF 保留 待用 .(keypad) 0(keypad) Add Ctr/Shift/Alt/GUI function key *Remarks During setup, need to press and release the button accordingly. If keep pressing the button but no release, data will not be uploaded and may cause the computer lock screen or other hot key problems.

  • Page 24: Long Press Button Description

    13. Long Press Button Description ◆"Communication Mode" switches to the “Bluetooth SPP” mode Pressing the button and hold for about 8 seconds, then release after a sound is heard. ◆"Communication Mode" switch to “Bluetooth BLE”mode Pressing the button and hold for about 16 seconds, then release after a sound is heard. ◆“MCU and Bluetooth update”...
  • Page 25 0001 0010 PRINT SCREEN 0001 0011 DELETE 0001 0100 TAB+SHIFT 0001 0101 0001 0110 0001 0111 0001 1000 0001 1001 0001 1010 0001 1011 0001 1100 0001 1101 0001 1110 0001 1111 (SPACE) (SPACE) 0010 0000 0010 0001 0010 0010 "...
  • Page 26 0011 1101 0011 1110 > > 0011 1111 0100 0000 0100 0001 0100 0010 0100 0011 0100 0100 0100 0101 0100 0110 0100 0111 0100 1000 0100 1001 0100 1010 0100 1011 0100 1100 0100 1101 0100 1110 0100 1111 0101 0000 0101 0001 0101 0010...
  • Page 27 0110 1000 0110 1001 0110 1010 0110 1011 0110 1100 0110 1101 0110 1110 0110 1111 0111 0000 0111 0001 0111 0010 0111 0011 0111 0100 0111 0101 0111 0110...
  • Page 28 0111 0111 0111 1000 0111 1001 0111 1010 0111 1011 0111 1100 0111 1101 0111 1110 0111 1111...
