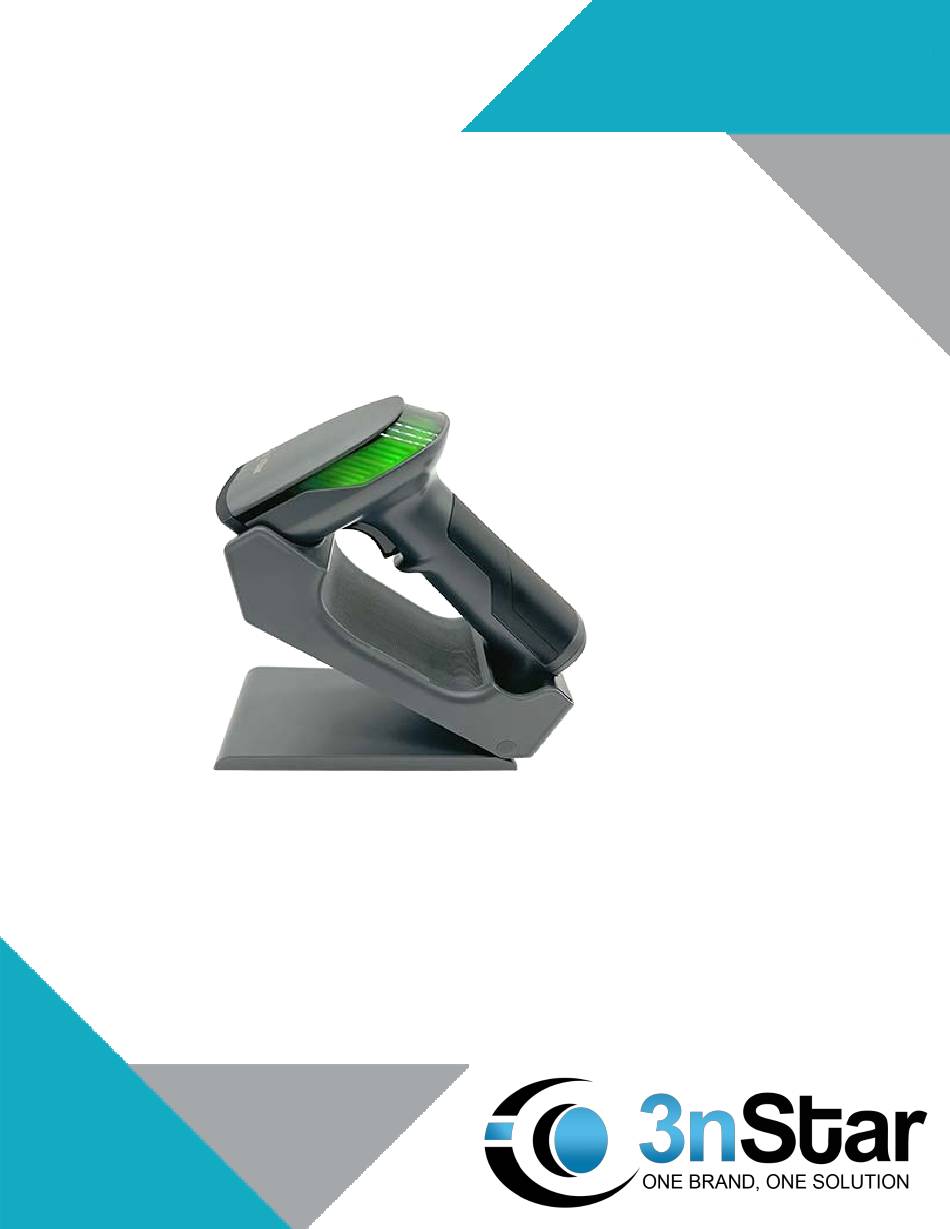

2D Wireless Barcode Scanner
PROGRAMING MANUAL
SC430

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC430 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3nStar SC430

Summary of Contents for 3nStar SC430

  • Page 1 2D Wireless Barcode Scanner PROGRAMING MANUAL SC430...

  • Page 2: Table Of Contents

    Content Version No....................................4 Factory Default Setting................................ 4 Output Mode..................................4 Data Transfer Mode................................4 Communication Mode................................5 USB interface type................................6 USB-HID Data type................................6 Inventory Mode..................................7 Sound Set....................................7 Sleep Time Set..................................8 GS (group separator) characters conversion........................9 Letter case conversion...............................10 Language Set..................................10 Code ID....................................
  • Page 3 Aztec Code.................................. 35 Scan Mode...................................35 Auto Sense Mode off..............................35 Auto Sense Mode on..............................35 Repeat Barcode Detection............................36 Light Configuration................................36 LED Indicator Light..............................36 2.4G Pairing..................................37 Bluetooth HID Pairing................................ 37 Show or Hide the Keyboard in IOS..........................37 Bluetooth HID Transfer Rate.............................37 Data Editor................................... 38 Suffix Terminator character Setting.........................

  • Page 4: Version No

    Version No. Version Number Factory Default Setting Restore Factory Default Note: the asterisk(*) is the factory default. Output Mode USB priority output(*) Note: When inserting USB cable, data only output by USB. Output at the same time Note: USB and 2.4G or Bluetooth output at the same time (depending on the communication mode), in which 2.4g or Bluetooth output is unsuccessful, alarm will be given.

  • Page 5: Communication Mode

    Inventory Mode Note: The scanned barcodes will be saved automatically, please scan setting codes if you need to view statistical data or upload data. Automatic storage mode Note: When the distance is beyond, the data will be saved automatically. please scan setting code ‘upload all data’...

  • Page 6: Usb Interface Type

    Please download or develop low-power Bluetooth SPP transmission software if you need to use this function. USB interface type USB-HID(*) USB-VCOM USB-HID Data type Transfer keyboard function keys Send ASCII Keyboard+ASCII Mode 1 > 0x1F Send ASCII Mode 2...

  • Page 7: Inventory Mode

    Inventory Mode Clear All Saved Data Statistical Information Upload All Data Sound Set Mute High(*) Medium...

  • Page 8: Sleep Time Set

    Sleep Time Set No Sleep Sleep Now 1Min(*) 2Min 5Min...

  • Page 9: Gs (Group Separator) Characters Conversion

    10Min 30Min Note: Keep pressing the button until you hear the first beep for about 8 seconds, release the button and the scanner will enter sleep. GS (group separator) characters conversion None(*) GS converts to <GS> GS converts to | GS converts to ] GS converts to ^]...

  • Page 10: Letter Case Conversion

    GS converts to F8 Letter case conversion Normal Letter Case(*) All Uppercase All Lowercase Case Inversion Language Set USA(*)
  • Page 11 German France Italy Canadian Spain Brazil Sweden...
  • Page 12 Portugal Belgium TurkeyF TurkeyQ Italian14 Netherlands Poland Finland...
  • Page 13 Latin America Serbia Hungary Denmark Norway Japan KORI-8 Convert to Russian...

  • Page 14: Code Id

    UTF-8 Convert to Turkey UTF-8 Convert to Czech Czech Code ID Output Options Off (Default) Before Switch on After Switch On AIM ID Off (Default)

  • Page 15: Inverse Color Barcode Selection

    Before Switch On After Switch On Inverse color barcode selection (Only 1D/DataMatrix/Aztec) Normal Color Inverse Color Both (Normal/Inverse) Barcode Type Selection Enable/Disable All barcodes Enable all barcodes will low down decoding speed. So, we suggest you switch on scanner when needed. (Default is switch on state)

  • Page 16: Enable/Disable All 1D Barcodes

    Enable All Disable All Enable/Disable All 1D barcodes Enable All Disable All Enable/Disable All 2D barcodes Enable All...

  • Page 17: Codabar

    Disable All Codabar Enable Disable Codabar Start/Terminal Character Not Send Codabar Start/Terminal Character (Default) Send Codabar Start/Terminal Character Set Length Range For Codabar Minimum Length (0~50bit)

  • Page 18: Code 39

    Maximum Length (0~50bit) Code 39 Enable Disable Code 39 Parity Check Disable (Default) Enable But Not Transfer Enable & Transfer Code 39 Full ASCII...

  • Page 19: Code 32(Enable Code39 First)

    Enable Disable (Default) Set Length Range For Code 39 Minimum Length (0~50bit) Maximum (0~50bit) Code 32(Enable code39 first) Enable Disable Code 32 Prefix...

  • Page 20: Interleaved 2 Of 5 (Itf25)

    Enable Disable Interleaved 2 of 5 (ITF25) Enable Disable Interleaved 2 of 5 (ITF25) Check Bit Disable Check Bit (Default) Enable Check and Not Send Check Bit...
  • Page 21 Enable Check & Send Check Bit Interleaved 2 of 5 (ITF25) Length Selection Random Length (6-50bit) (Default) 6 Bit 8 Bit 10 Bit 12 Bit 14 Bit...
  • Page 22 16 Bit 18 Bit 20 Bit 22 Bit 24 Bit Set Length Range for Interleaved 2 of 5 Minimum (0~50bit) Maximum (0~50bit)

  • Page 23: Industrial 2 Of 5

    Industrial 2 of 5 Enable Disable Set Length Range for Industrial 2 of 5 Minimum (0~50bit) Maximum (0~50bit) Matrix 2 of 5 (4-24bit) Enable...

  • Page 24: Code 93

    Disable Set Length Range for Matrix 2 of 5 Minimum (0~50bit) Maximum (0~50bit) Code 93 Enable Disable Set Length Range for Code 93 Minimum (0~50bit)

  • Page 25: Code 11

    Maximum (0~50bit) Code 11 Enable Disable (Default) Code 11 Parity Check Output Enable Disable (Default) Code 11 Parity Selection Disable (Default)

  • Page 26: Code 128

    1 Bit 2 Bit Set Length Range for Code 11 Minimum (0~50bit) Maximum (0~50bit) Code 128 Enable Disable...

  • Page 27: Upc-A

    GS1-128 Enable Disable Set Length Range for CODE-128 Minimum (0~50bit) Maximum (0~50bit) UPC-A Enable Disable...

  • Page 28: Upc-E

    UPC-A Check Bit Send UPC-A Check Bit (Default) Not send UPC-A Check Bit UPC-A Convert to EAN-13 Enable UPC-A convert to EAN-13 Disable UPC-A convert to EAN-13 (Default) UPC-E Enable Disable...

  • Page 29: Ean/Jan-8

    UPC-E Check Bit Send UPC-E Check Bit (Default) Not send UPC-E Check bit UPC-E Expand to UPC-A Enable Disable (Default) EAN/JAN-8 Enable Disable...

  • Page 30: Ean/Jan-13

    EAN-8 Convert to EAN-13 Disable EAN-8 convert to EAN-13 Enable EAN-8 convert to EAN-13 EAN/JAN-13 Enable Disable UPC/EAN/JAN Add on code Ignore UPC/EAN/JAN (Default) Decode UPC/EAN/JAN...

  • Page 31: Ean13 Convert To Isbn

    Custom UPC/EAN/JANA add on code EAN13 Convert to ISBN Enable Disable (Default) EAN13 Convert to ISSN Enable Disable (Default) GS1 DataBar (RSS14)

  • Page 32: Gs1 Databar Limited

    Enable Disable GS1 DataBar Limited Enable Disable GS1 DataBar Expanded Enable Disable...

  • Page 33: Pdf417

    PDF417 Enable Disable Micro PDF417 Enable Disable QR Code Enable...

  • Page 34: Micro Qr

    Disable QR Code URL Link Disable Enable Micro QR Enable Disable Data Matrix Enable...

  • Page 35: Aztec Code

    Disable Aztec Code Enable Disable Scan Mode Auto Sense Mode off Decoding by pulling the trigger of the scanner when auto sense mode is off. It’s default mode. Off (Default) Auto Sense Mode on The scanner can sense barcode for decoding automatically.

  • Page 36: Repeat Barcode Detection

    Repeat Barcode Detection Use for decode same barcode of interval time, it will decode only one time if not exceeded set time. 500ms 750ms (Default) Light Configuration LED Indicator Light...

  • Page 37: 2.4G Pairing

    On (Default) 2.4G Pairing 2.4G Pairing Bluetooth HID Pairing Bluetooth HID Pairing Show or Hide the Keyboard in IOS Show or hide the virtual keyboard under IOS system Bluetooth HID Transfer Rate...

  • Page 38: Data Editor

    Fast Medium(*) Ultra-low speed Ultra-fast speed Data Editor Suffix Terminator character Setting Suffix-None Suffix-Enter(*)

  • Page 39: Hidden Character Settings

    Suffix-Line Suffix-Tab Suffix-Enter&Line Hidden character Settings Hide front character Hide back character Hide front character Steps: (1) Scan the setting code "Hide front character" (2) Set the first few digits of the sequence to hide, and use two data codes to represent the decimal number XX (3) Set how many digits (including their own data) are hidden from the first few digits in the sequence, using two digits...

  • Page 40: Add Prefix And Suffix Settings

    For example: the barcode content is: "ABCDEFGHIJKLMN", hide these characters DEFGH, Make the output bar code "ABCDIJKLMN". (1) Scan the setting code "Hide front character" (2) The position of the character ‘E’ is the 4th bit, so "XX" is ‘0’, ‘4’, Look up the data code table and scan the data code table ‘0’...
  • Page 41 Add Suffix Setting Saved and Finished Set Add Prefix Setting Steps: (1) Scan the setting code "Add Prefix setting" (2) Set the first few digits of the sequence to start inserting characters (including its own data), use two-digit "data code" Represents the decimal number XX (the first setting can be omitted, which is equivalent to setting "0", "1"), Please check the corresponding data code table...

  • Page 42: Hiding Front Character Shortcut Setting

    Please check the corresponding data code table (3) For the content that needs to be added for one scan, please find the ASCII code table (4) Finally scan the setting code "Saved and Finished Set". For example: the original barcode content is "ABCDEFGHIJKLMN"; The content after adding the prefix is ""ABCDE12345FGHIJKLMN"".

  • Page 43: Hiding Back Character Shortcut Setting

    Hide the first 5 bits Hide the first 6 bits Hide the first 7 bits Hide the first 8 bits Hiding back character shortcut setting Hide the back 1 bit Hide the back 2 bits Hide the back 3 bits...

  • Page 44: Data Code Table

    Hide the back 4 bits Hide the back 5 bits Hide the back 6 bits Hide the back 7 bits Hide the back 8 bits Data Code Table...

  • Page 46: Ascii Code Table

    ASCII Code Table Null SOH(start of headline) STX (start of text)
  • Page 47 " &...
  • Page 48 < >...
  • Page 50 Caps Lock...
  • Page 51 PrintScreen Scroll Lock Pause Insert Home PageUp Delete PageDown RightArrow LeftArrow DownArrow UpArrow Num Lock(keypad) /(keypad) *(keypad) -(keypad) +(keypad) Enter(keypad)
  • Page 52 1(keypad) 2(keypad) 3(keypad) 4(keypad) 5(keypad) 6(keypad) 7(keypad) 8(keypad) 9(keypad) 0(keypad) .(keypad) Add Ctrl、Shift、Alt、GUI function key Note: When there is a press, there must be a release. Press and release must be used in pairs Otherwise, there will be hot key issues such as data not uploading and computer lock screen L-Ctrl Press L-Shift Press L-Alt Press...
  • Page 53 L-GUI Release R-Ctrl Release R-Shift Release R-Alt Release R-GUI Release...
