3nStar SC415 User Manual

2d barcode scanner
Table of Contents

Advertisement

Quick Links

USER MANUAL
PTA0140
SC415
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC415 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3nStar SC415

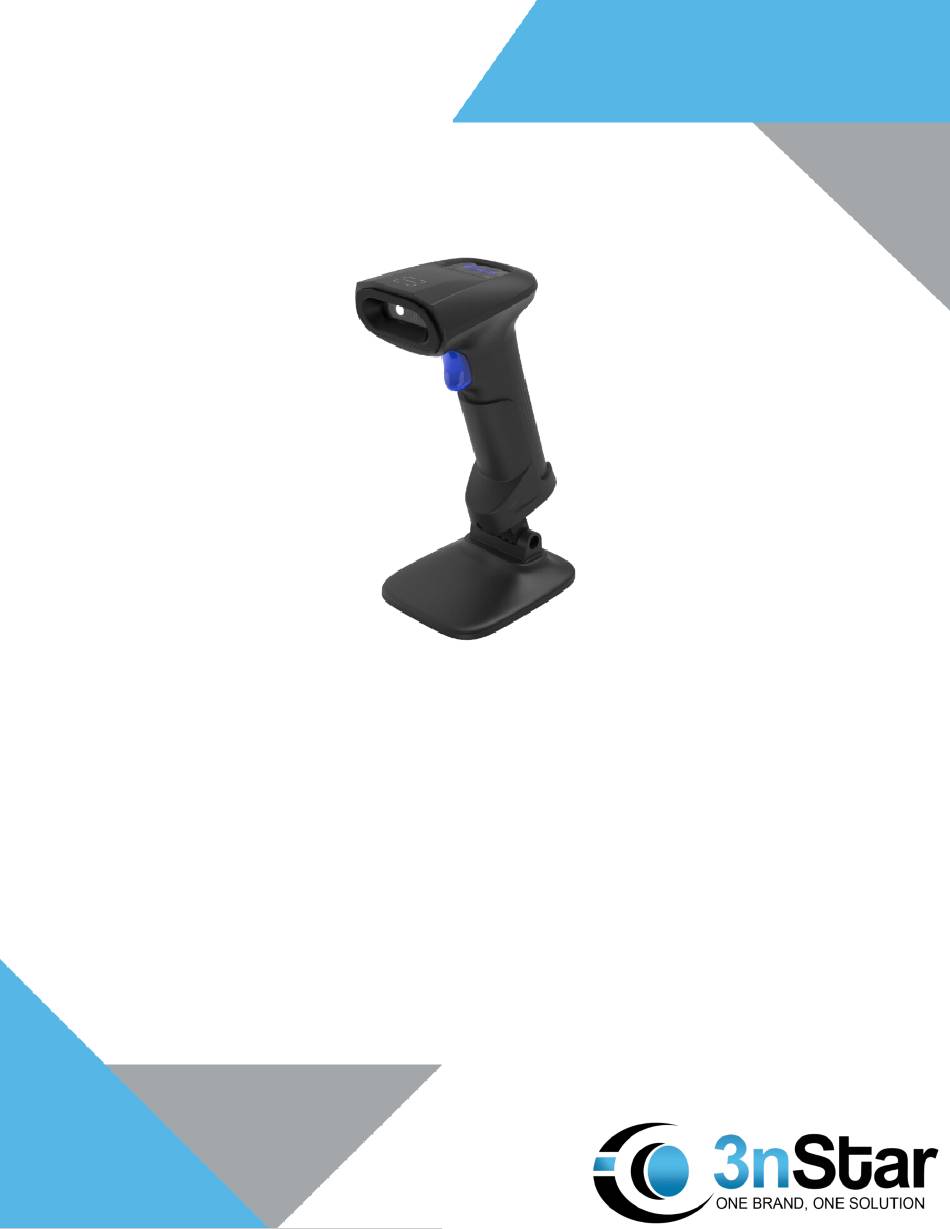

  • Page 1 USER MANUAL PTA0140 SC415 User Manual...
  • Page 2: Table Of Contents

    Content Product Introduction ............................... 1 Quick To Use ................................1 Install Method ................................1 Quick To Use ................................1 Setting Method ................................1 Factory Default Setting ............................2 Version Information ..............................2 Function Settings ..............................2 Interface Selection ..............................2 USB Interface ..............................2 USB Virtual Serial Port ............................
  • Page 3 Red LED Aiming Light Setting .......................... 13 Scan Prompt Light Setting ..........................13 Inverse Color Barcode Reading ........................13 GS1 AI Character ............................. 13 Barcode Function Setting ............................13 Overall Setting ..............................13 Enable/Disable Reading 1D/2D Barcodes ....................... 14 UPC/EAN/JAN Additional Code ........................14 Codabar ..................................15 Codabar Check Bit Setting ..........................
  • Page 4 Code 32 ..................................22 Code 32 Check Bit Setting ..........................23 Code 32 Start Character Setting ........................23 Interleaved 2 of 5 ..............................23 Interleaved 2 of 5 Check Bit Setting ......................... 23 Set Reading Length Range For Interleaved 2 of 5 ...................23 Industrial 25 ................................24 Industrial 25 Check Bit Setting .........................
  • Page 5: Product Introduction

    Product Introduction This user guide is only suitable for 2D barcode scanner. The purpose is to enable users to fully master the use of the scanner. This manual is mainly for the software engineers and some customers who want to know the device in further. 1D Codes: Codabar, Code 11, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 128, GS1-128, UPC-A, UPC-E, EAN-8, EAN-13, ISBN, ISSN, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded, MSI, Standard 25, Plessey...
  • Page 6: Factory Default Setting

    Factory Default Setting All the scanners have a factory default setting. Reading the " Restore factory default " barcode will restore all the settings of the scanner to the factory default. You are most likely to use this barcode in the following situations: 1.
  • Page 7: Usb Virtual Serial Port

    USB Virtual Serial Port If the application of the host using the serial communication method to receive data, the scanner can be set to the USB-VCOM mode. This function requires the installation of the corresponding driver on the host. USB-VCOM RS232 Interface The scanner with RS232 cable communicates with the host through the serial communication interface.
  • Page 8: Parity Check

    Parity Check Parity check provides an efficient method of checking character bit patterns. None* Even parity Odd parity Stop Bit 1 bit* 2 bits Data Bit 8 bits* 7 bits Scan Mode Manual* Auto sense Same Barcode Scan Delay Setting The scanner will delay read when it reading the same barcode, the delay time is calculated from scan window leaving the barcode.
  • Page 9: Keyboard Function

    Keyboard Function Keyboard Language Setting USA* Japan Brazil Czech Denmark Sweden France Italy Norway Spain Slovakia Turkey Q Germany Greece Hungary Turkey (F) Finland...
  • Page 10: Number Lock Function

    Russia Netherlands Number Lock Function Enabling this function can move the numeric keypad in the letter area to the keypad area and input the number with keypad. Number lock on Number lock off * Note: Before enabling this function, please make sure that the Number Lock of the host is turned on. If the "Alt Emulate Keyboard Mode"...
  • Page 11: Alt Emulate Keyboard

    Alt Emulate Keyboard In order to enable the scanner to input any ASCII characters (hexadecimal 0x00 to 0xFF) in any keyboard languages, the keyboard can be set to Alt Emulate Keyboard mode. When using this mode to send characters, the speed will be slow because more data to be sent.
  • Page 12: Input Encoding Format

    Input Encoding Format Select the encoding format for creating the code (if it is PDF417, QR Code, Data Matrix, etc.). After setting, the code can be correctly recognized. UTF-8 and Shift-JIS encoding format barcodes are automatically recognized as default. UTF-8 Automatic* KOI-8 BIG5...
  • Page 13: Data Edit

    Replace GS to ^] Replace GS to ] Replace GS to <GS> Enable custom GS replacement Custom GS replacement setting Custom GS Replacement Instruction(replace to 10 characters at most) Example: Replace GS character to ‘#GS#’ 1. Scan ‘Enable custom GS replacement’ 2.
  • Page 14: Terminator And Start Character Setting

    “Save”.(data edit parameter table) Disable custom suffix setting* Enable custom suffix setting Custom suffix setting Terminator And Start Character Setting The terminator is at the end of the data, and the start character is at the front of the data. The key value of the terminator ETX is End, and the key value of the start character STX is Home.
  • Page 15: Data Bit Setting

    Send middle+end field of data Data Bit Setting The data edit function can cut the barcode data into three fields: start/middle/end fields by configuring the data length of the start/end fields. Please set the length and sending of the start/end fields according to actual needs. Note: Customized prefix and suffix, start character, terminator, CODE ID, AIM ID and other non original data are not affected by the data edit function.
  • Page 16: Code Id Prefix

    Code ID Prefix After turning on Code ID, the corresponding Code ID prefix will appear in the output data. For details, please refer to the appendix. Disable* Enable Sound Settings Decoding Prompt Sound Decoding Prompt Sound Volume High volume* Low volume Decoding Prompt Sound Tone Tone 1 Tone 2...
  • Page 17: Red Led Aiming Light Setting

    Red LED Aiming Light Setting Scan Prompt Light Setting Inverse Color Barcode Reading Only read normal codes* Read both normal & inverse codes GS1 AI Character Read barcodes containing GS1 AI characters, such as GS1-128, GS1-DM, GS1-Databar, and medical UDI barcodes, and output AI characters containing brackets.
  • Page 18: Enable/Disable Reading 1D/2D Barcodes

    to adapt to these feature changes. The fewer barcode types turned on "Enable Reading", the faster the scanner will read. Disabling some barcode types can improve reading performance. Enable/Disable Reading 1D/2D Barcodes Enable all 1D barcodes Disable all 1D barcodes Enable all 2D barcodes Disable all 2D barcodes UPC/EAN/JAN Additional Code...
  • Page 19: Codabar

    Codabar Disable Enable* Codabar Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Codabar Start/End Character Sending Enable Disable* Set Reading Length Range For Codabar Minimum length(0~50bits) Maximum length(0~50bits) Code 11 Disable* Enable...
  • Page 20: Code 11 Check Bit Setting

    Code 11 Check Bit Setting Disable* Enable but not send check bit Enable & send check bit 1 check bit, MOD11 2 check bits, MOD10/MOD11 Set Reading Length Range For Code 11 Minimum length(0~50bits) Maximum length(0~50bits) Code 128 Disable Enable* Set Reading Length Range For Code 128 Minimum length(0~50bits) Maximum length(0~50bits)
  • Page 21: Gs1 128

    GS1 128 Disable* Enable Code 39 Disable Enable* Code 39 Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Code 39 Start/End Character Sending Disable* Enable Code 39 Full ASCII Enable Disable*...
  • Page 22: Set Reading Length Range For Code 39

    Set Reading Length Range For Code 39 Minimum length(0~50bits) Maximum length(0~50bits) Code 93 Disable* Enable Code 93 Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Set Reading Length Range For Code 93 Minimum length(0~50bits) Maximum length(0~50bits) EAN 8 Disable...
  • Page 23: Ean 8 Check Bit Sending

    EAN 8 Check Bit Sending Disable Enable* EAN 8 Expand To EAN 13 Enable Disable* EAN 13 Disable Enable* EAN 13 Check Bit Sending Disable Enable* UPC-A Disable Enable*...
  • Page 24: Upc-A Check Bit Sending

    UPC-A Check Bit Sending Disable Enable* UPC-A Prefix Character Output Setting No prefix System character* System character and country code UPC-E Disable Enable* UPC-E Check Bit Sending Disable Enable* UPC-E Prefix Character Output Setting No prefix System character* System character and country code...
  • Page 25: Upc-E Expand To Upc-A

    UPC-E Expand To UPC-A Disable* Enable Matrix 25 Disable Enable* Matrix Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Set Reading Length Range For Matrix 25 Minimum length(0~50bits) Maximum length(0~50bits) RSS14 Disable Enable*...
  • Page 26: Rss-Stack

    RSS-Stack Disable Enable* RSS-Expanded Disable Enable* RSS-Expanded Stack Disable Enable* RSS-Limited Disable Enable* Code 32 Disable Enable*...
  • Page 27: Code 32 Check Bit Setting

    Code 32 Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Code 32 Start Character Setting Enable Disable* Interleaved 2 of 5 Disable Enable* Interleaved 2 of 5 Check Bit Setting Disable* Enable but not send check bit Enable &...
  • Page 28: Industrial 25

    Industrial 25 Disable Enable* Industrial 25 Check Bit Setting Disable Enable but not send check bit Enable & send check bit Set Reading Length Range For Industrial 25 Minimum length(0~50bits) Maximum length(0~50bits) Standard 25 Disable Enable* Standard 25 Check Bit Setting Disable* Enable but not send check bit Enable &...
  • Page 29: Set Reading Length Range For Standard 25

    Set Reading Length Range For Standard 25 Minimum length(0~50bits) Maximum length(0~50bits) Disable* Enable MSI Check Bit Setting Disable* Enable but not send check bit Enable & send check bit 1 Check Bit MOD10 2 Check Bits MOD10 MOD10/MOD11 Both Set Reading Length Range For MSI Minimum length(0~50bits) Maximum length(0~50bits) Plessey...
  • Page 30: Plessey Check Bit Setting

    Plessey Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Set Reading Length Range For Plessey Minimum length(0~50bits) Maximum length(0~50bits) DataMatrix Disable Enable* Set Reading Length Range For DataMatrix Minimum length(0~50bits) Maximum length(0~50bits) Disable Enable*...
  • Page 31: Url Link Qr Code Reading

    URL Link QR Code Reading Enable* Disable Set Reading Length Range For QR Minimum length(0~50bits) Maximum length(0~50bits) Micro QR Disable* Enable PDF 417 Disable Enable* Set Reading Length Range For PDF 417 Minimum length(0~50bits) Maximum length(0~50bits)
  • Page 32: Micro Pdf

    Micro PDF Disable* Enable Maxicode Disable* Enable Set Reading Length Range For Maxicode Minimum length(0~50bits) Maximum length(0~50bits) Aztec Disable* Enable Set Reading Length Range For Aztec Minimum length(0~50bits) Maximum length(0~50bits)
  • Page 33: Han Xin Code

    Han Xin Code Disable* Enable Set Reading Length Range For Han Xin Code Minimum length(0~50bits) Maximum length(0~50bits) Appendix Data Edit And Setting Parameter Barcodes...
  • Page 35: Code Id Table

    Save Cancel 1 data of current setting Cancel all data of current setting Code ID Table Code Type CODE ID Code Type CODE ID UPC-A INDU-25 UPC-E STANDARD-25 EAN-8 CODABAR EAN-13 ISSN PLESSEY ISBN RSS LIM CODE-128 RSS EXP GS1-128 RSS EXP ISBT-128 RSS ST...
  • Page 36: Appendix Ascii Table

    CODE-93 Micro QR CODE-32 Micro PDF417 ITF-25 PDF417 ITF-6 ITF-14 MAXICODE INT-25 AZTEC MATRIX-25 Han Xin CODE CODE-11 Appendix ASCII table Character Character Character <SPACE> “ & ‘ < >...
  • Page 37: Control Character Table(Usb-Kbw Mode)

    Control Character Table(USB-KBW Mode) Key Value(Enable Control Character Escape) Key Value(Disable Control Character Escape) Reserve Ctrl+@ Insert Ctrl+A Home Ctrl+B Ctrl+C Delete Ctrl+D PageUp Ctrl+E PageDown Ctrl+F Ctrl+G Backspace Ctrl+H Ctrl+I Enter(Output will be influenced by CR/LF settings) Ctrl+J Caps Lock Ctrl+K Print Screen Ctrl+L...
  • Page 38 the maximum reading length of a barcode, you need to ensure that the maximum length you set is not less than the current minimum length setting. Ex1: Set the reading length of Code128 as 4-12 characters “ Minimum length(0~50bits)”----------- Set Reading Length Range For Code 128 “4”---------------Data Edit And Setting Parameter Barcodes “Save”--------------Data Edit And Setting Parameter Barcodes “...
  • Page 39 PTA0140...
