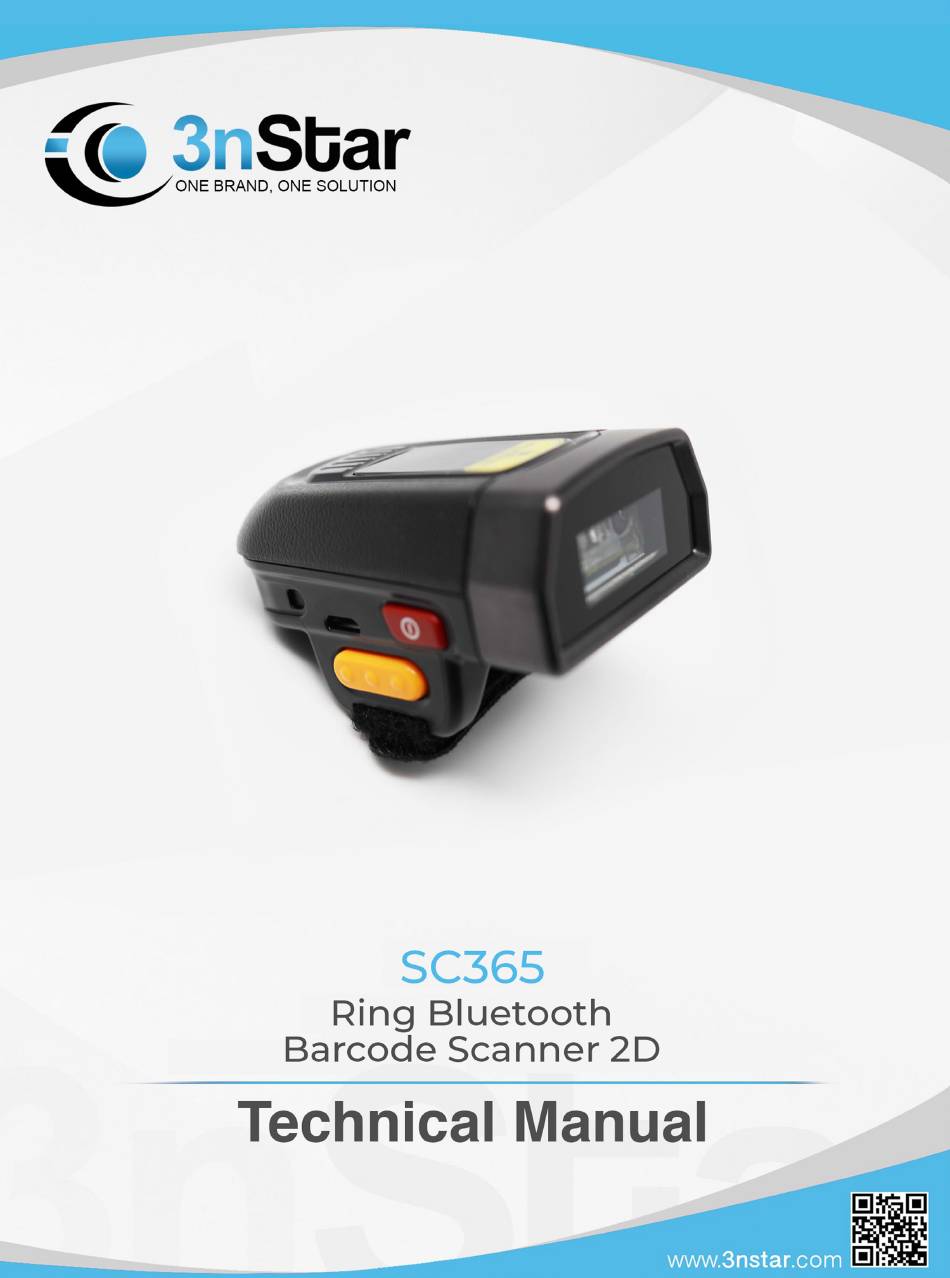

3nStar SC365 Technical Manual

Ring bluetooth barcode scanner 2d
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC365 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3nStar SC365

Summary of Contents for 3nStar SC365

  • Page 2: Getting Started

    Getting Started Power on：Press "Power Button" Power off：Press and hold the"Power Button" for 3 seconds Scan Trigger: Press the "Scan Button" to Trigger Scanning Font size view Side view...
  • Page 3 Buzzer/LED lights prompt Description State The top indicator: Blue light blinking slowly Awaiting Bluetooth connection Solid blue Bluetooth pairing successfully Red light blink 3 times(w/buzzer ringing 5 times) Low battery Solid red In charge Red light goes out Charging completed The tail indicator Buzzer ringing continuously 2.4G mode awaiting connection...
  • Page 4 SC365. Step 3.On your devices the SC365 will appear underneath the list of available devices. Check that the S/N in brackets matches the S/N on the back of the SC365, and tap to connect. Step 4. Once the SC365 connects, the top indicator blue light will be always on.
  • Page 5 show it in your phone(the barcode value : ‘$BT#MAC ’+’ MAC address’). For example. The mac is 3C:2D:4E:13:4C , the barcode value would be $BT#MAC3C2D4E134C. Step 3. Scan this barcode by ring scanner to pair in voluntary. Step 4. ‘Agree’ in your phone.

  • Page 6: Common Settings

    Common Settings Normal setting Obtain the information(version/battery percentage) of the ring scanner: Initialization: Unpaired: Add the suffix “Enter”: Cancel the suffix “Enter”: Normal (stop offline state):...
  • Page 7 Offline mode(start offline state): Upload data: Clear the storage: Upload amount: Caps Lock:...
  • Page 8 2.4GHz Connection Channel...
  • Page 9 Bluetooth Transmission Mode Bluetooth HID Mode Bluetooth SPP Mode...

  • Page 10: Keyboard Language

    Sleep Extension Time Keyboard Language Scan one of the following bar codes to set different countries’ keyboard language. English(US)
  • Page 11 French Germen Spain Portuguese...

  • Page 12: Customize Setting

    Turkish Italian Customize setting The ring scanner offer two custom key ,you can customize the key value as you need . Example Power key(KEY0) default :none (long-press : power off) Custom key(KEY1) default :none For example : Set the custom key value as “Backspace” The steps: Please scan the ‘...
  • Page 13 Scan the bar code ‘$KEY0#1’ to enable the key value of the custom key” Tips:Back space-1008,Space-1032,Tab-1009,Enter-1013. If you need more setting ,Please contact the supplier or manufacturer. Key Value Setting Set the value of ‘power button’ Set the value of ‘custom button’ Enable/Disable the customer button setting Enable the key value of the power button disable the key value of the power button...

  • Page 15: All Symbologies

    Symbologies All Symbologies If you want to decode all the symbologies allowable for your scanner, scan the Enable All Code Types code . If on the other hand , you want to decode only a particular symbologies scan Disable All Code Types followed by the On symbol for that particular symbology Note.
  • Page 16 UPC-A Scan one of the following bar codes to enable or disable UPC-A UPC-E Scan one of the following bar codes to enable or disable UPC-E...
  • Page 17 UPC-E1 Scan one of the following bar codes to enable or disable UPC-E1. Note. UPC-E1 is not a UCC(Uniform Code Concil) approved symbology EAN-8/JAN-8 Scan one of the following bar codes to enable or disable EAN-8/JAN-8 EAN-13/JAN-13 Scan one of the following bar codes to enable or disable EAN-13/JAN-13...

  • Page 18: Bookland Ean

    Bookland EAN Scan one of the following bar codes to enable or disable Bookland EAN ISSN EAN Scan one of the following bar codes to enable or disable ISSN EAN Code 128 Scan one of the following bar codes to enable or disable Code 128...
  • Page 19 GS1-128 Scan one of the following bar codes to enable or disable GS1-128 ISBT 128 ISBT 128 is a variant of Code 128 used in the blood bank industry. Scan one of the following bar codes to enable or disable ISBT 128.
  • Page 20 Code 39 Scan one of the following bar codes to enable or disable Code 39 Code 39 Full ASCII Conversion Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set. Scan one of following bar codes to enable or disable Code39 Full ASCII. Code 93 Scan one of the following bar codes to enable or disable Code 93...

  • Page 21: Interleaved 2 Of 5 (Itf)

    Code 11 Scan one of the following bar codes to enable or disable Code 11 Interleaved 2 of 5(ITF) Scan one of the following bar codes to enable or disable Interleaved 2 of 5(ITF)
  • Page 22 Discrete 2 of 5(DTF) Scan one of the following bar codes to enable or disable Discrete 2 of 5(DTF) Codabar Scan one of the following bar codes to enable or disable Codabar Scan one of the following bar codes to select whether to transmit upper case or lower case Codabar start/stop characters.
  • Page 23 Scan one of the following bar codes to enable or disable MSI Chinese 2 of 5 Scan one of the following bar codes to enable or disable Chinese 2 of 5 Matrix 2 of 5 Scan one of the following bar codes to enable or disable Matrix 2 of 5...
  • Page 24 Inverse 1D Scan one of the following bar codes to set 1D inverse decoder setting: Regular Only – The engine decodes regular 1D bar codes only. Inverse Only – The engine decodes inverse 1D bar codes only. Inverse Autodetect - The engine decodes both regular and inverse 1D bar codes. Composite CC-C Scan one of the following bar codes to enable or disable Composite bar codes of type CC-C.

  • Page 25: Composite Tlc

    Composite CC-A/B Scan one of the following bar codes to enable or disable Composite bar codes of type CC-A/B. Composite TLC-39 Scan one of the following bar codes to enable or disable Composite bar codes of type TLC-39 PDF-417 Scan one of the following bar codes to enable or disable PDF-417...

  • Page 26: Data Matrix

    Micro PDF-417 Scan one of the following bar codes to enable or disable Micro PDF-417 Data Matrix Scan one of the following bar codes to enable or disable Data Matrix.
  • Page 27 Scan one of the following bar codes to select the Data Matrix inverse decoder setting: Regular Only – The engine decodes regular Data Matrix codes only. Inverse Only – The engine decodes inverse Data Matrix codes only. Inverse Autodetect - The engine decodes both regular and inverse Data Matrix bar codes. Maxi Code Scan one of the following bar codes to enable or disable Maxi Code...
  • Page 28 QR-CODE Scan one of the following bar codes to enable or disable QR-CODE MicroQR Scan one of the following bar codes to enable or disable MicroQR Aztec Scan one of the following bar codes to enable or disable Aztec...
  • Page 29 Han Xin Scan one of the following bar codes to enable or disable Han Xin Suffix &Prefix Prefix Data Suffix You can append a prefix and/or one or two suffixes to scan data for use in data editing. To set a value for a prefix or suffix , scan one of the following bar codes, and then scan four bar codes from Appendix 1 that correspond to that value.

  • Page 30: Scan Data Transmission Format

    Scan Data Transmission Format To change the scan data format, scan one of the following bar codes corresponding to the desired format.
  • Page 32 Example. Add HT(Tab) suffix: Restore the scanner (if necessary) Set the suffix value as ‘TAB’ , please scan the following barcode in sequence Add suffix1 ASCII Value...
  • Page 33 Enable suffix <data><suffix1>...
  • Page 34 Resetting the Factory Default...

  • Page 35: Appendix 1 Numeric Bar Codes

    Appendix 1 Numeric Bar Codes For parameters requiring specific numeric values, scan the appropriately numbered bar code(s).
  • Page 37 Cancel...

  • Page 38: Appendix 2 Ascii Conversion Chart

    Appendix 2 ASCII Conversion Chart Character ASCII description Value 1008 Backspace 1009 1013 Enter Caps Lock 1016 Caps Lock Space 1032 Space ！ 1033 The following are characters “” 1034 1035 1036 1037 & 1038 ‘ 1039 1040 1041 1042 1043 1044 1045...
  • Page 39 1066 1067 1068 1069 1070 1071 1072 1073 1074 1075 1076 1077 1078 1079 1080 1081 1082 1083 1084 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 “a” 1097 “b” 1098 “c” 1099 “d” 1100 “e” 1101 “f”...
  • Page 40 “m” 1109 “n” 1110 “o” 1111 “p” 1112 “q” 1113 “r” 1114 “s” 1115 “t” 1116 “u” 1117 “v” 1118 “w” 1119 “x” 1120 “y” 1121 “z” 1122 1123 1124 1125 1126...
